#08578
SwitchesUBIQUITIES-48-750W

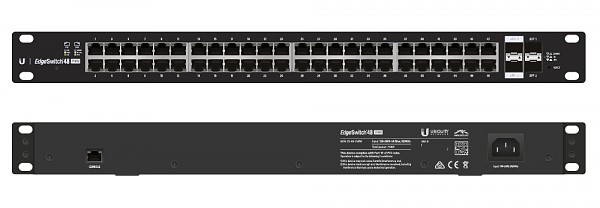

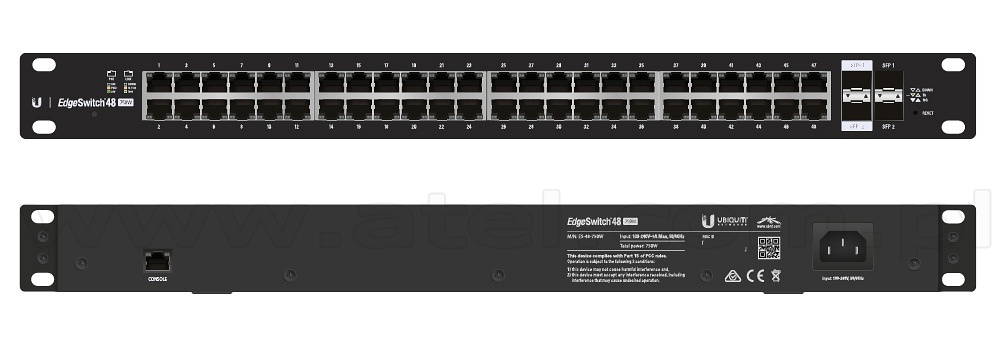

Managed switch, 48x 10/1000 RJ-45, 2x 100/1000 SFP, 2x 10G SFP+, PoE+, 19" (Ubiquiti ES-48-750W)

Ports
RJ-45 (10/100/1000 Mbps) 48
SFP (100/1000 Mbps) 2
SFP+ 10 Gigabit ports 2
Management Interface RJ45 Serial Port,
Ethernet In/Out Band
Power over Ethernet (PoE)
POE+ IEEE 802.3af/at Pins 1, 2+; 3, 6-
24VDC Passive PoE Pins 4, 5+; 7, 8-
Power dedicated to PoE 34.2W
Voltage Range 802.3at 50–57V
Max. Passive PoE Wattage per Port 17W
24V Passive PoE Voltage Range 20-27V
Performance
Switching Capacity in Gigabits per Second (Gbps) 140
Forwarding Rate (Mpps) 104.16
Software Information
Layer 2 Switching Broadcast Storm Recovery,
Broadcast/Multicast/Unknown Unicast Storm Recovery,
DHCP Snooping,
IGMP Snooping Querier,
Independent VLAN Learning (IVL) Support,
Jumbo Ethernet Frame Support,
Port MAC Locking,
Port Mirroring,
Protected Ports,
Static MAC Filtering,
TACACS+,
Voice VLANs,
Unauthenticated VLAN,
Internal 802.1X Authentication Server
Management Web UI,
Industry-Standard CLI,
IPv6 Management,
Password Management,
Autoinstall Support for Firmware Images and Configuration Files,
SNMP v1,
v2,
and v3,
SSH 1.5 and 2.0,
SSL 3.0 and TLS 1.0,
Secure Copy (SCP),
Telnet (Multi-Session Support)
Core Switching Features ANSI/TIA-1057 - LLDP-Media Endpoint Discovery (MED),
IEEE 802.1AB - Link Layer Discovery Protocol (LLDP),
IEEE 802.1D - Spanning Tree Compatibility,
IEEE 802.1S - Multiple Spanning Tree Compatibility,
IEEE 802.1W - Rapid Spanning Tree Compatibility,
IEEE 802.1Q - Virtual LANs with Port-Based VLANs,
IEEE 802.1p - Ethernet Priority with User Provisioning and Mapping,
IEEE 802.1X - Port-Based Authentication with Guest VLAN Support,
IEEE 802.3 - 10BASE-T,
IEEE 802.3u - 100BASE-T,
IEEE 802.3ab - 1000BASE-T,
IEEE 802.1ak - Virtual Bridged Local Area Networks - Amendment 07 - Multiple Registration Protocol,
IEEE 802.3ac - VLAN Tagging,
IEEE 802.3ad - Link Aggregation,
IEEE 802.3x - Flow Control,
IEEE 802.1D-2004 - Generic Attribute Registration Protocol - Clause 12 (GARP),
IEEE 802.1D-2004 - Dynamic L2 multicast registration - Clause 10 (GMRP),
IEEE 802.1Q-2003 - Dynamic VLAN registration - Clause 11.2 (GVRP),
RFC 4541 - Considerations for Internet Group Management Protocol (IGMP) Snooping Switches,
RFC 5171 - Unidirectional Link Detection (UDLD) Protocol
General
Dimensions 485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75")
Weight 6.1 kg (13.5 lb)
Weight With Mount Brackets 6.5 kg (14.3 lb)
Power 100-240VAC/50-60 Hz,
Universal Input
Power Supply AC/DC,
Internal,
750W DC
Operating temperature -5 40C
Operating humidity 5% to 95% ,
relative,
noncondensing
Certification CE,
FCC,
IC
Shock and Vibration ETSI300-019-1.4 Standard
Manufacturer Ubiquiti

TAGS: PoE plus
Net Price: 964.00 USD  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
