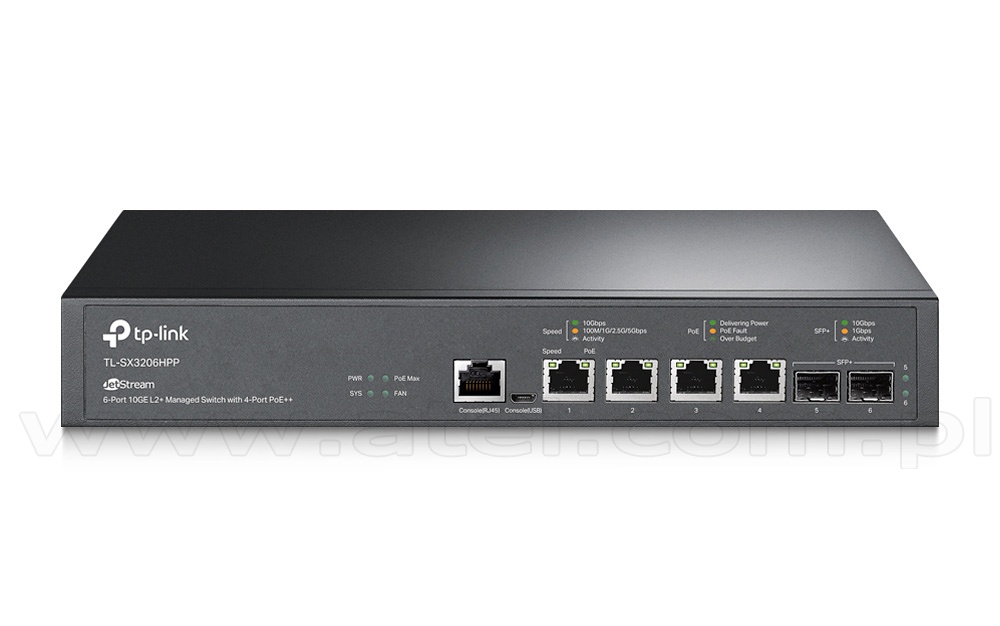

Managed switch, 6x 10G RJ-45, 2x SFP+, PoE++, 11.6", 19" Rack-mounting Bracket (TP-Link TL-SX3206HPP)
- Full 10G Lightning-Fast Connection: Offers high-bandwidth connectivity with lightning-fast 4× 10 Gbps RJ45 ports and 2× 10 Gbps SFP+ slots.
- PoE++ Output with 200 W Power Budget†: Four 802.3af/at/bt PoE++ 10G ports with up to 60 W PoE output on each port make it ideal for the deployment of Omada WiFi 6 and WiFi 6E APs.
- Abundant L2 and L2+ Features: Supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping.
- Robust Security Strategies: Supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

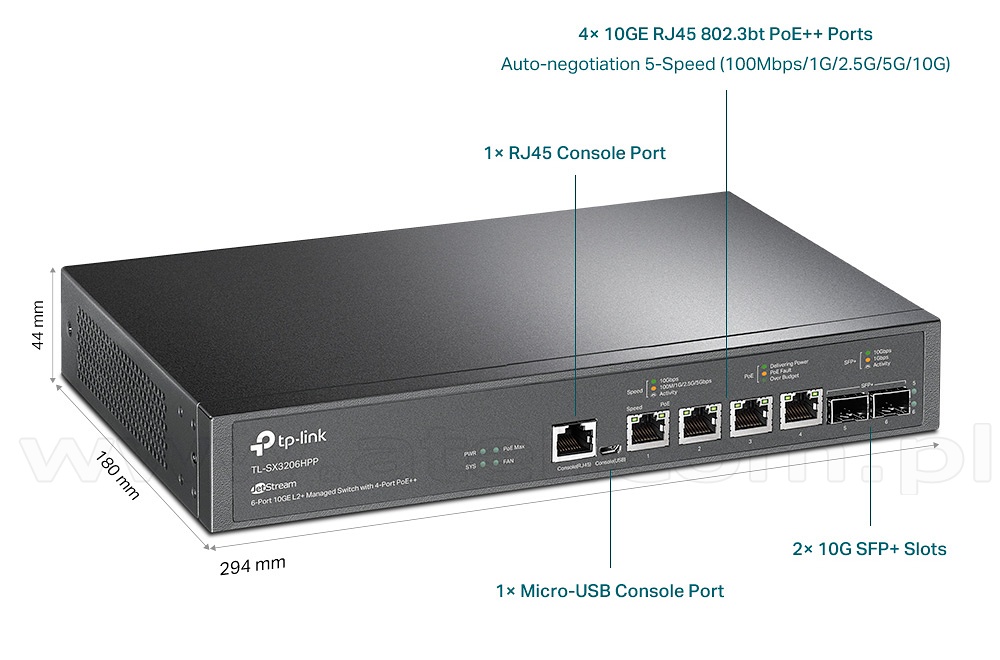

| Ports | 4× 100/1000/2500/5000/10000 Mbps RJ45 Ports, 2× 10G SFP+ Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port |
|---|---|
| PoE Ports (RJ45) | Standard 802.3bt/at/af compliant, PoE+ Ports 4 Ports, up to 60 W per port, Power Budget 200 W |
| Auto MDI/MDI-X | yes |
| Auto-negotiation (Nway) | yes |
| Fan Quantity | 2 |
| Switching Capacity | 120 Gbps |
| Packet Forwarding Rate | 89.28 Mpps |
| MAC Address Table | 32 K |
| Jumbo Frame | 9 KB |
| Software features | |
| Quality of Service | 802.1p CoS/DSCP priority, 8 priority queues, Priority Schedule Mode, SP (Strict Priority), WRR (Weighted Round Robin), Queue Weight Config, Bandwidth Control, Port/Flow-based Rating Limit, Smoother Performance, Storm Control, Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control |
| L2 and L2+ Features | DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
| L2 Multicast | 511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
| IPv6 Support | IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| VLAN | VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN 12 Entries, Protocol VLAN, GVRP, Voice VLAN |
| Access Control List | Support up to 230 entries, Time-Range, Time Slice, Week Time-Range, Absolute Time-Range, Holiday, Time-based ACL, MAC ACL, Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type, IP ACL, Source IP, Destination IP, IP Protocol, TCP Flag, TCP/UDP Source Port, TCP/UDP Destination Port, DSCP/IP TOS, IPv6 ACL, Combined ACL, Rule Operation, Permit/Deny, Policy Action, Mirror, Rate Limit, Redirect, QoS Remark, ACL Rules Binding, Port Binding, VLAN Binding, Actions for flows, Mirror (to supported interface), Redirect (to supported interface), Rate Limit, QoS Remark |
| Security | AAA, 802.1X, Port-based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC-based access control |
| Advanced Features | Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule |
| MIBs | MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9) |
| Management | |
| Omada App | Yes, through, Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access | Yes, through, Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| Management Features | Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
| Housing / case type | 11.6", metal |
| Dimensions | 294×180×44 mm |
| Operating temperature | 0°C ÷ 50°C |
| Operating humidity | 10% ÷ 90%, non-condensing |
| Power | 100-240 V AC~50/60 Hz |
| Max Power Consumption | 27.29 W (110V/60Hz) (no PD connected), 244.90 W (110V/60Hz) (with 200 W PD connected) |
| Max Heat Dissipation | 93.12 BTU/h (110 V/60 Hz) (no PD connected), 835.67 BTU/h (110 V/60 Hz) (with 200 W PD connected) |
| Certificates | CE, FCC ,RoHS |
| Warranty period | 5 years |
| Manufacturer | TP-Link |
Net Price: 517.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
