#09318
Routers › TP-LINK › ER706W

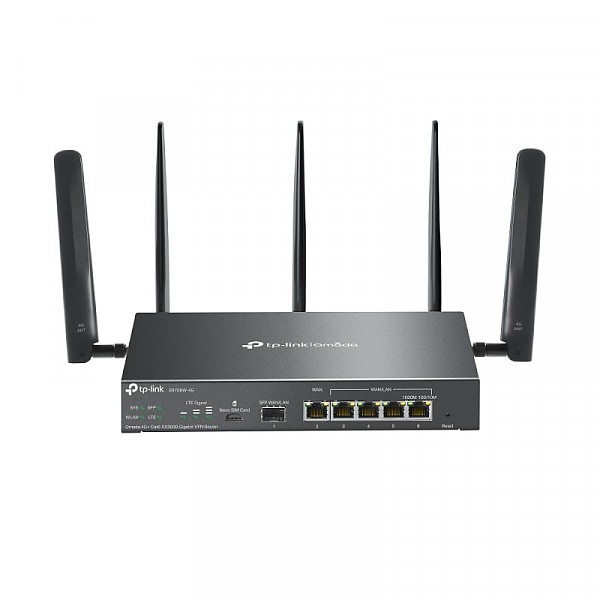

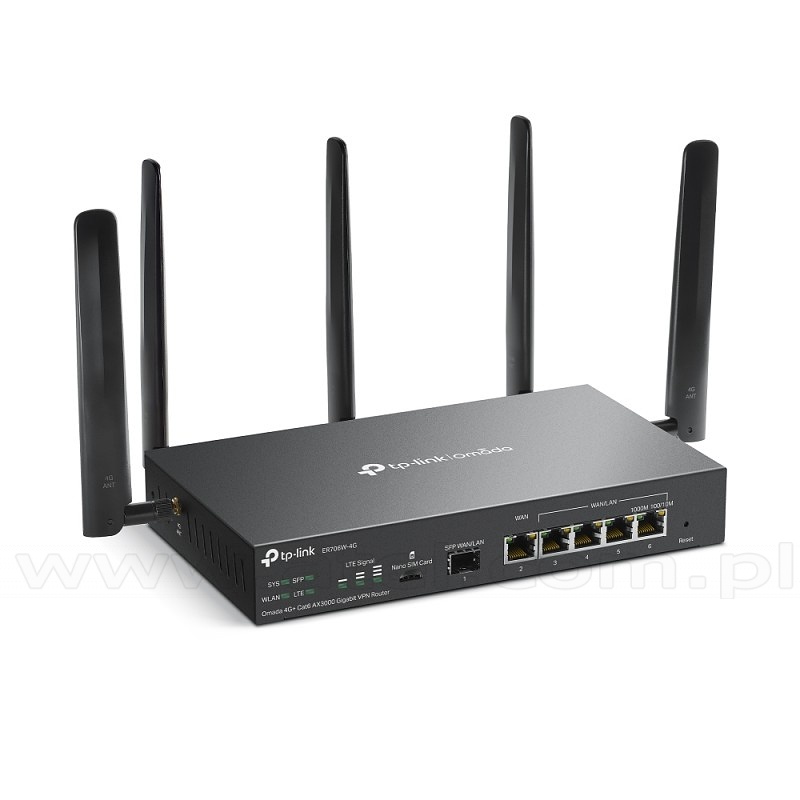

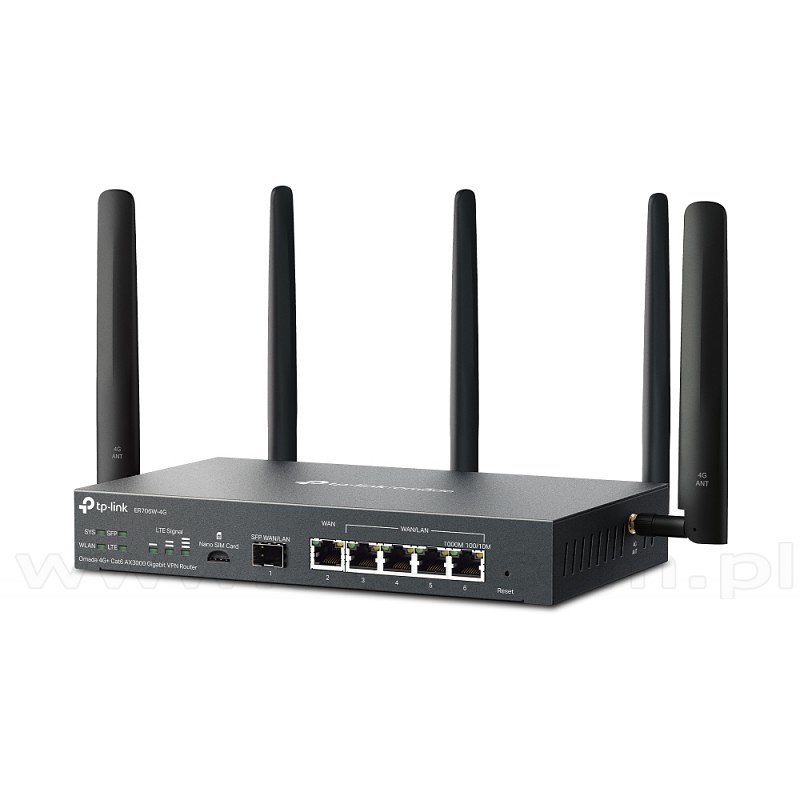

3000Mbps Wireless gigabit VPN Router Omada, 5x 10/100/1000 RJ-45, 1 SFP slots, desktop (TP-Link ER706W)

  • AX3000 Dual-Band WiFi: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
  • 6 Gigabit Ethernet Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
  • Omada Mesh Technology: Seamlessly connects to EAPs that support mesh technology, ideal for large-scale scenarios.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Boosted Coverage: Triple external antennas extend and concentrate the Wi-Fi signals.
  • High-Security VPN: Supports multiple VPN protocols including IPSec / SSL / Wireguard / PPTP / L2TP VPN, helping users to establish remote connections more flexibly.
  • Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.
Standards IEEE 802.3u/ab/z/x/q
Copper ports 1 Gigabit SFP WAN/LAN Port,
1 Gigabit WAN Port,
4 Gigabit LAN/WAN Ports,
1 USB3.0 (supports USB LTE dongle and USB Storage)
Flash 128 MB NAND
DRAM 512 MB DDR4
Antenna 2.4 GHz 2x 3 dBi dual-band detachable antennas,
5 GHz 3x 4.5 dBi dual-band detachable antennas
Performance
GRE Unencrypted 624,2 Mb/s,
Encrypted 301,5 Mb/s
WireGuard VPN 393,5 Mb/s
Concurrent Session 150,000
New Sessions /Second 5,100
NAT (Static IP) 937,2 Mb/s / 936,1 Mb/s
NAT(DHCP) 945,8 Mb/s / 940,6Mb/s
NAT(PPPoE) 942,9 Mb/s / 942,9Mb/s
NAT (L2TP) 837,4 Mb/s / 881,5 Mb/s
NAT (PPTP) 803,0 Mb/s / 910,5 Mb/s
IPsec VPN Throughput ESP-SHA1-AES256 646,9 Mb/s,
ESP-SHA256-AES256 642,8 Mb/s,
ESP-SHA384-AES256 648,9 Mb/s,
ESP-SHA512-AES256 658,4 Mb/s
OpenVPN 129,3 Mb/s
L2TP VPN Throughput Unencrypted 1034,0 Mb/s,
Encrypted 570,0 Mb/s
PPTP VPN Throughput Unencrypted 1165,0 Mb/s,
Encrypted 209,0 Mb/s
SSL VPN Throughput 126,7 Mb/s
66 Byte Packet forwarding rate 1,453,489 p/s / 1,453,488 p/s
1,518 Byte Packet forwarding rate 81,274 p/s / 91,275 p/s
Basic functions
WAN Connection Type Static/Dynamic IP,
PPPoE,
PPTP,
L2TP
MAC Clone Modify WAN/LAN MAC Address
DHCP DHCP Server,
DHCP Address Reservation,
Multi-IP Interfaces,
Multi-Net DHCP
IPv6 Developing
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy
Advanced functions
ACL IP/Port/Protocol/Domain Name Filtering
Advanced Routing Static Routing,
Policy Routing
Bandwidth Control IP/Port-based Bandwidth Control,
Guarantee & Limited Bandwidth
Load Balance Intelligent Load Balance,
Application Optimized Routing,
Link Backup (Timing§,
Failover),
Online Detection
NAT One-to-One NAT,
Multi-Net NAT,
Virtual Server,
Port Triggering,
NAT-DMZ,
FTP/H.323/SIP/IPSec/PPTP ALG,
UPnP
Security SPI Firewall,
VPN Passthrough,
FTP/H.323/PPTP/SIP/IPsec ALG,
DoS Defence,
Ping of Death,
Local Management
Session Limit IP-based Session Limit
VPN
IPsec VPN 100 IPSec VPN Tunnels,
LAN-to-LAN,
Client-to-LAN,
Main,
Aggressive Negotiation Mode,
DES,
3DES,
AES128,
AES192,
AES256 Encryption Algorithm,
IKEv1/v2,
MD5,
SHA1 Authentication Algorithm,
NAT Traversal (NAT-T),
Dead Peer Detection (DPD),
Perfect Forward Secrecy (PFS)
PPTP VPN PPTP VPN Server,
10 PPTP VPN Clients,
50 Tunnels,
PPTP with MPPE Encryption
L2TP VPN L2TP VPN Server,
10 L2TP VPN Clients,
50 Tunnels,
L2TP over IPSec
OpenVPN OpenVPN Server,
10 OpenVPN Clients,
50 OpenVPN Tunnels
Web Authentication No Authentication,
Simple Password,
Hotspot（Local User / Voucher* / SMS* / Radius*）,
External Radius Sever,
External Portal Sever,
Facebook
Management
Omada App Yes
Centralized Management Omada Cloud-Based Controller,
Omada Hardware Controller (OC300),
Omada Hardware Controller (OC200),
Omada Software Controller
Cloud Access Yes (Through OC300,
OC200,
Omada Cloud-Based Controller,
or Omada Software Controller)
Service Dynamic DNS (Dyndns,
No-IP,
Peanuthull,
Comexe)
Maintenance Web Management Interface,
Remote Management,
Export & Import Configuration,
SNMP v1/v2c/v3,
Diagnostics (Ping & Traceroute),
NTP Synchronize,
Syslog Support
Management Features Automatic Device Discovery,
Intelligent Network Monitoring,
Abnormal Event Warnings,
Unified Configuration,
Reboot Schedule,
Captive Portal Configuration,
ZTP (Zero-Touch Provisioning)
Dimensions 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Operating temperature 0°C ÷ 40°C
Operating humidity 10% ÷ 90%,
non-condensing
Power 12VDC / 2A Power Adapter
Max Power Consumption EU 16.8W (with USB 3.0 connected),
11.8W (without USB 3.0 connected),
US 22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected)
Certificates CE,
FCC,
RoHS
Manufacturer TP-Link
Print to PDF
Technical Support
« previous product  |  next product »     » show on list«» Routers «
TAGS: SFP slot
Net Price: 141.00 USD  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
[+]add item to comparison | show comparison [0]
