#09034
NEW
SwitchesTP-LINKTL-SL1218MP

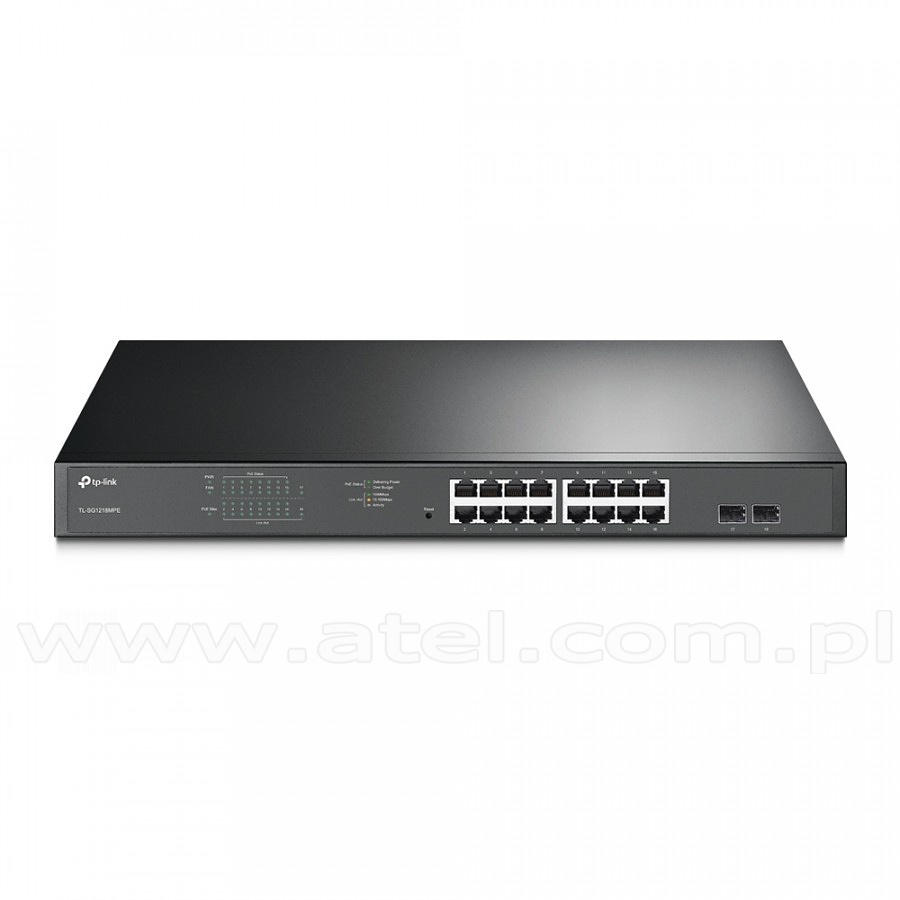

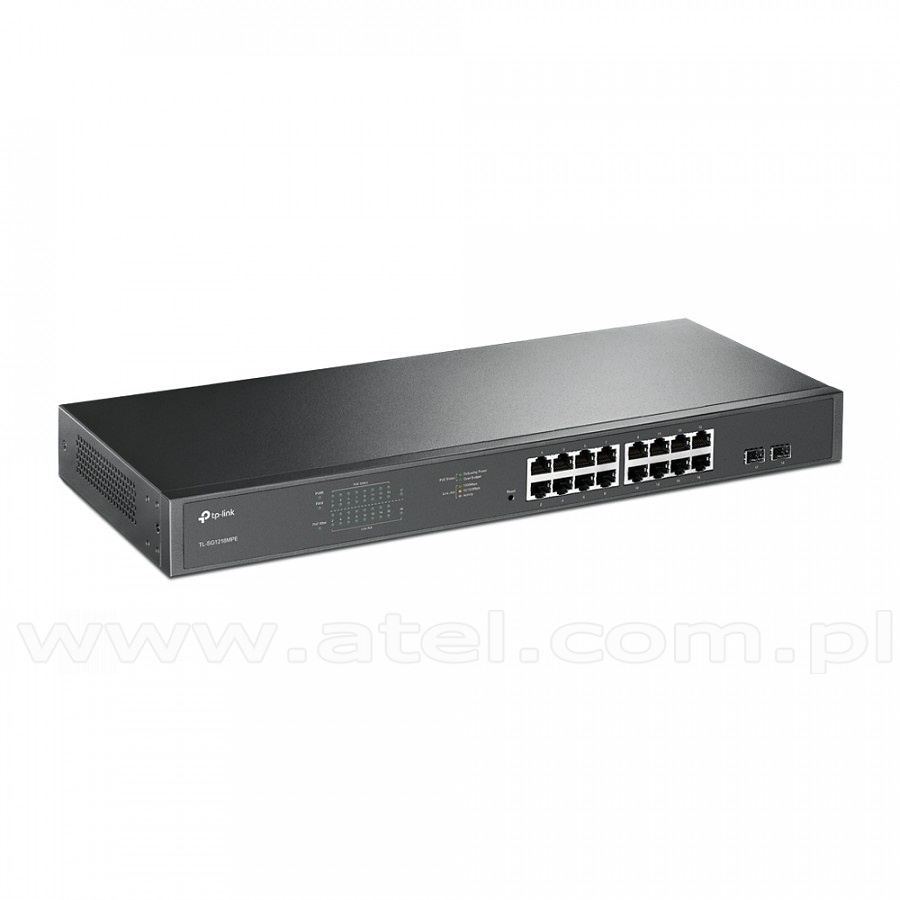

Smart switch, 16x 10/100/1000 RJ-45, 2x 10/100/1000 RJ-45, 2x SFP, PoE+ (TP-Link TL-SL1218MP)

  • 16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots
  • Up to 250m data and power transmission under extend mode specially designed for surveillance system
  • Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor
  • High PoE power budget with up to 30W for each PoE port and 192W for all PoE ports
  • Easy to use, with no configuration and installation needed
Standards IEEE 802.3,
IEEE 802.3u,
IEEE 802.3ab,
IEEE 802.3x,
IEEE 802.3af,
IEEE 802.3at,
IEEE 802.1q,
IEEE 802.1p
Copper ports 16x 10/100 Mbps RJ-45 PoE+,
2x 10/100/1000Mbps RJ45 Ports
SFP Ports 2 Gigabit Combo SFP Ports
Fan Quantity 2
PoE Ports Standard 802.3 at compliant,
PoE Ports Port 1- Port 16,
PoE Power Budget 192W
Performance:
Backup Bandwidth 7.2 Gbps
MAC Address Table 8K
Software features:
Quality of Service Support Port-based/802.1p/DSCP priority,
Support 4 priority queues,
Rate Limit,
Storm Control
L2 Features IGMP Snooping V1/V2/V3,
Static Link Aggregation,
Port Mirroring,
Cable Diagnostics,
Loop Prevention
VLAN Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs),
MTU/Port/Tag VLAN
Management Web-based GUI,
Easy Smart Configuration Utility
Transmission Method Store-And-Forward
Dimensions 17.3 7.1 1.7 in. (440 180 44 mm)
Operating Temperature 0℃~40℃ (32℉~104℉)
Storage Temperature -40℃~70℃ (-40℉~158℉)
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing
Power 100-240VAC,
50/60Hz
Power Consumption 18.73 W (220/50Hz. no PD connected),
217.22 W (220/50Hz. with 192W PD connected)
Max Heat Dissipation 63.89 BTU/h (no PD connected),
741.15 BTU/h (with 192W PD connected)
Certificates CE,
FCC,
RoHS
Warranty 5 years
Manufacturer TP-Link
