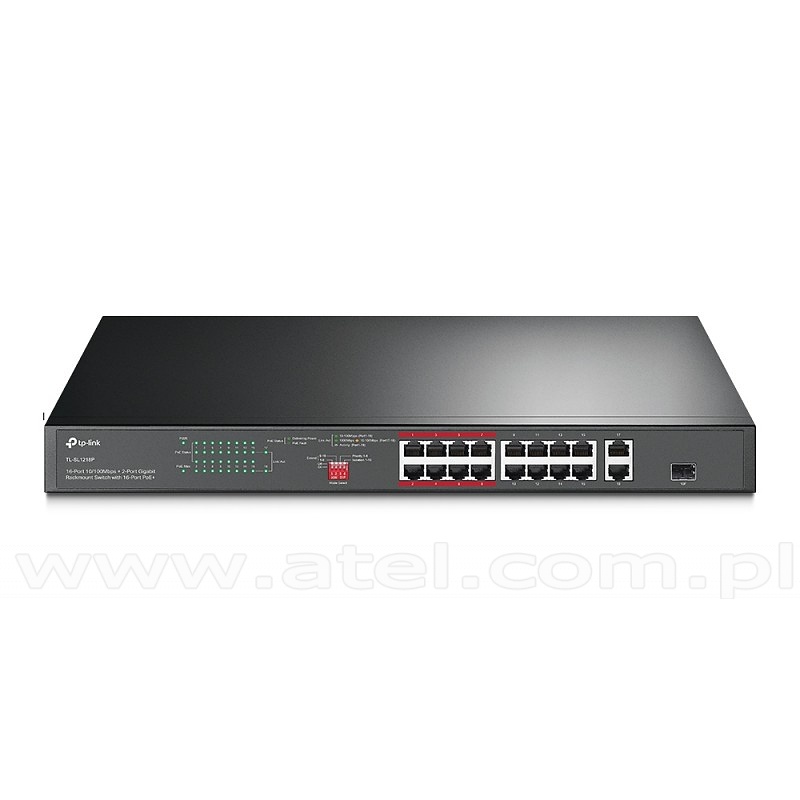

Unmanaged switch, 16x 10/100/1000 RJ-45, 2x 10/100/1000 RJ-45, 1x SFP, PoE+ (TP-Link TL-SL1218P)
- 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 1× combo Gigabit SFP slot.
- High PoE power budget with up to 30 W for each PoE port and 150 W for all PoE ports.*
- Up to 250 m data and power transmission under extend mode specially designed for surveillance system.**
- Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.
- Isolation Mode allows one-click client traffic separation for higher security and performance.
- Easy to use, with no configuration and installation needed.
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
|---|---|
| Copper ports | 16x 10/100 Mbps RJ-45 PoE+, 2x 10/100/1000Mbps RJ45 Ports |
| SFP Ports | 1 Gigabit Combo SFP Ports |
| Fan Quantity | 2 |
| PoE Ports | Standard 802.3 at compliant, PoE Ports Port 1- Port 16, PoE Power Budget 150W |
| Performance: | |
| Backup Bandwidth | 7.2 Gbps |
| MAC Address Table | 8K |
| Software features: | |
| Advanced Features | Compatible With IEEE 802.3at/af Compliant PDs, Extend Mode (Up to 250m PoE power supply and data transmission), Priority Mode, Isolation Mode, Mac Address Auto-Learning And Auto-Aging, IEEE802.3x Flow Control |
| Transmission Method | Store-And-Forward |
| Dimensions | 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) |
| Operating Temperature | 0℃~40℃ (32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Power | 100-240VAC, 50/60Hz |
| Power Consumption | 12,71 W (220/50Hz. no PD connected), 172,8 W (220/50Hz. with 150W PD connected) |
| Max Heat Dissipation | 43,34 BTU/h (no PD connected), 589,25 BTU/h (with 150W PD connected) |
| Certificates | CE, FCC, RoHS |
| Warranty | 5 years |
| Manufacturer | TP-Link |

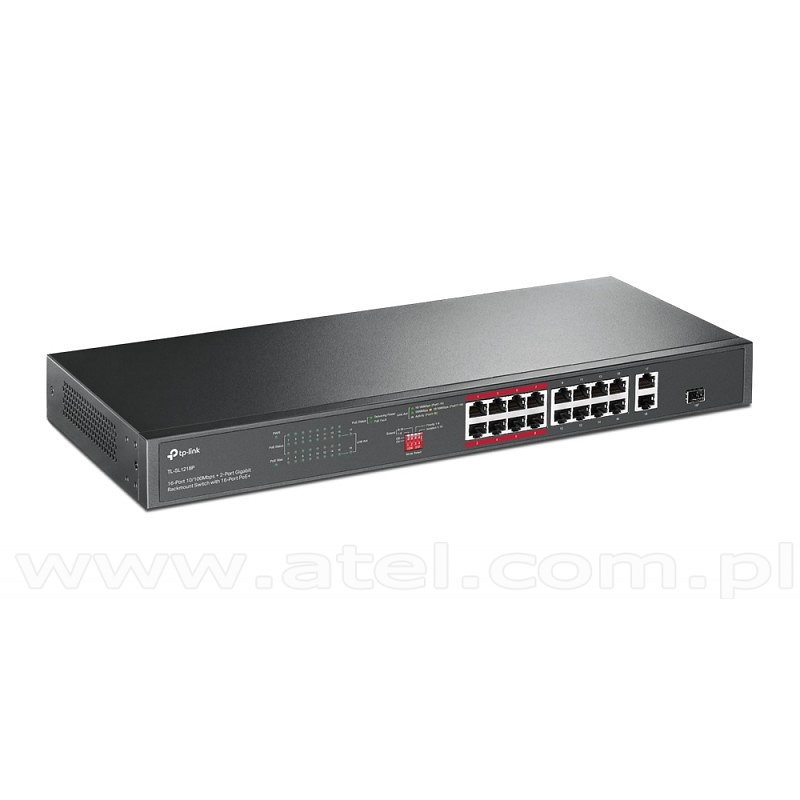

1.0_overview_02_large_1595313911423u.jpg?1636202524)

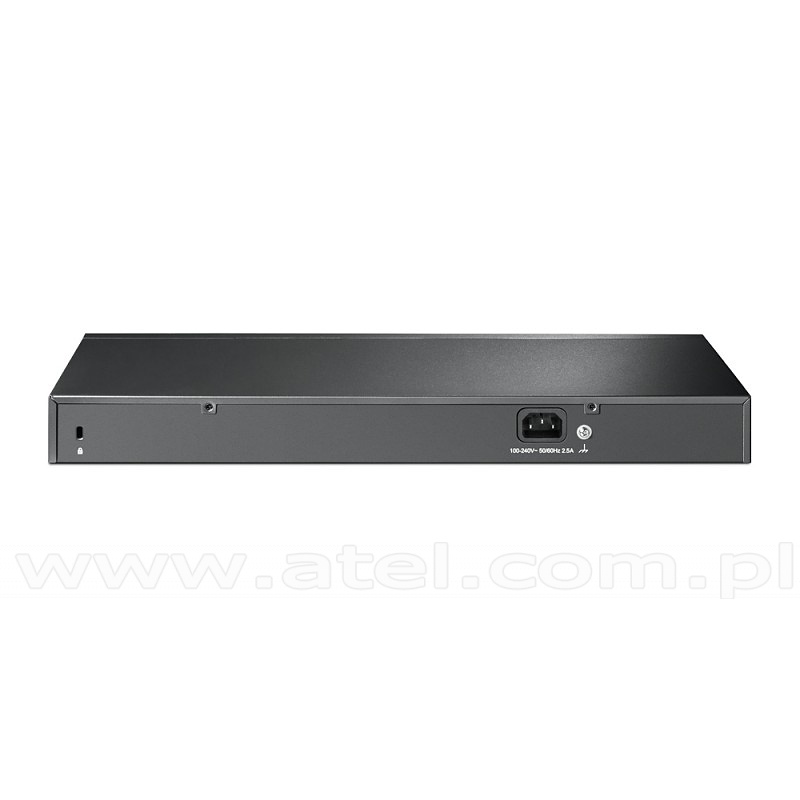

1.0_overview_03_large_1595313918740r.jpg?1636632070)
Net Price: 136.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
