#09027
SwitchesTP-LINKLS108G

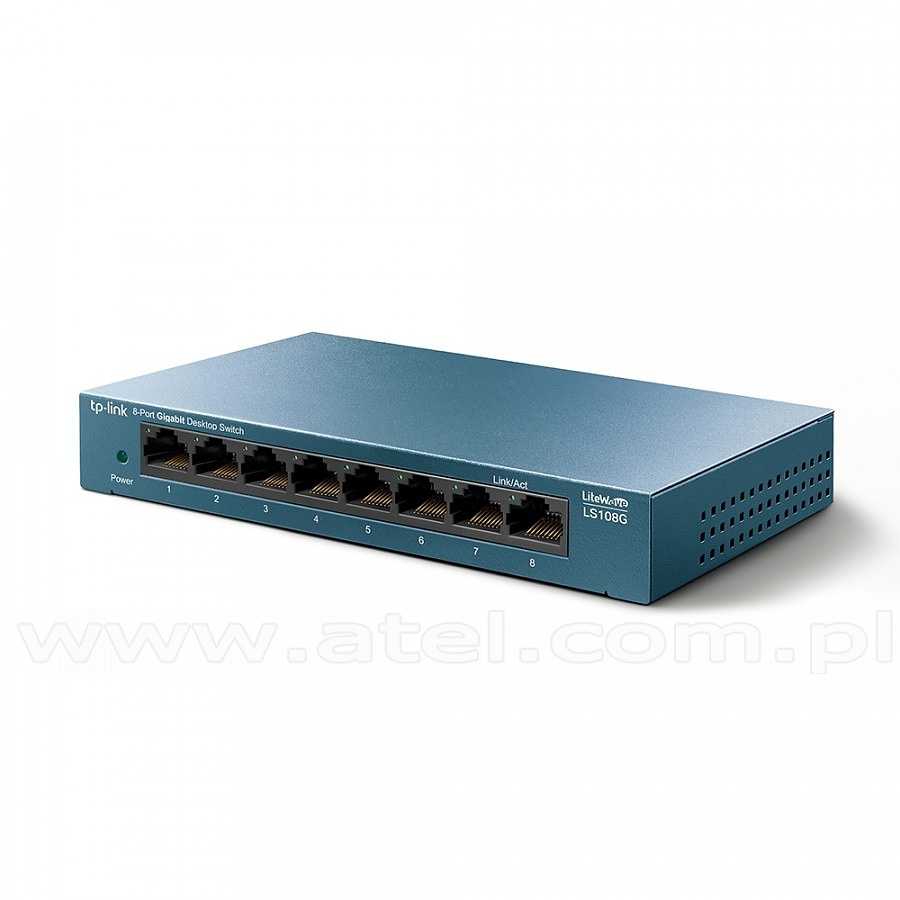

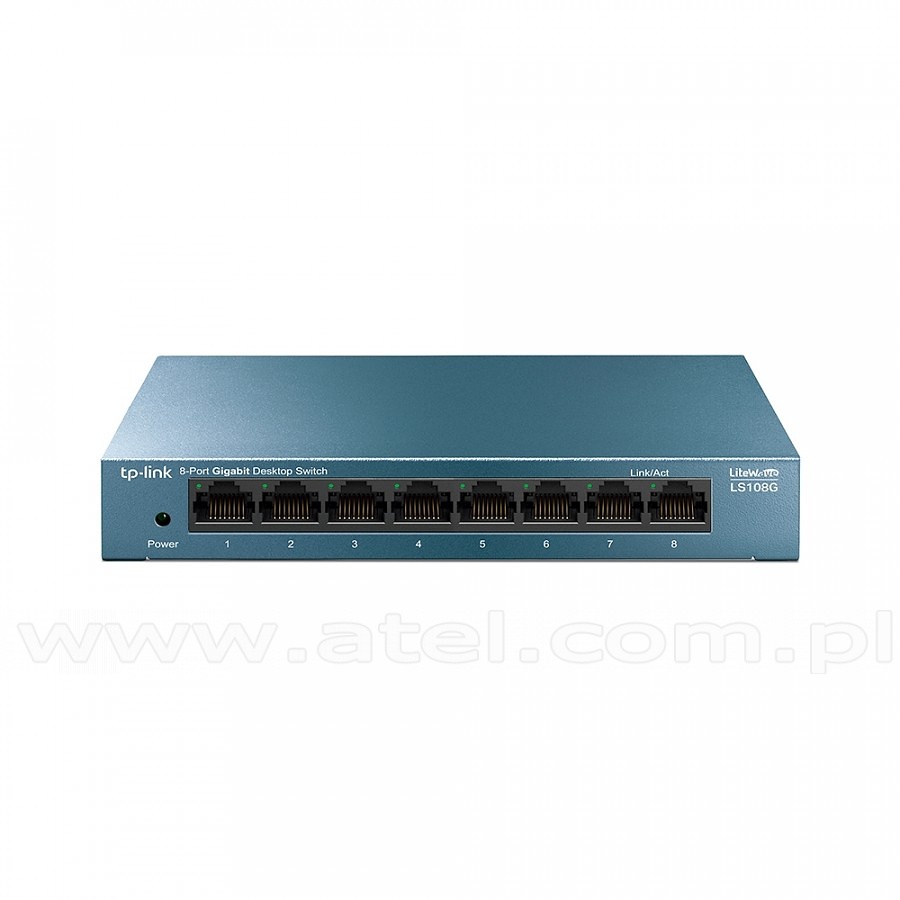

Unmanaged switch, 8x 10/100/1000 RJ-45, desktop (TP-Link LS108G)

  • 8 10/100/1000Mbps Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX
  • Green Ethernet technology saves power
  • IEEE 802.3X flow control provides reliable data transfer
  • Steel housing, desktop or wall-mounting design
  • Support 802.1p/DSCP QoS function
  • Plug and play, no configuration needed
  • Fanless design ensures quiet operation
Standards IEEE 802.3/i/u/x/ab,
IEEE 802.1p
Copper ports 8x 10/100/1000 Mbps RJ-45
Auto MDI/MDI-X yes
Auto-negotiation (Nway) yes
Switching architecture / speed Store and Forward
Packet flow control Flow-Control,
Back-Pressure
Packet Forwarding Rate 11.9 Mpps
MAC Address Table 2K
Packet Buffer Memory 1.5 Mb
Jumbo Frame 16 KB
Housing / case type desktop,
metal
Dimensions 6.2 x 3.9 x 1.0 in. (158 x 99.1x 25 mm)
Operating temperature 0C 40C
Storage Temperature -40C 70C
Operating humidity 10% 90%,
non-condensing

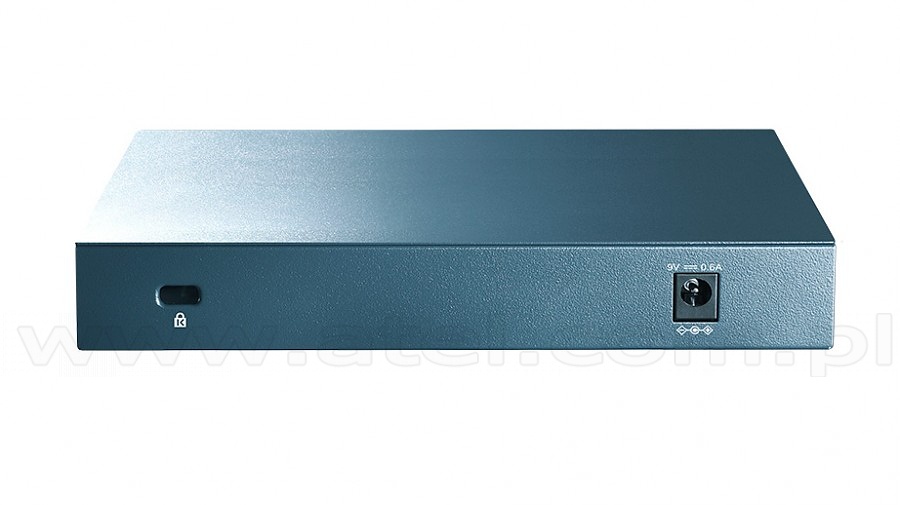

Power external 9V DC 0.6A,
~230V AC
Max Power Consumption 3.7W(220V/50Hz)
Max Heat Dissipation 12.617 Btu/hr
Certificates CE,
FCC,
RoHS
Warranty period 2 years
Manufacturer TP-Link

Net Price: 23.30 USD  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
