Standards | EEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
---|---|

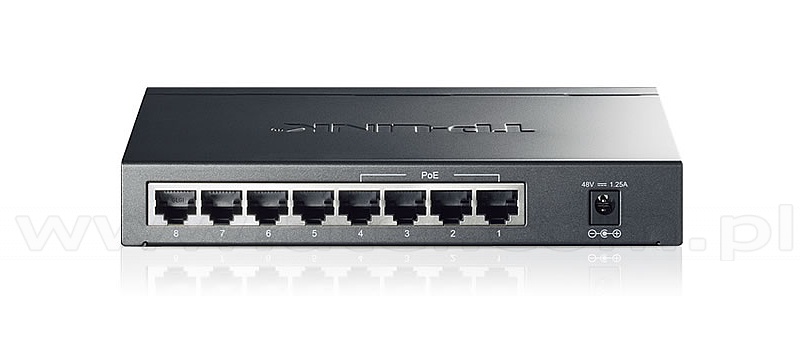

Copper ports | 8x 10/100/1000 Mbps RJ-45 |
Standard | 802.3af compliant |
PoE Ports | Port1- Port4 |
Power Supply | 53W |
Advanced Features | Compatible With IEEE 802.3af Compliant PDs, Priority Function, Mac Address Auto-Learning And Auto-Aging, IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
Auto MDI/MDI-X | yes |
Auto-negotiation (Nway) | yes |
Switching architecture / speed | Store and Forward |
Packet flow control | Flow-Control, Back-Pressure |
Forwarding rate | 14 880 pps (10 Mbps), 148 800 pps (100 Mbps), 1 488 000 pps (1000 Mbps) |
Dimensions | 171x98x27 mm |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Power | internal, ~230V AC 50Hz |
Power Consumption | Maximum (PoE on)- 58.8W (220V/50Hz), Maximum (PoE off)- 5.8W (220V/50Hz) |
Certificates | CE, FCC, RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
Net Price: 43.00 USD Unit: pcs
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
