MENU#09141

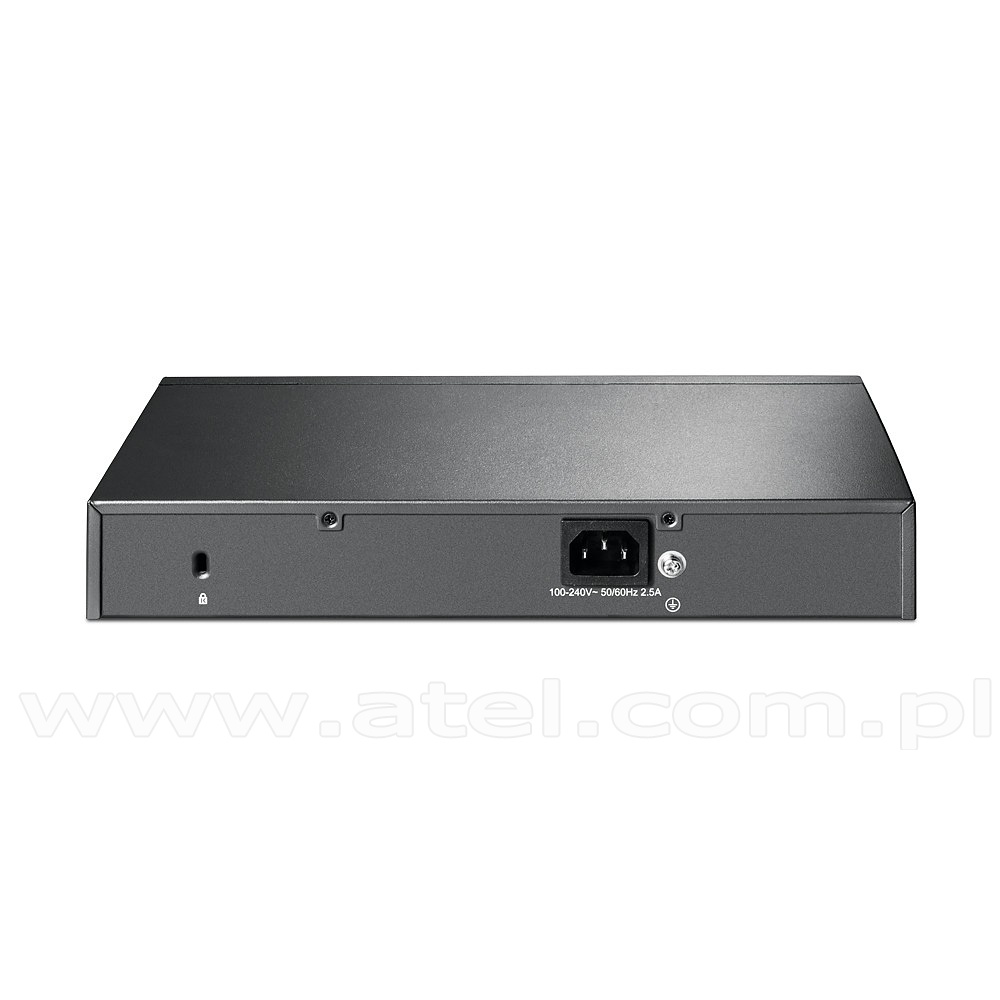

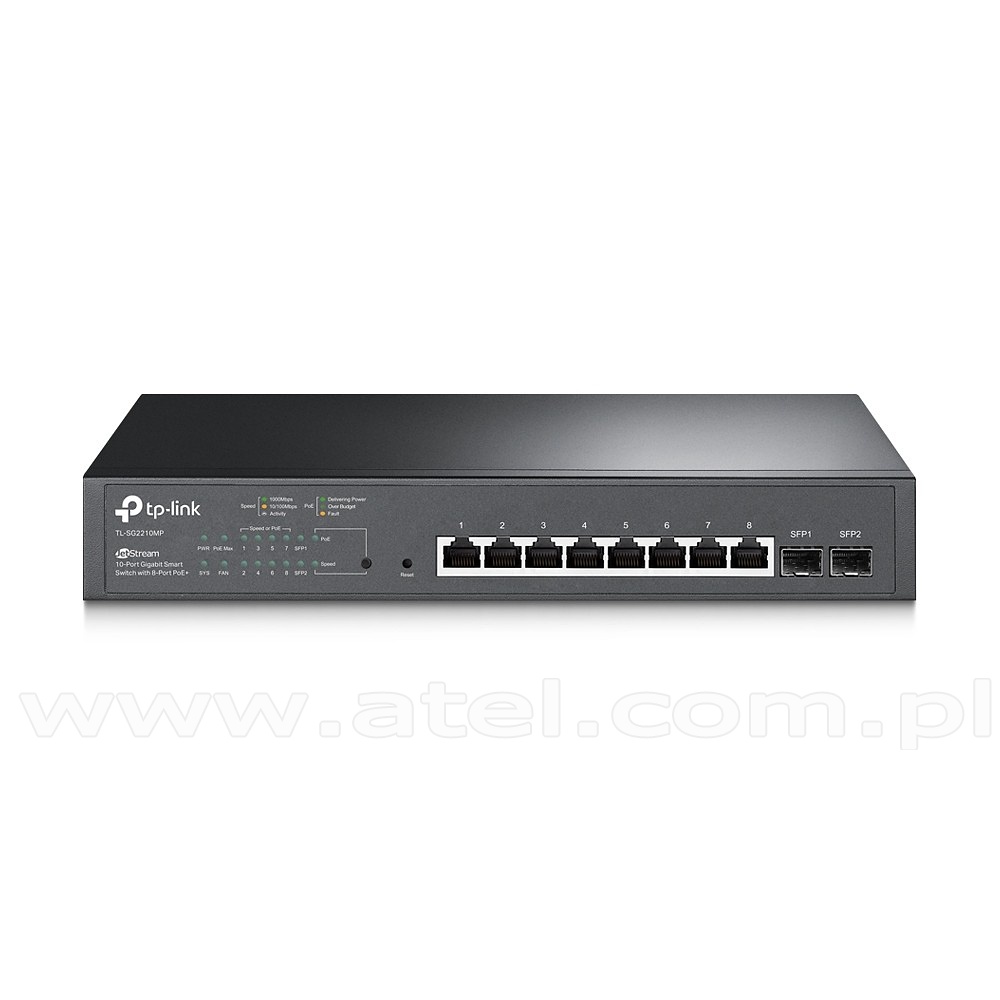

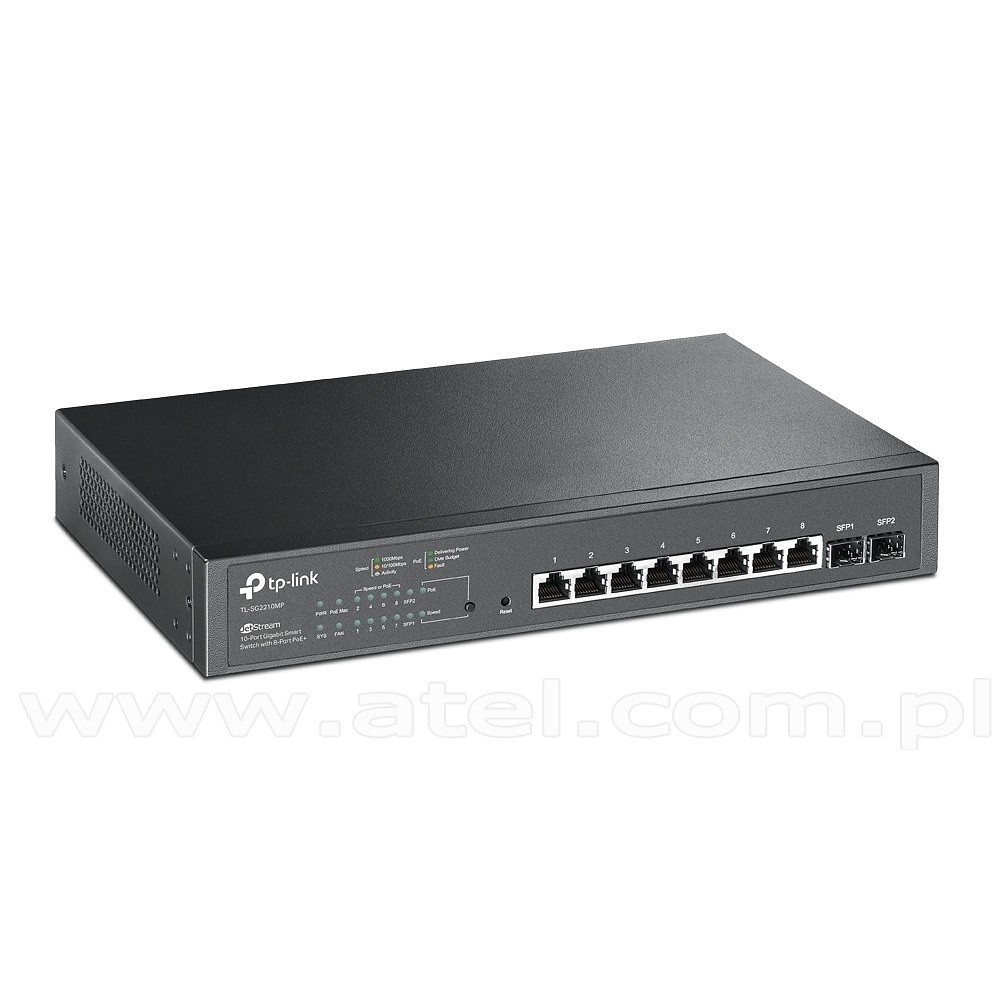

Smart switch, 8x 10/100/1000 RJ-45, 2x SFP, PoE+ (TP-Link TL-SG2210MP)
- 150 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 150 W.
- Full Gigabit Ports: 8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
| Standards | IEEE 802.3/i/u/ab/ad/x/d/s/w/q/p |
|---|---|
| Copper ports | 8x 10/100/1000 Mbps RJ-45 (Auto Negotiation/Auto MDI/MDIX) |
| SFP Slots | 2× 100/1000 Mbps SFP Slots |
| PoE Ports (RJ45) | Standard 802.3af/at compliant, PoE Ports 8 Ports, Power Supply 150 W |
| Fan Quantity | 1 |
| Performance | |
| Bandwidth/Backplane | 20Gbps |
| Packet Forwarding Rate | 14.9 Mpps |
| MAC Address Table | 8k |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| Software features | |
| Quality of Service | Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
| L2 and L2+ Features | DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
| L2 Multicast | 511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
| IPv6 Support | IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| VLAN | VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
| Security | AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
| Management | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Management Features | Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
| Dimensions | 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm) |
| Mounting | Rackmount/Desktop |
| Operating temperature | 0°C ÷ 50°C |
| Operating humidity | 10% ÷ 90%, non-condensing |
| Power | External Power Adapter (Output 53.5 VDC/ 1.31 A) |
| Power Consumption | 12.2 W (220 V/50 Hz), 173.9 W (220 V/50 Hz) (with 150 W PD connected) |
| Max Heat Dissipation | 41.63 BTU/h (with no PD connected), 539.35 BTU/h (with 150 W PD connected) |
| Certificates | CE, FCC, RoHS |
| Warranty period | 5 years |
| Manufacturer | TP-Link |
1.0-02_large_1594869382485v.jpg?1740861507)
1.0-03_large_1594869395045p.jpg?1740861524)
Net Price: 147.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
