#09026
SwitchesTP-LINKLS105G

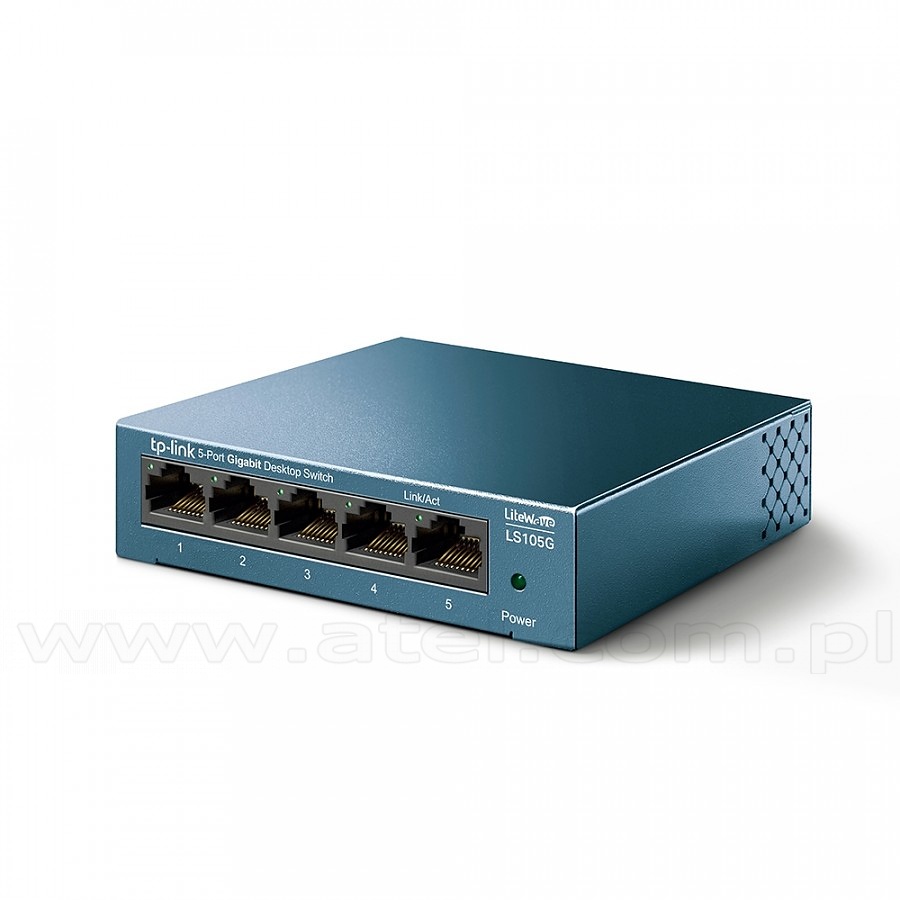

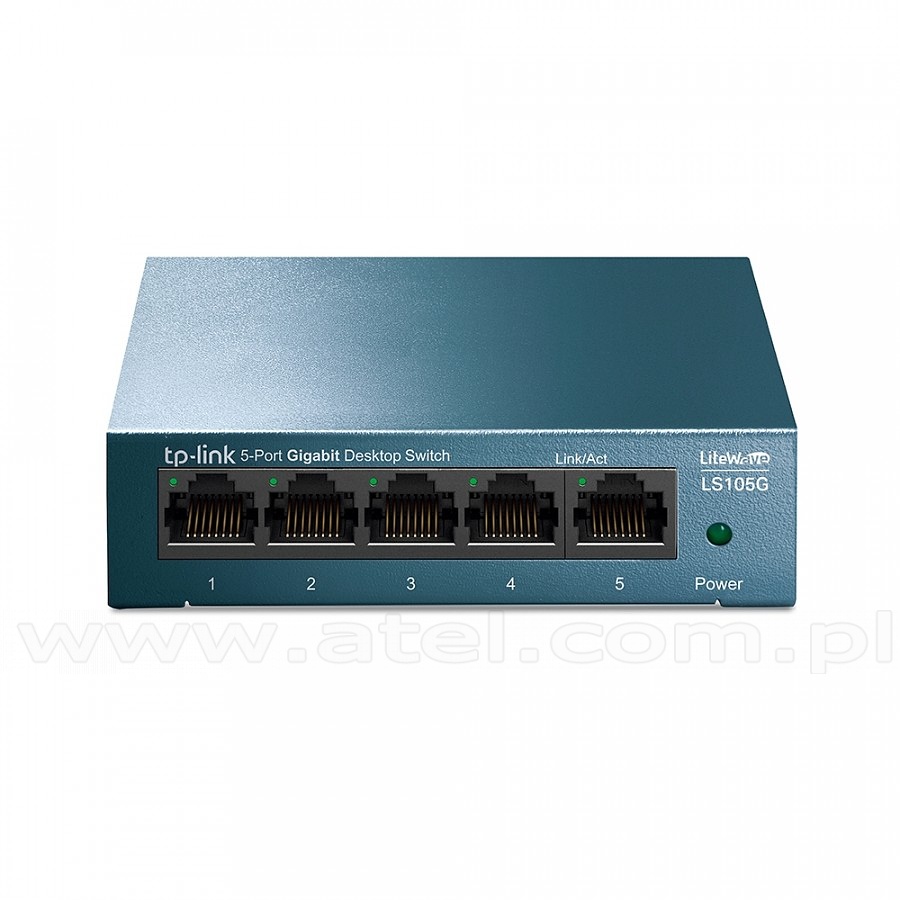

Unmanaged switch, 5x 10/100/1000 RJ-45, desktop (TP-Link LS105G)

  • 5× 10/100/1000Mbps Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX
  • Green Ethernet technology saves power
  • IEEE 802.3X flow control provides reliable data transfer
  • Steel housing, desktop or wall-mounting design
  • Support 802.1p/DSCP QoS function
  • Plug and play, no configuration needed
  • Fanless design ensures quiet operation
Standards IEEE 802.3/i/u/x/ab,
IEEE 802.1p
Copper ports 5x 10/100/1000 Mbps RJ-45
Auto MDI/MDI-X yes
Auto-negotiation (Nway) yes
Switching architecture / speed Store and Forward
Packet flow control Flow-Control,
Back-Pressure
Packet Forwarding Rate 7.4 Mpps
MAC Address Table 2K
Packet Buffer Memory 1.5 Mb
Jumbo Frame 16 KB
Housing / case type desktop,
metal
Dimensions 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
Operating temperature 0°C ÷ 40°C
Storage Temperature -40°C ÷ 70°C
Operating humidity 10% ÷ 90%,
non-condensing
Power external 5V DC 0.6A,
~230V AC
Max Power Consumption 2.776W (220V/50Hz)
Max Heat Dissipation 9.466 BTU/h
Certificates CE,
FCC,
RoHS
Warranty period 2 years
Manufacturer TP-Link

« previous product  |  next product »     » show on list«» Switches «
Net Price: 13.10 USD  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
