#09145
SwitchesTP-LINKTL-SG3210

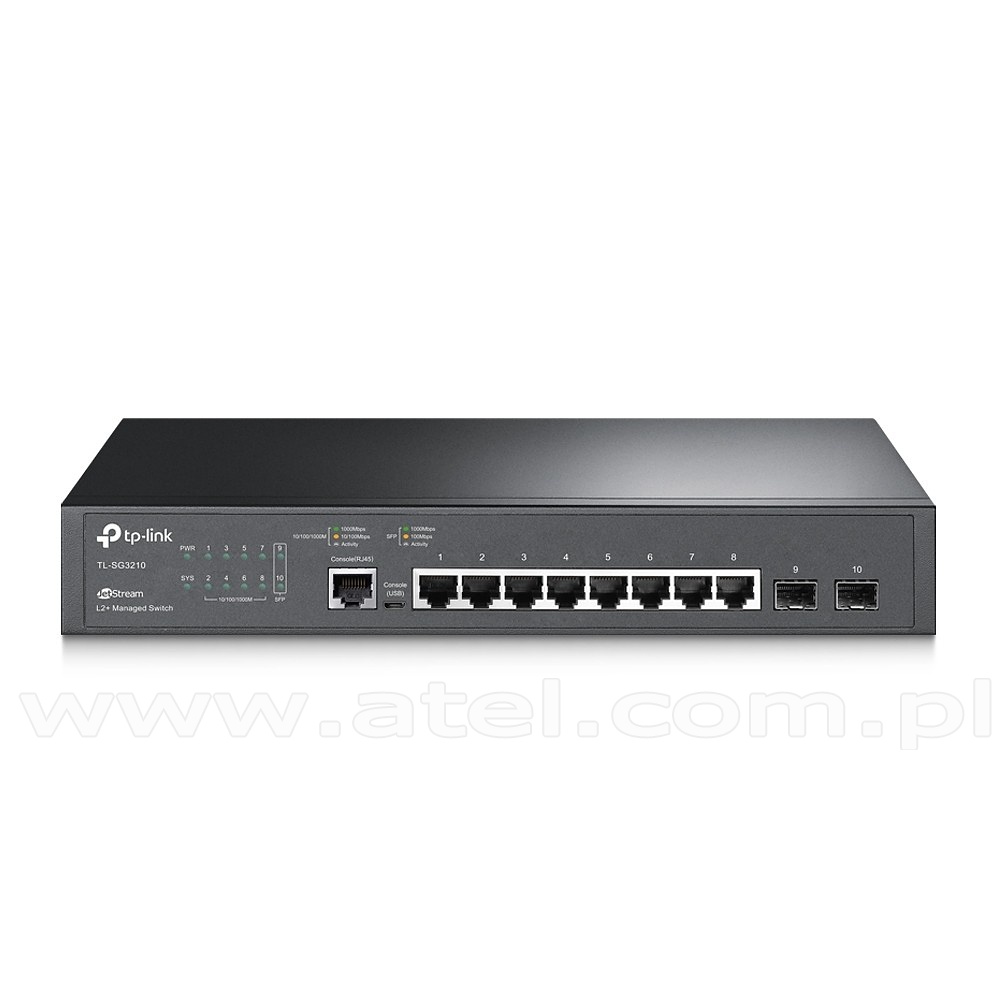

Managed switch, 8x 10/100/1000 RJ-45, 2 slide-in SFP slot, 19" Rack-mounting Bracket (TP-Link TL-SG3210)

  • Full Gigabit Ports: 8× gigabit RJ45 ports and 2× gigabit SFP Slots provide high-speed connections.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Standards IEEE 802.3 10Base-T,
IEEE802.3u 100Base-TX
Copper ports 8x 10/100/1000 Mbps RJ-45
Free slots 2x 1000 Mbps SFP
Additional ports 1× RJ45 Console Port,
1× Micro-USB Console Port
Auto MDI/MDI-X yes
Auto-negotiation (Nway) yes
Software features
Quality of Service Support 802.1p CoS/DSCP priority,
Support 4 priority queues,
Queue scheduling- SP,
WRR,
SP+WRR,
Port/Flow- based Rate Limiting
L2 and L2+ Features DHCP Relay,
DHCP VLAN Relay,
DHCP L2 Relay,
Link Aggregation,
Static link aggregation,
802.3ad LACP,
Up to 8 aggregation groups and up to 8 ports per group,
Spanning Tree Protocol,
802.1D STP,
802.1w RSTP,
802.1s MSTP,
STP Security TC Protect,
BPDU Filter/Protect,
Root Protect,
Loopback Detection,
Flow Control,
802.3x Flow Control,
Mirroring,
Port Mirroring,
CPU Mirroring,
One-to-One,
Many-to-One,
Flow-Based,
Ingress/Egress/Both,
Device Link Detect Protocol (DLDP),
802.1ab LLDP/ LLDP-MED
L2 Multicast 511 IPv4,
IPv6 shared multicast groups,
IGMP Snooping,
IGMP v1/v2/v3 Snooping,
Fast Leave,
IGMP Snooping Querier,
Static Group Config,
Multicast VLAN Registration (MVR),
Multicast Filtering,
MLD Snooping,
MLD v1/v2 Snooping,
Fast Leave,
MLD Snooping Querier,
Static Group Config,
Limited IP Multicast (256 profiles and 16 entries per profile)
IPv6 Support IPv6 Dual IPv4/IPv6,
Multicast Listener Discovery (MLD) Snooping,
IPv6 neighbor discovery (ND),
Path maximum transmission unit (MTU) discovery,
Internet Control Message Protocol (ICMP) version 6,
TCPv6/UDPv6,
IPv6 applications,
DHCPv6 Client,
Ping6,
Tracert6,
Telnet (v6),
IPv6 SNMP,
IPv6 SSH,
IPv6 SSL,
Http/Https,
IPv6 TFTP
VLAN VLAN Group,
Max. 4K VLAN Groups,
802.1Q tag VLAN,
MAC VLAN,
Protocol VLAN,
GVRP,
Voice VLAN
Security AAA,
802.1X,
Port based authentication,
MAC (Host) based authentication,
Authentication Method includes PAP/EAP-MD5,
MAB,
Guest VLAN,
Support Radius authentication and accountability,
IP/IPv6-MAC Binding,
512 Binding Entries,
DHCP Snooping,
DHCPv6 Snooping,
ARP Inspection,
ND Detection,
IP Source Guard,
253 Entries,
Source IP+Source MAC,
IPv6 Source Guard,
183 Entries,
Source IPv6 Address+Source MAC,
DoS Defend,
Static/Dynamic/Permanent Port Security,
Up to 64 MAC addresses per port,
Broadcast/Multicast/Unicast Storm Control,
kbps/ratio control mode,
Port Isolation,
Secure web management through HTTPS with SSLv3/TLS 1.2,
Secure Command Line Interface (CLI) management with SSHv1/SSHv2,
IP/Port/MAC based access control
Management
Omada App Yes
Centralized Management Omada Cloud-Based Controller,
Omada Hardware Controller (OC300),
Omada Hardware Controller (OC200),
Omada Software Controller
Cloud Access Yes (Through OC300,
OC200,
Omada Cloud-Based Controller,
or Omada Software Controller)
Management Features Web-based GUI,
Command Line Interface (CLI) through telnet,
SNMPv1/v2c/v3,
SNMP Trap/Inform,
RMON (1,2,3,9 groups),
SDM Template,
DHCP/BOOTP Client,
Dual Image,
Dual Configuration,
CPU Monitoring,
Cable Diagnostics,
EEE,
SNTP,
System Log
Switching capacity [Gbps] 20
MAC address memory 8000
Packet Forwarding Rate 14.89 Mpps
Housing / case type 11.6",
metal,
19" brackets included
Dimensions 294x180x44 mm
Operating temperature 0°C ÷ 45°C
Operating humidity 10% ÷ 90%,
non-condensing
Power internal,
100~230VAC 50/60Hz
Max Power Consumption 6.84 W (220 V/50 Hz)
Max Heat Dissipation 23.33 BTU/h (220 V/50 Hz)
Certificates CE,
FCC
Warranty period 5 years
Manufacturer TP-Link

« previous product  |  next product »     » show on list«» Switches «
TAGS: SFP slot
Net Price: 102.00 USD  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
