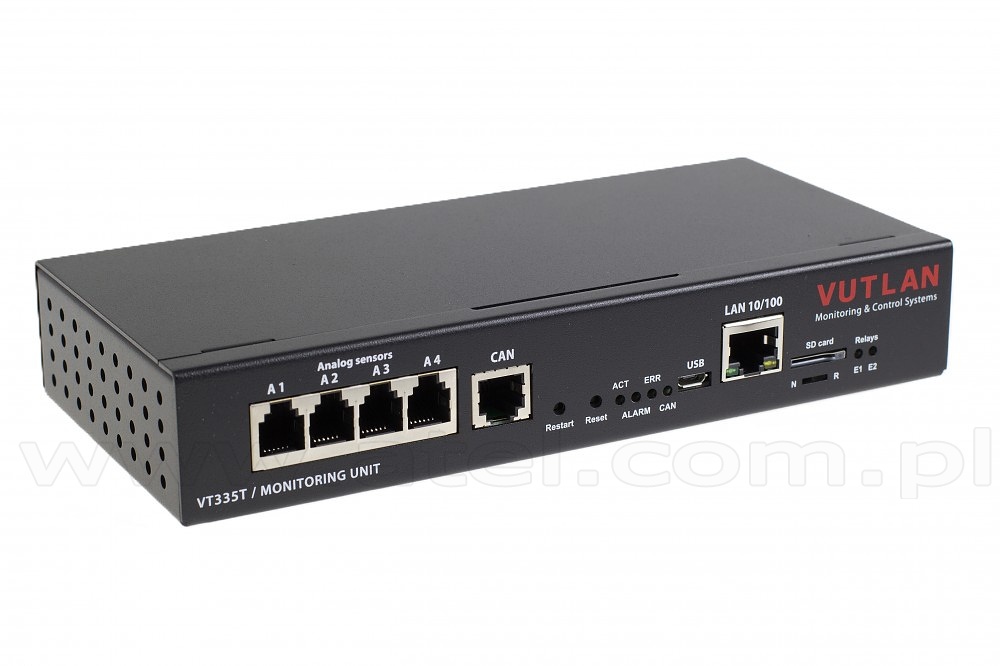

MINI Monitoring unit; 4x analog; 1 x CAN (Vutlan VT335t)
The unit is used for environmental monitoring (e.g. temperature, humidity, voltage, leakage, smoke, airflow). It is also used as an I/O controller (e.g. door control, fans, generator, control panels, UPS, circuit breakers, and alarms). Can connect 150 physical sensors. Can use up to 1000 elements - notifications, triggers, timers, logic schemes, sensors, and dry contacts. Has a built-in Web interface with virtual sensors, logic schemes, different types of notifications, and control panels. Has a slot for #03105 VT740 LTE slot modem (sold separately) for an ethernet connection reservation. Has two power inputs for power reservation (i.e. battery plus main power supply).
| REMOTE CONTROL | |
|---|---|
| IP monitoring | Web, SNMP, SMS (LTE modem art. VT740 is ordered separately!) |
| Sensors control | Administrative 3-level control of sensors using login |
| INTERFACE & PROTOCOL SUPPORT | |
| Interface | Access via any Internet browser. |
| LAN | Ethernet 10/100Mbit |
| Network protocols | DHCP; HTTP; HTTPS; DynDNS; SNMP v1, v2c, v3; SMTP; FTP; Syslog; TLS; RADIUS; OpenVPN; SSL; NTP |
| OS | Linux v.6.2 |
| Processor | 720 MHz |
| RAM | 128MB |
| Software | Built-in software for events processing. |
| Alert type | E-mail, FTP log, Syslog, SMTP, SNMP Traps, SMS (LTE modem VT740 is ordered separately!), Web-to-SMS |
| A maximum number of "mail to" recipients | 20 |
| A maximum number of "SMS to" recipients in an SMS notification | 20 |
| Pings | Built-in ping |
| LEDs | LINK, CAN, ACT, E1, E2, ERROR |
| Clock | Built-in clock with time synchronization |
| Watchdog | Built-in watchdog timer |
| POWER | |
| Power req | 2x12V DC |
| Power consumption | 10W |
| Power reservation | 12V, built-in voltage monitor |
| INLETS/OUTLETS | |
| Ethernet | 10/100Mbit |
| Micro USB AB | USB 2.0 micro |
| Analog port | 4x6P4C for connecting any analog sensor. |
| CAN BUS | 1 x 6P6C for connecting up to 32 CAN sensors (over 12 sensors, regeneration of the signal is required using the CAN # 03880 power module). Fuse protection on each line. |
| Alarm relay | 2 x 12V 0.25A alarm port for VT103 Alarm Beacon (#08264) or VT105 (#08344) |
| Dry contact inputs | 4 x dry contacts input |
| EXTERNAL MEMORY | |
| Micro SD card | Micro SD card slot (SDXC up to 512 Gb) |
| FEATURES | |
| Installation | desktop (19" cabinet with VT122t) |
| Dimensions | (WxHxD) 180mm × 35mm × 80mm |
| Net weight | 0.7 kg |
| Working temperature | Min. -10° C - Max. 80° C |

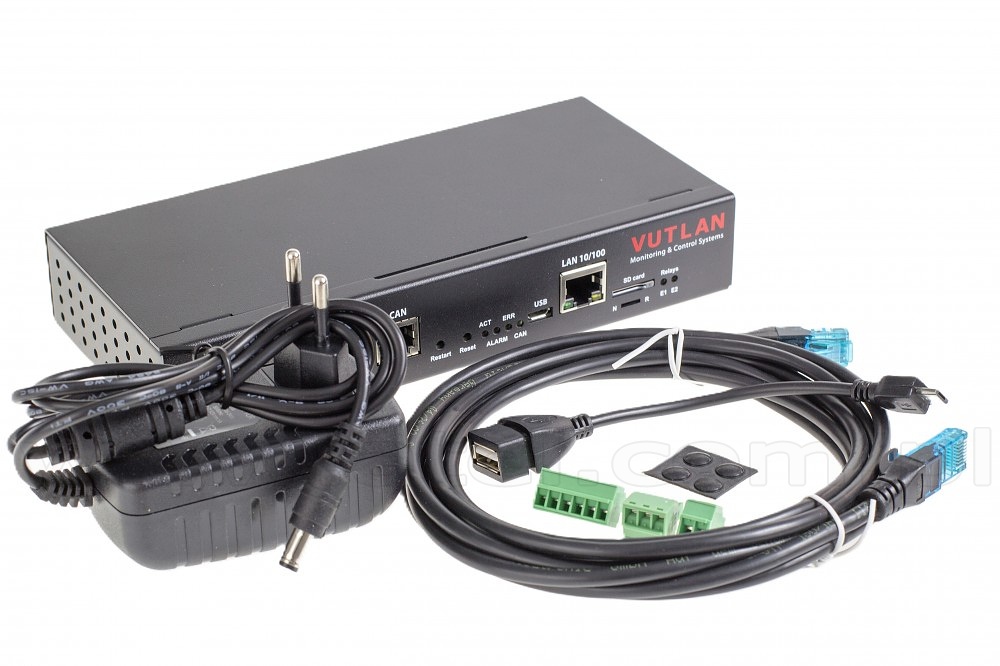

| Supply includes | Monitoring unit, 12VDC power supply, RJ45 cord, Micro USB cable adapter, plug 1x6P, 3.5mm, plug 1x3P, 3.81mm, plug 1x2P, 3.81mm, manual, warranty, 4 self-adhesive rubber legs, plugs. |
| Warranty | 3 years |
Accessories:
#03105 Internal LTE, GPS modem VT740
#03114 19" holder / bracket for VT335t monitoring unit and VT408 sensor unit
#03105 Internal LTE, GPS modem VT740
#03114 19" holder / bracket for VT335t monitoring unit and VT408 sensor unit
Net Price: 280.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
