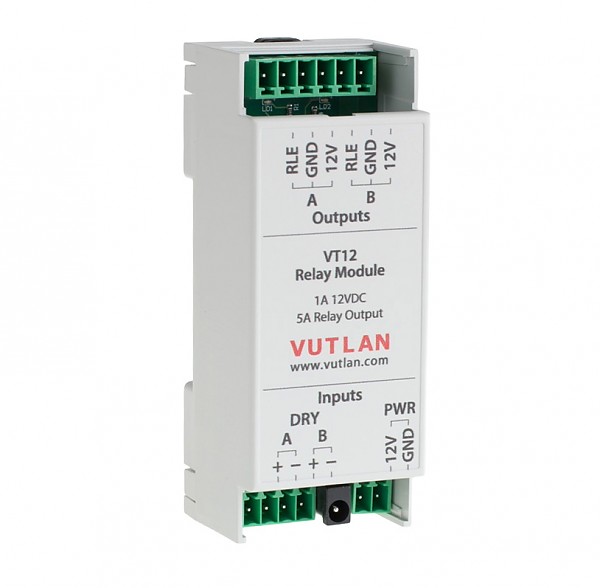

VT12 Relay Module (Vutlan VT12)
- 12V DC Power max 0.5A
- Relay output max 5A.
- Ground (GND)
VT12 Relay Module is a dual-channel switching unit designed to turn on/off loads. It can be connected to the dry contacts outputs of VT855 and VT336 Vutlan monitoring units to turn on/off loads with current up to 1A, when the device's Dry contact output is triggered.
Dry Contact Inputs (A and B): Dual Outputs (A and B): Each output provides:
VT11 can be used separately with third-party controllers.
| Technical specifications | |
|---|---|
| Power terminals | 2 outputs (A and B)(Relay, Ground, 12V) |
| Maximum direct current | 0,5A |
| Relay Output | 5A |
| Power input terminal | 2P, pitch 3.5 mm, 12V DC |
| Dry contact inputs | 2 inputs (A and B), 4P, pitch 3.5 mm |
| Features | |
| Mounting possibilities | DIN Rail |
| Max distance | 100m |
| Power Consumption | 200mW |
| Operating temperature | Min. -40° C - Max.+85° C |

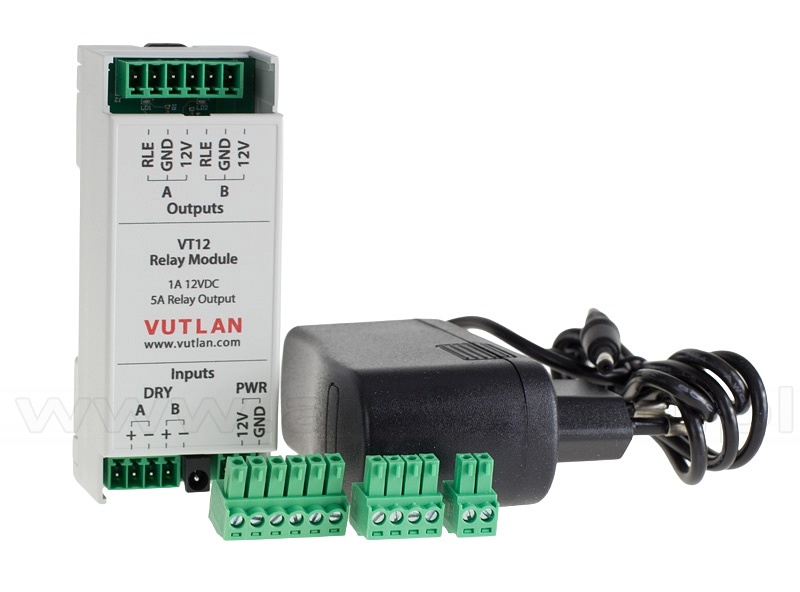

| Package includes | relay module, power supply 12VDC 1A |
Net Price: 41.90 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
