#03098

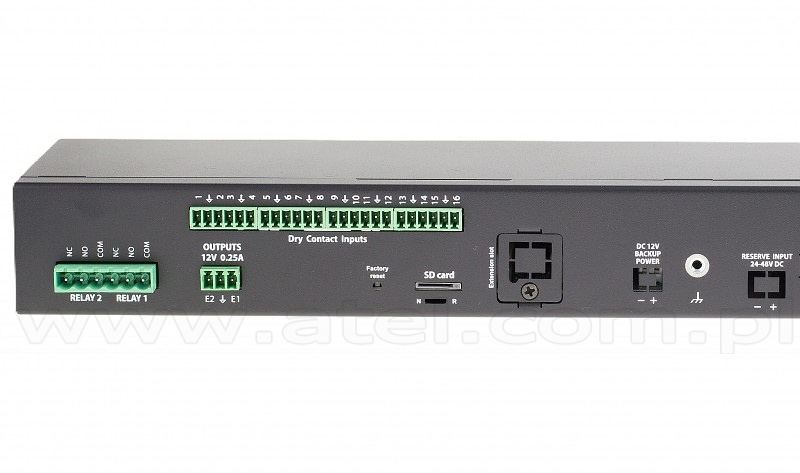

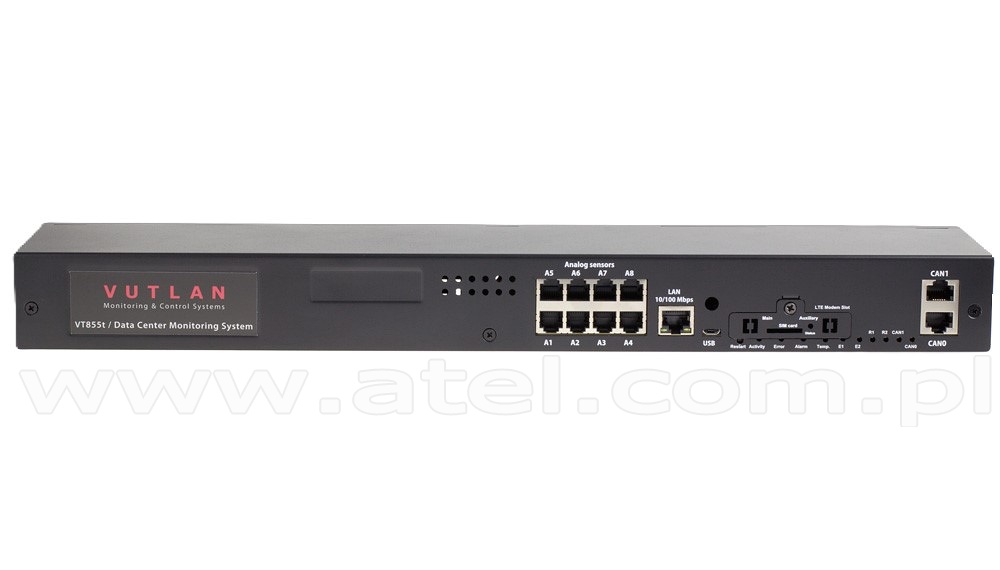

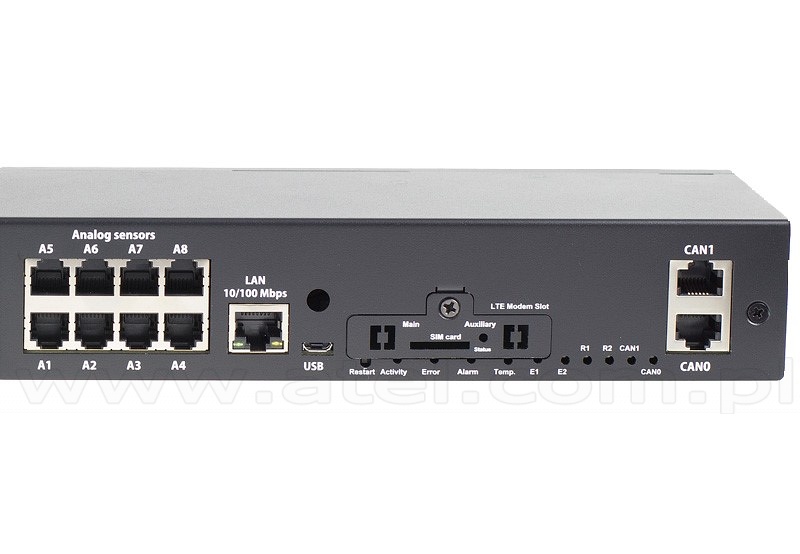

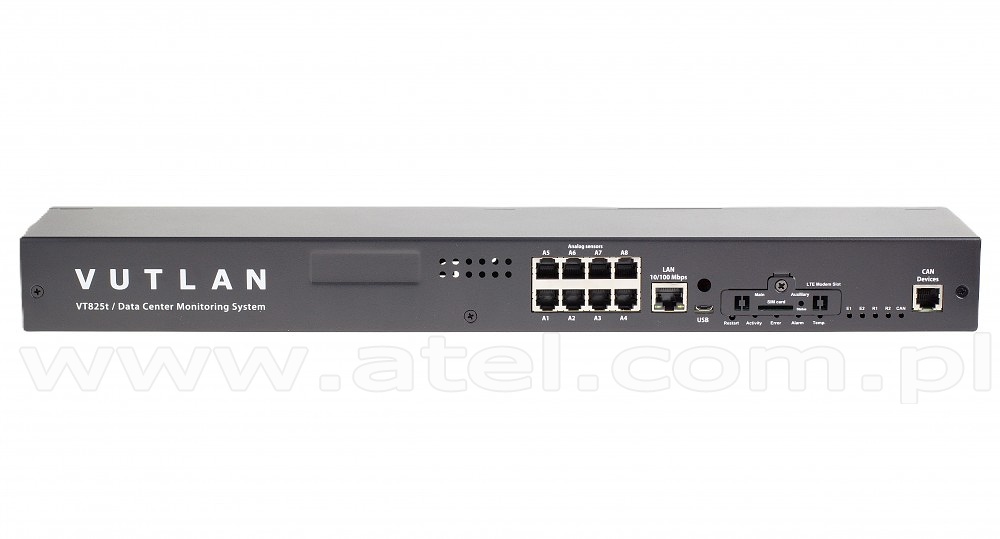

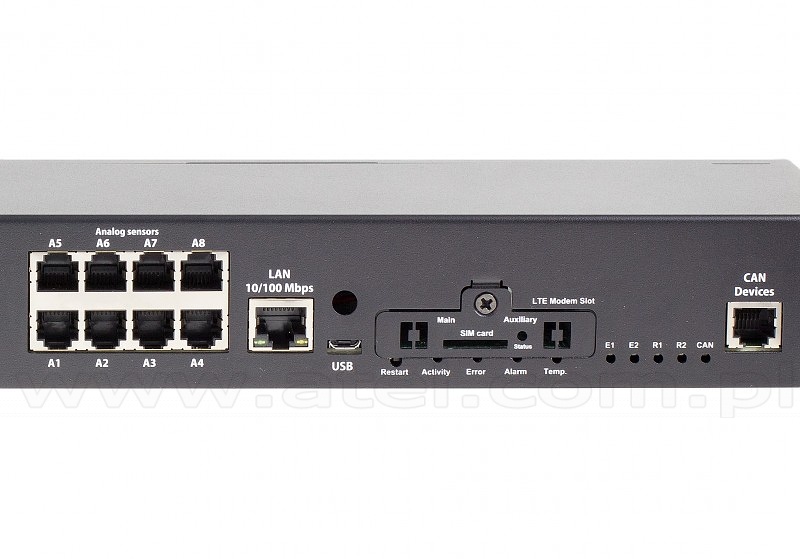

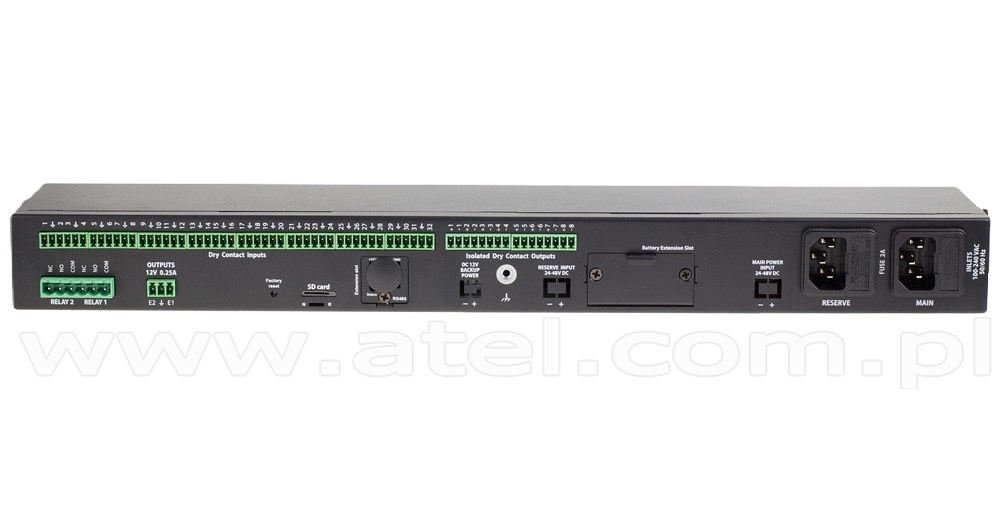

BTS Monitoring unit 19" 1U; 8x analog; 1x CAN; 16x dry contact inputs (Vutlan VT960ii)
The unit is used for environmental monitoring (e.g. temperature, humidity, voltage, leakage, smoke, airflow). It is also used as an I/O controller (e.g. door control, fans, generator, control panels, UPS, circuit breakers, alarms). Can use up to 1000 different elements - notifications, triggers, timers, logic schemes, sensors, dry contacts. Has built-in Web interface with virtual sensors, logic schemes, different types of notification, and control panels. Has a slot for a "VT790 / LTE slot modem" and a 2.5" HDD. This is the fastest and most powerful Vutlan monitoring unit. VT960 is equipped with x2 power inlets, providing a redundant power supply for A&B power distribution systems (e.g. data centers).
Optional: basic AC/AC, for special orders AC/DC or DC/DC power versions (24VDC or 48VDC)
Optional: basic AC/AC, for special orders AC/DC or DC/DC power versions (24VDC or 48VDC)
| REMOTE CONTROL | |
|---|---|
| IP monitoring |
Web, SNMP, SMS (LTE modem art. VT790 is ordered separately!) |
| Sensors control | Administrative 3-level control of sensors using login |
| INTERFACE & PROTOCOL SUPPORT | |
| Interface | Access via any Internet browser. |
| LAN | Ethernet 10/100Mbit |
| Network protocols |
Built-in HTTP server, SNMP agent, SMTP agent, manageable logic. Uses FTP link for updating current software version. Modbus, OpenVPN, Radius. |
| OS | Linux 5.10 |
| Processor | 1.2GHz |
| Software | Built-in software for events processing. |
| Alert type |
FTP, syslog, SMTP or SNMP, SMS (LTE modem is ordered separately) |
| A maximum number of "mail to" recipients | 50 |
| A maximum number of "SMS to" recipients in an SMS notification | 50 |
| Pings | Built-in ping |
| LEDs |
CAN, ACT, E1, E2, Error, HDD, Relays R1 and R2 |
| Clock | Built-in clock with time synchronization |
| Watchdog | Built-in watchdog timer |
| POWER | |
| Power req |

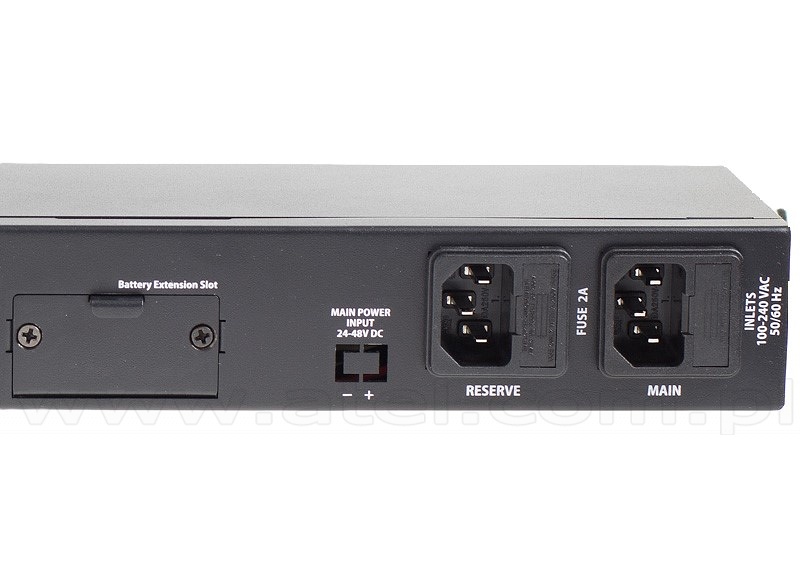

2x redundant 90-240V, IEC C14, Fuse 2A |
| Power consumption | 30W |
| INLETS/OUTLETS | |
| Ethernet | 100Mbit |
| USB | USB 2.0 Type A |
| Mini USB AB | USB 2.0 HS |
| Analog port | 8x6P4C for connecting any analog sensor. |
| CAN BUS |
1 x 6P6C for connecting up to 32 CAN sensors (over 12 sensors, regeneration of the signal is required using the CAN # 03880 power module). Fuse protection on each line. |
| Relay outputs | 2 ports |

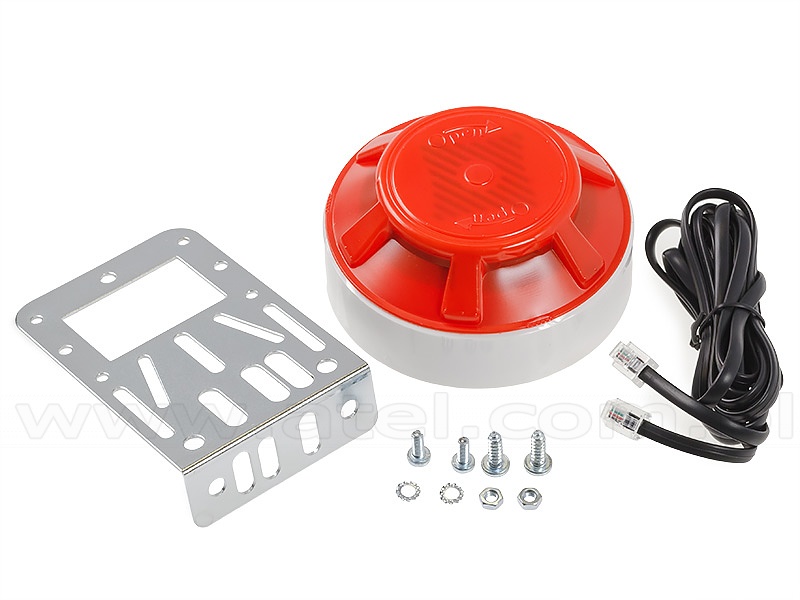

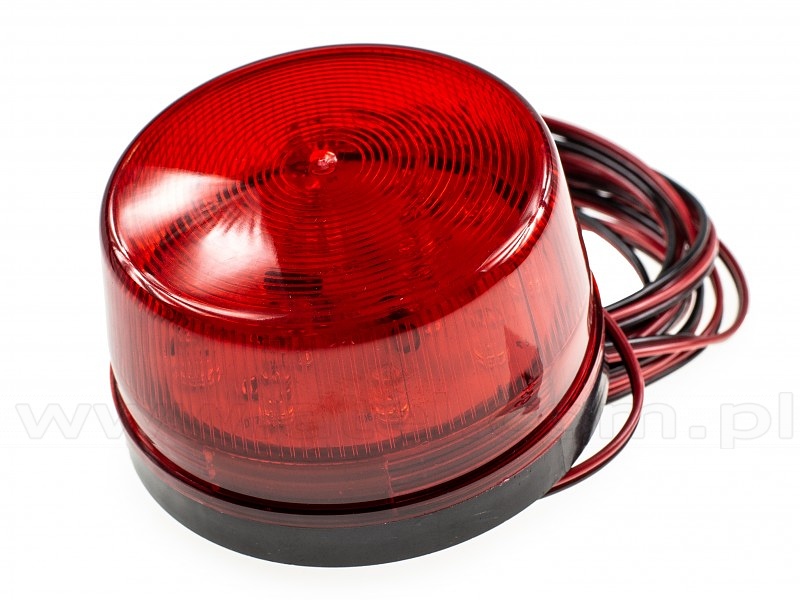

| Alarm relay | 2 x 12V 0.25A alarm port for VT103 Alarm Beacon (#08264) or VT105 (#08344) |

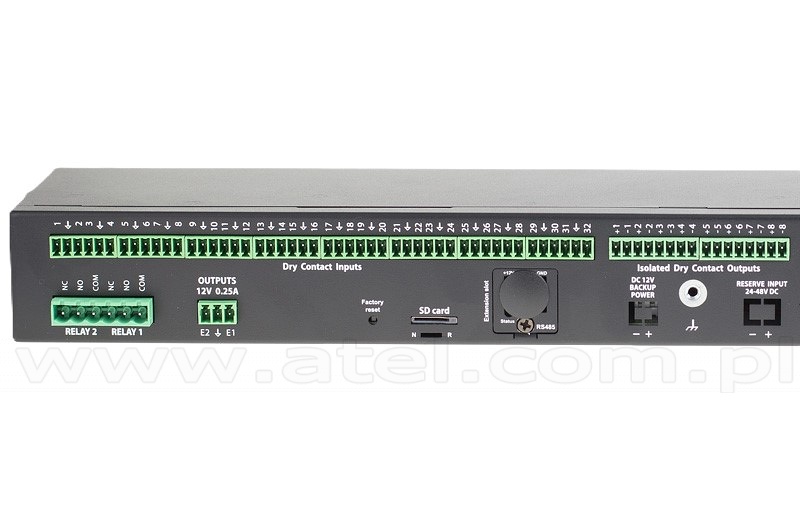

| Dry contact inputs | 32 x dry contacts input and 8 x dry contact outputs |
| Other |
one 1-wire port, one MODBUS port |
| EXTERNAL MEMORY | |
| Micro SD card |
4/8/16/32 GB Flash or 2.5" SATA SDD/HDD (saving logs, record video, run software, databases and scripts) |
| FEATURES | |
| Installation | 19" cabinet or desktop |
| Dimensions | (WxHxD) 440mm × 44mm × 120mm |
| Net weight | 2 kg |
| Working temperature | Min. -10° C - Max. 80° C |
| Supply includes |

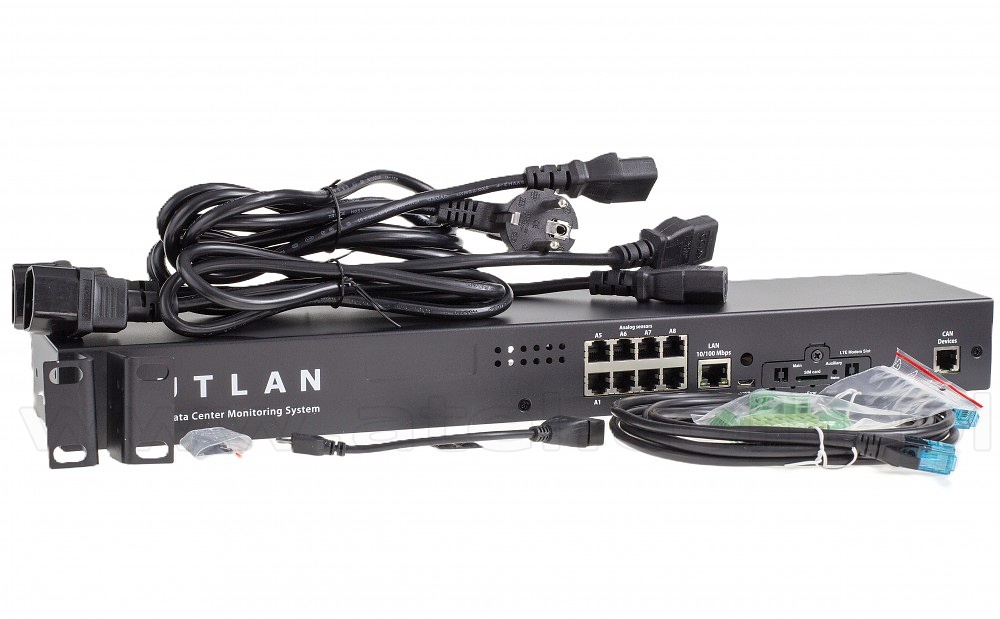

Monitoring unit, power cable 240V, RJ45 cord, manual, warranty, 4 self-adhesive rubber legs, plugs, 19" mounting angles. |
| Warranty | 3 years |

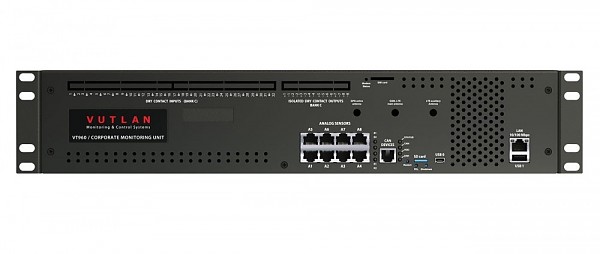

#08177

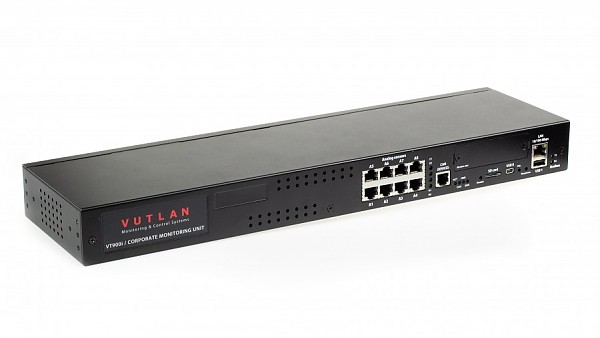

Corporate Monitoring unit 19" 2U; 8x analog; 1x CAN; 16x dry contact inputs (Vutlan VT960)
The corporate control unit of the Vutlan environmental parameters monitoring system.
The device is equipped with eight ports for analog sensors, one CAN digital port, sixteen potential-free contacts, two alarm signaling contacts, 12V camera power port, 1-wire socket, built-in temperature sensor and allows to connect a USB camera, USB flash memory for data storage and 2.5" hard drive (SSD or HDD).

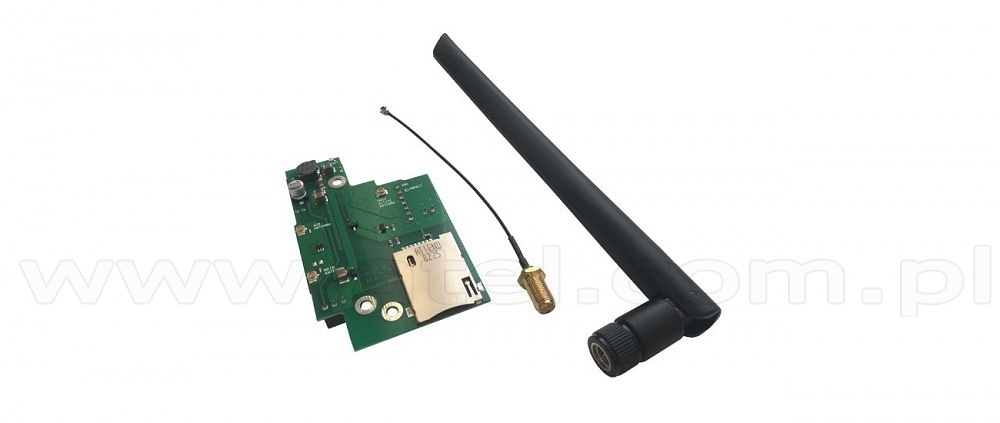

The controller can be additionally equipped with the #08197 LTE modem and the #08186 VTX40 expansion module.
Optionally available version with 48VDC power supply.
The device is equipped with eight ports for analog sensors, one CAN digital port, sixteen potential-free contacts, two alarm signaling contacts, 12V camera power port, 1-wire socket, built-in temperature sensor and allows to connect a USB camera, USB flash memory for data storage and 2.5" hard drive (SSD or HDD).
The controller can be additionally equipped with the #08197 LTE modem and the #08186 VTX40 expansion module.
Optionally available version with 48VDC power supply.
| REMOTE CONTROL | |
|---|---|
| IP monitoring |
Web, SNMP, SMS (GSM modem art. VT700 is ordered separately!) |
| Sensors control | Administrative 3-level control of sensors using login |
| INTERFACE & PROTOCOL SUPPORT | |
| Interface | Access via any Internet browser. |
| LAN | Ethernet 10/100Mbit |
| Network protocols |
Built-in HTTP server, SNMP agent, SMTP agent, manageable logic. Uses FTP link for updating current software version. |
| OS | Linux 4.14 |
| Processor | Dual-core ARM Cortex-A7 1GHz |
| Software | Built-in software for events processing. |
| Alert type |
FTP, syslog, SMTP or SNMP, SMS (GSM modem is ordered separately) |
| Pings | Built-in ping |
| LEDs |
CAN, Power, Relays and Error |
| Clock | Built-in clock with time synchronization |
| Watchdog | Built-in watchdog timer |
| POWER | |
| Power req |
90-240V, IEC C14, Fuse 2A or 48V DC |
| Power consumption | 30W |
| Power reservation |
12V, built-in voltage monitor |
| INLETS/OUTLETS | |
| Ethernet | 100Mbit |
| Mini USB AB | USB 2.0 HS |
| Analog port | 8x6P4C for connection of any analog sensor. |
| CAN BUS | 1 x 6P6C for connection of up to 8 CAN sensors on each BUS. Fuse protection on each line. |
| Relay outputs | 2 ports |
| Alarm relay | 2 x 12V alarm port for VT103 Alarm Beacon (#08264) or VT105 (#08344) |
| Dry contact inputs |
16 x dry contacts input, max. 120x and 24 x dry contact outputs (up to three VTX40 #08186 - each board has 32x dry contacts input and 8x dry contacts output) |
| EXTERNAL MEMORY | |
| SD card |
4/8/16/32 GB Flash or 2.5" SATA SDD/HDD (saving logs, record video, run software, databases and scripts) |
| FEATURES | |
| Installation | 19" cabinet or desktop |
| Dimensions | (WxHxD) 440mm × 90mm × 110mm |
| Working temperature | Min. -10° C - Max. 80° C |
| Net weight | 1,8 kg |
| Supply includes |
Monitoring unit, power cable 240V, RJ45 cord, manual, warranty, 4 self-adhesive rubber legs, two plugs TBW-5-6P, 19" mounting angles. |
| Warranty | 2 years |
#03087

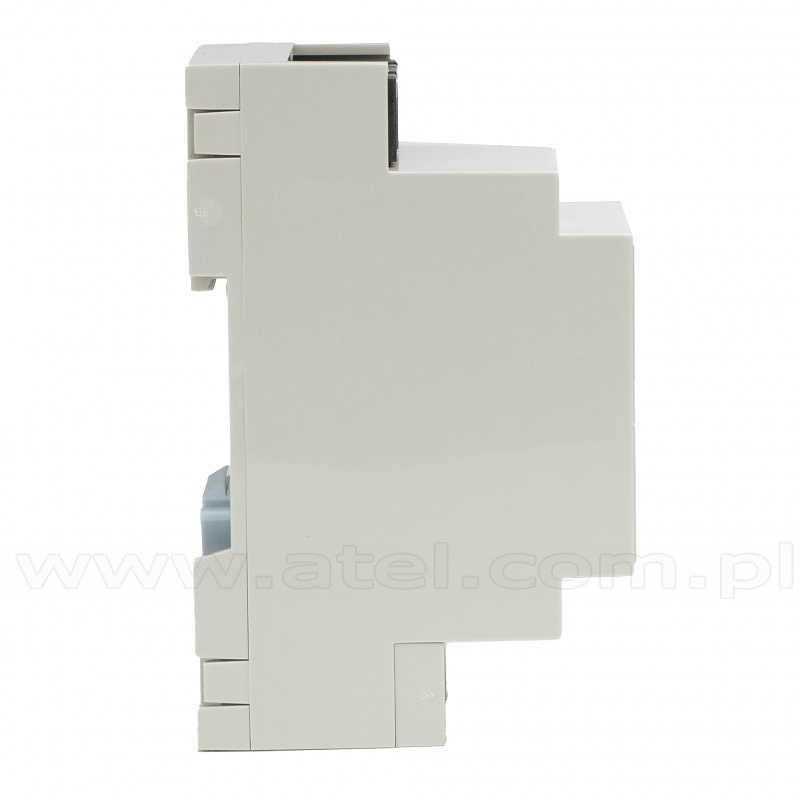

DIN Monitoring unit; 6x analog; 1 x CAN; x4 digital inputs; RS-485 / Modbus RTU (Vutlan VT336)
The control unit of the Vutlan environmental parameters monitoring system for mounting on DIN rails.
The device is equipped with six ports for analog sensors, one CAN digital port, four potential-free contacts, two alarm signaling contacts, RS485/Modbus port, built-in temperature sensor and allows to connect a USB camera.
The controller can be additionally equipped with the #03089 LTE modem.
The device is equipped with six ports for analog sensors, one CAN digital port, four potential-free contacts, two alarm signaling contacts, RS485/Modbus port, built-in temperature sensor and allows to connect a USB camera.
The controller can be additionally equipped with the #03089 LTE modem.
| REMOTE CONTROL | |
|---|---|
| IP monitoring |
Web, SNMP |
| Sensors control | Administrative 3-level control of sensors using login |
| INTERFACE & PROTOCOL SUPPORT | |
| Interface | Access via any Internet browser. |
| LAN | Ethernet 10/100Mbit |
| Network protocols |
DHCP, HTTP, HTTPS, DynDNS, SSL/TLS, SNMP V1, V2c, V3, SMTP, FTP, Syslog, RADIUS, OpenVPN |
| Processor | ARM926-300 MHz |
| OS | Linux 3.10 |
| RAM | 64Mb |
| Software | Built-in software for events processing. |
| Alert type |
FTP, syslog, SMTP or SNMP |
| Pings | Built-in ping |
| LEDs |
ACTIVE, ERROR, CAN, ETHERNET, RELAY, RS485 |
| Clock | Built-in clock with time synchronization |
| Watchdog | Built-in watchdog timer |
| POWER | |
| Power input | DC 12V 1A |
| Power reservation |
12V, built-in voltage monitor |
| INPUTS/OUTPUTS | |
| Ethernet | 100Mbit |
| Mini USB AB | USB 2.0 HS |
| Analog port | 6x 6p4c for connection of any analog sensor. |
| CAN port | 1x6p6c for connecting sensors or digital modules (max 12 CAN sensors) |
| Dry contacts inputs/digital inputs | 4x |
| Dry contacts outputs/digital outputs | 2x |
| 12V outlets | 2x 0.25A |
| FEATURES | |
| Installation | DIN |
| Dimensions (LxWxH) | 160 x 90 x 58 mm |
| Weight | 0,4 kg |
| Warranty | 3 years |
Accessories:
#03089 LTE Modem VT770
#03089 LTE Modem VT770

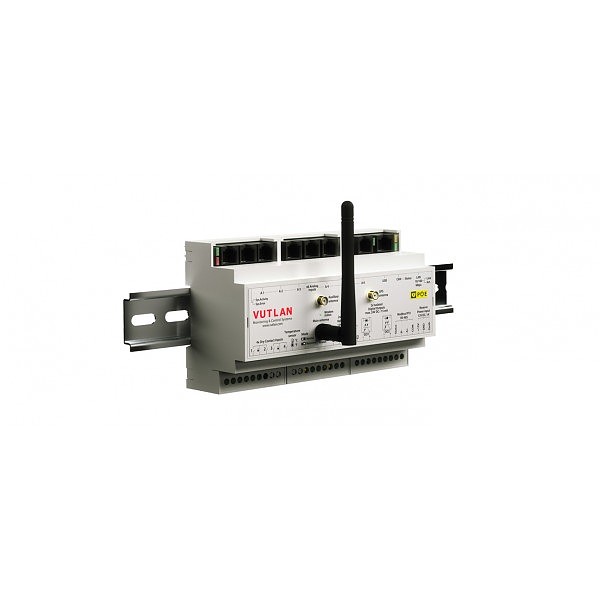

#03088
DIN Monitoring unit; 6x analog; 1 x CAN; x4 digital inputs; RS-485 / Modbus RTU with PoE extension (Vutlan VT336 PoE)
The control unit of the Vutlan environmental parameters monitoring system for mounting on DIN rails, equipped with a Power over Ethernet module.
The device is equipped with six ports for analog sensors, one CAN digital port, four potential-free contacts, two alarm signaling contacts, RS485/Modbus port, 1-wire socket, built-in temperature sensor and allows to connect a USB camera.
The controller can be additionally equipped with the #03089 LTE modem.
The device is equipped with six ports for analog sensors, one CAN digital port, four potential-free contacts, two alarm signaling contacts, RS485/Modbus port, 1-wire socket, built-in temperature sensor and allows to connect a USB camera.
The controller can be additionally equipped with the #03089 LTE modem.
| REMOTE CONTROL | |
|---|---|
| IP monitoring |
Web, SNMP, SMTP |
| Sensors control | Administrative 3-level control of sensors using login |
| INTERFACE & PROTOCOL SUPPORT | |
| Interface | Access via any Internet browser. |
| LAN | Ethernet 10/100Mbit |
| Network protocols |
DHCP, HTTP, HTTPS, DynDNS, SSL/TLS, SNMP V1, V2c, V3, SMTP, FTP, Syslog, RADIUS, OpenVPN |
| Processor | ARM926-300 MHz |
| OS | Linux 3.10 |
| RAM | 64Mb |
| Software | Built-in software for events processing. |
| Alert type |
FTP, syslog, SMTP or SNMP |
| Pings | Built-in ping |
| LEDs |
ACTIVE, ERROR, CAN, ETHERNET, RELAY, RS485 |
| Clock | Built-in clock with time synchronization |
| Watchdog | Built-in watchdog timer |
| POWER | |
| Power/ inputs | DC 12V 1A or PoE |
| Power input |
12V, in-built voltmeter or PoE IEEE 802.3af |
| INPUTS/OUTPUTS | |
| Ethernet | 100Mbit |
| PoE | 1x |
| Mini USB AB | USB 2.0 HS |
| Analog port | 6x 6p4c for connection of any analog sensor. |
| CAN port | 1x6p6c for connecting sensors or digital modules (max 12 CAN sensors) |
| Dry contacts inputs/digital inputs | 4x |
| Dry contacts outputs/digital outputs | 2x |
| 12V outlets | 2x 0.25A |
| FEATURES | |
| Installation | DIN |
| Dimensions | (LxWxH)160 x 90 x 58 mm |
| Weight | 0,4 kg |
| Warranty | 3 years |
Accessories:
#03089 LTE Modem VT770
#03089 LTE Modem VT770
#03104

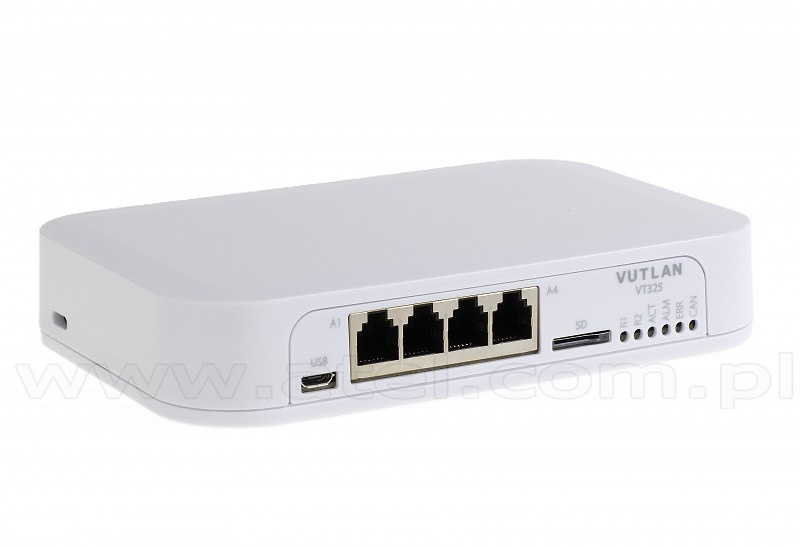

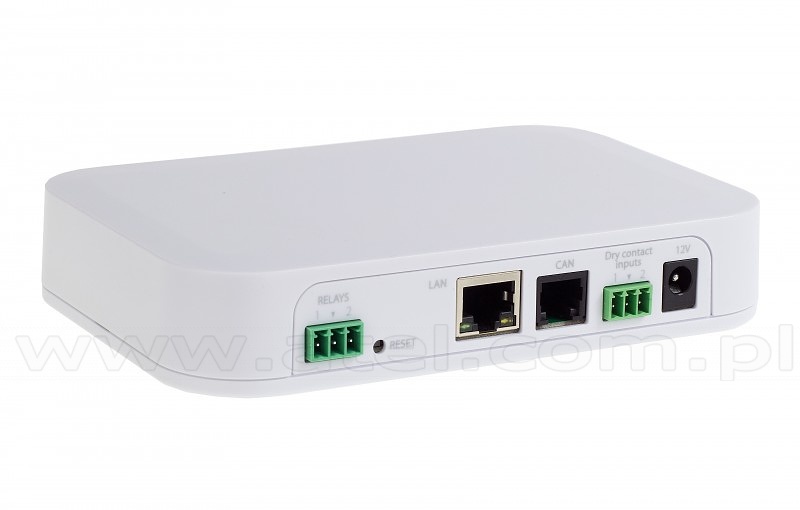

MINI Monitoring unit; 4x analog; 1 x CAN (Vutlan VT335i)
The unit is used for environmental monitoring (e.g. temperature, humidity, voltage, leakage, smoke, airflow). It is also used as an I/O controller (e.g. door control, fans, generator, control panels, UPS, circuit breakers, alarms). Can use up to 700 elements - notifications, triggers, timers, logic schemes, sensors, and dry contacts.
Has a built-in Web interface with virtual sensors, logic schemes, different types of notifications, and control panels. Has a slot for #03105 VT740 LTE slot modem (sold separately) for an ethernet connection reservation. Has two power inputs for power reservation (i.e. battery plus main power supply).
Has a built-in Web interface with virtual sensors, logic schemes, different types of notifications, and control panels. Has a slot for #03105 VT740 LTE slot modem (sold separately) for an ethernet connection reservation. Has two power inputs for power reservation (i.e. battery plus main power supply).
| REMOTE CONTROL | |
|---|---|
| IP monitoring |
Web, SNMP, SMS (LTE modem art. VT740 is ordered separately!) |
| Sensors control | Administrative 3-level control of sensors using login |
| INTERFACE & PROTOCOL SUPPORT | |
| Interface | Access via any Internet browser. |
| LAN | Ethernet 10/100Mbit |
| Network protocols |
HTTP; HTTPS; DynDNS; SSL; SNMP v1, v2c, v3; SMTP; FTP; Syslog; RADIUS; OpenVPN |
| OS | Linux 5.40 |
| Processor | 600GHz |
| RAM | 64MB |
| Software | Built-in software for events processing. |
| Alert type |
FTP, syslog, SMTP or SNMP, SMS (LTE modem #03105 is ordered separately) |
| A maximum number of "mail to" recipients | 20 |
| A maximum number of "SMS to" recipients in an SMS notification | 20 |
| Pings | Built-in ping |
| LEDs |
CAN, ACT, E1, E2, Error, Alarm |
| Clock | Built-in clock with time synchronization |
| Watchdog | Built-in watchdog timer |
| POWER | |
| Power req | 12VDC |
| Power consumption | 10W |
| Power reservation |
12V, built-in voltage monitor |
| INLETS/OUTLETS | |
| Ethernet | 100Mbit |
| Micro USB AB | USB 2.0 HS |
| Analog port | 4x6P4C for connecting any analog sensor. |
| CAN BUS |
1 x 6P6C for connecting up to 32 CAN sensors (over 12 sensors, regeneration of the signal is required using the CAN # 03880 power module). Fuse protection on each line. |
| Alarm relay | 2 x 12V 0.25A alarm port for VT103 Alarm Beacon (#08264) or VT105 (#08344) |
| Dry contact inputs | 4 x dry contacts input |
| EXTERNAL MEMORY | |
| Micro SD card | 4/8/16/32 GB Flash (SDHC) or up to 128GB (SDXC) |
| FEATURES | |

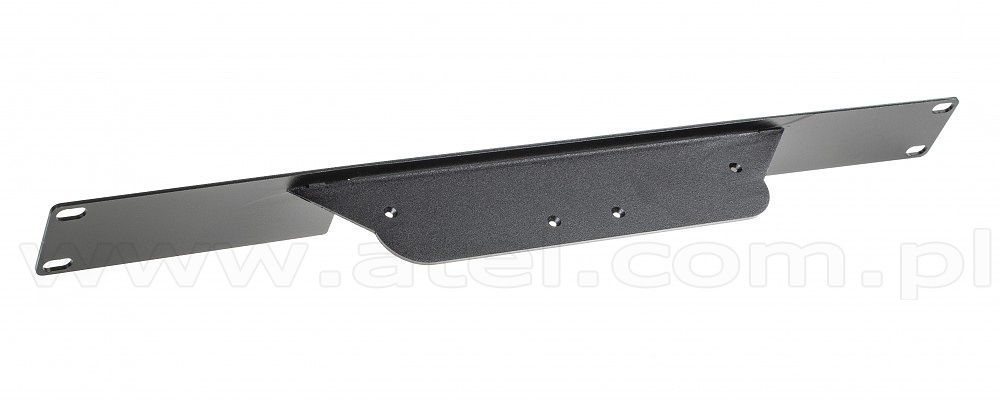

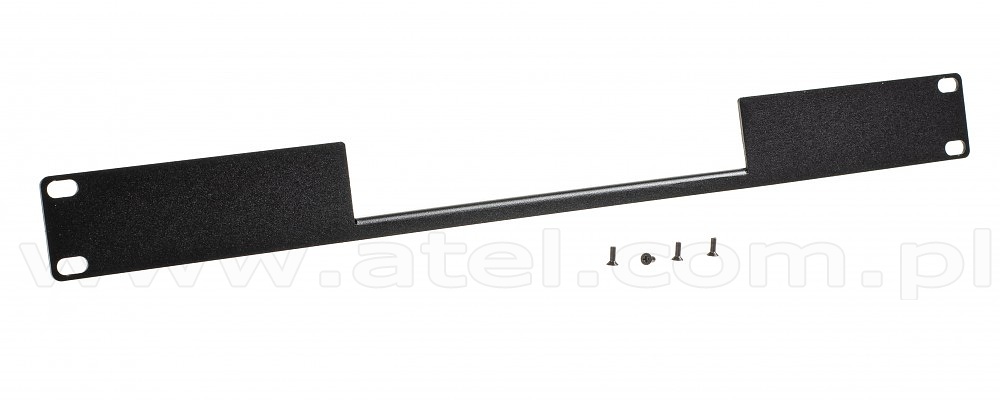

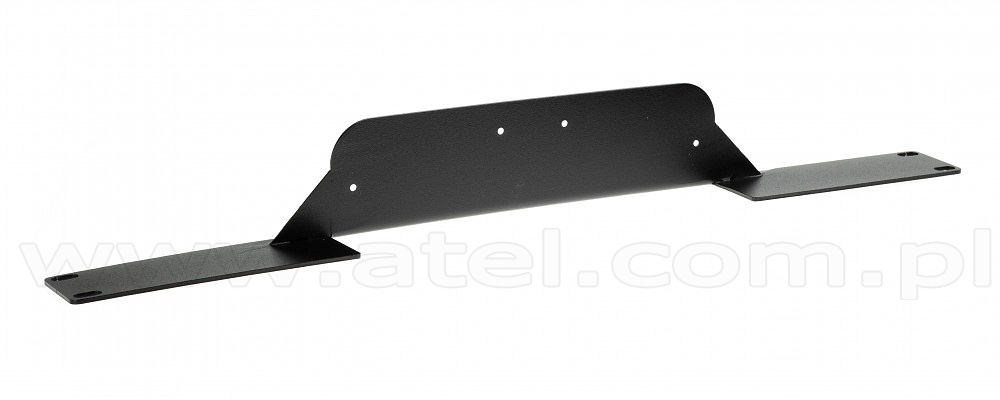

| Installation | desktop (19" cabinet with #03106) |
| Dimensions | (WxHxD) 180mm × 35mm × 80mm |
| Net weight | 0.7 kg |
| Working temperature | Min. -10° C - Max. 80° C |
| Supply includes |

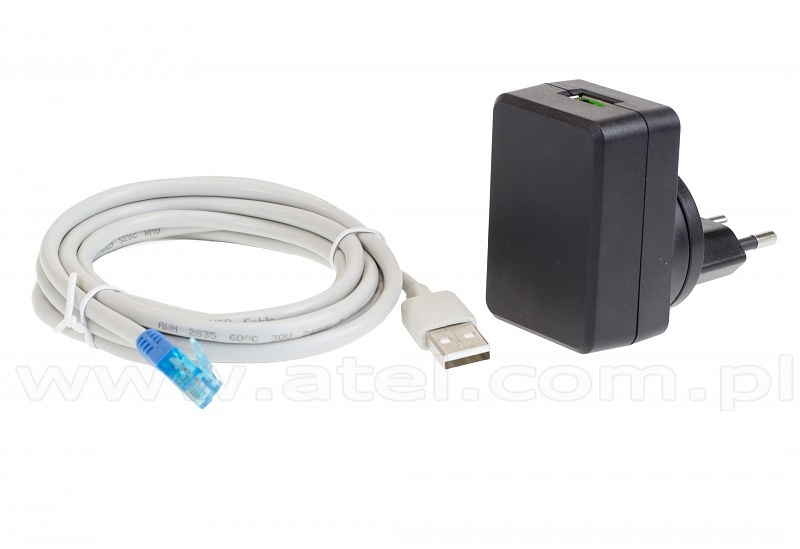

Monitoring unit, 12VDC power supply, RJ45 cord, manual, warranty, 4 self-adhesive rubber legs, plugs. |
| Warranty | 3 years |
.jpg?1657102860)
.jpg?1657102861)
.jpg?1657102862)
#03865

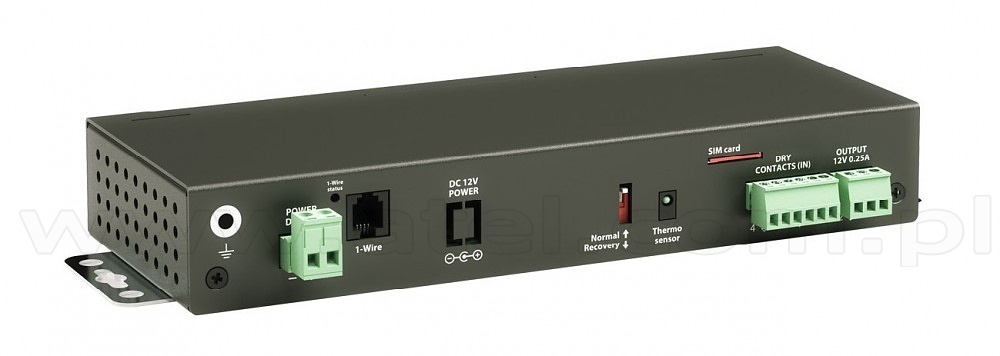

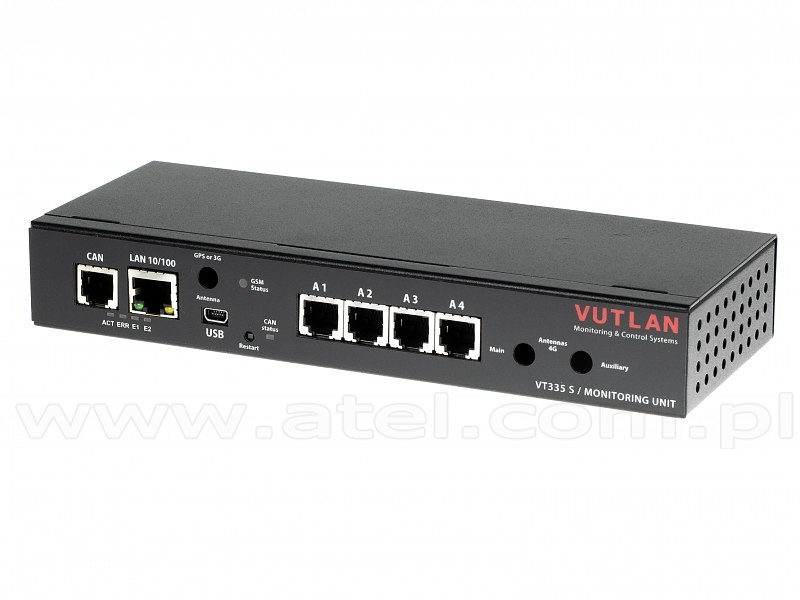

MINI Monitoring unit; 4x analog; 1 x CAN 48V DC (Vutlan VT335 S DC)
The control unit of the Vutlan environmental parameters monitoring system.
The device is equipped with four ports for analog sensors, one CAN digital port, four potential-free contacts, two alarm signaling contacts, built-in temperature sensor and allows to connect a USB camera. 48V DC version.

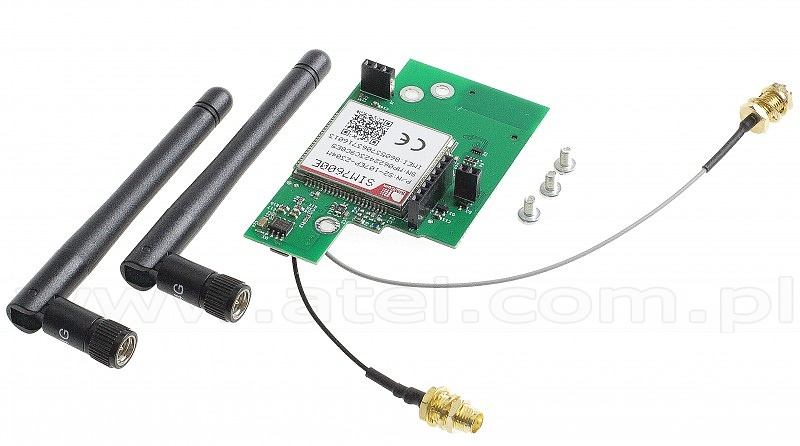

It can be additionally equipped with LTE module #08318
The device is equipped with four ports for analog sensors, one CAN digital port, four potential-free contacts, two alarm signaling contacts, built-in temperature sensor and allows to connect a USB camera. 48V DC version.
It can be additionally equipped with LTE module #08318
| REMOTE CONTROL | |
|---|---|
| IP monitoring |
Web, SNMP, SMTP |
| Sensors control | Administrative 3-level control of sensors using login |
| INTERFACE & PROTOCOL SUPPORT | |
| Interface | Access via any Internet browser. |
| LAN | Ethernet 10/100Mbit |
| Network protocols |
Built-in HTTP server, SNMP agent, SMTP agent, manageable logic. Uses FTP link for updating current software version. |
| Processor | ARM926-300 MHz |
| OS | Linux 2.6.38 |
| RAM | 64Mb |
| ROM | 512 Mbit NAND Flash |
| Software | Built-in software for events processing. |
| Alert type |
FTP, syslog, SMTP or SNMP |
| Pings | Built-in ping |
| LEDs |
power, network, alarms; |
| Clock | Built-in clock with time synchronization |
| Watchdog | Built-in watchdog timer |
| POWER | |
| Power input | 48V DC |
| Power consumption | 6W |
| Power reservation |
12V, built-in voltage monitor |
| INPUTS/OUTPUTS | |
| Ethernet | 100Mbit |
| Mini USB AB | USB 2.0 HS |
| Analog port | 4x 6p4c for connection of any analog sensor. |
| CAN port | 1x6p6c (max 12 CAN sensors) |
| Dry contacts | 4x |
| 12V outlets | 2x 0.25A |
| FEATURES | |
| Installation | Desktop or 19" (with #082222 19" holder / bracket for VT335 S monitoring unit - ordered separately) |
| Dimensions | (LxHxW)206 x 33.1 x 79.4 mm |
| Net weight | 1,2 kg |
| Warranty | 3 years |
Accessories:

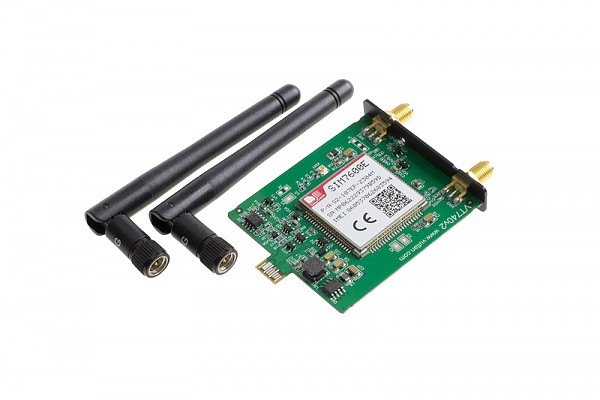

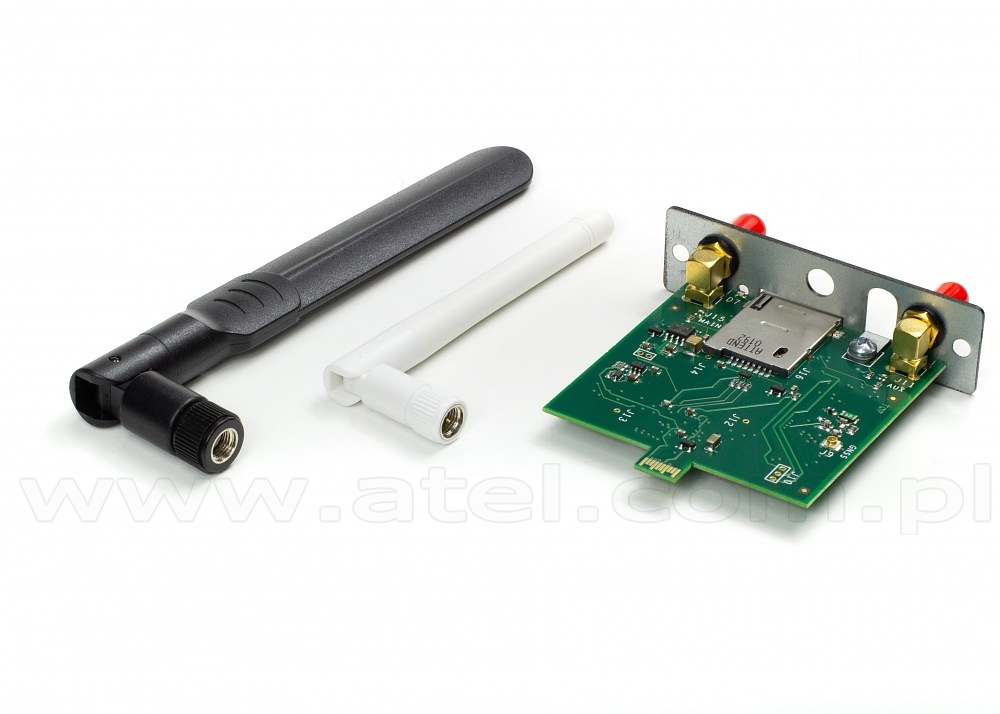

#08318 Internal LTE, GPS modem VT760
#08222 19" holder / bracket for VT335 S monitoring unit
#08318 Internal LTE, GPS modem VT760
#08222 19" holder / bracket for VT335 S monitoring unit
#03103

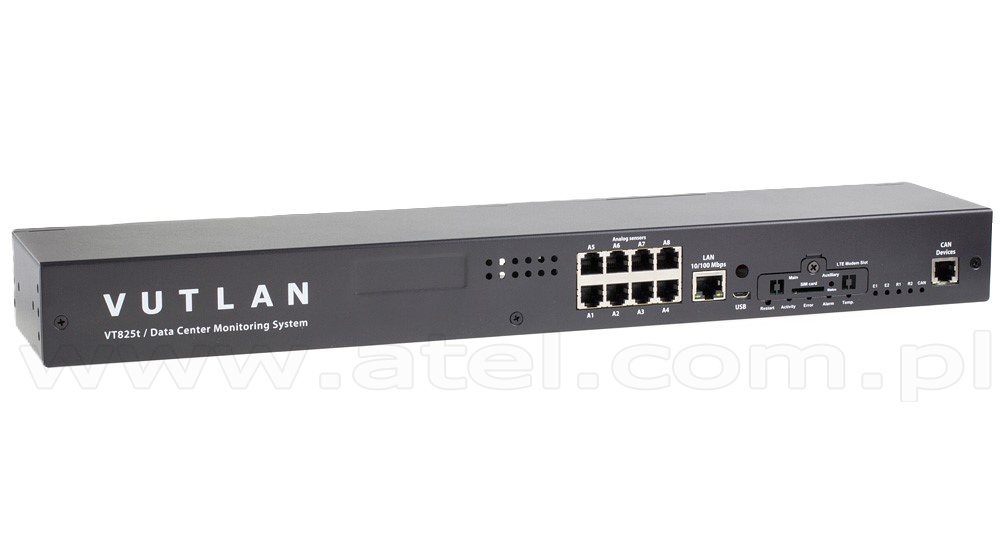

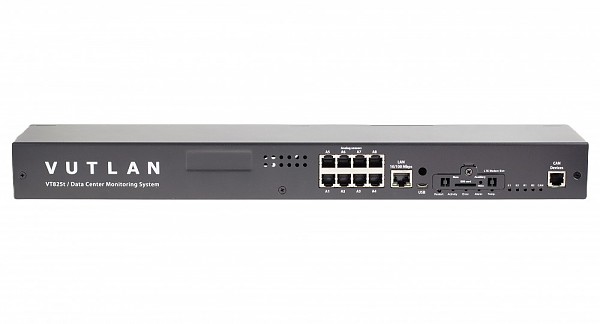

Monitoring unit 19" 1U; 8x analog; 1x CAN; 16x dry contact inputs (Vutlan VT825i)
Monitoring system with redundant power supply.
The unit is used for environmental monitoring (e.g. temperature, humidity, voltage, leakage, smoke, airflow). It is also used as an I/O controller (e.g. door control, fans, generator, control panels, UPS, circuit breakers, alarms). Can use up to 1000 different elements - notifications, triggers, timers, logic schemes, sensors, dry contacts. Has built-in Web interface with virtual sensors, logic schemes, different types of notification, and control panels. Has a slot for a VT790 LTE Slot modem (ordered separately!) for an ethernet connection reservation.
Order options:
1 power inlet (VT825i) or 2 power inlets (VT825ii), providing a redundant power supply for A&B power distribution. Power input can be chosen.
The unit is used for environmental monitoring (e.g. temperature, humidity, voltage, leakage, smoke, airflow). It is also used as an I/O controller (e.g. door control, fans, generator, control panels, UPS, circuit breakers, alarms). Can use up to 1000 different elements - notifications, triggers, timers, logic schemes, sensors, dry contacts. Has built-in Web interface with virtual sensors, logic schemes, different types of notification, and control panels. Has a slot for a VT790 LTE Slot modem (ordered separately!) for an ethernet connection reservation.
Order options:
1 power inlet (VT825i) or 2 power inlets (VT825ii), providing a redundant power supply for A&B power distribution. Power input can be chosen.
| REMOTE CONTROL | |
|---|---|
| IP monitoring |
Web, SNMP, SMS (LTE modem art. VT740 is ordered separately!) |
| Sensors control | Administrative 3-level control of sensors using login |
| INTERFACE & PROTOCOL SUPPORT | |
| Interface | Access via any Internet browser. |
| LAN | Ethernet 10/100Mbit |
| Network protocols |
HTTP; HTTPS; DynDNS; SSL; SNMP v1, v2c, v3; SMTP; FTP; Syslog; RADIUS; OpenVPN |
| OS | Linux 5.40 |
| Processor | SAM9X60 600MHz |
| RAM | 128MB |
| Software | Built-in software for events processing. |
| Alert type |
FTP, syslog, SMTP or SNMP, SMS (LTE modem is ordered separately) |
| A maximum number of "mail to" recipients | 20 |
| A maximum number of "SMS to" recipients in an SMS notification | 20 |
| Pings | Built-in ping |
| LEDs |
CAN, ACT, E1, E2, Error, Relays R1 and R2 |
| Clock | Built-in clock with time synchronization |
| Watchdog | Built-in watchdog timer |
| POWER | |
| Power req | 2x IEC C14 90-240V 1A fuse or 2x DC (24V/48V) or 1x AC + 1x DC |
| Power consumption | 10W |
| Power reservation |
12V, built-in voltage monitor |
| INLETS/OUTLETS | |
| Ethernet | 100Mbit |
| USB | USB 2.0 Type A |
| Mini USB AB | USB 2.0 HS |
| Analog port | 8x6P4C for connecting any analog sensor. |
| CAN BUS |
1 x 6P6C for connecting up to 32 CAN sensors (over 12 sensors, regeneration of the signal is required using the CAN # 03880 power module). Fuse protection on each line. |
| Relay outputs | 2 ports |

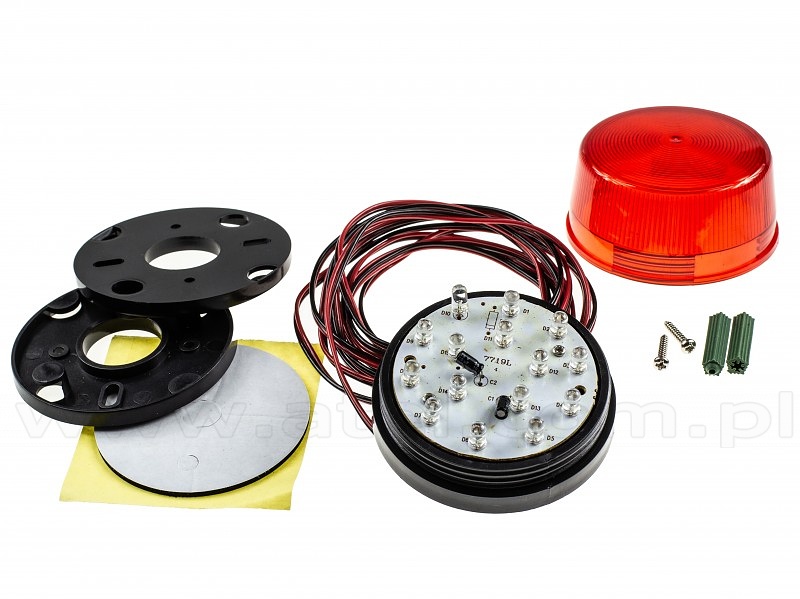

| Alarm relay | 2 x 12V 0.25A alarm port for VT103 Alarm Beacon (#08264) or VT105 (#08344) |

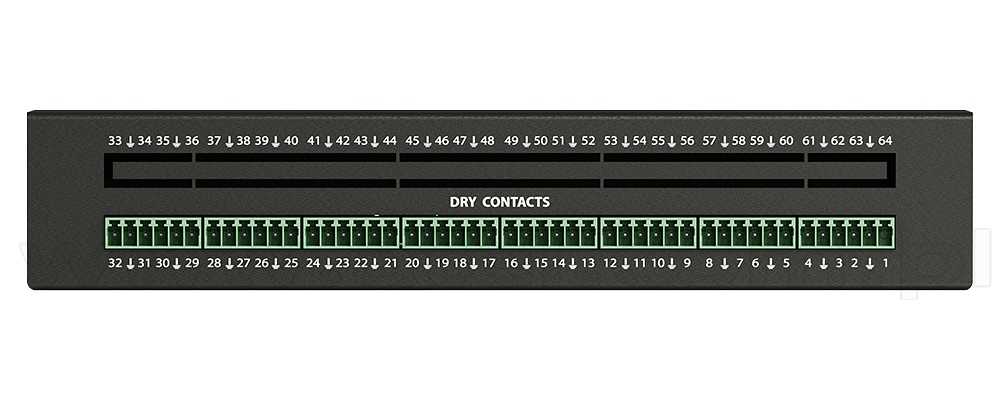

| Dry contact inputs | 16 x dry contacts input |
| EXTERNAL MEMORY | |
| Micro SD card |
4/8/16/32 GB Flash (saving logs, record video, run software, databases and scripts) |
| FEATURES | |
| Installation | 19" cabinet or desktop |
| Dimensions | (WxHxD) 440mm × 44mm × 90mm |
| Net weight | 1.5 kg |
| Working temperature | Min. -10° C - Max. 80° C |
| Supply includes |
Monitoring unit, power cable 240V, RJ45 cord, manual, warranty, 4 self-adhesive rubber legs, plugs, 19" mounting angles. |
| Warranty | 3 years |
.jpg?1652098714)
.jpg?1652098718)
.jpg?1652099325)
.jpg?1652099327)
.jpg?1652099329)
#03102
Monitoring unit 19" 1U; 8x analog; 1x CAN; 16x dry contact inputs (Vutlan VT825i)
The unit is used for environmental monitoring (e.g. temperature, humidity, voltage, leakage, smoke, airflow). It is also used as an I/O controller (e.g. door control, fans, generator, control panels, UPS, circuit breakers, alarms). Can use up to 1000 different elements - notifications, triggers, timers, logic schemes, sensors, dry contacts. Has built-in Web interface with virtual sensors, logic schemes, different types of notification, and control panels.
Order options:
1 power inlet (VT825i) or 2 power inlets (VT825ii), providing a redundant power supply for A&B power distribution.
Order options:
1 power inlet (VT825i) or 2 power inlets (VT825ii), providing a redundant power supply for A&B power distribution.
| REMOTE CONTROL | |
|---|---|
| IP monitoring |
Web, SNMP, SMS (LTE modem art. VT790 is ordered separately!) |
| Sensors control | Administrative 3-level control of sensors using login |
| INTERFACE & PROTOCOL SUPPORT | |
| Interface | Access via any Internet browser. |
| LAN | Ethernet 10/100Mbit |
| Network protocols |
HTTP; HTTPS; DynDNS; SSL; SNMP v1, v2c, v3; SMTP; FTP; Syslog; RADIUS; OpenVPN |
| OS | Linux 5.40 |
| Processor | SAM9X60 600MHz |
| RAM | 128MB |
| Software | Built-in software for events processing. |
| Alert type |
FTP, syslog, SMTP or SNMP, SMS (LTE modem #03105 is ordered separately) |
| A maximum number of "mail to" recipients | 20 |
| A maximum number of "SMS to" recipients in an SMS notification | 20 |
| Pings | Built-in ping |
| LEDs |
CAN, ACT, E1, E2, Error, Relays R1 and R2 |
| Clock | Built-in clock with time synchronization |
| Watchdog | Built-in watchdog timer |
| POWER | |
| Power req |
90-240V, IEC C14, Fuse 1A or DC (24V/48V) |
| Power consumption | 10W |
| Power reservation |
12V, built-in voltage monitor |
| INLETS/OUTLETS | |
| Ethernet | 100Mbit |
| USB | USB 2.0 Type A |
| Mini USB AB | USB 2.0 HS |
| Analog port | 8x6P4C for connecting any analog sensor. |
| CAN BUS |
1 x 6P6C for connecting up to 32 CAN sensors (over 12 sensors, regeneration of the signal is required using the CAN # 03880 power module). Fuse protection on each line. |
| Relay outputs | 2 ports |
| Alarm relay | 2 x 12V 0.25A alarm port for VT103 Alarm Beacon (#08264) or VT105 (#08344) |
| Dry contact inputs | 16 x dry contacts input |
| EXTERNAL MEMORY | |
| Micro SD card |
4/8/16/32 GB Flash (saving logs, record video, run software, databases and scripts) |
| FEATURES | |
| Installation | 19" cabinet or desktop |
| Dimensions | (WxHxD) 440mm × 44mm × 90mm |
| Net weight | 1.5 kg |
| Working temperature | Min. -10° C - Max. 80° C |
| Supply includes |
Monitoring unit, power cable 240V, RJ45 cord, manual, warranty, 4 self-adhesive rubber legs, plugs, 19" mounting angles. |
| Warranty | 3 years |
.jpg?1652098772)
.jpg?1652098732)
.jpg?1652098734)
#03100
Monitoring unit 19" 1U; 8x analog; 1x CAN; 32x dry contact inputs (Vutlan VT855i)
The unit is used for environmental monitoring (e.g. temperature, humidity, voltage, leakage, smoke, airflow). It is also used as an I/O controller (e.g. door control, fans, generator, control panels, UPS, circuit breakers, alarms). Can use up to 1000 different elements - notifications, triggers, timers, logic schemes, sensors, dry contacts. Has built-in Web interface with virtual sensors, logic schemes, different types of notification, and control panels. Has a slot for a "VT740 / LTE slot modem" and a 2.5" HDD. This is the fastest and most powerful Vutlan monitoring unit.
| REMOTE CONTROL | |
|---|---|
| IP monitoring |
Web, SNMP, SMS (LTE modem art. VT740 is ordered separately!) |
| Sensors control | Administrative 3-level control of sensors using login |
| INTERFACE & PROTOCOL SUPPORT | |
| Interface | Access via any Internet browser. |
| LAN | Ethernet 10/100Mbit |
| Network protocols |
Built-in HTTP server, SNMP agent, SMTP agent, manageable logic. Uses FTP link for updating current software version. Modbus, OpenVPN, Radius. |
| OS | Linux 5.40 |
| Processor | SAM9X60 600MHz |
| RAM | 128MB |
| Software | Built-in software for events processing. |
| Alert type |
FTP, syslog, SMTP or SNMP, SMS (LTE modem is ordered separately) |
| A maximum number of "mail to" recipients | 20 |
| A maximum number of "SMS to" recipients in an SMS notification | 20 |
| Pings | Built-in ping |
| LEDs |
CAN, ACT, E1, E2, Error, Relays R1 and R2 |
| Clock | Built-in clock with time synchronization |
| Watchdog | Built-in watchdog timer |
| POWER | |
| Power req |
90-240V, IEC C14, Fuse 1A or DC (24V/48V) |
| Power consumption | 30W |
| Power reservation |
12V, built-in voltage monitor |
| INLETS/OUTLETS | |
| Ethernet | 100Mbit |
| USB | USB 2.0 Type A |
| Mini USB AB | USB 2.0 HS |
| Analog port | 8x6P4C for connecting any analog sensor. |
| CAN BUS |
1 x 6P6C for connecting up to 32 CAN sensors (over 12 sensors, regeneration of the signal is required using the CAN # 03880 power module). Fuse protection on each line. |
| Relay outputs | 2 ports |
| Alarm relay | 2 x 12V 0.25A alarm port for VT103 Alarm Beacon (#08264) or VT105 (#08344) |
| Dry contact inputs | 32 x dry contacts input and 8 x dry contact outputs |
| Other |
one 1-wire port, one MODBUS port |
| EXTERNAL MEMORY | |
| Micro SD card |
up to 128 GB Flash (saving logs, record video, run software, databases and scripts) |
| FEATURES | |
| Installation | 19" cabinet or desktop |
| Dimensions | (WxHxD) 440mm × 44mm × 90mm |
| Net weight | 1.5 kg |
| Working temperature | Min. -10° C - Max. 80° C |
| Supply includes |
Monitoring unit, power cable 240V, RJ45 cord, manual, warranty, 4 self-adhesive rubber legs, plugs, 19" mounting angles. |
| Warranty | 3 years |
#03101
Monitoring unit 19" 1U; 8x analog; 1x CAN; 32x dry contact inputs (Vutlan VT855ii)
The unit with two redundant power inlets used for environmental monitoring (e.g. temperature, humidity, voltage, leakage, smoke, airflow). It is also used as an I/O controller (e.g. door control, fans, generator, control panels, UPS, circuit breakers, alarms). Can use up to 1000 different elements - notifications, triggers, timers, logic schemes, sensors, dry contacts. Has built-in Web interface with virtual sensors, logic schemes, different types of notification, and control panels. Has a slot for a "VT740 / LTE slot modem". This is the fastest and most powerful Vutlan monitoring unit.
Optionally available versions with 24VDC or 48VDC power supply (available versions AC / AC, AC / DC, DC / DC)
Optionally available versions with 24VDC or 48VDC power supply (available versions AC / AC, AC / DC, DC / DC)
| REMOTE CONTROL | |
|---|---|
| IP monitoring |
Web, SNMP, SMS (LTE modem art. VT740 is ordered separately!) |
| Sensors control | Administrative 3-level control of sensors using login |
| INTERFACE & PROTOCOL SUPPORT | |
| Interface | Access via any Internet browser. |
| LAN | Ethernet 10/100Mbit |
| Network protocols |
Built-in HTTP server, SNMP agent, SMTP agent, manageable logic. Uses FTP link for updating current software version. Modbus, OpenVPN, Radius. |
| OS | Linux 5.40 |
| Processor | SAM9X60 600MHz |
| RAM | 128MB |
| Software | Built-in software for events processing. |
| Alert type |
FTP, syslog, SMTP or SNMP, SMS (LTE modem is ordered separately) |
| A maximum number of "mail to" recipients | 20 |
| A maximum number of "SMS to" recipients in an SMS notification | 20 |
| Pings | Built-in ping |
| LEDs |
CAN, ACT, E1, E2, Error, Relays R1 and R2 |
| Clock | Built-in clock with time synchronization |
| Watchdog | Built-in watchdog timer |
| POWER | |
| Power req | 2x IEC C14 90-240V 1A fuse or 2x DC (24V/48V) or 1x AC + 1x DC |
| Power consumption | 30W |
| Power reservation |
12V, built-in voltage monitor |
| INLETS/OUTLETS | |
| Ethernet | 100Mbit |
| USB | USB 2.0 Type A |
| Mini USB AB | USB 2.0 HS |
| Analog port | 8x6P4C for connecting any analog sensor. |
| CAN BUS |
1 x 6P6C for connecting up to 32 CAN sensors (over 12 sensors, regeneration of the signal is required using the CAN # 03880 power module). Fuse protection on each line. |
| Relay outputs | 2 ports |
| Alarm relay | 2 x 12V 0.25A alarm port for VT103 Alarm Beacon (#08264) or VT105 (#08344) |
| Dry contact inputs | 32 x dry contacts input and 8 x dry contact outputs |
| Other |
one 1-wire port, one MODBUS port |
| EXTERNAL MEMORY | |
| Micro SD card |
up to 128 GB Flash (saving logs, record video, run software, databases and scripts) |
| FEATURES | |
| Installation | 19" cabinet or desktop |
| Dimensions | (WxHxD) 440mm × 44mm × 90mm |
| Net weight | 1.5 kg |
| Working temperature | Min. -10° C - Max. 80° C |
| Supply includes |
Monitoring unit, power cable 240V, RJ45 cord, manual, warranty, 4 self-adhesive rubber legs, plugs, 19" mounting angles. |
| Warranty | 3 years |
#03097
Monitoring unit 19" 1U; 8x analog; 1x CAN; 32x dry contact inputs (Vutlan VT960i)
The unit is used for environmental monitoring (e.g. temperature, humidity, voltage, leakage, smoke, airflow). It is also used as an I/O controller (e.g. door control, fans, generator, control panels, UPS, circuit breakers, alarms). Can use up to 1000 different elements - notifications, triggers, timers, logic schemes, sensors, dry contacts. Has built-in Web interface with virtual sensors, logic schemes, different types of notification, and control panels. Has a slot for a "VT790 / LTE slot modem" and a 2.5" HDD. This is the fastest and most powerful Vutlan monitoring unit.
| REMOTE CONTROL | |
|---|---|
| IP monitoring |
Web, SNMP, SMS (LTE modem art. VT790 is ordered separately!) |
| Sensors control | Administrative 3-level control of sensors using login |
| INTERFACE & PROTOCOL SUPPORT | |
| Interface | Access via any Internet browser. |
| LAN | Ethernet 10/100Mbit |
| Network protocols |
Built-in HTTP server, SNMP agent, SMTP agent, manageable logic. Uses FTP link for updating current software version. Modbus, OpenVPN, Radius. |
| OS | Linux 5.10 |
| Processor | 1.2GHz |
| Software | Built-in software for events processing. |
| Alert type |
FTP, syslog, SMTP or SNMP, SMS (LTE modem is ordered separately) |
| A maximum number of "mail to" recipients | 50 |
| A maximum number of "SMS to" recipients in an SMS notification | 50 |
| Pings | Built-in ping |
| LEDs |
CAN, ACT, E1, E2, Error, HDD, Relays R1 and R2 |
| Clock | Built-in clock with time synchronization |
| Watchdog | Built-in watchdog timer |
| POWER | |
| Power req |
90-240V, IEC C14, Fuse 2A |
| Power consumption | 30W |
| Power reservation |
12V, built-in voltage monitor |
| INLETS/OUTLETS | |
| Ethernet | 100Mbit |
| USB | USB 2.0 Type A |
| Mini USB AB | USB 2.0 HS |
| Analog port | 8x6P4C for connecting any analog sensor. |
| CAN BUS |
1 x 6P6C for connecting up to 32 CAN sensors (over 12 sensors, regeneration of the signal is required using the CAN # 03880 power module). Fuse protection on each line. |
| Relay outputs | 2 ports |
| Alarm relay | 2 x 12V 0.25A alarm port for VT103 Alarm Beacon (#08264) or VT105 (#08344) |

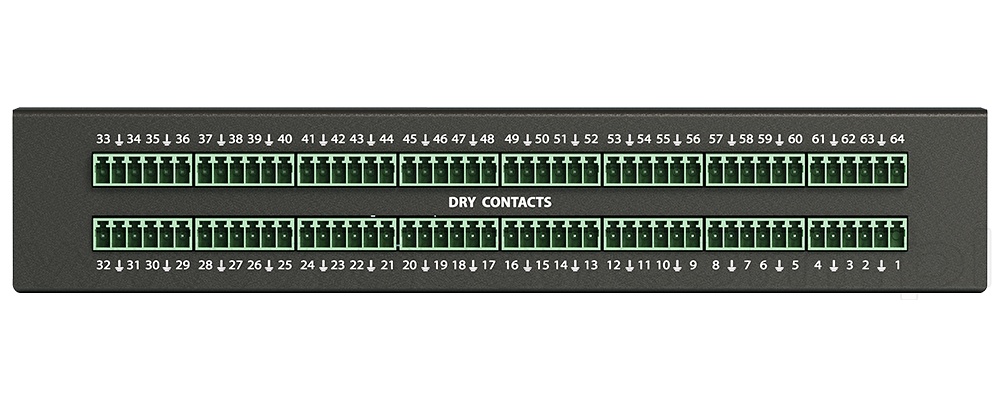

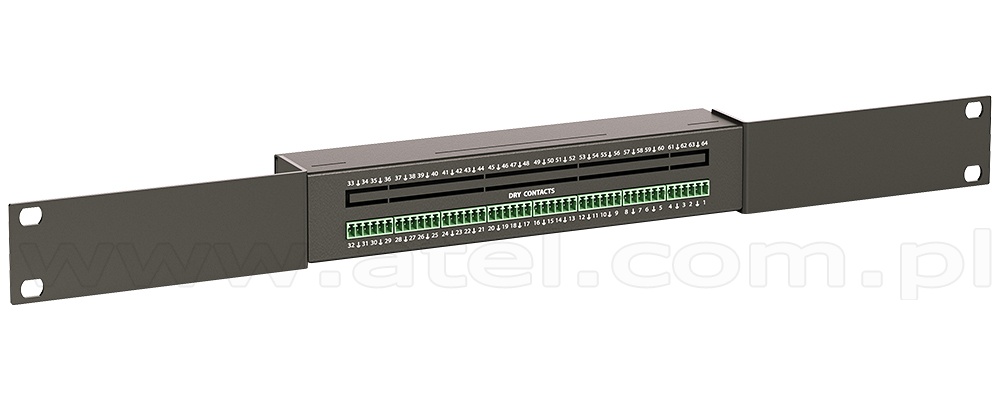

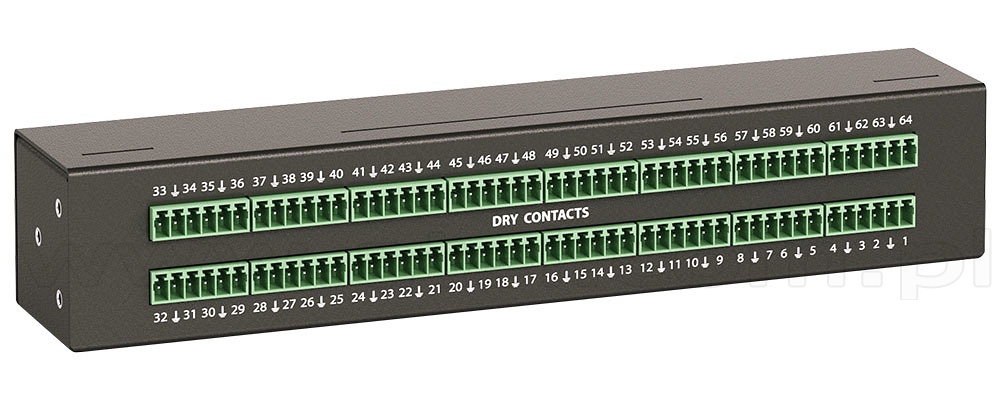

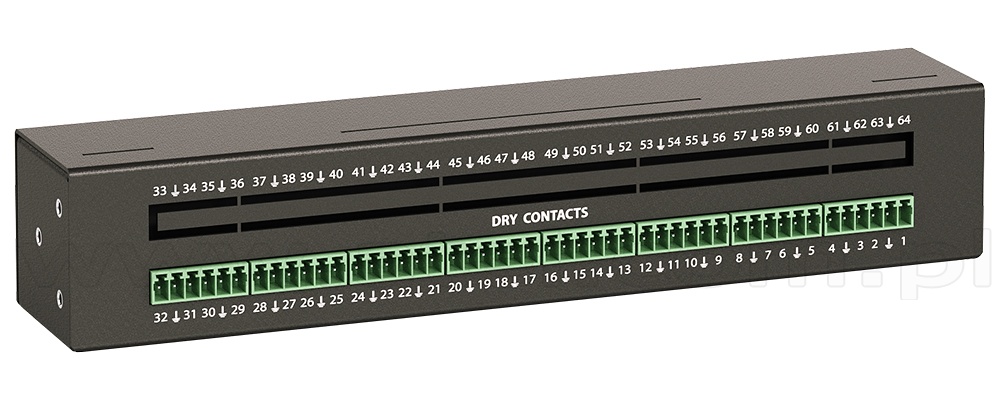

| Dry contact inputs | 32 x dry contacts input and 8 x dry contact outputs |
| Other |
one 1-wire port, one MODBUS port |
| EXTERNAL MEMORY | |
| Micro SD card |
4/8/16/32 GB Flash or 2.5" SATA SDD/HDD (saving logs, record video, run software, databases and scripts) |
| FEATURES | |
| Installation | 19" cabinet or desktop |
| Dimensions | (WxHxD) 440mm × 44mm × 120mm |
| Net weight | 2 kg |
| Working temperature | Min. -10° C - Max. 80° C |
| Supply includes |
Monitoring unit, power cable 240V, RJ45 cord, manual, warranty, 4 self-adhesive rubber legs, plugs, 19" mounting angles. |
| Warranty | 3 years |
#08377

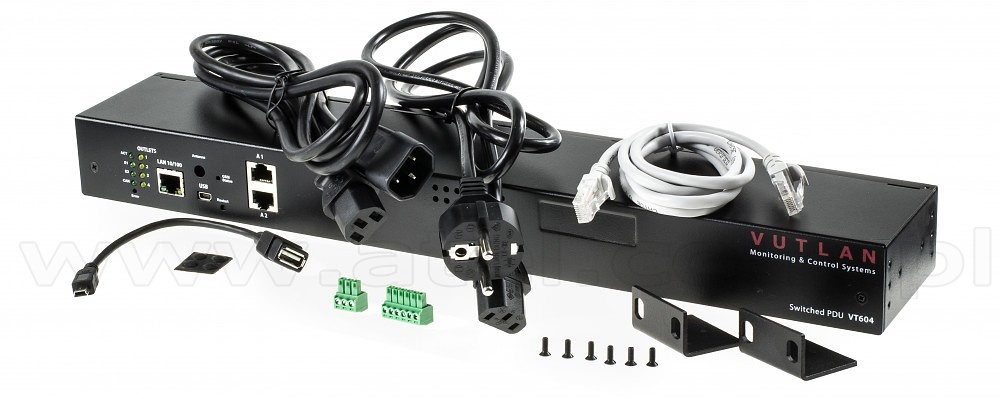

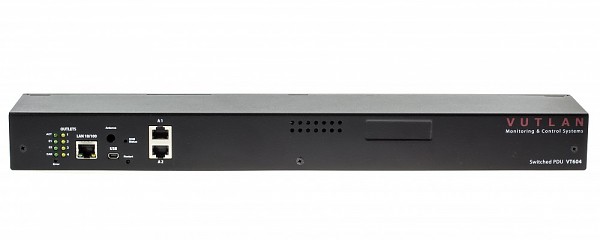

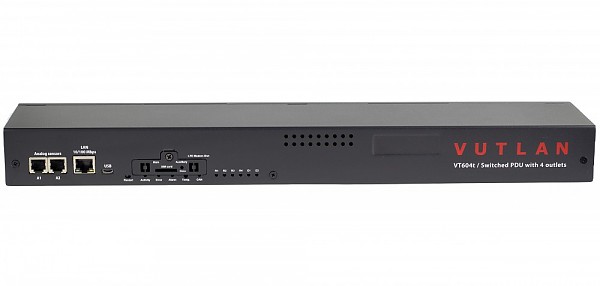

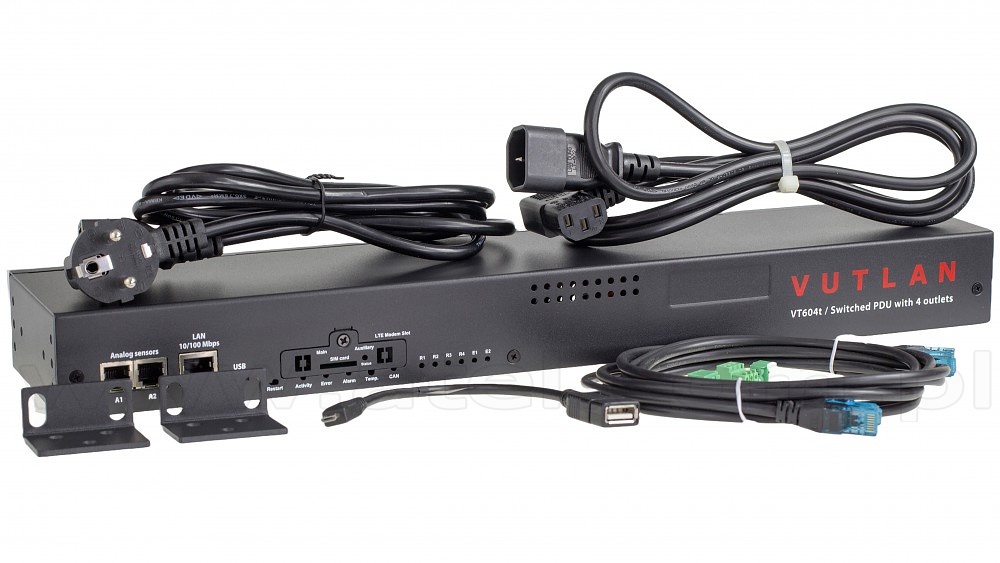

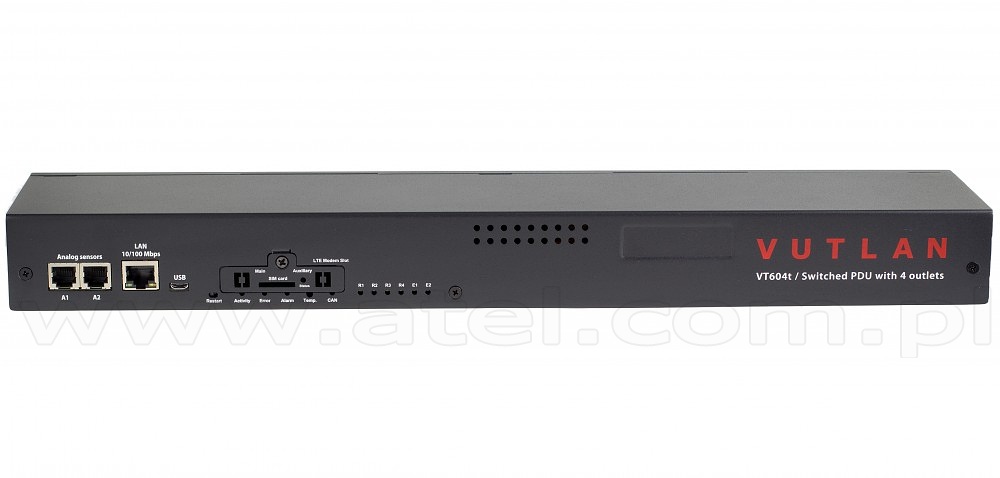

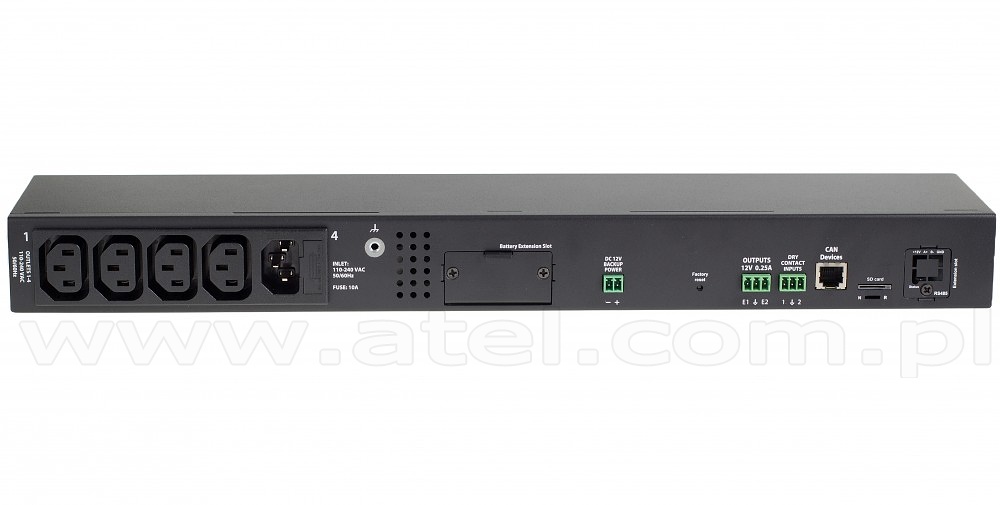

Power distribution unit 2x analog, 1xCAN, 4x 230V (Vutlan VT604)
The control unit supports 4 controlled 230V power sockets, 2 analog sensors, 2 potential-free sockets, 2 12V sockets and a LTE modem.
It allows remote switching on/off or restart for up to 4 connected devices.
It allows remote switching on/off or restart for up to 4 connected devices.
| REMOTE CONTROL | |
|---|---|
| IP monitoring |
Web, SNMP, manual SMS (GSM modem art. VT760 #08318 is ordered separately!) |
| Sensors control | Administrative 3-level control of sensors using login |
| INTERFACE & PROTOCOL SUPPORT | |
| Interface | Access via any Internet browser. |
| LAN | Ethernet 10/100Mbit |
| Network protocols |
Built-in HTTP server, SNMP agent, SMTP agent, manageable logic. Uses FTP link for updating current software version. |
| OS | Linux 2.6.38 |
| Processor | ARM926-300 MHz / 64 MB |
| Software | Built-in software for events processing. |
| Alert type |
FTP, syslog, SMTP or SNMP, SMS (LTE modem art. VT760 #08318 is ordered separately!) |
| Pings | Built-in ping |
| LEDs |
STATUS, E1, E2, ERR, 4x OUTLET |
| Clock | Built-in clock with time synchronization |
| Watchdog | Built-in watchdog timer |
| POWER | |
| Power input | IEC C14 240V x 10A. Fuse protection. |
| Power output | 4x C13 240V |
| Power consumption | 10W |
| INPUTS/OUTPUTS | |
| Ethernet | 100Mbit |
| Mini USB AB | USB 2.0 HS |
| Analog port | 2x 6P4C for connection of any analog sensor. |
| CAN BUS | 1 x 6P6C for connection of up to 8 CAN sensors on each BUS. |
| Relay outputs | 4x C13 230V/10A power sockets |
| Built-in sensors |
Temperature sensor (1%), Power supply voltage sensor (1%) |
| Dry contacts input | x2 |
| 12V outlets | 2x 0.25A |
| FEATURES | |
| Installation | 19" cabinet |
| Dimensions | (LxHxW) 440 x 44.45 (1U) x 79 mm |
| Operating characteristics |
Humidity - Min. 5% - Max. 95% (Non-Condensing), Temperature - Min. -10° C - Max.80° C |
| Net weight | 1,5 kg |
| Supply includes |
Cable EU Schuko C13 0.5mm2 230V 10A, Self-adhesive rubber foot 4 pcs, Warranty card, Short description and connection guide, Patch cable RJ-45 1m, Terminal plug 3 pins 3.5mm 1pcs, Terminal plug 2 pins 3.81mm 1pc, 19" mounting brackets 2pcs, Screws 6pcs M3 8mm |
| Warranty | 3 years |
Chosen accessories:
#08318 Internal LTE, GPS modem VT760
#08318 Internal LTE, GPS modem VT760
#08244

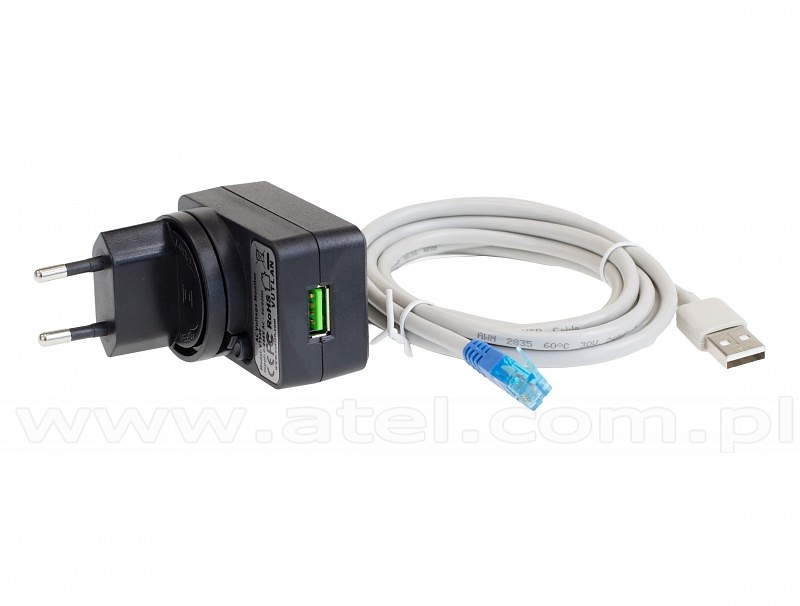

AC voltage monitor (Vutlan VT520)
The sensor is made for measurement of 220-230V standard power supply or any other power sources in e.g. an outlet, on an extension cord or in a rack-mountable socket strip.
| Connection |
Plug 220V is put into the outlet necessary for measurement of 220V. Cable's USB connector must be connected to the USB output, connector RJ-11 must be connected to an analog input of any system unit. Determination of sensor's type and connection occur automatically. |
|---|---|
| Set includes | Sensor and USB RJ-11 patch cable (1.8 m). |
| Voltage measured | 90-250V |
| Accuracy of measurement | 2% |
| Max. distance m | 100m |
| Net weight | 125g |
| Dimensions (LHW) | 63×66×40mm |
#08245

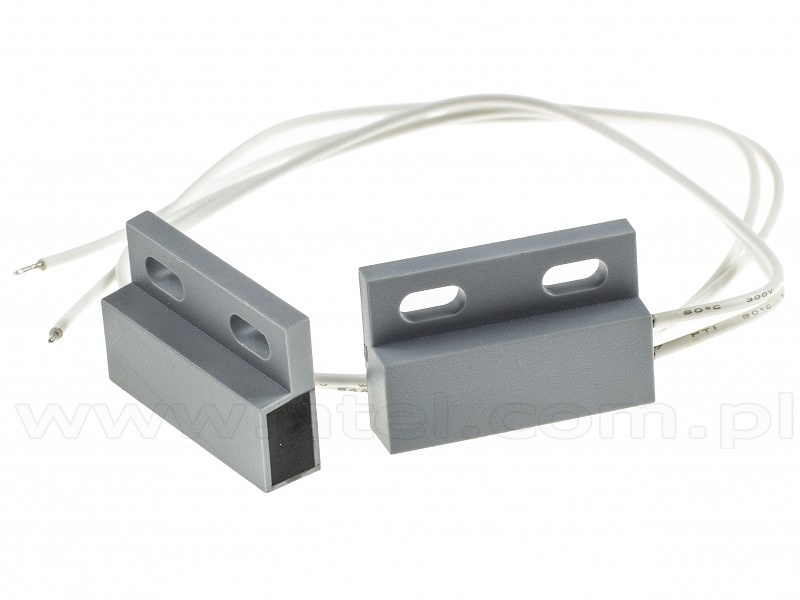

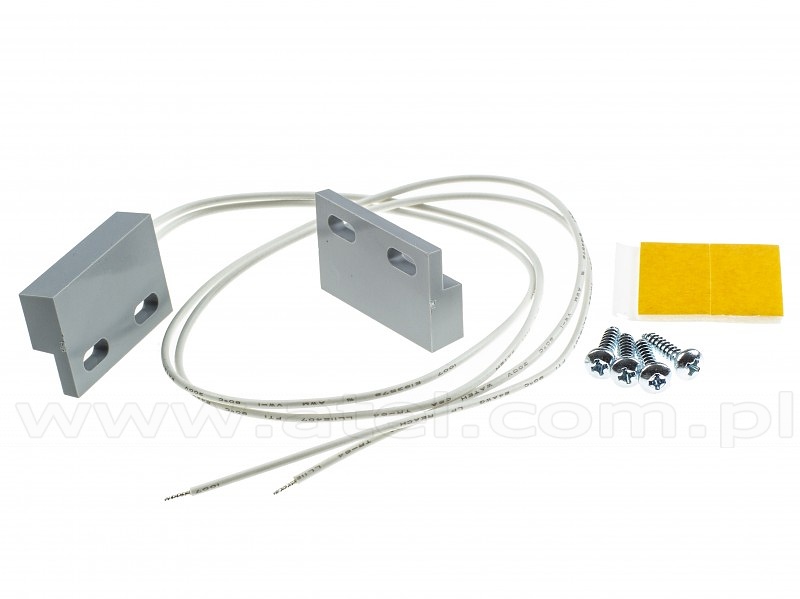

Access sensor (Vutlan VT530)
The sensor made for checking whether the doors and windows have not been opened / closed.
| Installation |
Using patch-cable RJ-11 the sensor is connected to an analog input of any system unit. Determination of sensor's type and connection occur automatically. One of devices in the kit, for example, magnet, is mounted on a door; the second device is mounted on a jamb of a door. At opening a door contact is disconnected, and system of monitoring receives notification on opening. The first sensor is connected using patch-cable RJ-11 to an analog input of the system unit, the consequent sensor is connected via patch-cable RJ-11 to an output of the first sensor and so on. |
|---|---|
| Set includes |
Contact sensor, magnet, 4-wired patch cable RJ-11 (2m), two screws 4.8×16mm, 2 screws M5 and 2 nuts, bracket, double sided sticker. |
| Max. distance | 150m |
| Net weight | 106g |
| Dimensions (LHW) | Two compact devices with dimensions 60×18×18mm |
#08154

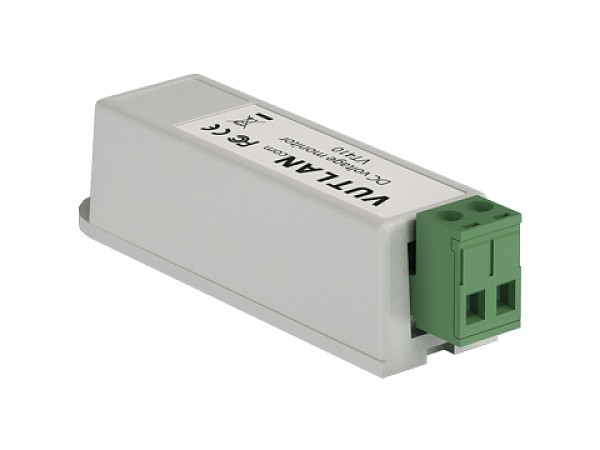

DC voltage monitor (Vutlan VT410)
DC monitor is used for the measurement of DC voltage up to 75V and converting data into the format of the IP monitoring system. The system interface allows you to assign the sensor and to introduce the function data conversion.
| Voltage measured | 0-75V |
|---|---|
| Accuracy of measurement | 1% |
| Max. distance m | 50m |
| Net weight | 100g |
| Dimensions (LHW) | 60×18×18 mm |
Only a 6P6C RJ12 cable can be used with the sensor! The cable is included with the sensor.
.jpg?1639493327)
#03108

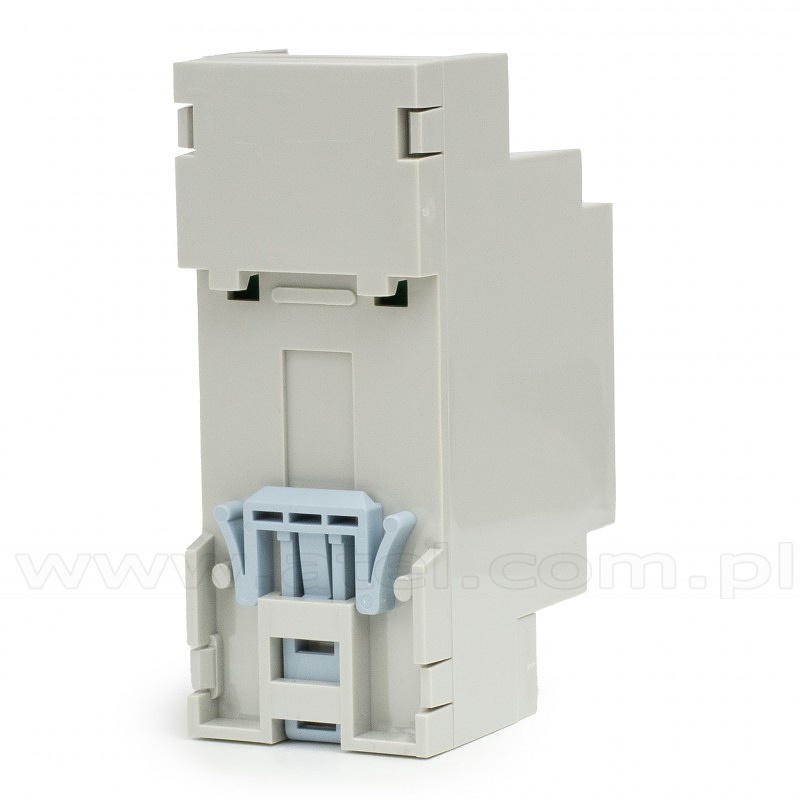

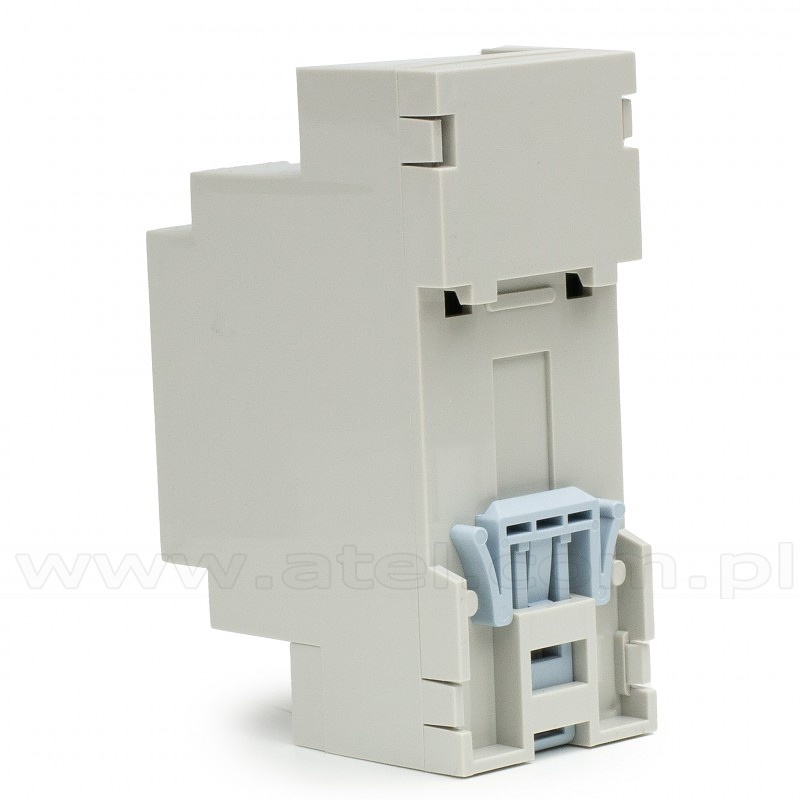

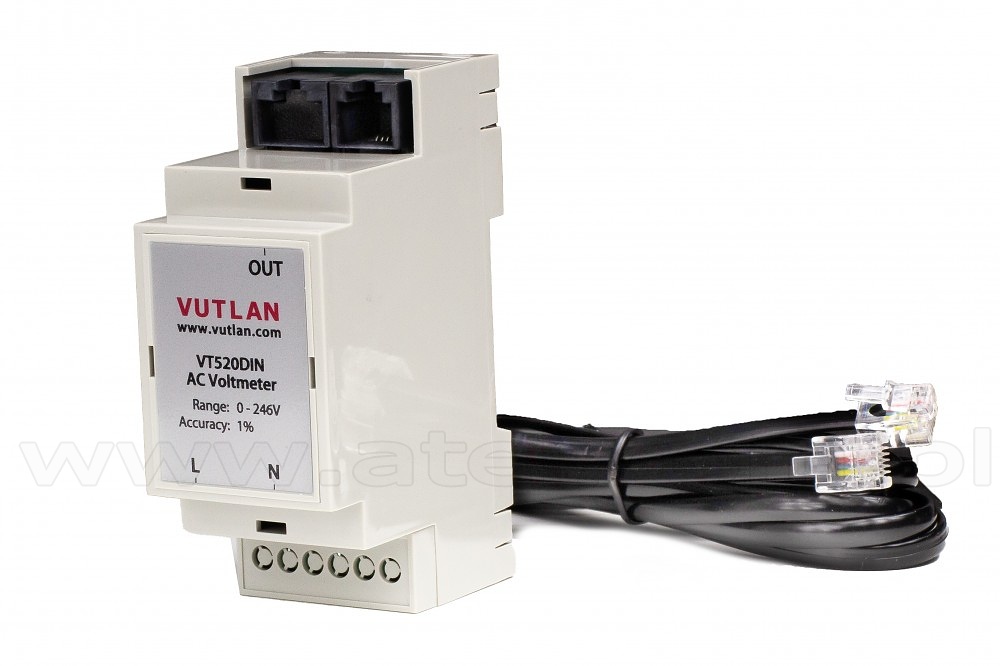

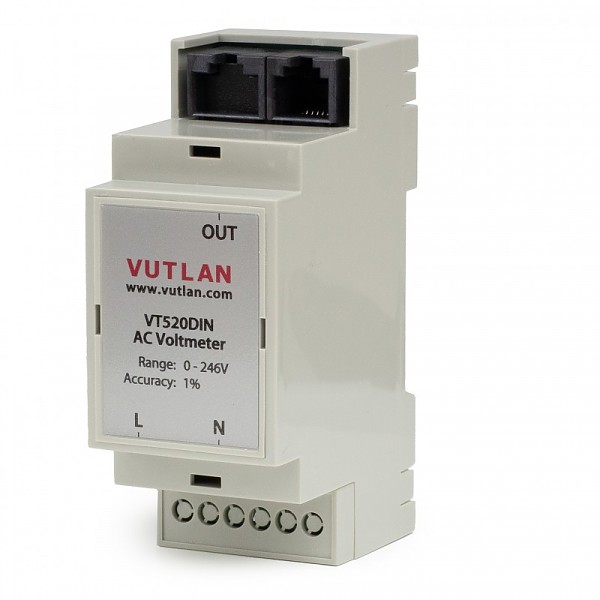

DIN AC voltage monitor (Vutlan VT520DIN)
The sensor is used for the measurement of 0-246V, AC. It has a very high 1% accuracy. It can be used with any Vutlan monitoring system. DIN rail 35mm mounting.
| Voltage measured | 0-246V AC |
|---|---|
| Accuracy of measurement | 1% |
| Max. distance m | 100m |
| Net weight | 125g |
| Dimensions (HxWxD) | 90.2×36.3×57.5mm |
#08239

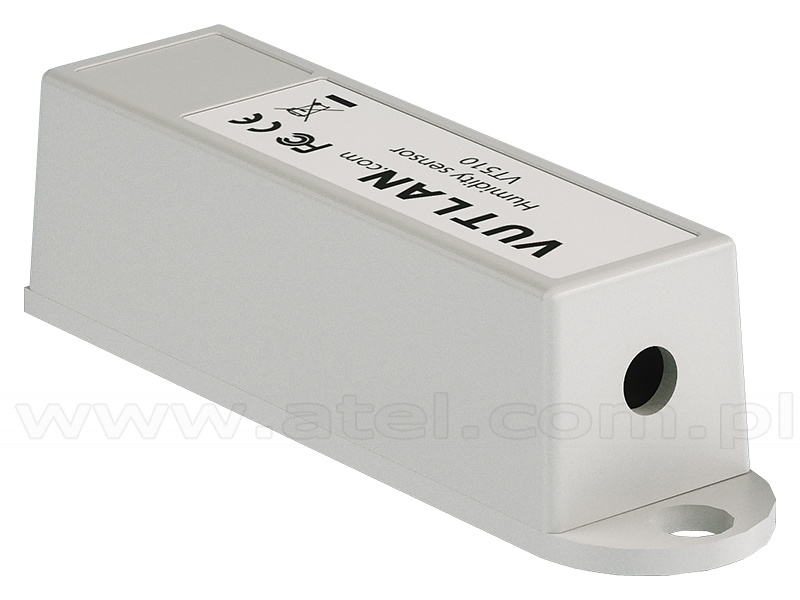

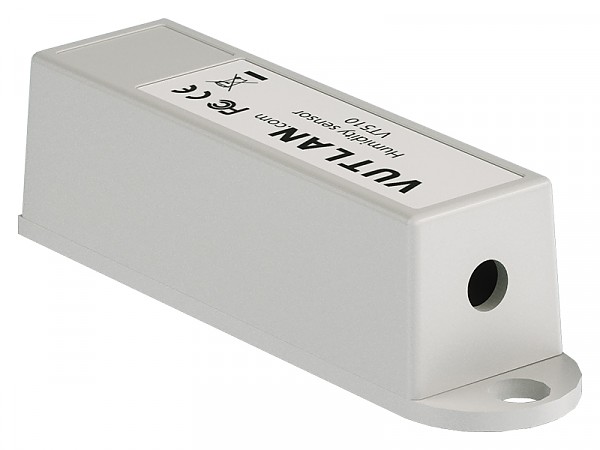

Humidity sensor 5% (Vutlan VT510)
The sensor is made for measurement of relative humidity 10-95% indoors with a relative accuracy of 5%.
| Technical specifications | |
|---|---|
| Measured humidity range | 10-95% RH |
| Accuracy | 5%RH |
| Working temperature | -10 .. +80°C |
| Features | |
| Installation | On the bottom there is a ledge with Ø4.5mm and height 1mm and a Ø5mm mounting hole fpr mounting the sensor. |
| 5mm from it for fastening the sensor using 4.8×16 mm screw. | |
| Connection | Humidity sensor contains RJ-11 jack and is connected to an analog input of any system unit. Determination of type of sensor and connection occur automatically. |
| Supply includes |
Sensor, 4-wired patch cable RJ11 (2m), 4.8×16mm screw, double sided sticker. |
| Net weight | 60g |
| Dimensions | 60×18×18mm |
| Max distance | 150m |
#08248

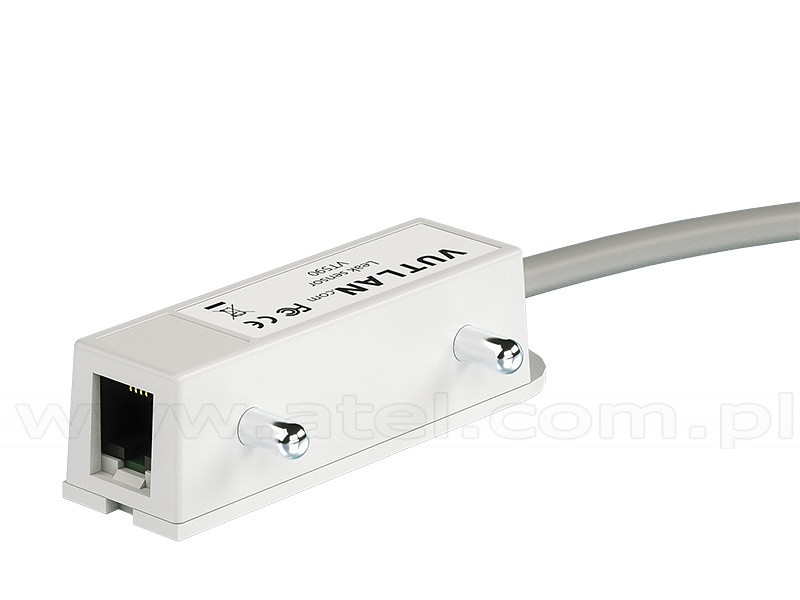

Leakage sensor (Vutlan VT590)
The sensor mounted horizontally on a vertical surface informs about exceeding the water level when it comes into contact with metal cores.
Metal cores are water detectors, mount vertically downwards as close to the floor as possible.
Metal cores are water detectors, mount vertically downwards as close to the floor as possible.
| Technical specifications | |
|---|---|
| Temperature range | -10… +80°C |
| Response time | 1 sec |
| Recovery time | 1 sec |
| Max. distance | 100 m |
| Connection | Connector RJ12 is connected to an analog input of any system unit. Determination of sensor's type and connection occur automatically. |
| Set includes |
Sensor, 4-wired cable RJ-12 (2m) |
| Net weight | 125g |
| Dimensions (LHW) | 60×18×18mm |
#08247

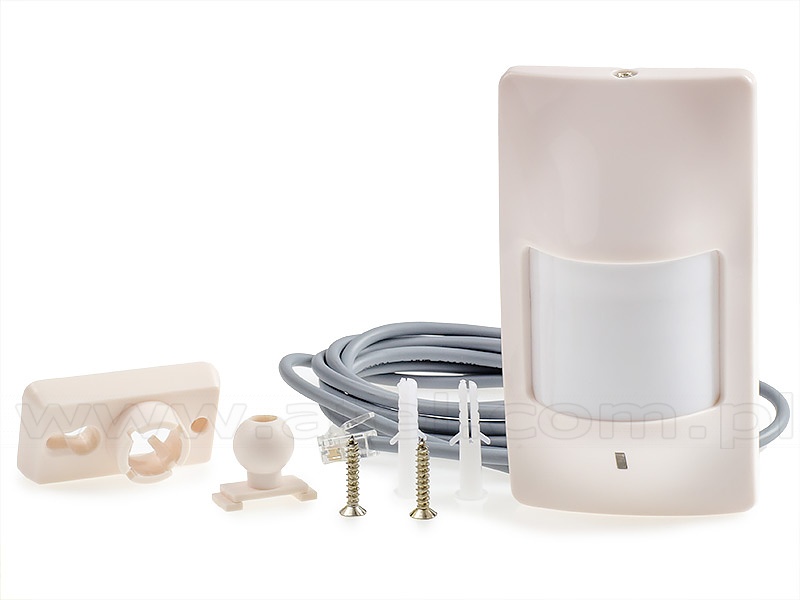

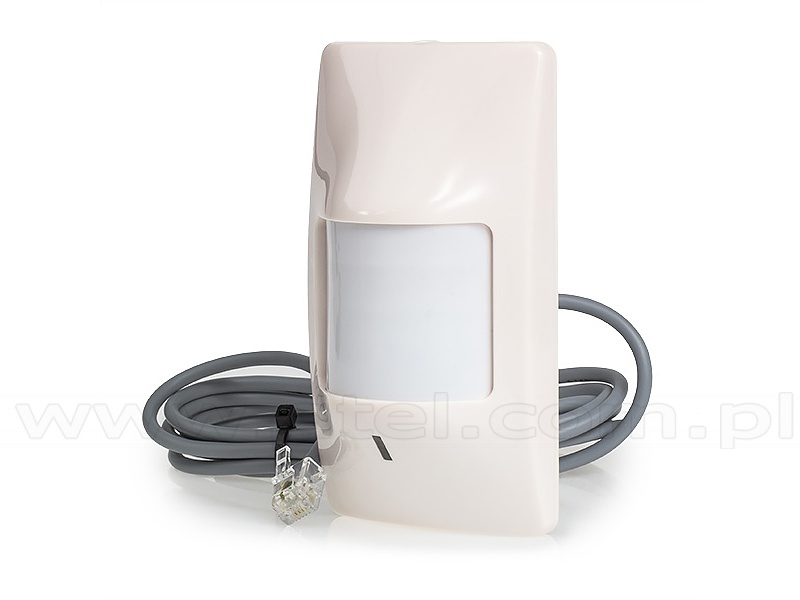

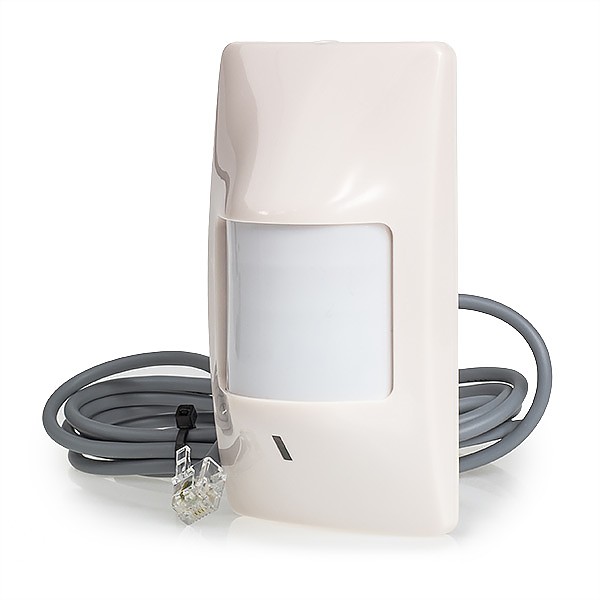

Motion detector (Vutlan VT570)
Sensor made for movement detection via infra-red.
| Technical specifications | |
|---|---|
| PIR detection angle | 110° |
| Max. detection distance | 50 m |
| Features | |
| Installation | On the bottom there is a mounting slot for fastening the sensor with a plastic bracket. |
| Connection |
Motion sensor contains RJ-11 jack and is connected to an analog input of any system unit. Determination of sensor's type and connection occur automatically. To adjust sensitivity, read manual. To change cable connection, open the cover and read manual. |
| Dimensions (LxHxW) | 105×57×40mm |
| Net weight | 133g |
| Supply includes |
Sensor, cable RJ11 2m, 4.8×16mm screw, 2-pin terminal strip type TBW-5-2p, double sided sticker. |
#08243

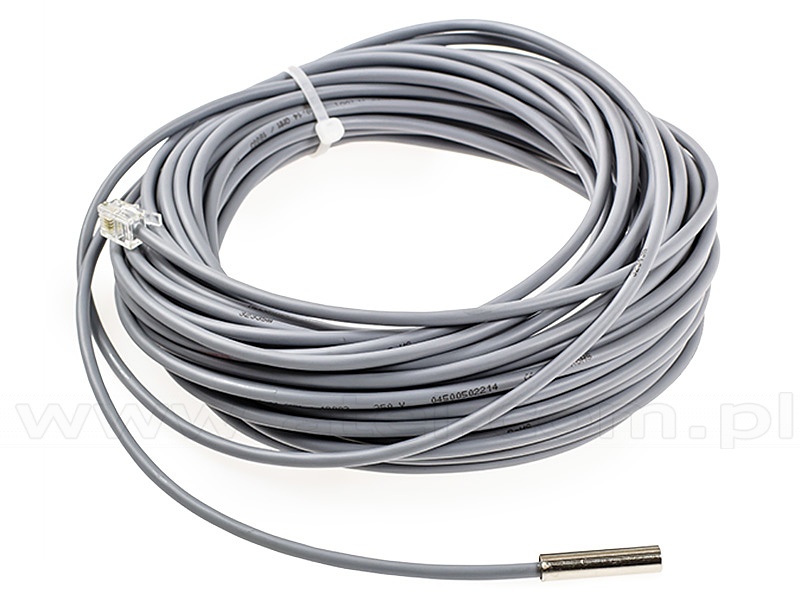

Outdoor temperature sensor (Vutlan VT501)
The sensor made for measurement of temperature outside of buildings, can also be used indoors.
| Technical specifications | |
|---|---|
| Operating temperature | -50...+105°C |
| Accuracy | 3°C |
| Max. distance | 100m |
| Features | |
| Installation |
An all-weather 2-pair UTP cable of 15m emerges from the cylinder. After installation of cylinder outside of a building, the cable must be placed to reach the system unit. |
| Connection | After installation RJ-11 connector is connected to an analog input of any system unit. Determination of type of sensor and connection occur automatically. |
| Supply includes | 4-wired cable RJ11 (15m) with sensor head |
| Net weight | 340g |
| Dimensions (LHW) | Device has a shape of a Ø7×23mm cylinder |
#08246

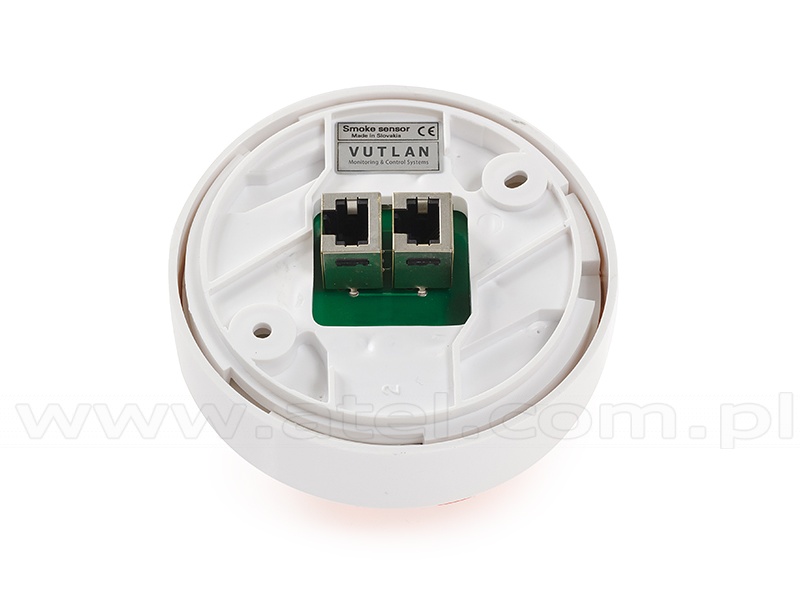

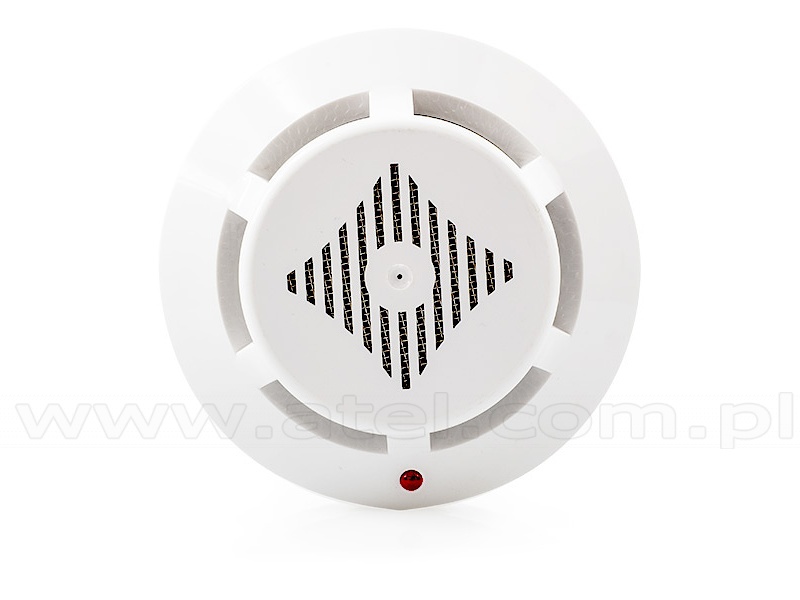

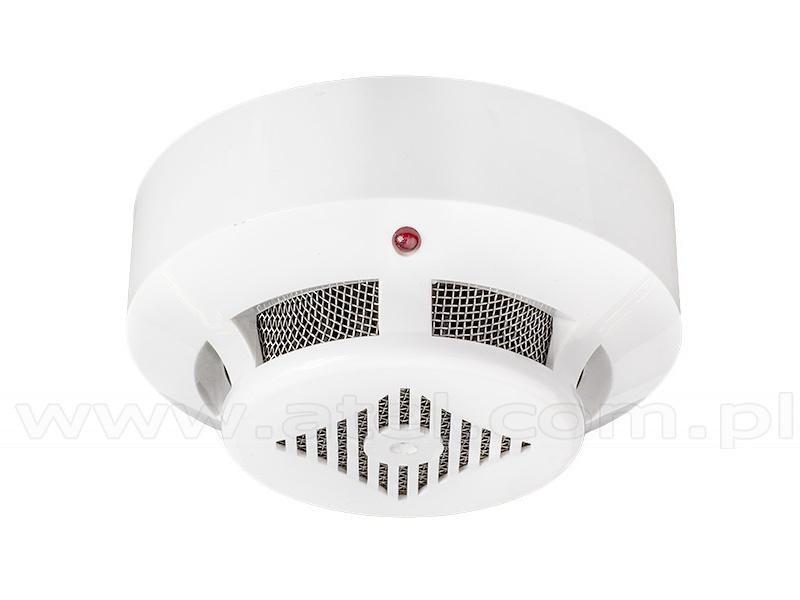

Smoke sensor (Vutlan VT560)
The sensor monitors occurrence of smoke.
| Technical specifications | |
|---|---|
| Sensitivity | 0,05 - 0,2 db/m |
| Features | |
| Installation | On the bottom there are Ø5mm mounting holes for fastening the smoke sensor to the surface by 4.8×20mm screws or/and bracket and M4 screws. |
| Connection |
Detector's jack RJ-11 is connected to an analog input of any system unit using patch-cable RJ-11. Determination of the sensor's type and connection occur automatically. The monitoring system allows to connect several smoke detectors into a linear circuit. For this purpose each detector has two jacks RJ-11 input and output. The first is connected to an analog input of the system unit using a patch-cable RJ-11, the consequent is connected via patch-cable RJ-11 to an output of the first detector and so on. as one sensor with one address. |
| Supply includes |
Detector, 4-wired cable RJ11 (2m), 2 screws and 2 nuts M4, 2 screws 4.8×20mm, bracket, double sided sticker. |
| Net weight | 290g |
| Dimensions (LHW) | Ø100×45 |
| Max distance | 150m |
#03110

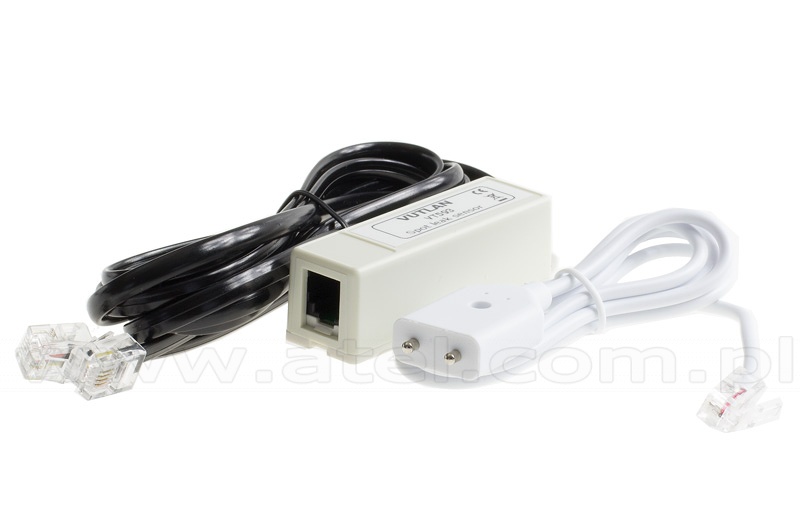

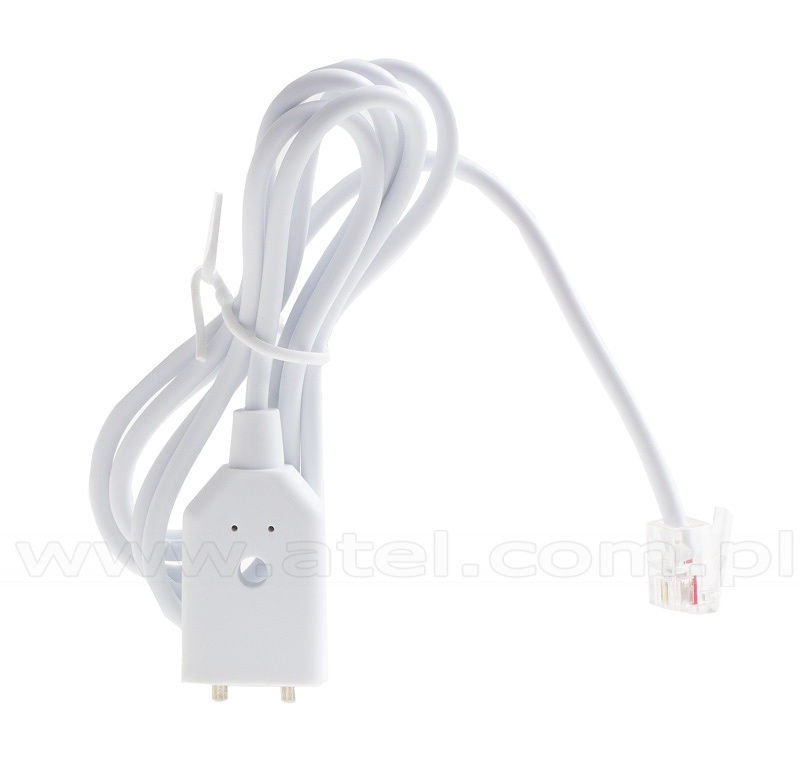

Spot leak sensor (Vutlan VT593)
The sensor is used for level monitoring of conductive liquids in containers, pits, cellars, etc. Or it is used for leakage detection. The sensor has two stainless steel poles. The detector is encapsulated in plastic housing for conductive liquids. Can be placed near plumbing, trays, raised floors, under equipment, sinks, aquariums, sump pumps, refrigerators, dishwashers, toilets, basements, washing machines, water heaters, and garages.
| Technical specifications | |
|---|---|
| Temperature range | -10… +80°C |
| Max. distance | 100 m |
| Connection | Connector RJ12 is connected to an analog input of any system unit. Determination of sensor's type and connection occur automatically. |
| Set includes |
Sensor, adapter, 4-wired cable RJ-12 (2m) |
| Net weight | 60g |
| Dimensions (LHW) | 60×18×18mm |
#08242

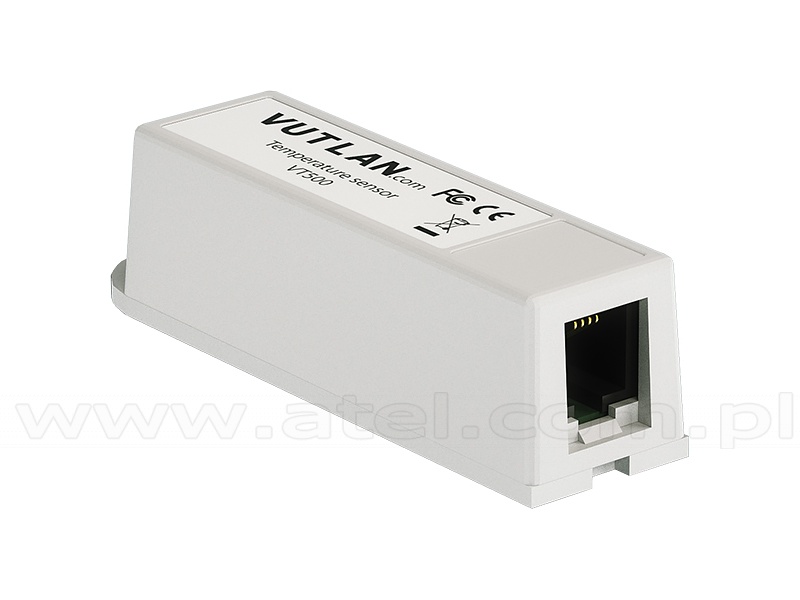

Temperature sensor (Vutlan VT500)
The sensor is made for measurement of temperature indoors.
Measuring range: -10 ÷ 80°C
Measuring range: -10 ÷ 80°C
| Technical specifications | |
|---|---|
| Operating temperature | -10 ÷ 80°C |
| Accuracy | 1°C |
| Features | |
| Installation | On the bottom there is a ledge with Ø4.5mm and height 1mm and a Ø5mm mounting hole for fastening the sensor using a 4.8×16 mm screw. |
| Connection | Temperature sensor contains RJ-11 jack and is connected to an analog input of a system unit. Determination of type of sensor and connection occur automatically. |
| Supply includes |
Sensor, 4-wired patch cable RJ11 (2m), 4.8×16mm screw, double sided sticker. |
| Net weight | 50g |
| Dimensions (LHW) | 60×18×18mm |
| Max distance | 100m |
#08391

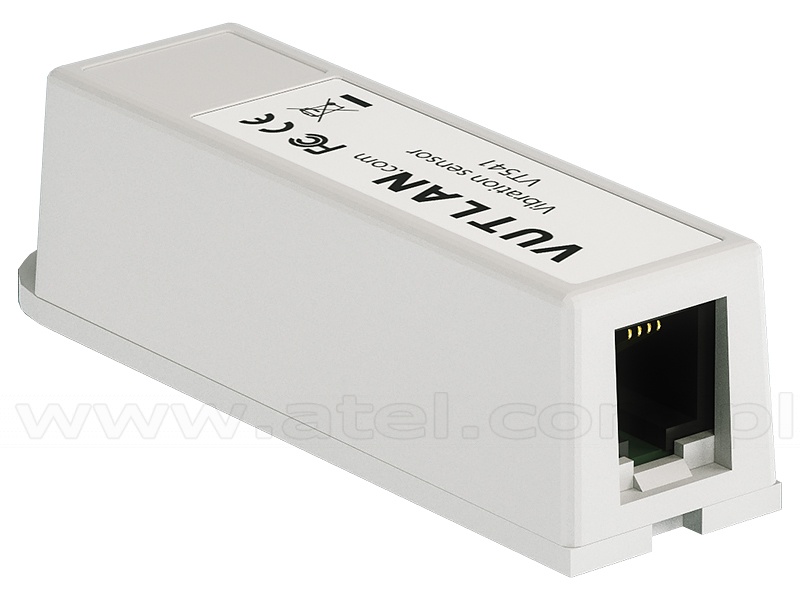

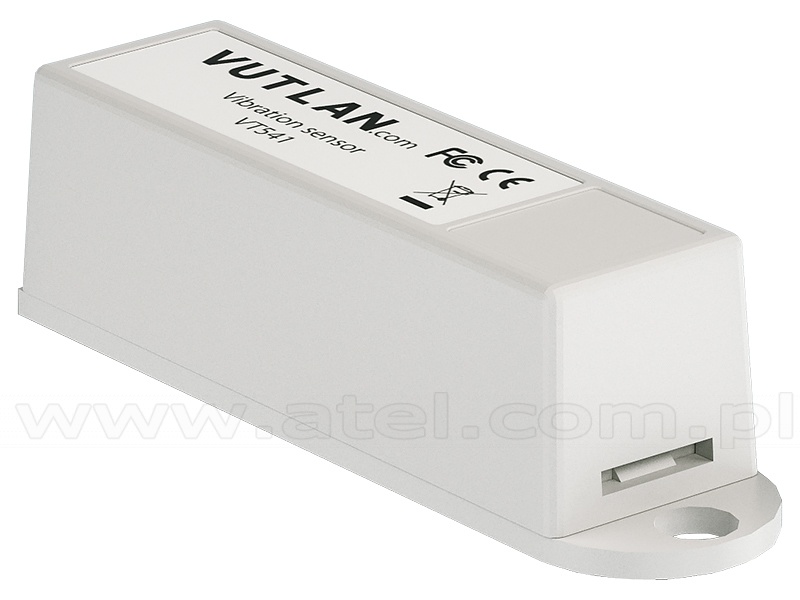

Vibration detector (Vutlan VT540)
Sensor made for remote monitoring of vibration of the elements its attached to.
#08249

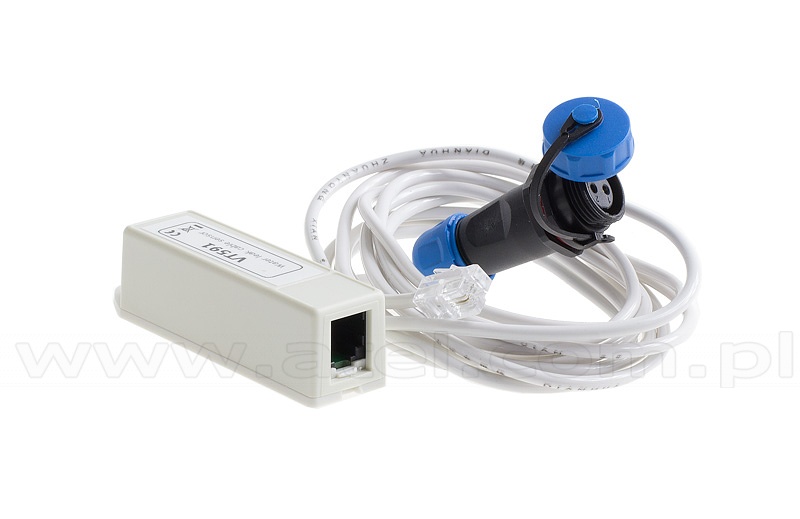

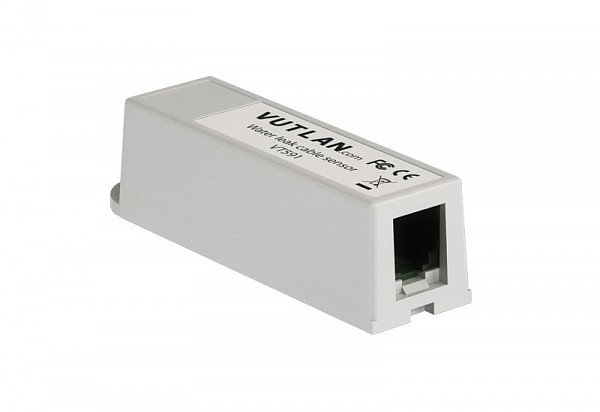

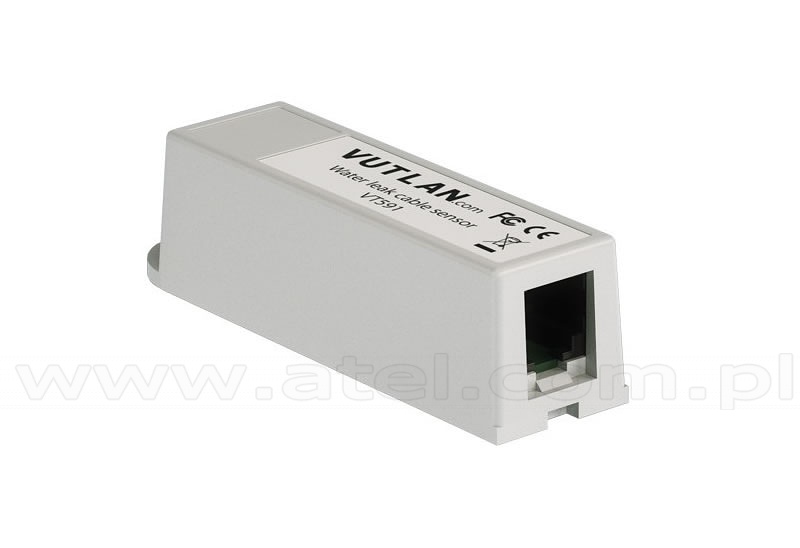

Water detection cable sensor (Vutlan VT591)
The sensor informs about occurance of water or other liquids when it comes into contact with the WLC detection cable attached to the sensor.
The cable is placed under the raised floor, cabinets, air conditioners, etc.

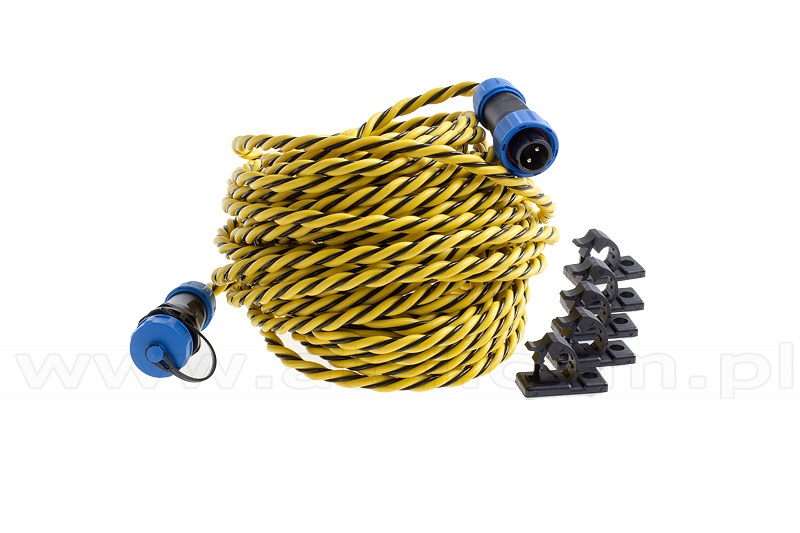

The VT-WLC detection cable is necessary for the sensor.
The sensor is incompatible with the VT-WDC cable.
The cable is placed under the raised floor, cabinets, air conditioners, etc.
The VT-WLC detection cable is necessary for the sensor.
The sensor is incompatible with the VT-WDC cable.
| Connection |
Can be connected via RJ-11 cable to each control unit. Determination of the sensor type and connection takes place automatically. At the end of the sensor, connect the 2-wire VT-WLC detection cable. |
|---|---|
| Maximum distance from the controller | 100m |
| The maximum length of the detection cable track | 225m |
| Set includes |
sensor, cable, terminal strip type TBW-5-2p, screw 4.8×16mm, double sided sticker, VT-WLC adapter |
| Net weight | 60g |
| Dimensions (LHW) | 60×18×18mm |
#08236

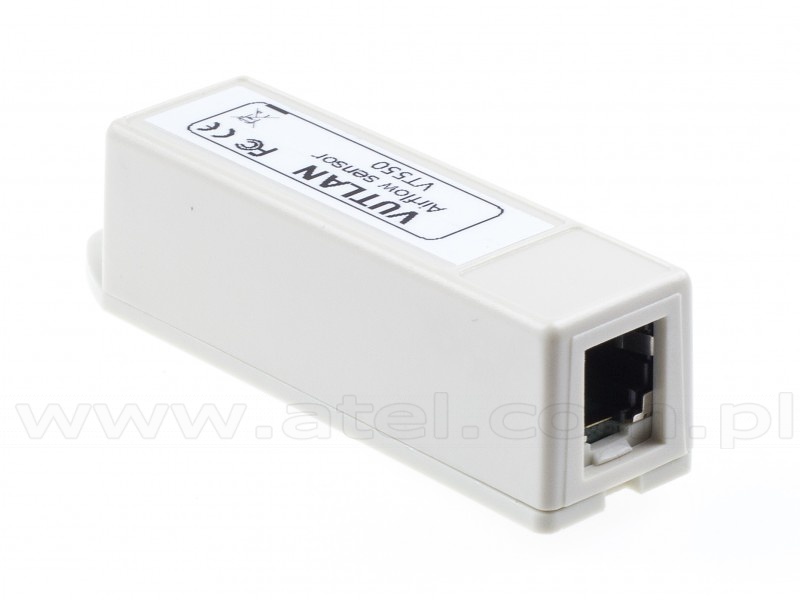

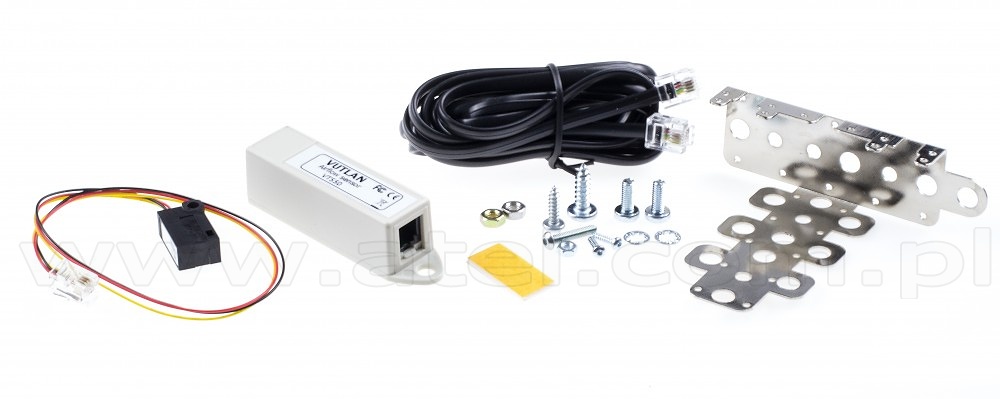

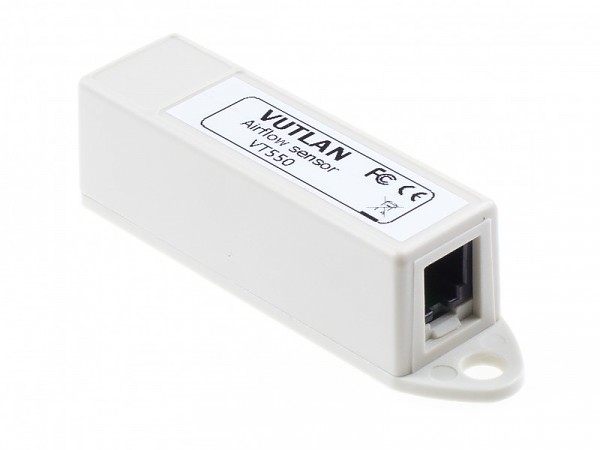

Wind velocity meter (Vutlan VT550)
Sensor made for monitoring of air conditioners, fans, etc. Sensor controls airflow in the range of 0 - 3 m/s.
| Connection | The sensor is connected to the controller by the RJ-11 network cable. Determination of the sensor type and connection takes place automatically. Sensor response time 0.1s |
|---|---|
| Max. distance | 50m |
| Net weight | 106g |
| Dimensions | 60×18×18mm |
| Power Consumption | 60mW |
| Supply includes |
Sensor converter, airflow sensor, mounting bracket, 2m RJ11/RJ12 cable, screws, nuts, bolts and a sticker. |
#08295
Humidity and temperature sensor (Vutlanl VT490)
Digital sensor made for monitoring temperature and humidity inside buildings, rack cabinets, etc.
| Technical specifications | |
|---|---|
| Measured temperature range | -40 ÷ 100°C |
| Accuracy | ±0.4°C in –10 to 85 °C range |
| Measured humidity range | 0 - 95%RH |
| Accuracy %RH | ± 3% RH in 0 to 80% range |
| Maximum distance from the appliance | 225m |
| Features | |
| Connection |
Sensor's jack RJ-12 is connected to CAN input of any system unit or to a CAN output of another sensor using RJ-12 patch cable. Determination of sensor's type and connection occur automatically. The system enables connecting multiple sensors to a linear layout. For this purpose, each sensor is equipped with two RJ-12 input and output sockets. |
| Net weight | 160g |
| Dimensions | 68 × 47 x 26 mm |
#08145
Pressure, humidity and temperature sensor (Vutlan VT450)
Digital sensor made for monitoring temperature, humidity and pressure.
| Communications | |
|---|---|
| Sesnor type | CAN digital sensor |
| Inputs/Outputs | 2x RJ11 6p4c |
| Daisy chain |
Yes, a daisy chain is possible for all CAN sensors. |
| Max. distance from the monitoring unit | 225m |
| LED indicators | Red / Green (RUN/ERROR) |
| Accuracy | |
| Pressure RMS noise | 0.2Pa (equivalent to 1.7cm) |
| Pressure error | ±0.25% (equivalent to 1m at 400m height change) |
| Pressure from °C | ±1.5Pa/K (equivalent to ±12.6cm at 1 °C temperature change) |
| RH accuracy | ± 3% RH (max) |
| Hysteresis | ≤2% RH |
| Response time | 1s |
| Temperature | 1.5°C |
| Environmental | |
| Pressure range | 300 to 1100 hPa |
| Working temperature range | −40 to +85 °С |
| Humidity operating range | 0 to 95% RH |
| Power Requirement | |
| Power input |
12V DC, 1A (power supplied on a CAN bus chain) |
| Current consumption | 1 Watt |
| Mechanics | |
| Dimensions | 68x47x26 mm |
| Packaging weight | 160 g |
#08237
Smoke, humidity and temperature sensor (Vutlan VT460)
Digital sensor made for monitoring temperature and humidity and detecting smoke inside buildings, rack cabinets, etc.
| Technical specifications | |
|---|---|
| Smoke sensitivity | 0,05 - 0,2 db/m |
| Response time | 10 sec |
| Measured temperature range | -10 to +75 °C |
| Accuracy | ±0.4°C in –10 to 85 °C range. |
| Measured humidity range | 0 - 95%. |
| Accuracy %RH | ± 3% RH in range of 0 - 80% |
| Maximum distance from the appliance | 225m |
| Features | |
| Installation | On the bottom there are mounting holes for fastening the smoke sensor to the surface using screws 4.8×20mm or/and bracket and M4 screws. |
| Connection | Sensor's jack RJ-12 is connected to CAN input of any system unit or to a CAN output of another sensor using RJ-11 patch cable. Determination of sensor's type and connection occur automatically. Monitoring system allows connection of up to 40 smoke sensors into a linear circuit. |
| Set includes |
Sensor, 3-wired shielded patch cable RJ12 (2m), bracket, 2 screws and 2 nuts M4, 2 screws 4.8×20mm, double sided sticker. |
| Net weight | 310g |
| Dimensions (LHW) | Ø100×45mm |
#08117

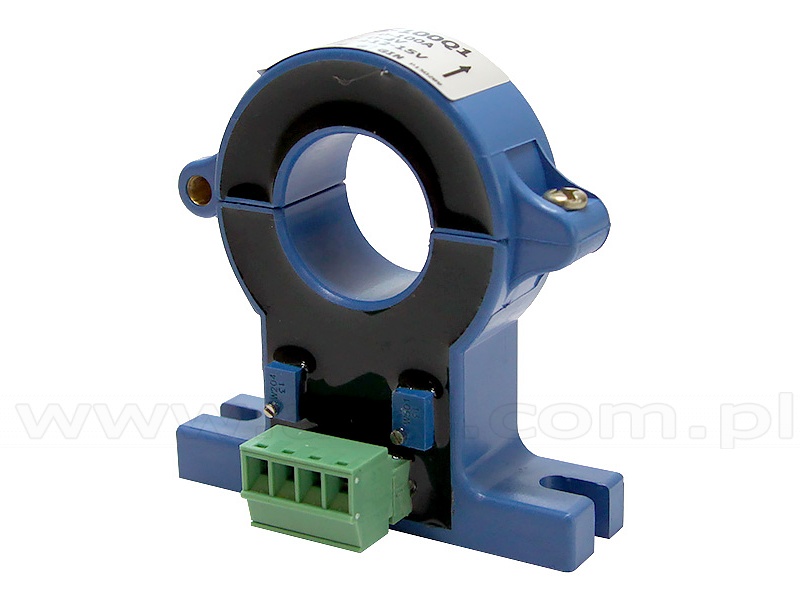

AC current transducer (Vutlan HAT-100Q1)
The clamp sensor enables the measurement of alternating current in the range of up to 100A. Itr can be used together with a VT407 converter (#08116).
| Connection: | |
|---|---|
| Power input | -12V / +12V |
| Outputs | 4 pin terminal |
| Power Consumption | 1 Watt |
| Operating temperature | -10°C ÷ 80°C |
| Operating humidity |
5% ÷ 95%, non-condensing |
| Net weight | 150g |
| Dimensions (LHW) | 68 × 47 x 26 mm / 60 × 61 × 16 mm |
#08116 HAT sensor transducer 0-5V DC (Vutlan VT407)
#08264
Alarm beacon (Vutlan VT103)
The VT103 indoor optical-acoustic siren is dedicated to work with Vutlan environmental parameters monitoring units.
| Technical specifications | |
|---|---|
| Rated voltage | 12V |
| Sound pressure | 108 dB |
| Tone frequency | 3.8 kHz |
| Flash frequency | 150 / min |
| Net weight | 140g |
| Dimensions (LHW) | 70 x 36 x 56 mm |
#08344
Alarm beacon (Vutlan VT105)
The 12V VT105 indoor optical-acoustic siren is dedicated to work with Vutlan environmental parameters monitoring units.
| Technical specifications | |
|---|---|
| Rated voltage | 12V |
| Flash frequency | 90 / min |
| Net weight | 110g |
| Dimensions (LHW) |
73 x 45mm, cable 3m |

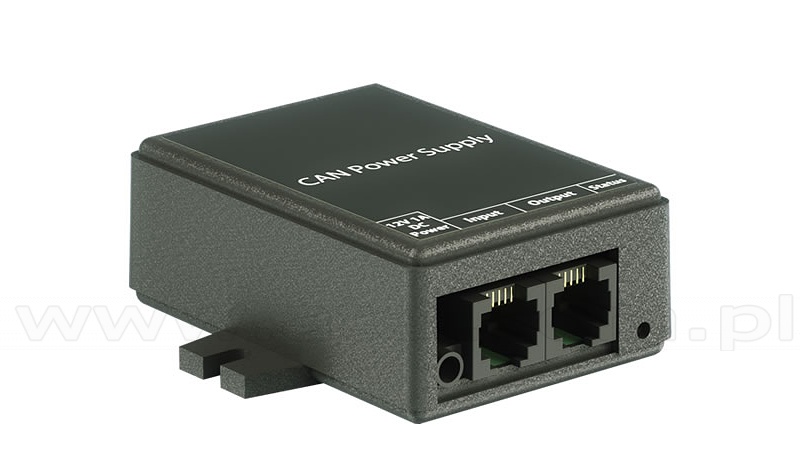

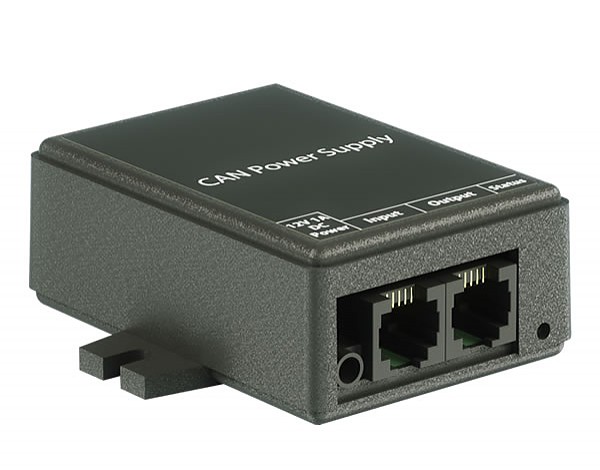

#03880
CAN-12V-1A / CAN Power Supply Module
Increases the number of CAN sensors connected on a CAN bus chain. Supplies power for a maximum of 15 additional sensors. Needed only if the number of sensors in a CAN bus chain is greater than 12 sensors.
| Technical specifications | |
|---|---|
| Type | Power supply for CAN bus chain |
| Input | RJ11 6P4C CAN port ⌀3.4/1,35 mm 12V |
| Otuput | RJ11 6P4C CAN port |
| Daisy chain | Allows daisy chain |
| Max. q-ty of CAN sensors powered | 15 |
| LED indicators | Green (Status On/Off) |
| Environmental | |
| Working temperature range | −40 °C to +100 °C |
| Humidity operating range | 0-95% RH |
| Mechanics | |
| Dimensions | 68 x 67 x 26,2 mm (LxWxH) |
| Packaging weight | 190g |
| Mounting options |
Desktop, Wall mount, Indoor |
#08390
Converter 4-20mA (Vutlan VT420)
Converter of current loop 4-20mA is used for measurement of constant current on 4-20mA outputs of sensors and converting data into a IP monitoring system format. The system interface allows you to assign the sensor and to introduce the function data conversion.
Galvanic isolation of 3 kV between I/O is used in a receiver.
Galvanic isolation of 3 kV between I/O is used in a receiver.
#08186
Dry contacts board IN/OUT (Vutlan VTX40)
A complementary module for VT900 and VT960 DC master units.
| Technical specifications | |
|---|---|
| Dry contacts |
x32 dry contact inputs, x8 isolated dry contact outputs |
| Connection | BH-10 |
| Supply includes |
BH-10 bus cable, x8 terminals (6P 3.5mm), x2 terminals (8P 3.5mm), x5 screws |
| Dimensions (LHW) | 241 x 35 x 11 mm |

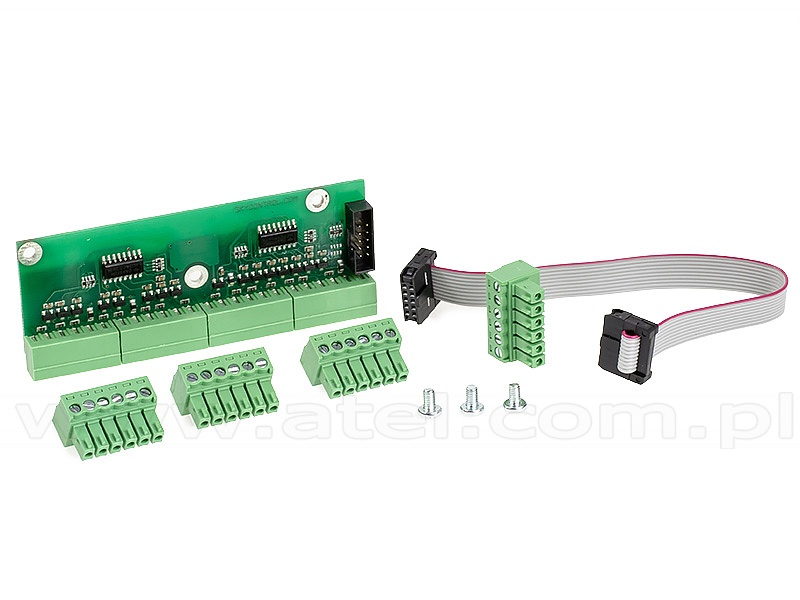

#08235

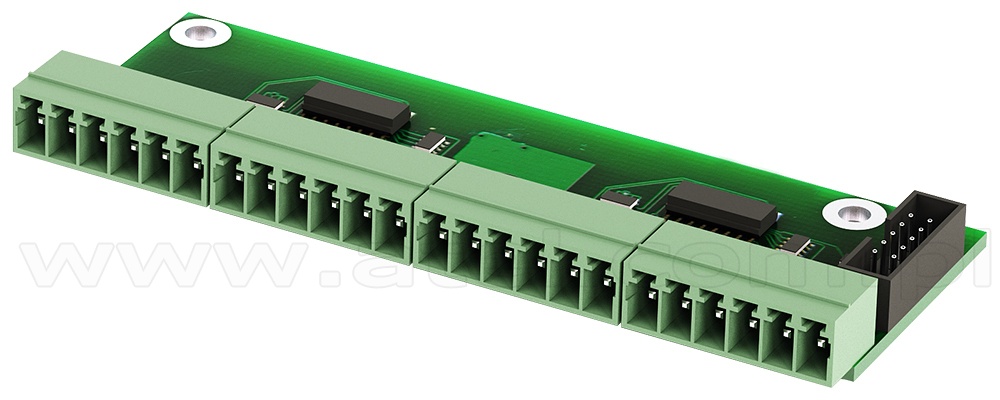

Dry contacts module (Vutlan VT16)
Complementary module for moin units, can be connected to 16 dry contacts.
Dedicated for SC8100, VT8101, VT8110, VT800.
Dedicated for SC8100, VT8101, VT8110, VT800.
| Technical specifications | |
|---|---|
| Dry contacts | 16 |
| Contact outputs | 3.5 mm |
| Features | |
| Installation | On the PCB there are 3 mounting holes for fastening to the surface using screws 3 mm inside of any master unit. |
| Connection | Jack IDC2-10 is connected to IDC2-10 input of master unit. Determination of PCB's type and connection occur automatically. Monitoring system allows connection of up to 16 dry contacts. |
| Supply includes |
PCB, 10-wired IDC2 cable (10cm), 3 screws M3. |
| Net weight | 80g |
| Dimensions (LHW) | 70x10×25mm |

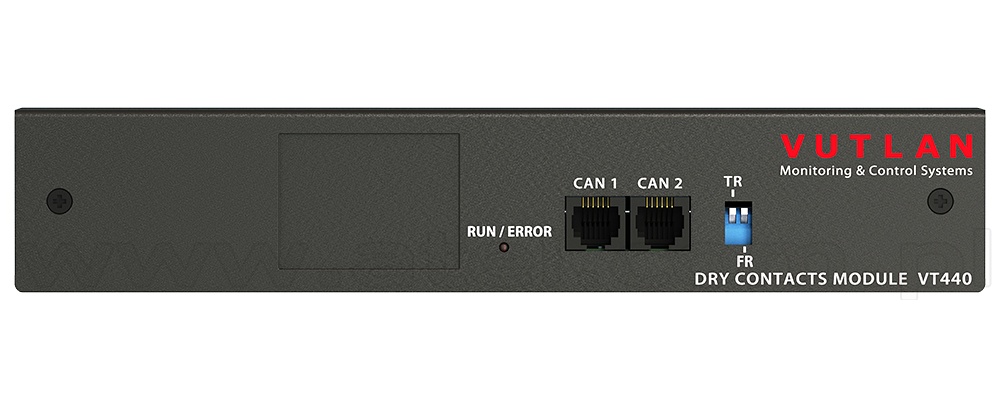

#08916
Dry contacts unit (Vutlan VT440)
Allows to increase the number of dry contacts connected to any Vutlan monitoring unit. Adds 32 dry contacts (or 64 with VT32 module). Can be connected to any CAN port.
| Number of dry contacts | 32 - 64 |
|---|---|
| Contact outputs | 3.5mm |
| Max contact distance | 500m |
| Number of CAN ports |
2 (1 input, 1 output) |
| Mounting |
The unit includes two 19" mounting angles for mounting inside the rack. Alternatively, there are 2 mounting holes on the bottom of the case for fastening on the wall. Fasten the unit, connect CAN inputs to the input of the previous CAN unit or of the monitoring unit. The red LED lights up. Match the bus terminators of the CAN units. Switch terminator TR in ON position on the monitoring unit and on the last CAN unit, TR on intermediate CAN units are in Off (1,2) position. Maximum 8 CAN units, sensors and/or devices can be on one CAN bus. |
| Inventory |
Unit, 3-pair shielded patch cable RJ-12 2 m length, screw 3.5 x 16 mm, fastener 2-sided, rubber feet, 19" mounting angles. |
| Net weight | 0.5 kg |
| Dimensions (LHW) | 215×40×40mm |

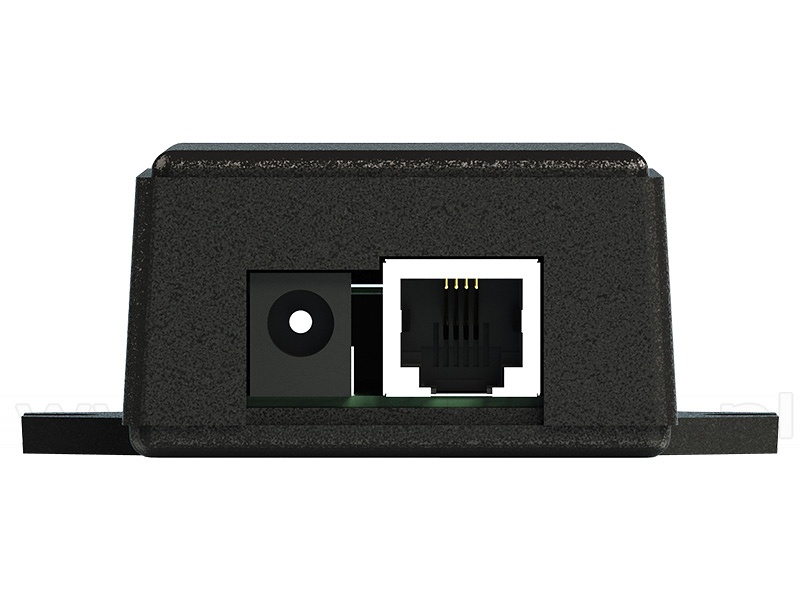

#08116

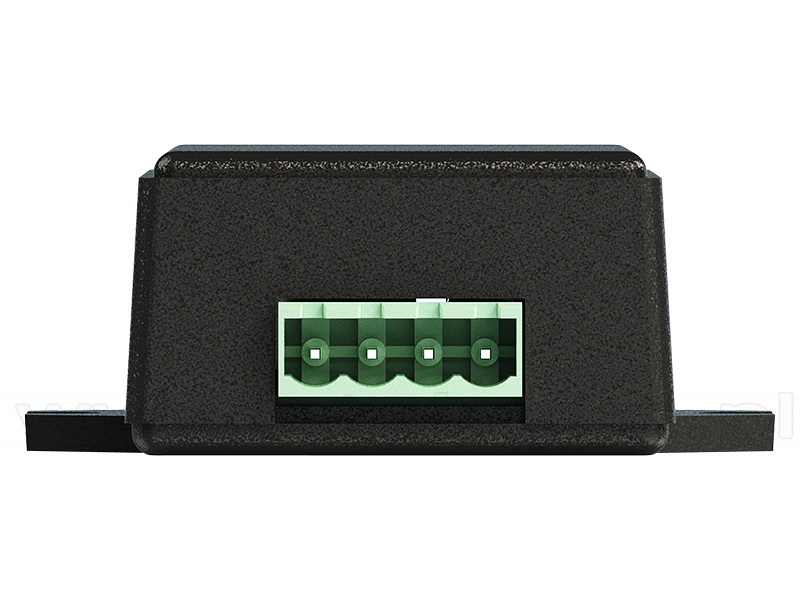

HAT sensor transducer 0-5V DC (Vutlan VT407)
The transducer is used together with HAT-100Q1 current transducer.
| Power input |
12V DC, 1A |
|---|---|
| Input | RJ-12 / RJ-11 |
| Power Consumption | 100mW |
| Operating temperature | -10°C ÷ 80°C |
| Operating humidity |
5% ÷ 95%, non-condensing |
| Net weight | 150g |
| Dimensions (LHW) | 68 × 47 x 26 mm |
| Max distance | 50m |
#08117 AC current transducer Vutlan HAT-100Q1
#08197
Internal LTE, GPS modem (Vutlan VT710)
A modem for Vutlan monitoring units (VT900, VT900 DC, VT960, VT960 DC). The module enables sending SMS about the system status / alarms and access to the Internet via LTE network. Antennas are not included with the module, must be purchased separately. The GPS function is used to synchronize the time according to geographic location.
Antennas:
#08354 GPS Antenna 3 dBi 3m(Vutlan VT6691)
#08354 GPS Antenna 3 dBi 3m(Vutlan VT6691)
#03105
Internal LTE, GPS modem (Vutlan VT740)
4G LTE slot modem for Vutlan monitoring units. Allows to receive and send SMS messages. Provides Ethernet over 4G LTE. Power-cycling is an embedded function.
Can be used together with VT335i, VT825i/VT825ii & VT855i/VT855ii.
Antennas included.
Can be used together with VT335i, VT825i/VT825ii & VT855i/VT855ii.
Antennas included.
#08318
Internal LTE, GPS modem (Vutlan VT760)
A modem for Vutlan monitoring units VT335S, VT335S DC, VT805, VT825, VT604. The module enables sending SMS about the system status / alarms and access to the Internet via LTE network. The GPS function is used to synchronize the time according to geographic location. Antenas inculded.
| INTERFACE | |
|---|---|
| Network interface | WCDMA/HSDPA/HSPA+ B1/B5/B8 |
| LEDs | Red / Green Led |
| Chip | SimCom |
| Extension protocols | FDD-LTE B1/B3/B5/B7/B8/B20 |
| Uplink | up to 5Mbps |
| Downlink | up to 10Mbps |
| Dimensions (LxHxW) | 60 x 50 x 15 mm |
| Net weight | 60 g |
| Installation | There are 3 mounting M3 holes on a board. |
#03099
Internal LTE, GPS modem (Vutlan VT790)
4G LTE slot modem for Vutlan monitoring units. Allows to receive and send SMS messages. Provides Ethernet over 4G LTE. Power-cycling is an embedded function.
Can be used together with VT960i & VT960ii.
Antennas included.
Can be used together with VT960i & VT960ii.
Antennas included.
#08370
Magnet access sensor (Vutlan KMS-30)
The sensor made for checking whether the doors or windows have been opened/closed.
| Installation | Insert the terminal into "Dry contact Input" of Vutlan monitoring system. |
|---|---|
| Supply includes |
magnet sensor, 4x screws M3 12.5mm, 2x stickers. |
| Max. distance | 500m |
| Power consumption | 6W |
| Dimensions (WHL) | Two 60x18x18mm compact devices |
#08368

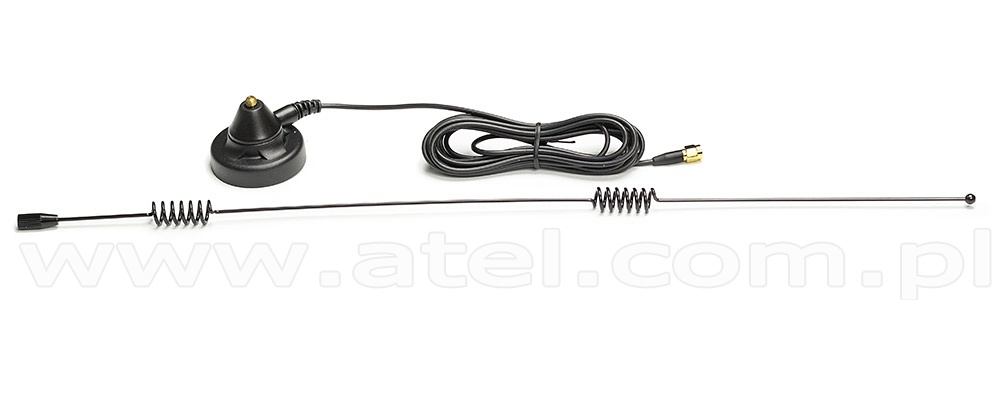

Omni-directional GSM antenna 7 dBi (Vutlan VT6604)
| Omnidirectional gain | 7 dBi |
|---|---|
| Frequency range | 890-960 / 1710-1890 / 1920-2170 MHz |
| Impedance | 50 Ω |
| Connector | SMA(M) |
| Cable | RG174 |
| Mounting Possibilities | Has A Magnet At The Bottom |
| Cable lenght | 3m |
| Temprature | Min. -10° C - Max.80° C |
| Size | ∅50 x 520 mm |
| Manufacturer | Vutlan |
#08917

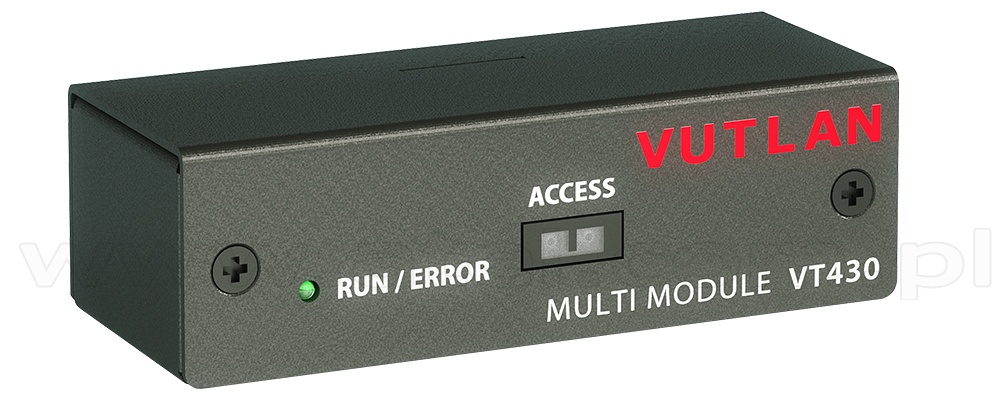

Rack control unit (Vutlan VT430)
The module has a PIR sensor for rack door control, 2 dry contacts and a humidity sensor. Connected to a CAN port, it allows further CAN chain connection.
Sensors and contacts appears in the system automatically.
Max. distance from the monitoring unit is 300 meters.
Sensors and contacts appears in the system automatically.
Max. distance from the monitoring unit is 300 meters.
| Technical specifications | |
|---|---|
| Measured humidity range | 10-95% RH |
| Accuracy | 5% RH |
| PIR sensor disrance | 30mm |
| Number of dry contacts | 2 |
| Number of CAN ports | 2 |
| Maximum distance from the appliance | 300m |
| Features | |
| Installation |
There are 4 mounting holes on the bottom of the case for fastening. Fasten the unit, connect CAN inputs to the input of the previous CAN unit or of the monitoring unit. |
| Connection | Sensor's jack RJ-12 is connected to CAN input of any system unit or to a CAN output of another sensor using RJ-12 patch cable. Determination of sensor's type and connection occur automatically. |
| Supply includes |
Unit, shielded patch cable RJ-12, 2 screws and 2 nuts M6, sticker, dry contacts connector.. |
| Net weight | 0.2 kg |
| Dimensions (LHW) | 89×27×36mm |

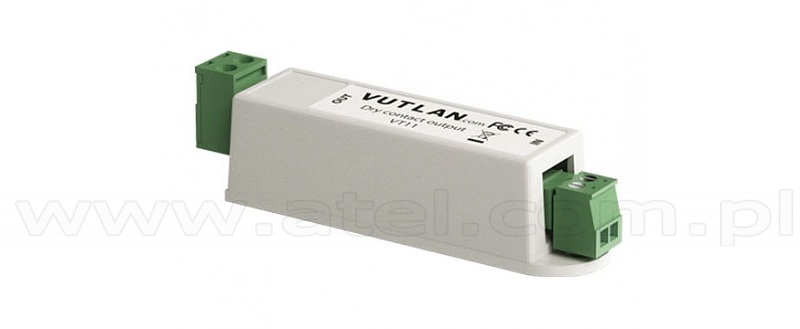

#03107
Relay contact 5A (Vutlan VT11)
Relay switchable contact. Can be used together with equipment, for example for switching ON/OFF air conditioners. Can control power for magnetic locks, bolt locks, solenoid electromagnets, siren, light source, heater and etc.
Can be connected to any monitoring system or device with 12V outputs.
Can be connected to any monitoring system or device with 12V outputs.
| Technical specifications | |
|---|---|
| Max. switching voltage | 250VAC / 30VDC |
| Max switching current | 5A |
| Max. switching power | 1250VA / 150W |
| Min. contact load |
No gold plated, 5VDC 10mA |
| Features | |
| Max distance | 200m |
| Power Consumption | 12mW |
| Net weight | 60g |
| Dimensions (LHW) | 60×18×18mm |
| Operating temperature | Min. -50° C - Max.+105° C |
| Package includes |
x2 wire cable (1 meter), screw M5 L15mm, x1 3.81mm 2P terminal, x1 5.0 2P terminal, sticker |
.jpg?1659448011)
#08297

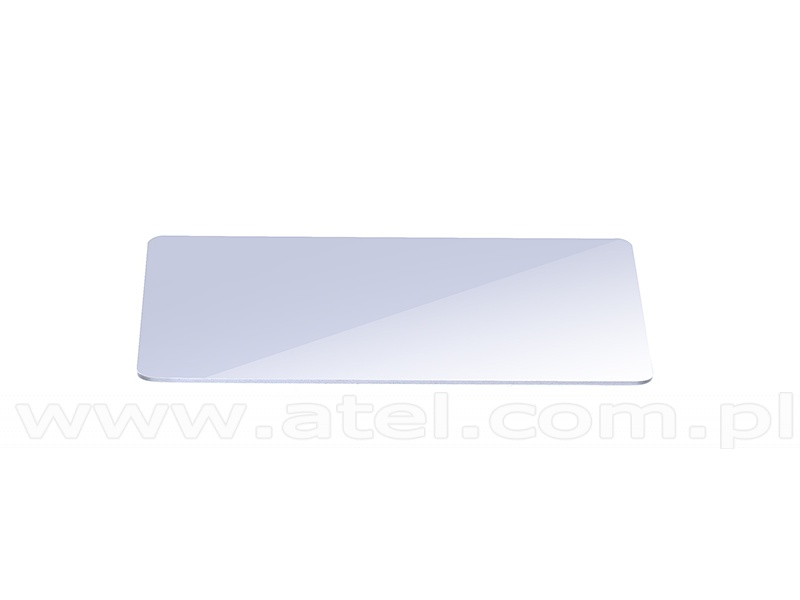

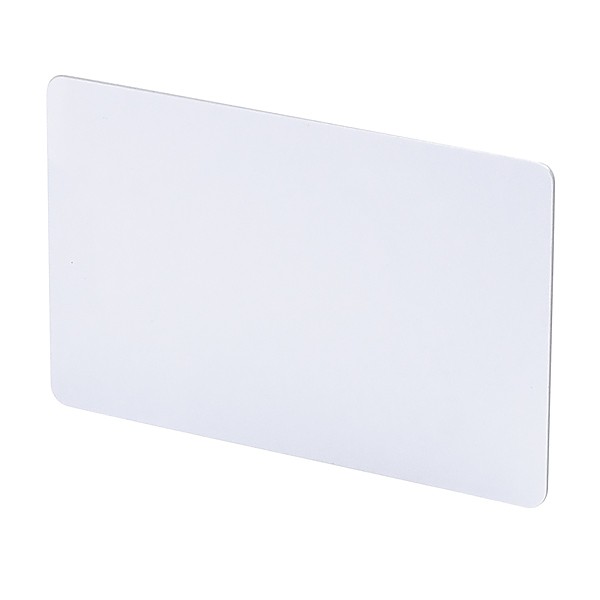

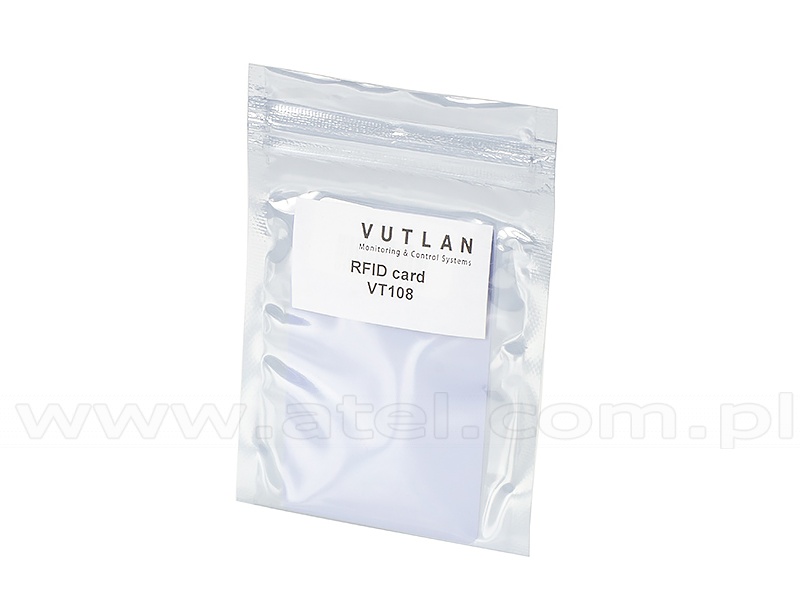

RFID Card (Vutlan VT108)
Unique proximity cards for VT107 card readers.
| Technical specifications | |
|---|---|
| Rated voltage | 12V |
| Memory | 64bit |
| Frequency | 125 kHz |
| Standard | EM4100 |
| Net weight | 7g |
| Dimensions (LHW) | 86 x 59 x 1 mm |
Accessories:
#08269 RFID Card reader (Vutlan VT107)
#08269 RFID Card reader (Vutlan VT107)

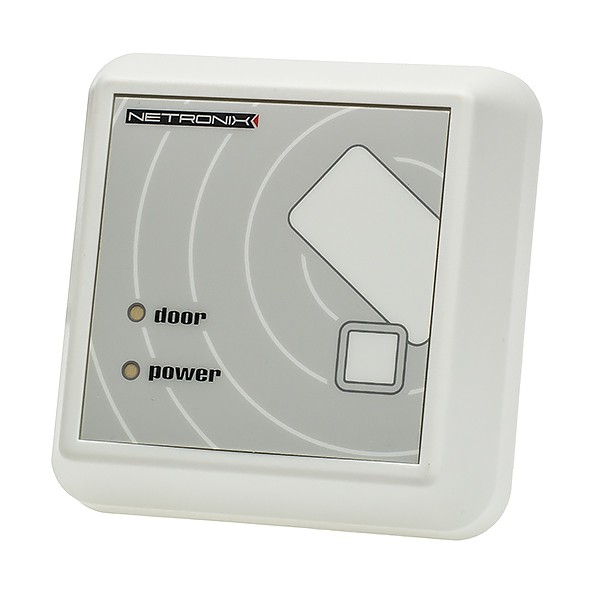

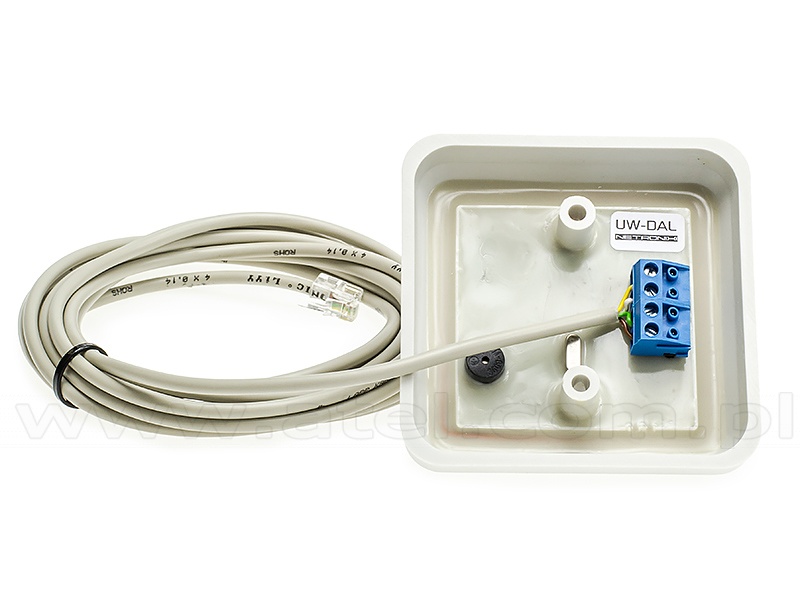

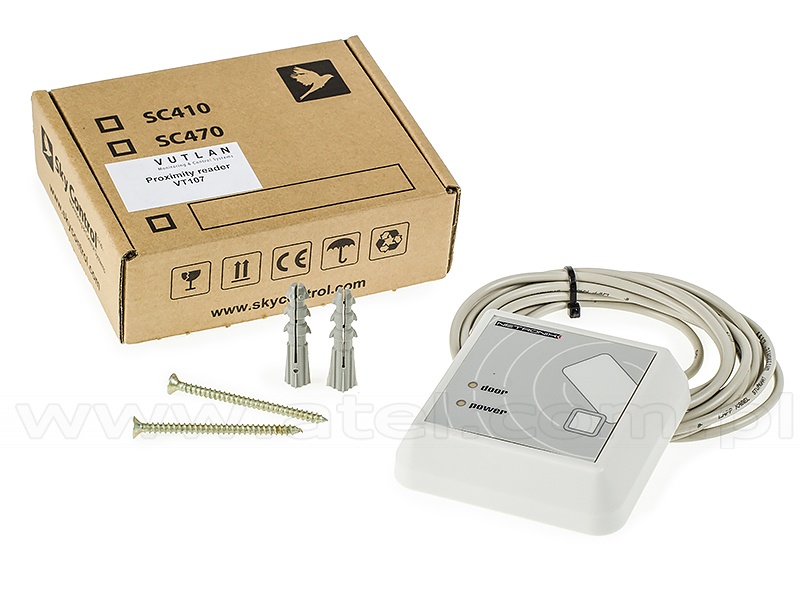

#08269
RFID Card reader (Vutlan VT107)
Proximity card reader for contactless reading data from RFID cards (Unique standard). Dedicated for VT855i/VT855ii & VT960i/VT960ii.
| Technical specifications | |
|---|---|
| Rated voltage | 12V |
| Current | 30 - 55 mA |
| Frequency | 125 kHz |
| Range response | 15 cm |
| Net weight | 100g |
| Dimensions (LHW) | 82 x 82 x 22 mm |
#08297 RFID Card (Vutlan VT108)

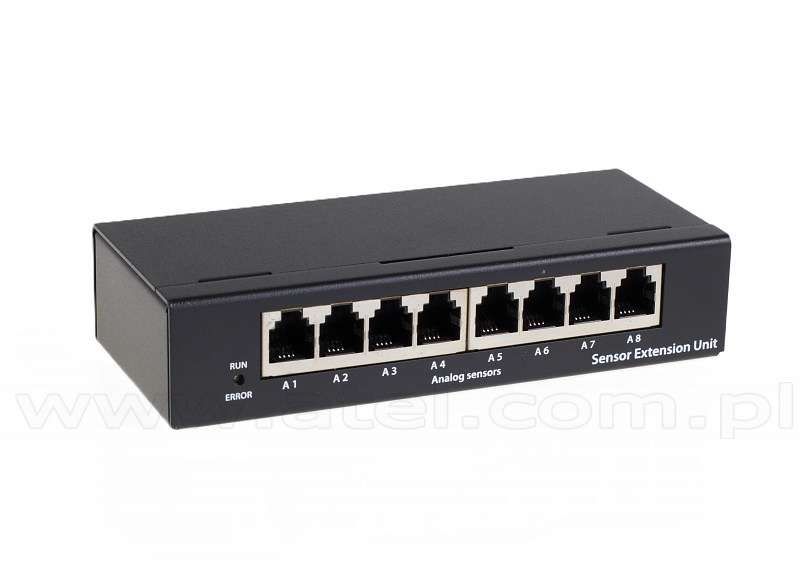

#08288
Sensor unit (Vutlan VT408)
Module allows to increase the number of sensors connected to the Vutlan master module. The expansion unit is connected to the CAN connector of the controller.
| Number of analog ports | 8 |
|---|---|
| Number of CAN ports | 2 |
| Maximum bus length | 300 meters |
| Maximum analog sensor cable length |
50-150 meters, depending on the sensor type |
| Installation | In the lower part of the casing there are Ø 5 mm holes for mounting the module, |
| at a distance of 50 mm and 89 mm from the center. The cable is connected to the connector on the side wall. | |
| Connection | Can be connected via RJ-12 cable to the CAN input of the control unit or another CAN sensor. The module is automatically detected on the first connection. |
| Set includes |
module, CAN cable RJ-12 (2m), 3.5x16mm screws |
| Net weight | 0.6 kg |
| Dimensions (LHW) | 110×68×40 mm |

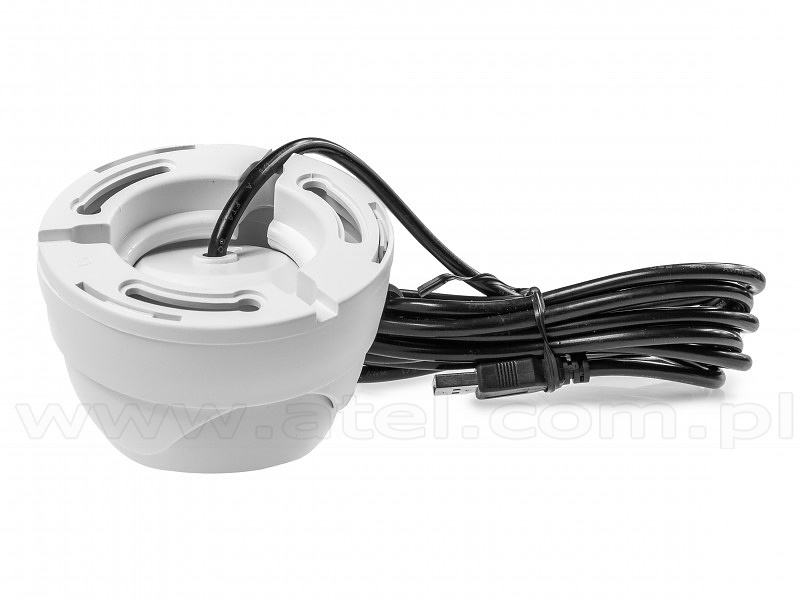

#08204

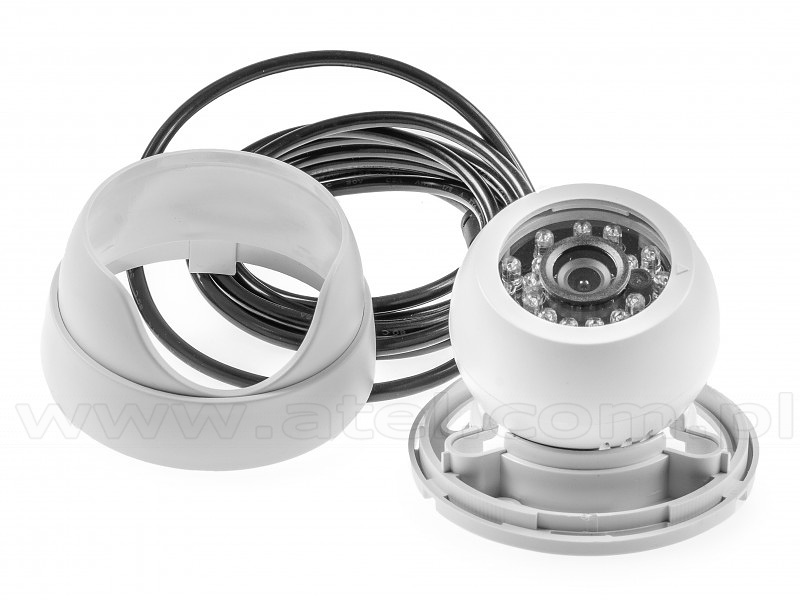

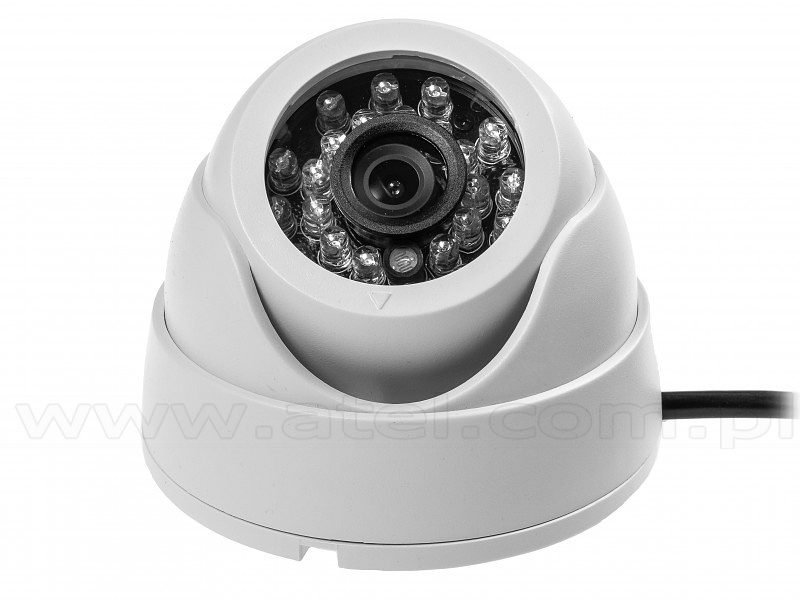

USB100 / USB dome camera
USB UVC/MJPEG digital camera with high resolution and with IR Leds for direct connection to the VUTLAN system controller.
It allows to view the monitored room on an ongoing basis as well as send a video sequence to an email address in response to a defined event.
In addition, the camera connected to the VUTLAN controller is visible in the network at a dedicated URL, allowing to capture the video stream just like from an IP camera (MJPEG stream).
It allows to view the monitored room on an ongoing basis as well as send a video sequence to an email address in response to a defined event.
In addition, the camera connected to the VUTLAN controller is visible in the network at a dedicated URL, allowing to capture the video stream just like from an IP camera (MJPEG stream).
| HARDWARE FEATURES: | |
|---|---|
| Interface | USB format(Complies with USB 2.0 |
| CAMERA: | |
| Image Sensor | 1/4" Color CMOS H62 |
| Resolution | 1.0 Megapixel (640 x 480) |
| Minimum Illumination | 0.01 Lux @ F1.2 |
| VIDEO/IMAGE: | |
| Video Compression | MJPEG |
| Frame Rate & Resolutions |
Max. 20 fps at 640x480 (VGA), Max. 20 fps at 320x240 (QVGA) |
| Video Streaming | Controllable Frame Rate |
| OTHERS: | |
| Cable lenght | 2,6m |
| Operating Temperature | 0°C∼ 40°C (Humidity 0% RH∼ 80% RH) |
| Weight | 550g |
#03106
VT122i / 19" holder (for VT335i)
Holder / bracket for VT335i monitoring unit #03104. 1U rack mount, 19".
#03109
VT125 / 19" holder (for 3x VT408)
Holder / bracket for x3 pcs of VT408 / Sensor extension units. 1U rack mount, 19".
#03092
Water leak cable (Vutlan VT-WLC10)
10m long detection cable for use with the # 08249 flood sensor. Unlike the WDC cable, the WLC cable can be used in rooms with very high humidity, pollution or hazardous waste.
Detectable liquids: clean, polluted and distilled water; acids; alkalis; alcohols and other electrically conductive liquid.
Detectable liquids: clean, polluted and distilled water; acids; alkalis; alcohols and other electrically conductive liquid.
| Product code | VT-WLC10 |
|---|---|
| Lenght | 10m |
| Max operational lenght | 225m |
| Manufacturer | Vutlan |
#03093
Water leak cable (Vutlan VT-WLC15)
15m long detection cable for use with the # 08249 flood sensor. Unlike the WDC cable, the WLC cable can be used in rooms with very high humidity, pollution or hazardous waste.
Detectable liquids: clean, polluted and distilled water; acids; alkalis; alcohols and other electrically conductive liquid.
Detectable liquids: clean, polluted and distilled water; acids; alkalis; alcohols and other electrically conductive liquid.
| Product code | VT-WLC15 |
|---|---|
| Lenght | 15m |
| Max operational lenght | 225m |
| Manufacturer | Vutlan |
#03094
Water leak cable (Vutlan VT-WLC25)
25m long detection cable for use with the # 08249 flood sensor. Unlike the WDC cable, the WLC cable can be used in rooms with very high humidity, pollution or hazardous waste.
Detectable liquids: clean, polluted and distilled water; acids; alkalis; alcohols and other electrically conductive liquid.
Detectable liquids: clean, polluted and distilled water; acids; alkalis; alcohols and other electrically conductive liquid.
| Product code | VT-WLC25 |
|---|---|
| Lenght | 25m |
| Max operational lenght | 225m |
| Manufacturer | Vutlan |
#03095
Water leak cable (Vutlan VT-WLC50)
50m long detection cable for use with the # 08249 flood sensor. Unlike the WDC cable, the WLC cable can be used in rooms with very high humidity, pollution or hazardous waste.
Detectable liquids: clean, polluted and distilled water; acids; alkalis; alcohols and other electrically conductive liquid.
Detectable liquids: clean, polluted and distilled water; acids; alkalis; alcohols and other electrically conductive liquid.
| Product code | VT-WLC50 |
|---|---|
| Lenght | 50m |
| Max operational lenght | 225m |
| Manufacturer | Vutlan |
