Smoke, humidity and temperature sensor (Vutlan VT460)
Digital sensor made for monitoring temperature and humidity and detecting smoke inside buildings, rack cabinets, etc.
| Technical specifications | |
|---|---|
| Smoke sensitivity | 0,05 - 0,2 db/m |
| Response time | 10 sec |
| Measured temperature range | -10 to +75 °C |
| Accuracy | ±0.4°C in –10 to 85 °C range. |
| Measured humidity range | 0 - 95%. |
| Accuracy %RH | ± 3% RH in range of 0 - 80% |
| Maximum distance from the appliance | 225m |
| Features | |
| Installation | On the bottom there are mounting holes for fastening the smoke sensor to the surface using screws 4.8×20mm or/and bracket and M4 screws. |
| Connection | Sensor's jack RJ-12 is connected to CAN input of any system unit or to a CAN output of another sensor using RJ-11 patch cable. Determination of sensor's type and connection occur automatically. Monitoring system allows connection of up to 40 smoke sensors into a linear circuit. |

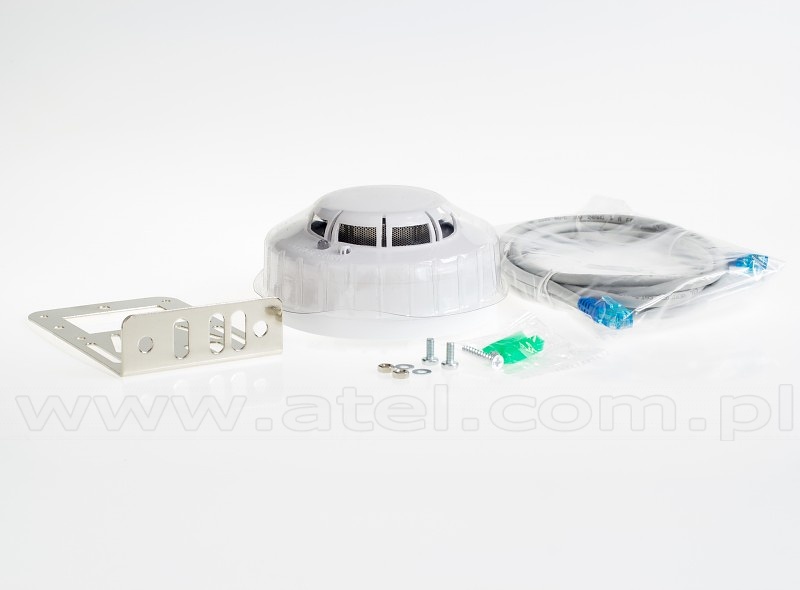

| Set includes | Sensor, 3-wired shielded patch cable RJ12 (2m), bracket, 2 screws and 2 nuts M4, 2 screws 4.8×20mm, double sided sticker. |
| Net weight | 310g |
| Dimensions (LHW) | Ø100×45mm |
Net Price:
 Unit: pcs |
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
