MENU#09256

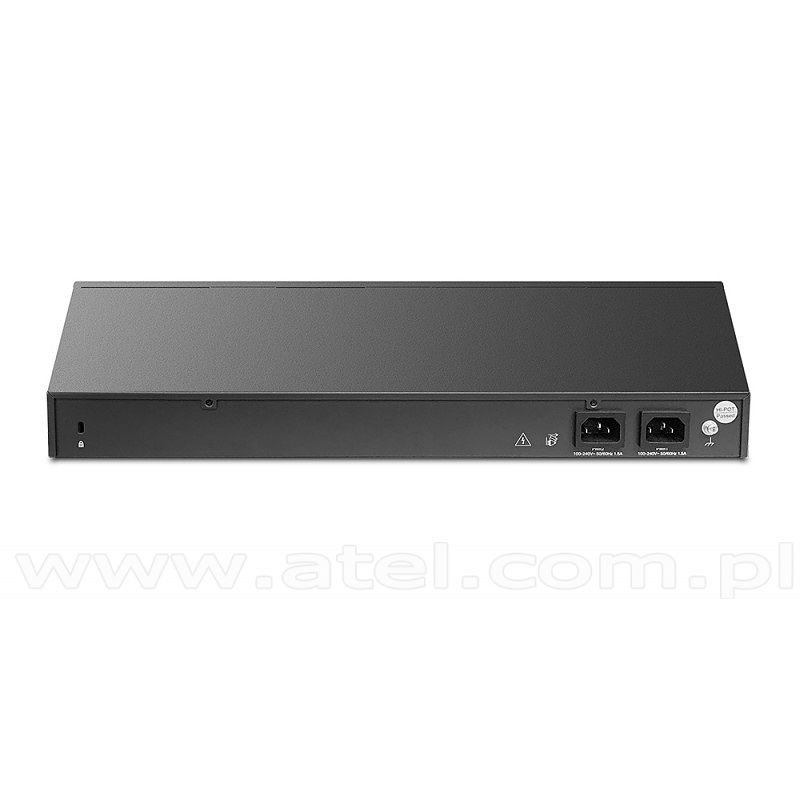

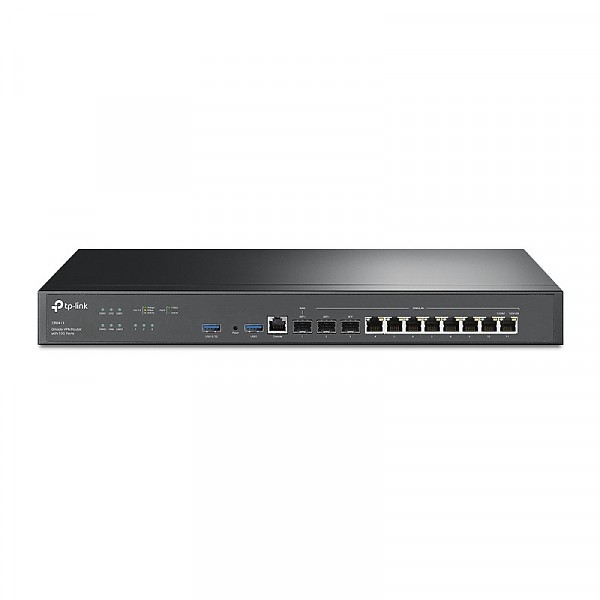

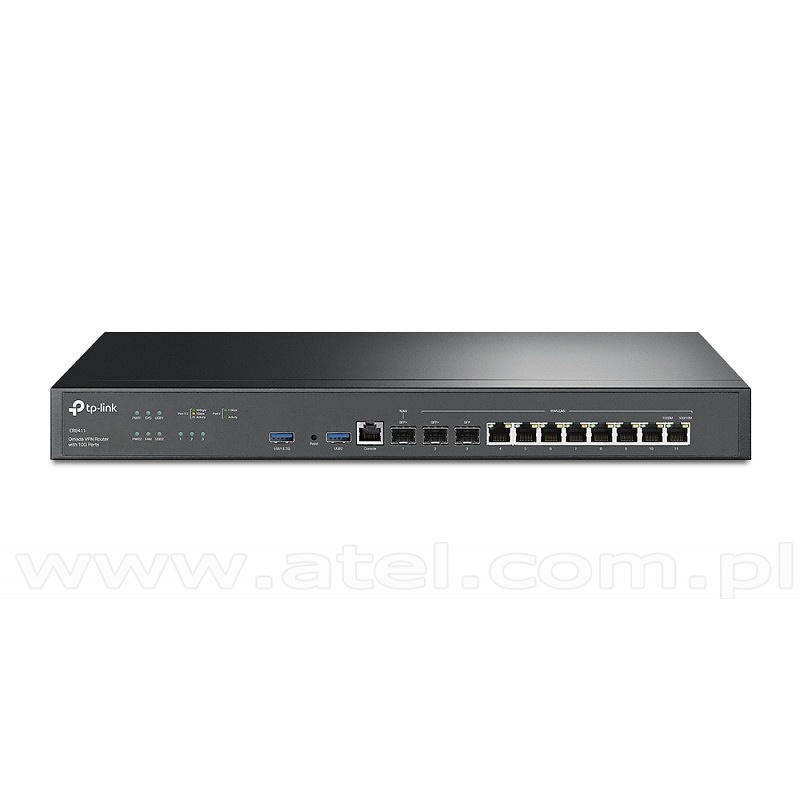

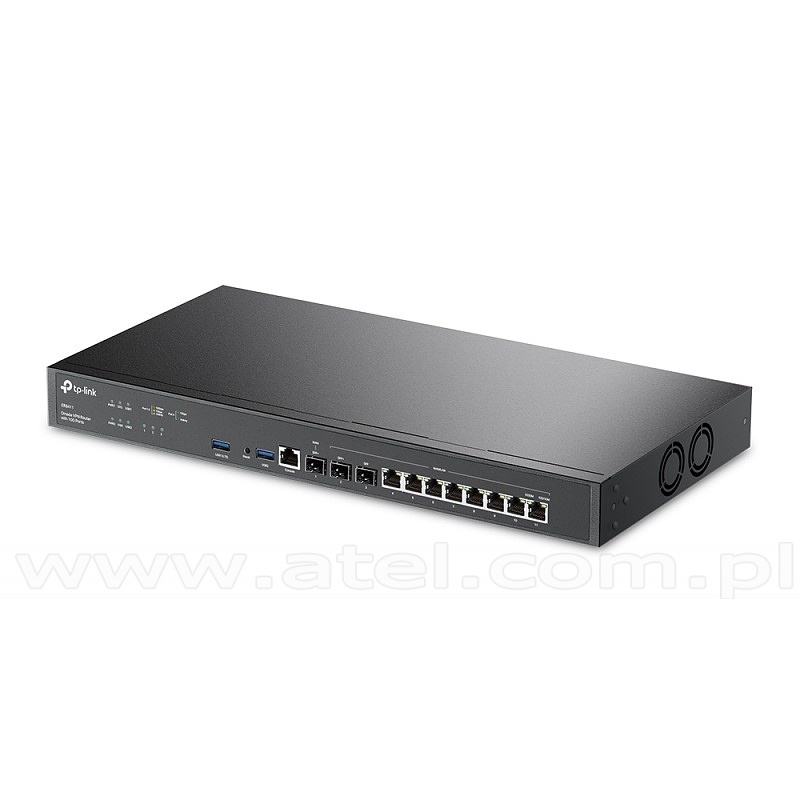

Gigabit VPN Router Omada, 8x 10/100/1000 RJ-45, 2 SFP 10G slots, 19" (TP-Link ER8411)
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*3, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Two 10GE SFP+ Ports: 1× WAN and 1× WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity.
- Up to 10 WAN Ports: Fiber and RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.
- Highly Secure VPN: Enterprise-standard SSL/ IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN are ideal for use across multiple branches and for WFH.
- Abundant Security Features: Powerful Firewall, DoS defense, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provide world-class security.
| Standards | IEEE 802.3u/ab/z/x/q |
|---|---|
| Copper ports | 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN), 1× 1GE SFP WAN/LAN Ports, 8× 1GE RJ45 WAN/LAN Ports, 1× RJ45 Console Ports, 2× USB Ports (Connecting 4G/3G Modem as WAN Backup) |
| Flash | 4MB SPI NOR + 256 MB NAND |
| DRAM | 4 GB DDR4 |
| LED | PWR, SYS, WAN, LAN, USB, FAN |
| Max Power Consumption | 26.36 W (with USB 3.0 connected), 19.12 W (without USB 3.0 connected) |
| Protection | 4 kV surge protection |
| Performance | |
| Concurrent Session | 2,300,000 |
| New Sessions /Second | 20,000 |
| NAT (Static IP) | Upload- 9445.82 Mbps, Download- 9449.26 Mbps |
| NAT(DHCP) | Upload- 9426.83 Mbps, Download- 9426.20 Mbps |
| NAT(PPPoE) | Upload- 9413.96 Mbps, Download- 9102.01 Mbps |
| NAT (L2TP) | Upload- 4230.62 Mbps, Download- 4169.53 Mbps |
| NAT (PPTP) | Upload- 3933.86 Mbps, Download- 3821.97 Mbps |
| 64 Byte Packet Forwarding Rate | Upload- 1080 Mbps, Download- 1030 Mbps |
| IPsec VPN Throughput | SHA1-AES256- 2140.45 Mbps, SHA2-AES256- 2080.20 Mbps |
| OpenVPN | 1665.64 Mbps |
| L2TP VPN Throughput | Unencrypted- 5013.50 Mbps, Encrypted- 2274.74 Mbps |
| PPTP VPN Throughput | Unencrypted- 3933.86 Mbps, Encrypted- 3821.97Mbps |
| SSL VPN Throughput | 1511.10 Mbps |
| 1,518 Byte Packet forwarding rate | Upload- 9970 Mbps, Download- 9970 Mbps |
| Basic functions | |
| WAN Connection Type | Static/Dynamic IP, PPPoE, PPTP, L2TP, 6to4 Tunnel, Pass-Through, Mobile Broadband- 4G/3G modem for backup via USB port |
| MAC Clone | Modify WAN/LAN MAC Address |
| DHCP | DHCP Server, DHCP Address Reservation, Multi-IP Interfaces, Multi-Net DHCP |
| IPv6 | WAN Connection |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| Advanced functions | |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | Static Routing, Policy Routing |
| Bandwidth Control | IP/Port-based Bandwidth Control, Guarantee & Limited Bandwidth |
| Load Balance | Intelligent Load Balance, Application Optimized Routing, Link Backup (Timing§, Failover), Online Detection |
| NAT | One-to-One NAT, Multi-Net NAT, Virtual Server, Port Triggering, NAT-DMZ, FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| Security | SPI Firewall, VPN Passthrough, FTP/H.323/PPTP/SIP/IPsec ALG, DoS Defence, Ping of Death, Local Management |
| Session Limit | IP-based Session Limit |
| VPN | |
| SSL VPN | SSL VPN Server, SSL VPN Client, 500 SSL VPN Tunnels |
| IPsec VPN | 300 IPSec VPN Tunnels, LAN-to-LAN, Client-to-LAN, Main, Aggressive Negotiation Mode, DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm, IKE v1/v2, MD5, SHA1 Authentication Algorithm, NAT Traversal (NAT-T), Dead Peer Detection (DPD), Perfect Forward Secrecy (PFS) |
| PPTP VPN | PPTP VPN Server, PPTP VPN Client (32), 300 Tunnels (Shared with L2TP), PPTP with MPPE Encryption |
| L2TP VPN | L2TP VPN Server, L2TP VPN Client (32), 300 Tunnels (Shared with PPTP), L2TP over IPSec |
| OpenVPN | OpenVPN Server, OpenVPN Client (10), 110 OpenVPN Tunnels |
| Web Authentication | No Authentication, Simple Password, Hotspot（Local User / Voucher* / SMS* / Radius*）, External Radius Sever, External Portal Sever, |
| Management | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance | Web Management Interface, Remote Management, Export & Import Configuration, SNMP v1/v2c/v3, Diagnostics (Ping & Traceroute), NTP Synchronize, Syslog Support |
| Management Features | Automatic Device Discovery, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration, ZTP (Zero-Touch Provisioning) |
| Dimensions | 17,3 × 8,7 × 1,7 in (440 × 220 × 44 mm) |
| Operating temperature | 0°C ÷ 40°C |
| Operating humidity | 10% ÷ 90%, non-condensing |
| Power | Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz) |
| Certificates | CE, FCC, RoHS |
| Manufacturer | TP-Link |
TAGS:
SFP slot
Net Price: 436.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
