#09094
Gigabit VPN Router, 5x 10/100/1000 RJ-45, 1 SFP slots, desktop (TP-Link TL-ER7206)
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Gigabit Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
- Up to 4 WAN Ports: 1 gigabit SFP WAN port, 1 gigabit RJ45 WAN port, 2 gigabit WAN/LAN ports optimize bandwidth usage.
- Highly Secure VPN: Supports up to 100× LAN-to-LAN IPsec, 50× OpenVPN*, 50× L2TP, and 50× PPTP VPN connections.
- Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.
| Standards | IEEE 802.3u/ab/z/x/q |
|---|---|
| Copper ports |
1x Fixed Gigabit RJ45 WAN Port, 2x Fixed Gigabit RJ45 LAN Ports, 2x Changeable Gigabit RJ45 WAN/LAN Ports |
| Free slots | 1x Fixed Gigabit SFP WAN Port |
| Flash | SPI 4MB + NAND 128MB |
| DRAM | 512MB |
| Performance | |
| Concurrent Session | 150,000 |
| IPsec VPN Throughput | 291.6 Mbps |
| Basic functions | |
| WAN Connection Type |
Static/Dynamic IP, PPPoE, PPTP, L2TP |
| MAC Clone | Modify WAN/LAN MAC Address |
| DHCP |
DHCP Server, DHCP Address Reservation, Multi-IP Interfaces, Multi-Net DHCP |
| IPv6 | Developing |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| Advanced functions | |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing |
Static Routing, Policy Routing |
| Bandwidth Control |
IP/Port-based Bandwidth Control, Guarantee & Limited Bandwidth |
| Load Balance |
Intelligent Load Balance, Application Optimized Routing, Link Backup (Timing§, Failover), Online Detection |
| NAT |
One-to-One NAT, Multi-Net NAT, Virtual Server, Port Triggering, NAT-DMZ, FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| Security |
SPI Firewall, VPN Passthrough, FTP/H.323/PPTP/SIP/IPsec ALG, DoS Defence, Ping of Death, Local Management |
| Session Limit | IP-based Session Limit |
| VPN | |
| IPsec VPN |
100 IPSec VPN Tunnels, LAN-to-LAN, Client-to-LAN, Main, Aggressive Negotiation Mode, DES, 3DES, AES128, AES192, AES256 Encryption Algorithm, IKEv1/v2, MD5, SHA1 Authentication Algorithm, NAT Traversal (NAT-T), Dead Peer Detection (DPD), Perfect Forward Secrecy (PFS) |
| PPTP VPN |
PPTP VPN Server, 10 PPTP VPN Clients, 50 Tunnels, PPTP with MPPE Encryption |
| L2TP VPN |
L2TP VPN Server, 10 L2TP VPN Clients, 50 Tunnels, L2TP over IPSec |
| OpenVPN |
OpenVPN Server, 10 OpenVPN Clients, 50 OpenVPN Tunnels |
| Web Authentication |
No Authentication, Simple Password, Hotspot（Local User / Voucher* / SMS* / Radius*）, External Radius Sever, External Portal Sever, |
| Management | |
| Omada App | Yes |
| Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Service |
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance |
Web Management Interface, Remote Management, Export & Import Configuration, SNMP v1/v2c/v3, Diagnostics (Ping & Traceroute), NTP Synchronize, Syslog Support |
| Management Features |
Automatic Device Discovery, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration, ZTP (Zero-Touch Provisioning) |
| Dimensions | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
| Operating temperature | 0°C ÷ 40°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Power |
internal, ~230V AC 50Hz |
| Certificates |
CE, FCC, RoHS |
| Manufacturer | TP-Link |
1.0_3_large_1598609100115r.jpg?1619781440)
#08374
Load Balance Broadband Router (TP-Link TL-R470T+)
- Up to 4 WAN ports equipped with advanced load balance to guarantee maximum bandwidth and backup capabilities
- Provides extensive client account and network management for administrators with supported PPPoE Server
- Marshals bandwidth resource to specific clients based on their unique application environments
- Smaller case for cost-effective solution in the small office or Internet cafes network
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS |
| Interface |
1 Fixed Ethernet WAN Port, 1 Fixed Ethernet LAN Port, 3 Changeable Ethernet WAN/LAN Ports |
| Network Media |
10BASE-T UTP category 3, 4, 5 cable (maximum 328.1feet), EIA/TIA-568 100Ω STP (maximum 328.1feet), 100BASE-TX UTP category 5, 5e cable (maximum 328.1feet), EIA/TIA-568 100Ω STP (maximum 328.1feet) |
| Flash | 4MB |
| DRAM | 64MB |
| LED |
PWR, SYS, WAN, LAN, WAN/LAN |
| Button | Reset Button |
| Dimensions (W X D X H) | 8.2*5.0*1.0in. (209*126*26mm) |
| Power Supply |
Internal Universal Power Supply, AC100-240V~50/60Hz input |
| PERFORMANCE: | |
| Concurrent Session | 10000 |
| BASIC FUNCTIONS: | |
| DHCP |
DHCP Server/Client, DHCP Address Reservation |
| MAC Clone | Modify WAN/LAN MAC Address |
| Switch Setting |
Port Mirror, Rate Control, Port Configuration, Port VLAN |
| WAN Connection Type |
Static/Dynamic IP, PPPoE, PPTP, L2TP, Dual Access, Bigpond Cable |
| ADVANCED FUNCTIONS: | |
| ACL | IP/MAC/URL/WEB Filtering |
| Forwarding |
Virtual Server, Port Triggering, DMZ |
| Load Balance |
Policy Routing, Link Backup |
| Routing | Static Routing |
| Security |
FTP/SIP/PPTP/IPsec/H.323 ALG, DoS Defence, Ping of Death, IP/MAC Binding |
| Traffic Control |
Bandwidth Control, Session Limit |
| MANAGEMENT: | |
| Maintenance |
Time Setting, Diagnostics, Firmware Upgrade, Factory Defaults/Reboot, Backup/Restore, System Log, Remote Management, Statistics |
| Service |
PPPoE Server, E-Bulletin, Dynamic DNS, UPnP |
| OTHERS: | |
| Certification |
CE, FCC, RoHS |
| Package Contents |
TL-R470T+, Power Cord, RJ-45 Ethernet Cable, Quick Installation Guide, Resource CD |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 5 years limited warranty. Advanced replacement service is available. |
#06261

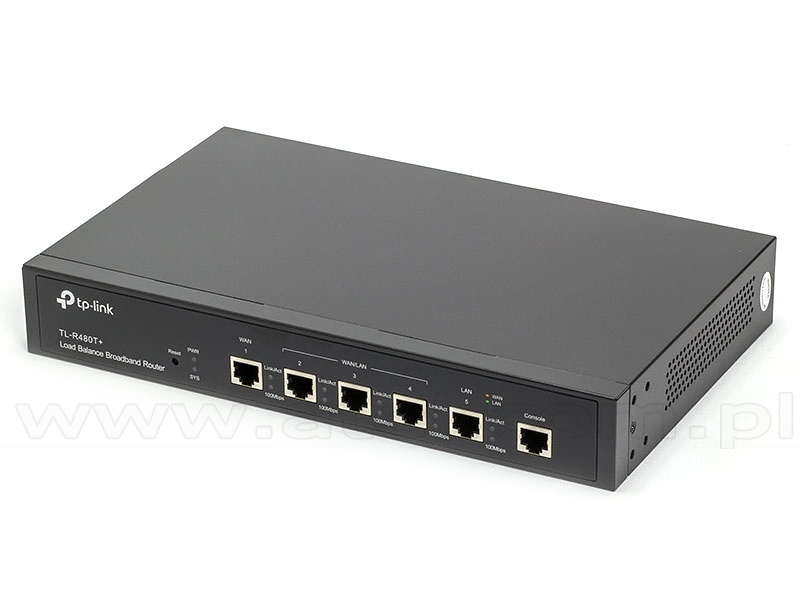

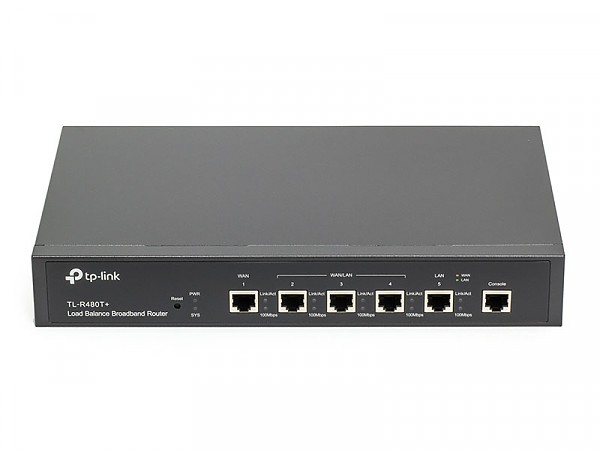

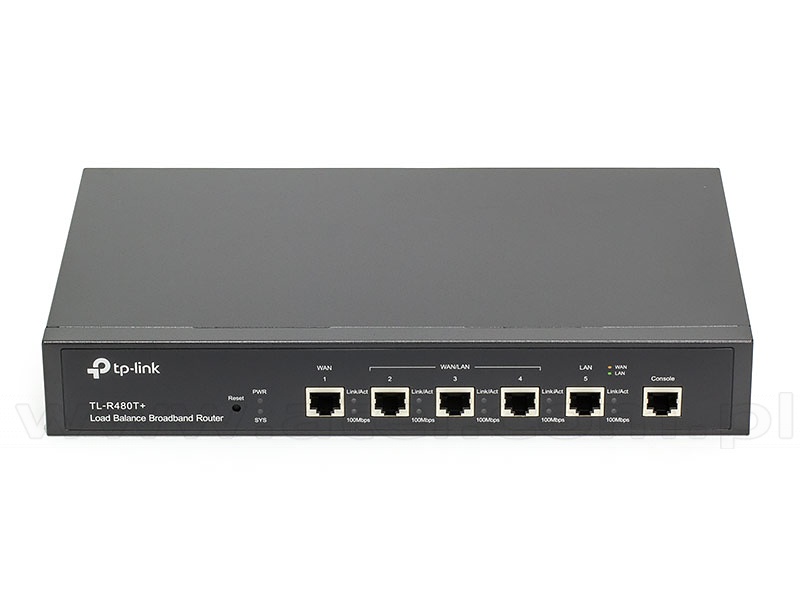

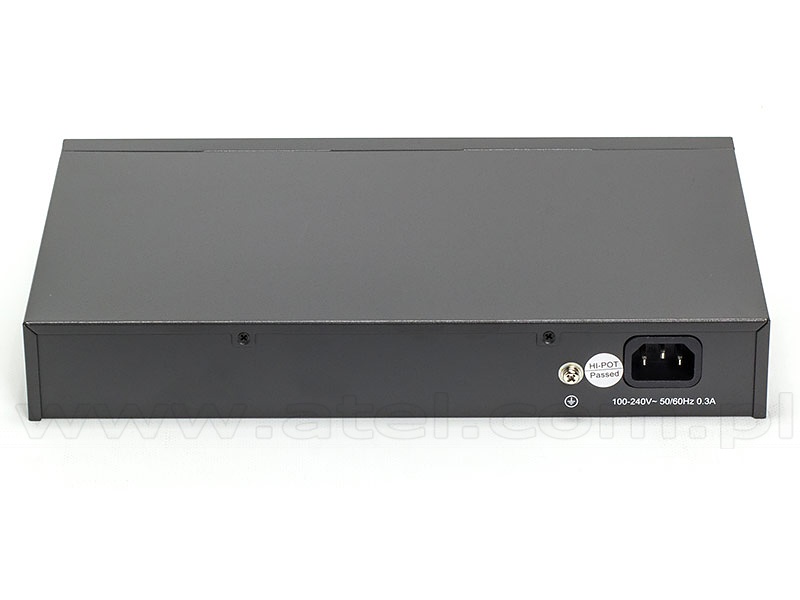

SMB broadband router, 2x WAN, 3x LAN, load balancing (TP-Link TL-R480T+)
| Standards |
IEEE 802.3/u/x, IEEE 802.1X |
|---|---|
| Ports |
2x 10/100 Mbps RJ-45 (WAN), 3x 10/100 Mbps RJ-45 (LAN) |
| Protocols |
TCP/IP, PPPoE, DHCP, ICMP |
| Addressing |
static IP, DHCP |
| VLAN support | port-based (LAN) |
| I/O throughput management | Bandwidth Control |
| LAN security |
firewall, DNS filtering, MAC address filtering, 802.1x authorization (WAN), attack protection |
| Router features |
static routes, NAT, DMZ, virtual servers, load balancing |
| Network features |
UPnP, DDNS, VPN pass-through, L2TP, PPTP |
| Additional features | access control based on content or/and time of day |
| Power |
internal, ~230V AC 50Hz |
| Dimensions | 294x180x44 mm |
| Operating temperatures | 0°C ÷ 40°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates |
CE, FCC |
| Warranty | 5 years |
| Manufacturer | TP-Link |
#09126
Gigabit VPN Router Omada, 5x 10/100/1000 RJ-45, desktop (TP-Link TL-ER605 (TL-R605))
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Five Gigabit Ports: High-speed wired connectivity.
- Up to 4 WAN Ports: 1 gigabit WAN port and 3 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.
- Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.
- Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.
| Standards | IEEE 802.3u/ab/x/q |
|---|---|
| Copper ports |
1x Fixed Gigabit RJ45 WAN Port, 1x Fixed Gigabit RJ45 LAN Ports, 3x Changeable Gigabit RJ45 WAN/LAN Ports |
| Flash | SPI 16MB |
| DRAM | 128MB |
| Performance | |
| Concurrent Session | 25,000 |
| IPsec VPN Throughput | 41,5 Mbps |
| Basic functions | |
| WAN Connection Type |
Static/Dynamic IP, PPPoE, PPTP, L2TP |
| MAC Clone | Modify WAN/LAN MAC Address |
| DHCP |
DHCP Server, DHCP Address Reservation, Multi-IP Interfaces, Multi-Net DHCP |
| IPv6 | Developing |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| Advanced functions | |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing |
Static Routing, Policy Routing |
| Bandwidth Control |
IP/Port-based Bandwidth Control, Guarantee & Limited Bandwidth |
| Load Balance |
Intelligent Load Balance, Application Optimized Routing, Link Backup (Timing§, Failover), Online Detection |
| NAT |
One-to-One NAT, Multi-Net NAT, Virtual Server, Port Triggering, NAT-DMZ, FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| Security |
SPI Firewall, VPN Passthrough, FTP/H.323/PPTP/SIP/IPsec ALG, DoS Defence, Ping of Death, Local Management |
| Session Limit | IP-based Session Limit |
| VPN | |
| IPsec VPN |
20 IPSec VPN Tunnels, LAN-to-LAN, Client-to-LAN, Main, Aggressive Negotiation Mode, DES, 3DES, AES128, AES192, AES256 Encryption Algorithm, IKEv1/v2, MD5, SHA1 Authentication Algorithm, NAT Traversal (NAT-T), Dead Peer Detection (DPD), Perfect Forward Secrecy (PFS) |
| PPTP VPN |
PPTP VPN Server, 10 PPTP VPN Clients, 16 Tunnels, PPTP with MPPE Encryption |
| L2TP VPN |
L2TP VPN Server, 10 L2TP VPN Clients, 16 Tunnels, L2TP over IPSec |
| OpenVPN |
OpenVPN Server, 10 OpenVPN Clients, 16 OpenVPN Tunnels |
| Security | |
| Filtering |
WEB Group Filtering, URL Filtering, Web Security |
| ARP Inspection |
Sending GARP Packets, ARP Scanning, IP-MAC Binding§ |
| Attack Defense |
TCP/UDP/ICMP Flood Defense, Block TCP Scan (Stealth FIN/Xmas/Null), Block Ping from WAN |
| Access Control | Source/Destination IP Based Access Control |
| Web Authentication |
No Authentication, Simple Password, Hotspot（Local User / Voucher* / SMS* / Radius*）, External Radius Sever, External Portal Sever, |
| Management | |
| Omada App | Yes |
| Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Service |
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance |
Web Management Interface, Remote Management, Export & Import Configuration, SNMP v1/v2c/v3, Diagnostics (Ping & Traceroute), NTP Synchronize, Syslog Support |
| Management Features |
Automatic Device Discovery, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration, ZTP (Zero-Touch Provisioning) |
| Dimensions | 158 × 101 × 25 mm (6,2 × 4,0 × 1,0 in) |
| Operating temperature | 0°C ÷ 40°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Power |
internal, ~230V AC 50Hz |
| Certificates |
CE, FCC, RoHS |
| Manufacturer | TP-Link |
#08929
Router EdgeRouter Lite, 3x 10/100/1000 RJ-45 (Ubiquiti ERLite-3)
| Ports |
3x 10/100/1000 Mbps RJ-45 (LAN), 1x RJ45 Serial Port |
|---|---|
| Button | Reset |
| LEDs Per Data Port | Power/Speed/Link/Activity |
| Processor |
Dual-Core 500 MHz, MIPS64 with Hardware Acceleration for Packet Processing |
| System Memory | 512 MB DDR2 RAM |
| On-Board Flash Storage | 2 GB |
| Layer 3 Forwarding Performance |
2,400,000 pps, 8 Gbps (Line Rate) |
| Max. Power Consumption | 7 W |
| Power |
12VDC, 1A Power Adapter (Included) |
| Power Input | 9 to 24VDC Supported Voltage Range |
| Mounting | Wall |
| Dimensions | 200 x 90 x 30 mm (7.87 x 3.54 x 1.18 in) |
| Weight | 345 g |
| Operating temperatures | -10°C ÷ 45°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates |
CE, FCC, IC |
| Manufacturer | Ubiquiti |
#07014
Security Gateway UNIFI (Ubiquiti UNIFI USG)
| Ports |
3x 10/100/1000 Mbps RJ-45 (LAN), 1x RJ45 Serial Port |
|---|---|
| LEDs Per Data Port | Status/Power/Speed/Link/Activity |
| Processor |
Dual-Core 500 MHz, MIPS64 with Hardware Acceleration for Packet Processing |
| System Memory | 512 MB DDR2 RAM |
| On-Board Flash Storage | 2 GB |
| Layer 3 Forwarding Performance |
1,000,000 pps, 3 Gbps (Line Rate) |
| Max. Power Consumption | 7 W |
| Power |
12VDC, 1A Power Adapter (Included) |
| Power Input | 9 to 24VDC Supported Voltage Range |
| Dimensions | 135 x 135 x 28.3 mm (5.32 x 5.32 x 1.11") |
| Weight | 366 g |
| Operating temperatures | -10°C ÷ 45°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates |
CE, FCC, IC |
| Manufacturer | Ubiquiti |
#06247
Wireless N broadband ADSL2+ router, 4x LAN (TP-Link TD-W8961N)
| Standards |
IEEE 802.11n (draft 2.0), IEEE 802.11b/g |
|---|---|
| Ports |
4x 10/100 Mbps RJ-45 (LAN), 1x RJ-11 |
| ADSL Feauture |
Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite) ITU-T G.994.1 (G.hs). ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis), Supports Annex A/L/M |
| Frequency range | 2400 MHz ÷ 2483,5 MHz |
| Modulation |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| Operating modes | AP Router |
| Max. speed | 300 Mbps |
| Max. output power | 20 dBm |
| Antenna |
Omni directional, Detachable, Reverse SMA |
| WLAN security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering |
| LAN security |
ACL, firewall, ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filtering, domain filtering, MAC address filtering, 802.1x, parental control |
| Network features |
VPN pass-through, DDNS, UPnP |
| Router features |
virtual servers, NAT, DMZ host, static routes |
| WLAN features |
2x2 MIMO, CCA |
| Auto MDI/MDIX | yes |
| Addressing |
DHCP client, DHCP server |
| Dimensions | 7.7 * 5.1 * 1.4 in. (195 * 130 * 35 mm ) |
| Operating temperatures | 0°C ÷ 40°C |
| Operating humidity |
5% ÷ 90%, non-condensing |
| Certificates |
CE, FCC |
| Manufacturer | TP-Link |
1.0-02.jpg?1640364063)
1.0-03.jpg?1615197807)
