#09624

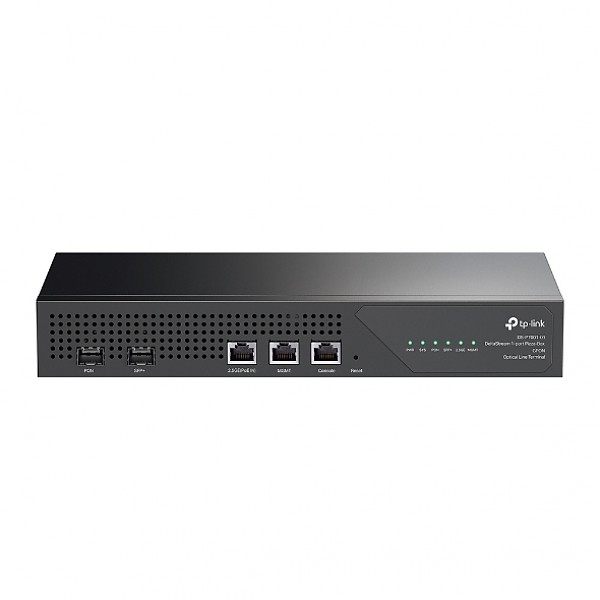

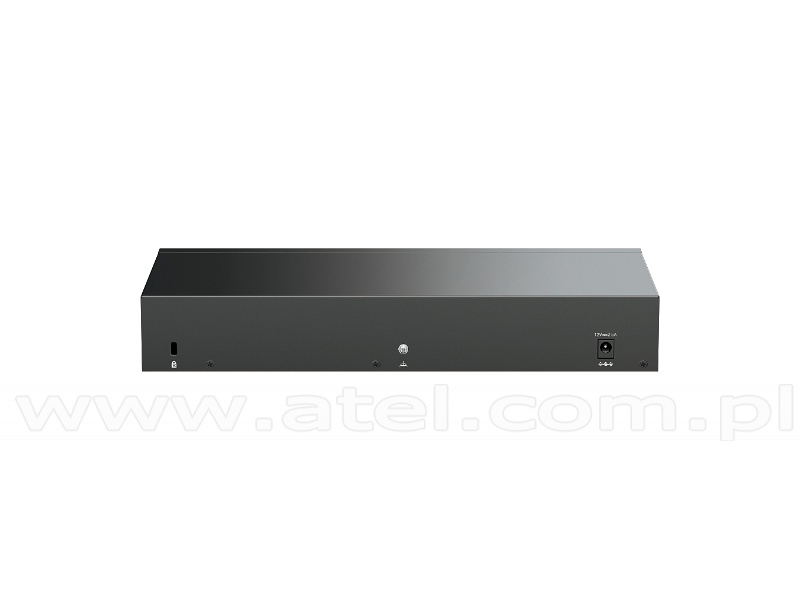

DeltaStream 1-Port Pizza-Box GPON Optical Line Terminal, 10G (TP-Link DS-P7001-01)
- GPON Port: Supports 1:128 splitting ratio—up to 128 ONTs by one device—perfect for small businesses and home offices.
- High-Speed Uplink Ports: 1× 10G SFP+ port and 1× 2.5 GbE uplink port offer high-bandwidth connectivity.
- Flexible Deployment: Supports both DC and 802.3at PoE power supplies to fit various application scenarios.
- Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirements for different applications.
- Centralized Management: Supports management via the DeltaStream PON Management System (DPMS), SNMP, CLI, and Web UI.
| HARDWARE FEATURES: | |
|---|---|
| Interface |
1× 2.5G PON Ports, 1× 10 Gbps SFP+ Uplink Port, 1× 10/100/1000 Mbps RJ45 Uplink Port, 1× RJ45 Console Port, 1× RJ45 MGMT Port, 1× Alarm Port (Reserved) |
| Button | 1 RESET Button |
| Power Supply |
Dual Power Supplies DC and 802.3at PoE, DC Adapter 12.0V/2.5A, 802.3at PoE 42.5~57V/0.6A |
| Power Consumption | Max. 17W |
| Dimensions (W X D X H) | 11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm) |
| Distance | 0~ 60Km |
| Data rate |
Downstream 2.5 Gbps, Upstream 1.25 Gbps |
| Wavelength |
Tx 1490 nm, Rx 1310 nm |
| Interface type | SC/UPC |
| Fiber type | 9/125μm SMF (Single Mode Fiber) |
| GPON Standards |
ITU-T G.984.1, G.984.2, G.984.3, G.984.4 |
| Optical Module | Class B+ |
| Receiver | Super-TIA |
| Transmitter | DFB Laser |
| Wavelength |
Upstream 1310nm, Downstream 1490nm |
| SOFTWARE FEATURES: | |
| Quality of Service |
Service Flow Classification based on VLAN, Schedule rules Support SP/WRR, Upstream Priority Label Support 802.1D User Priority, Rate Limit and Traffic shaping, Congestion Control Support Tail-Drop |
| VLAN |
802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode, Authentication based on SN and Password, VLAN Auto Detect |
| Security |
AES Encryption, Packet Filter based on VLAN |
| Management |
Managed by Web, OMCI and Telnet,, Specified the management IP, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic |
| Advanced Features |
Upstream and Downstream FEC, Dynamic Bandwidth Allocation(DBA) support NSR/SR, Up to 16 T-CONTs and 256 GEM Ports, Optical power detection, Dying Gasp, Terminal Silent mechanism, 802.3az EEE Energy Conservation |
| IGMP | IGMP v1/v2/v3 |
| OTHERS: | |
| Certification |
CE, FCC |
| Environment |
Operating Temperature 0°~50° (32°~122°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Manufacturer | TP-Link |
#04693
GPON Terminal, 1-Port Gigabit (TP-Link XZ000-G3)
- Quality of Service-Quality of Service control for transaction prioritization and bandwidth management
- Durability-Intelligent power-saving method
- Easy Remote Management-TR-069 protocol enables an operator to remotely configure and manage end-user devices
- Full Gigabit Port-Fiber access and gigabit port provide incredibly fast transfer speeds
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.3, 802.3u, 802.1Q, 802.1p |
| Interface |
1x10/100/1000Mbps RJ45, 1 SC/APC Port |
| Button | 1 RESET Button |
| External Power Supply | 9VDC / 0.6A |
| Dimensions (W X D X H) | 3.7 x 3.0 x 1.2 in. (95.0 x 75.0 x 29.3 mm) |
| Distance | 0~ 20Km |
| Signal Rate |
Upstream 1.244Gbps, Downstream 2.488Gbps |
| GPON Standards |
ITU-T G.984.1, G.984.2, G.984.3, G.984.4 |
| Optical Module | Class B+ |
| Receiver | Super-TIA |
| Transmitter | DFB Laser |
| Wavelength |
Upstream 1310nm, Downstream 1490nm |
| SOFTWARE FEATURES: | |
| Quality of Service |
Service Flow Classification based on VLAN, Schedule rules Support SP/WRR, Upstream Priority Label Support 802.1D User Priority, Rate Limit and Traffic shaping, Congestion Control Support Tail-Drop |
| VLAN |
802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode, Authentication based on SN and Password, VLAN Auto Detect |
| Security |
AES Encryption, Packet Filter based on VLAN |
| Management |
Managed by Web, OMCI and Telnet,, Specified the management IP, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic |
| Advanced Features |
Upstream and Downstream FEC, Dynamic Bandwidth Allocation(DBA) support NSR/SR, Up to 16 T-CONTs and 256 GEM Ports, Optical power detection, Dying Gasp, Terminal Silent mechanism, 802.3az EEE Energy Conservation |
| IGMP | IGMP v1/v2/v3 |
| OTHERS: | |
| Certification |
CE, FCC, RoHS |
| Package Contents |
XZ000-G3, RJ-45 Ethernet Cable, Power Adapter, Quick Installation Guide |
| System Requirements | Windows 8/7/Vista/XP or Mac OS or Linux-based operating system. |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 2 years limited warranty. Advanced replacement service is available. |
| Manufacturer | TP-Link |
#09228
GPON Terminal, 4-Ports 2.5G (TP-Link DS-P7001-04)
- 8 GPON Ports: Supports 1:128 splitting ratio for every port—up to 1024 ONTs by one device.
- High-Speed Uplink Ports: Provides 2× 10GE SFP+ ports and 1× gigabit uplink port.
- Redundant Dual Power Supplies: Carrier-class reliability with dual hot-swapping AC+DC power supplies.
- Complete L2 & Advanced L3 Functions: Satisfies the need for numerous commercial requirements.
- Centralized Management: Via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI.
- Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirement for different applications.
| HARDWARE FEATURES: | |
|---|---|
| Interface |
4× 2.5G PON Ports, 1× 10 Gbps SFP+ Uplink Port, 1× 10/100/1000 Mbps RJ45 Uplink Port, 1× RJ45 Console Port, 1× RJ45 MGMT Port, 1× Alarm Port (Reserved) |
| Button | 1 RESET Button |
| Power Supply |
Dual Power Supplies, AC 100V~240V, 50/60Hz, DC -38.4V~-72V |
| Power Consumption | Max. 58W |
| Dimensions (W X D X H) | 17.3 × 7.1 × 1.7 in. (440 × 180× 44 mm) |
| Distance | 0~ 20Km |
| Data rate |
Downstream 2.5 Gbps, Upstream 1.25 Gbps |
| Wavelength |
Tx 1490 nm, Rx 1310 nm |
| Interface type | SC/UPC |
| Fiber type | 9/125μm SMF (Single Mode Fiber) |
| GPON Standards |
ITU-T G.984.1, G.984.2, G.984.3, G.984.4 |
| Optical Module | Class B+ |
| Receiver | Super-TIA |
| Transmitter | DFB Laser |
| Wavelength |
Upstream 1310nm, Downstream 1490nm |
| SOFTWARE FEATURES: | |
| Quality of Service |
Service Flow Classification based on VLAN, Schedule rules Support SP/WRR, Upstream Priority Label Support 802.1D User Priority, Rate Limit and Traffic shaping, Congestion Control Support Tail-Drop |
| VLAN |
802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode, Authentication based on SN and Password, VLAN Auto Detect |
| Security |
AES Encryption, Packet Filter based on VLAN |
| Management |
Managed by Web, OMCI and Telnet,, Specified the management IP, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic |
| Advanced Features |
Upstream and Downstream FEC, Dynamic Bandwidth Allocation(DBA) support NSR/SR, Up to 16 T-CONTs and 256 GEM Ports, Optical power detection, Dying Gasp, Terminal Silent mechanism, 802.3az EEE Energy Conservation |
| IGMP | IGMP v1/v2/v3 |
| OTHERS: | |
| Certification |
CE, FCC |
| Environment |
Operating Temperature 0°~50° (32°~122°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Manufacturer | TP-Link |
Unit: pcs VAT: 23%#09229
GPON Terminal, 8-Ports 2.5G (TP-Link DS-P7001-08)
- 8 GPON Ports: Supports 1:128 splitting ratio for every port—up to 1024 ONTs by one device.
- High-Speed Uplink Ports: Provides 2× 10GE SFP+ ports and 1× gigabit uplink port.
- Redundant Dual Power Supplies: Carrier-class reliability with dual hot-swapping AC+DC power supplies.
- Complete L2 & Advanced L3 Functions: Satisfies the need for numerous commercial requirements.
- Centralized Management: Via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI.
- Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirement for different applications.
| HARDWARE FEATURES: | |
|---|---|
| Interface |
8× 2.5G PON Ports, 2× 10 Gbps SFP+ Uplink Port, 1× 10/100/1000 Mbps RJ45 Uplink Port, 1× RJ45 Console Port, 1× RJ45 MGMT Port, 1× Alarm Port (Reserved) |
| Button | 1 RESET Button |
| Power Supply |
Dual Power Supplies, AC 100V~240V, 50/60Hz, DC -38.4V~-72V |
| Power Consumption | Max. 70W |
| Dimensions (W X D X H) | 17.3 × 10.2 × 1.7 in. (440 × 260× 44 mm) |
| Distance | 0~ 20Km |
| Data rate |
Downstream 2.5 Gbps, Upstream 1.25 Gbps |
| Wavelength |
Tx 1490 nm, Rx 1310 nm |
| Interface type | SC/UPC |
| Fiber type | 9/125μm SMF (Single Mode Fiber) |
| GPON Standards |
ITU-T G.984.1, G.984.2, G.984.3, G.984.4 |
| Optical Module | Class B+ |
| Receiver | Super-TIA |
| Transmitter | DFB Laser |
| Wavelength |
Upstream 1310nm, Downstream 1490nm |
| SOFTWARE FEATURES: | |
| Quality of Service |
Service Flow Classification based on VLAN, Schedule rules Support SP/WRR, Upstream Priority Label Support 802.1D User Priority, Rate Limit and Traffic shaping, Congestion Control Support Tail-Drop |
| VLAN |
802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode, Authentication based on SN and Password, VLAN Auto Detect |
| Security |
AES Encryption, Packet Filter based on VLAN |
| Management |
Managed by Web, OMCI and Telnet,, Specified the management IP, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic |
| Advanced Features |
Upstream and Downstream FEC, Dynamic Bandwidth Allocation(DBA) support NSR/SR, Up to 16 T-CONTs and 256 GEM Ports, Optical power detection, Dying Gasp, Terminal Silent mechanism, 802.3az EEE Energy Conservation |
| IGMP | IGMP v1/v2/v3 |
| OTHERS: | |
| Certification |
CE, FCC |
| Environment |
Operating Temperature 0°~50° (32°~122°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Manufacturer | TP-Link |
#04694

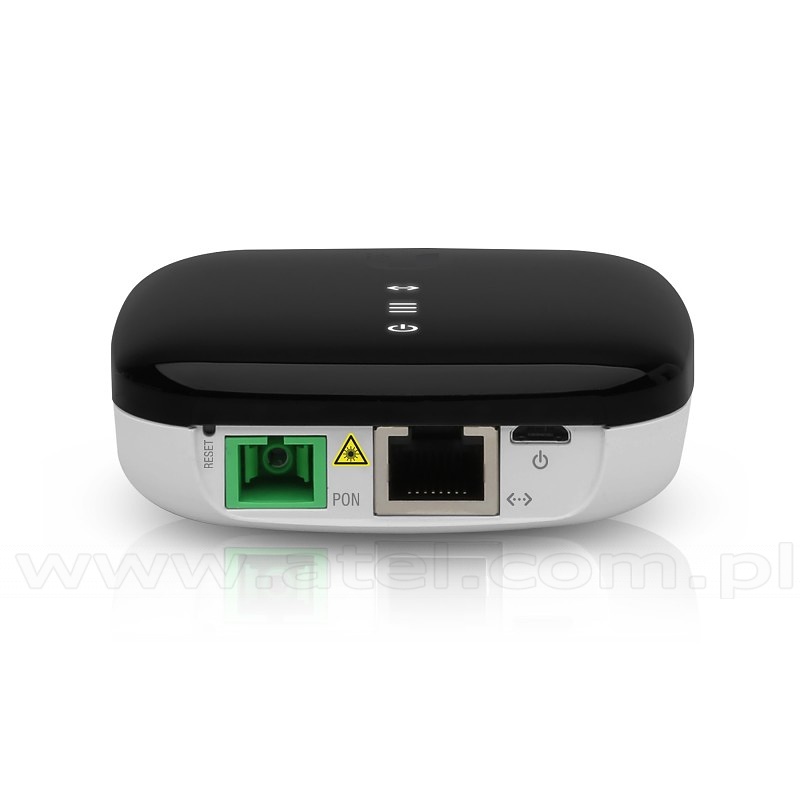

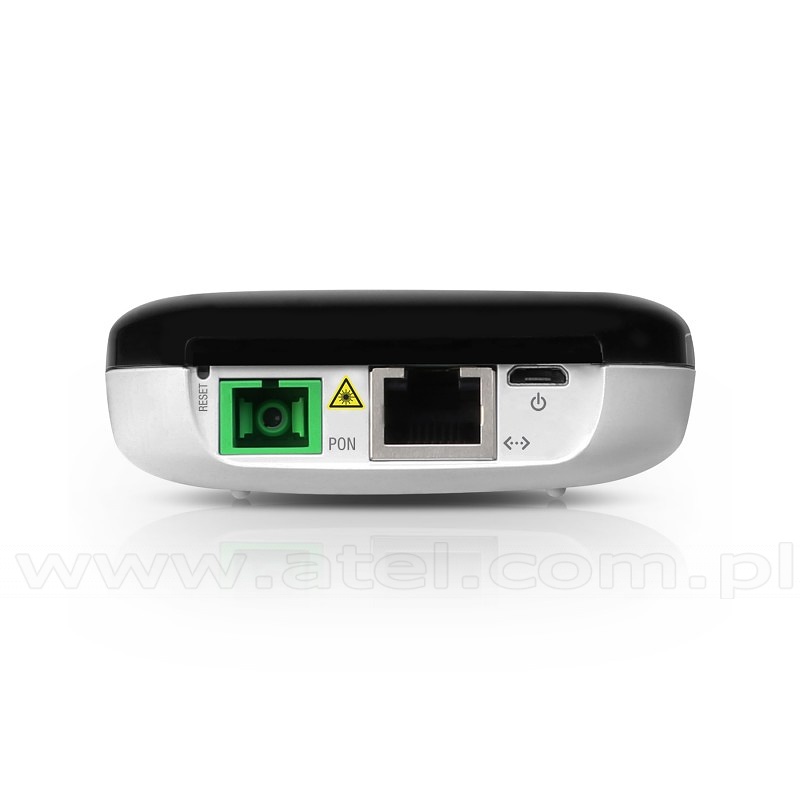

UFiber loco GPON, 1-Port Gigabit (Ubiquiti UF-LOCO)
| Processor Specs |
MIPS32, 240 MHz |
|---|---|
| Memory Information | 128 MB DDR3 |
| Buttons | 1*Reset |
| Networking Interfaces |
1*SC/APC, GPON WAN, 1*Gigabit RJ45, Ethernet LAN |
| Networking Interface Speeds | |
| GPON WAN, ITU G.984 |
2.488 Gbps Downstream, 1.244 Gbps Upstream |
| GbE LAN | 10/100/1000 Mbps |
| Management Interface | In-Band Ethernet/PON |
| Normal Optical Power Range |
TX (Class B+) 1.5 to 5 dBm, RX -28 to -8 dBm |
| Power Method |
Micro-USB 5V, 1A, 24V Passive PoE (Pins +4, 5; -7, 8) |
| Power Supply |
Micro-USB Power Adapter 5V, 1A |
| Max. Power Consumption | 3.5W |
| Supported Voltage Range | 4.7 to 5.3V |
| Dimensions | 76.5 x 76.5 x 26.4 mm (3.01 x 3.01 x 1.04") |
| Weight | 77 g (2.72 oz) |
| Temperature Operation | -10 ÷ 45°C |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications |
CE, FCC, IC |
#04695

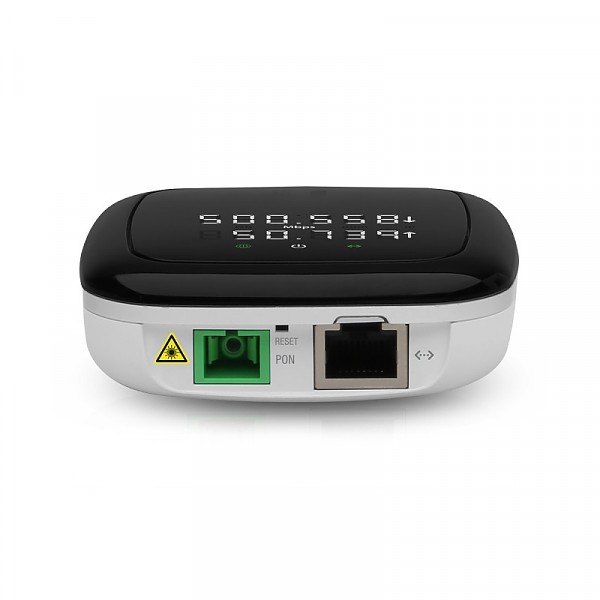

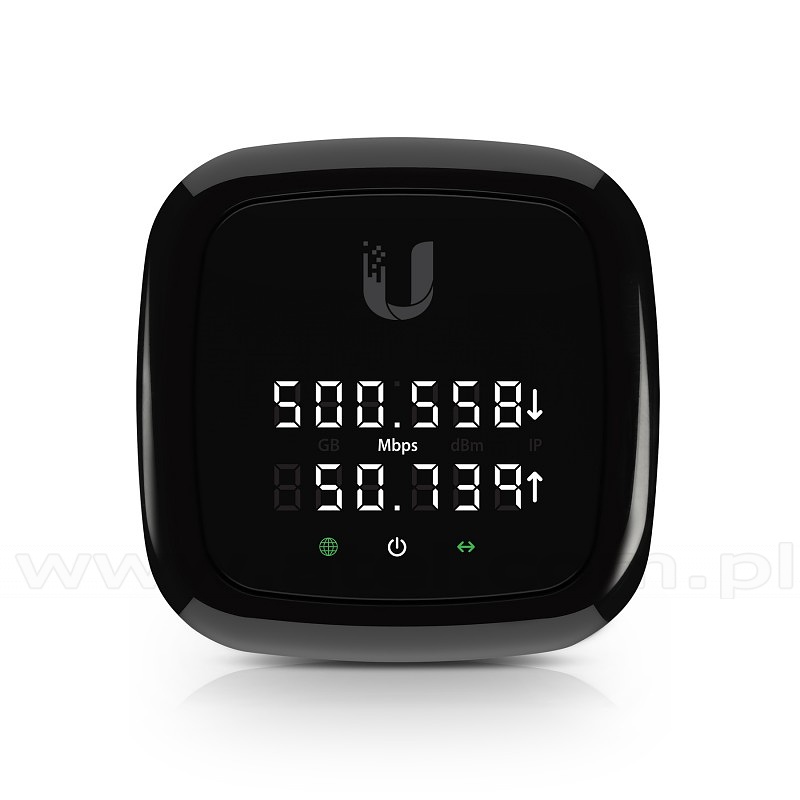

UFiber Nano G GPON, 1-Port Gigabit (Ubiquiti UF-Nano)
| Processor Specs |
MIPS32, 240 MHz |
|---|---|
| Memory Information | 128 MB DDR3 |
| Buttons |
1*Reset, 1*Display Information |
| Networking Interfaces |
1*SC/APC, GPON WAN, 1*Gigabit RJ45, Ethernet LAN |
| Networking Interface Speeds | |
| GPON WAN, ITU G.984 |
2.488 Gbps Downstream, 1.244 Gbps Upstream |
| GbE LAN | 10/100/1000 Mbps |
| Management Interface | In-Band Ethernet/PON |
| Normal Optical Power Range |
TX (Class B+) 1.5 to 5 dBm, RX -28 to -8 dBm |
| Power Method |
24V Passive PoE (Pins +4, 5; -7, 8), Dying Gasp Support |
| Power Supply |
PoE Adapter 24V, 0.3A (Included) |
| Max. Power Consumption | 7W |
| Supported Voltage Range | 20 to 28V |
| Dimensions | 77 x 77 x 28 mm (3.03 x 3.03 x 1.1") |
| Weight | 110 g (3.88 oz) |
| Temperature Operation | -10 ÷ 45°C |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications |
CE, FCC, IC |
#09623

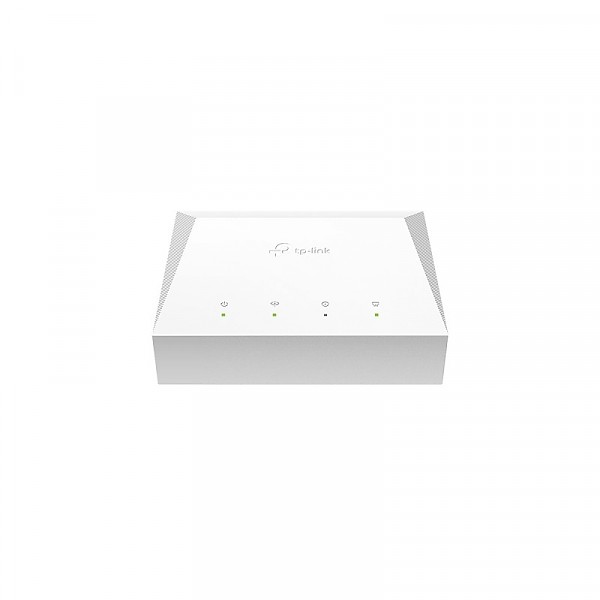

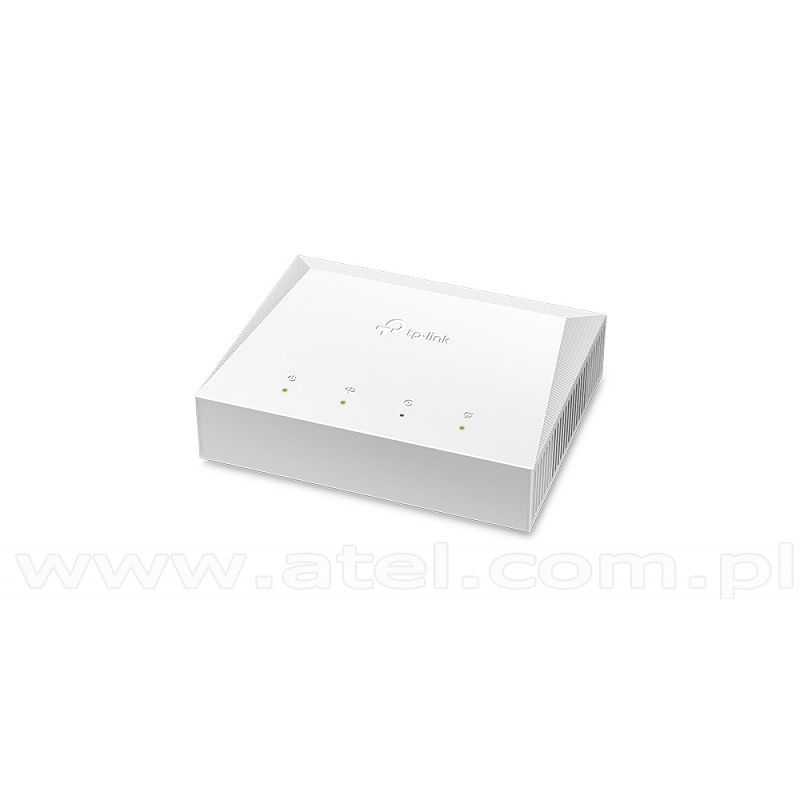

XPON Terminal, 1-Port 10/100/1000 Mb/s (TP-Link XZ000-G7)
- Gigabit Internet Access: One PON port and one gigabit LAN port provide fast transfer speeds*
- XPON Support: EPON + GPON dual mode offers greater flexibility for fiber internet access.
- Ease of Use: Quick and hassle-free installation with intelligent power-saving.
- Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management.
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols GPON |
ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4 |
| IEEE Standards |
IEEE 802.3, 802.3u, 802.1p, 802.1Q |
| Interface |
1× PON Port, 1× RJ45 10/100/1000 Mb/s |
| Button |
1× Power On/Off Button, 1x RESET Button |
| External Power Supply | 9VDC / 0.6A |
| Dimensions (W X D X H) | 3.7 x 3.0 x 1.2 in. (95.0 x 75.0 x 29.3 mm) |
| Distance | 0~ 20Km |
| Signal Rate |
Upstream 1.244Gbps, Downstream 2.488Gbps |
| GPON Standards |
ITU-T G.984.1, G.984.2, G.984.3, G.984.4 |
| Optical Module | Class B+ |
| Receiver | Super-TIA |
| Transmitter | DFB Laser |
| Wavelength |
Upstream 1310nm, Downstream 1490nm |
| SOFTWARE FEATURES: | |
| Quality of Service |
Service Flow Classification based on VLAN, Schedule rules Support SP/WRR, Upstream Priority Label Support 802.1D User Priority, Rate Limit and Traffic shaping, Congestion Control Support Tail-Drop |
| VLAN |
802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode, Authentication based on SN and Password, VLAN Auto Detect |
| Security |
AES Encryption, Packet Filter based on VLAN |
| Management |
Managed by Web, OMCI and Telnet,, Specified the management IP, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic |
| Advanced Features |
Upstream and Downstream FEC, Dynamic Bandwidth Allocation(DBA) support NSR/SR, Up to 16 T-CONTs and 256 GEM Ports, Optical power detection, Dying Gasp, Terminal Silent mechanism, 802.3az EEE Energy Conservation |
| IGMP | IGMP v1/v2/v3 |
| OTHERS: | |
| Certification |
CE, RoHS |
| Package Contents |
XZ000-G7, Power Adapter |
| System Requirements |
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux, Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser, Subscription with an internet service provider (for internet access) |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~60° (-40°~140°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 3 years limited warranty. |
| Manufacturer | TP-Link |
_1.0_b_large_20240116033520w.jpg?1750261300)
#09622
XPON Terminal, 1-Port 2.5G (TP-Link XZ005-G6)
- High-Speed GPON Access: Enables multi-gig internet connections up to 2.5 Gbps downstream and 1.25 Gbps upstream.
- XPON Support: EPON + GPON dual mode offers greater flexibility for fiber internet access.
- 2.5G Wired Connections: 1× 2.5 GbE LAN port enables fast network sharing and reliable connections.
- Ease of Use: Quick and hassle-free installation with intelligent power-saving.
- Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management.
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols GPON |
ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4 |
| IEEE Standards |
IEEE 802.3, 802.3u, 802.1p, 802.1Q |
| Interface |
1× PON Port, 1× 2.5 Gigabit RJ45 LAN Port |
| Button |
1× Power On/Off Button, 1x RESET Button |
| External Power Supply | 9VDC / 0.6A |
| Dimensions (W X D X H) | 3.7 x 3.0 x 1.2 in. (95.0 x 75.0 x 29.3 mm) |
| Distance | 0~ 20Km |
| Signal Rate |
Upstream 1.244Gbps, Downstream 2.488Gbps |
| GPON Standards |
ITU-T G.984.1, G.984.2, G.984.3, G.984.4 |
| Optical Module | Class B+ |
| Receiver | Super-TIA |
| Transmitter | DFB Laser |
| Wavelength |
Upstream 1310nm, Downstream 1490nm |
| SOFTWARE FEATURES: | |
| Quality of Service |
Service Flow Classification based on VLAN, Schedule rules Support SP/WRR, Upstream Priority Label Support 802.1D User Priority, Rate Limit and Traffic shaping, Congestion Control Support Tail-Drop |
| VLAN |
802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode, Authentication based on SN and Password, VLAN Auto Detect |
| Security |
AES Encryption, Packet Filter based on VLAN |
| Management |
Managed by Web, OMCI and Telnet,, Specified the management IP, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic |
| Advanced Features |
Upstream and Downstream FEC, Dynamic Bandwidth Allocation(DBA) support NSR/SR, Up to 16 T-CONTs and 256 GEM Ports, Optical power detection, Dying Gasp, Terminal Silent mechanism, 802.3az EEE Energy Conservation |
| IGMP | IGMP v1/v2/v3 |
| OTHERS: | |
| Certification |
CE, FCC, RoHS |
| Package Contents |
XZ005-G6, Power Adapter |
| System Requirements |
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux, Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser, Subscription with an internet service provider (for internet access) |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~60° (-40°~140°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 3 years limited warranty |
| Manufacturer | TP-Link |
