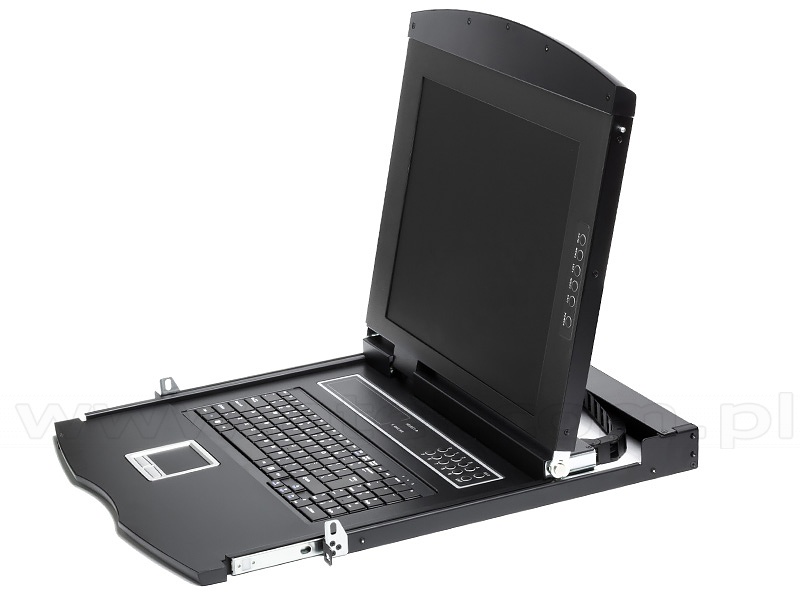

#07465

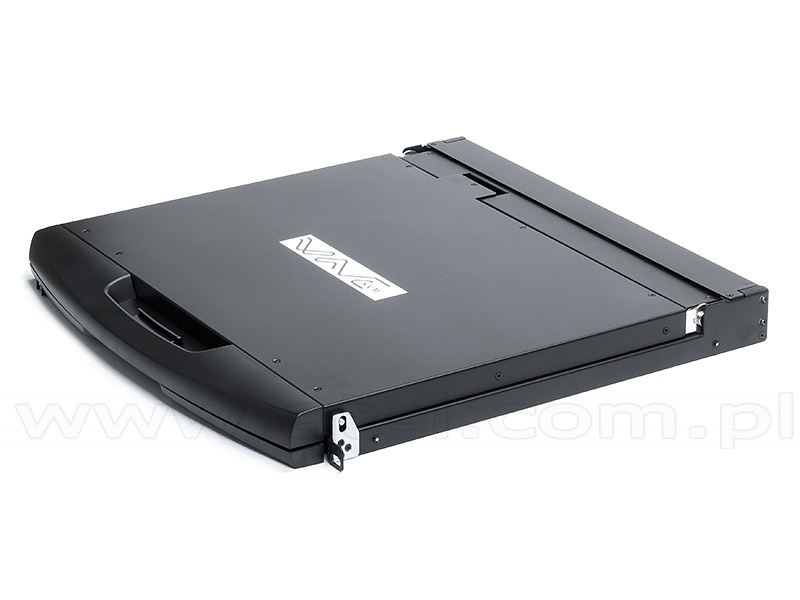

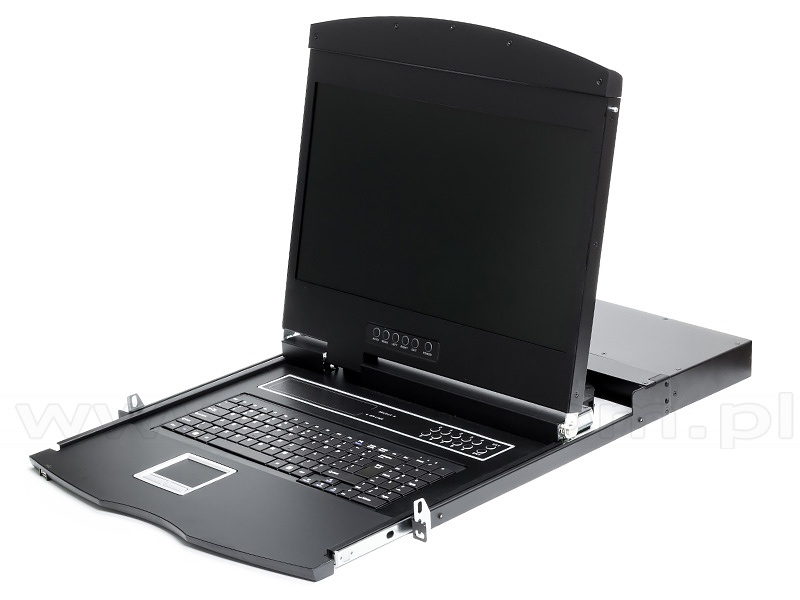

KVM LCD modular console, Wave KVM , 17", 1-port KVM, 1U, single rail
KVM console module featuring an integrated 17" LCD panel, a keyboard and a touchpad in a 1U rack-mountable housing can save almost 85% server cabinet space (compared to traditional keyboards, monitor and mouse).
The modular structure enables easy expansion of the device with a replaceable KVM module with an amendment to sureties (8, 16 ports).
The modular structure enables easy expansion of the device with a replaceable KVM module with an amendment to sureties (8, 16 ports).
| Description | 1 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 17" SXGA, 4÷3 |
| Max. resolution | 1920x1080 |
| Optimal resolution | 1280x1024 |
| Contrast | 1000 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | LED |
| Supported colors | 16.7M |
| PC or KVM ports | 1 PS2 or USB |
| Keyboard |
105 keys, touchpad |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 463x446x42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 18.6 kg |
| Warranty | 2 years |
| Manufacturer | Wave KVM |

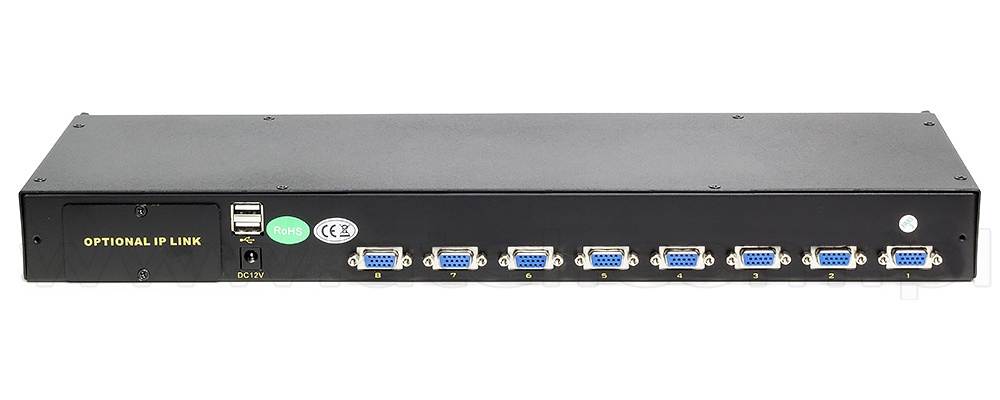

#07466

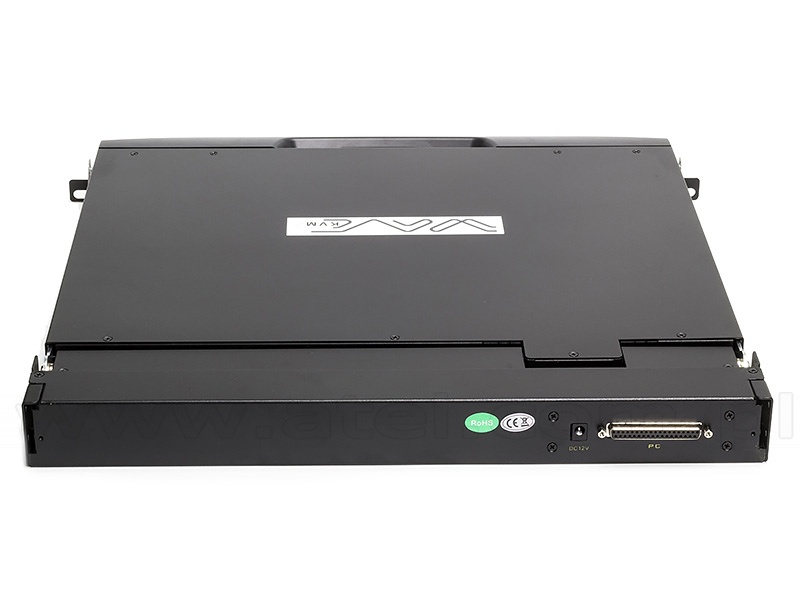

KVM LCD modular console, Wave KVM , 17", 8-port KVM, 1U, single rail
KVM console module featuring an integrated 17" LCD panel, a keyboard and a touchpad in a 1U rack-mountable housing can save almost 85% server cabinet space (compared to traditional keyboards, monitor and mouse).
The modular structure enables easy expansion of the device with a replaceable KVM module with an amendment to sureties (16 ports) and an additional module for IP communication.
The modular structure enables easy expansion of the device with a replaceable KVM module with an amendment to sureties (16 ports) and an additional module for IP communication.
| Description | 8 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 17" SXGA, 4÷3 |
| Max. resolution | 1920x1080 |
| Optimal resolution | 1280x1024 |
| Contrast | 1000 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | LED |
| Supported colors | 16.7M |
| PC or KVM ports | 8 |
| Keyboard |
105 keys, touchpad |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 636x446x42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 18.6 kg |
| Warranty | 2 years |
| Manufacturer | Wave KVM |

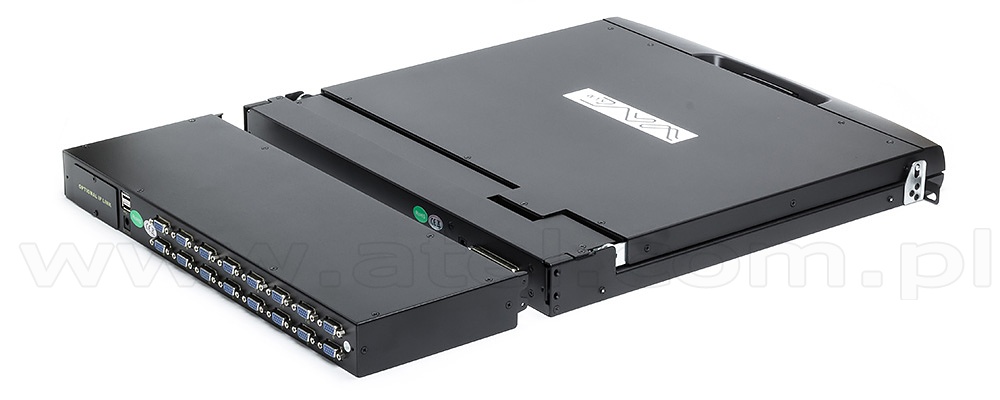

#07467

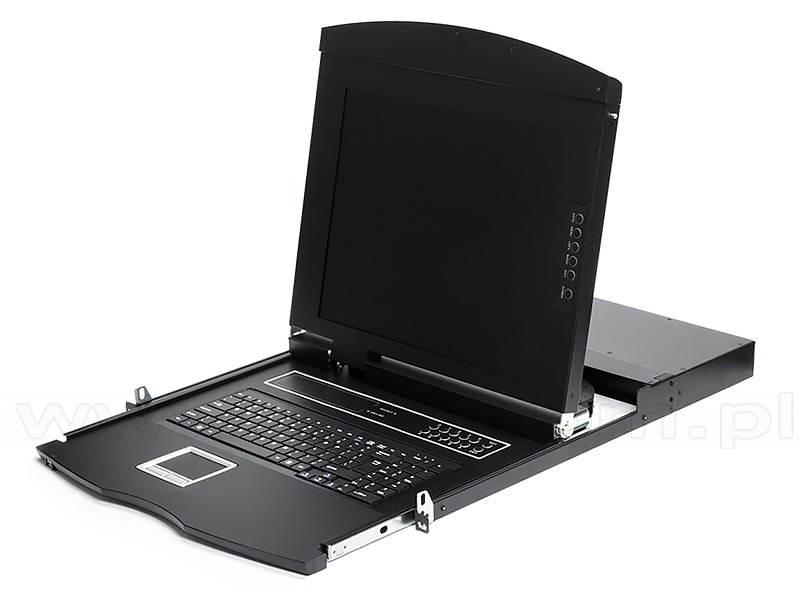

KVM LCD modular console,Wave KVM , 17", 16-port KVM, 1U, single rail
KVM console module featuring an integrated 17" LCD panel, a keyboard and a touchpad can save almost 75% server cabinet space (compared to traditional keyboards, monitor and mouse).
The modular structure enables easy expansion of the device with an additional module for IP communication.
The modular structure enables easy expansion of the device with an additional module for IP communication.
| Description | 16 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 17" SXGA, 4÷3 |
| Max. resolution | 1920x1080 |
| Optimal resolution | 1280x1024 |
| Contrast | 1000 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | LED |
| Supported colors | 16.7M |
| Mean Time Between Failures (MTBF) | 100 000 hours |
| PC or KVM ports | 16 PS2 or USB |
| Keyboard |
105 keys, touchpad |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 636x446x42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 18.6 kg |
| Warranty | 2 years |
| Manufacturer | Wave KVM |

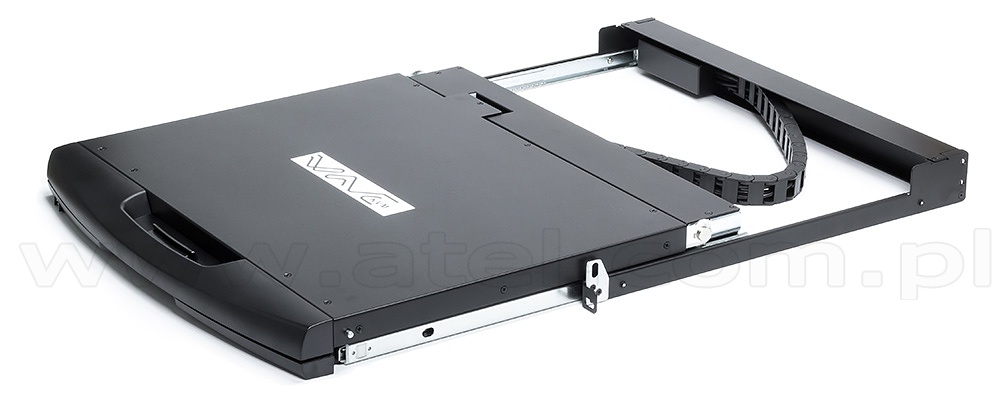

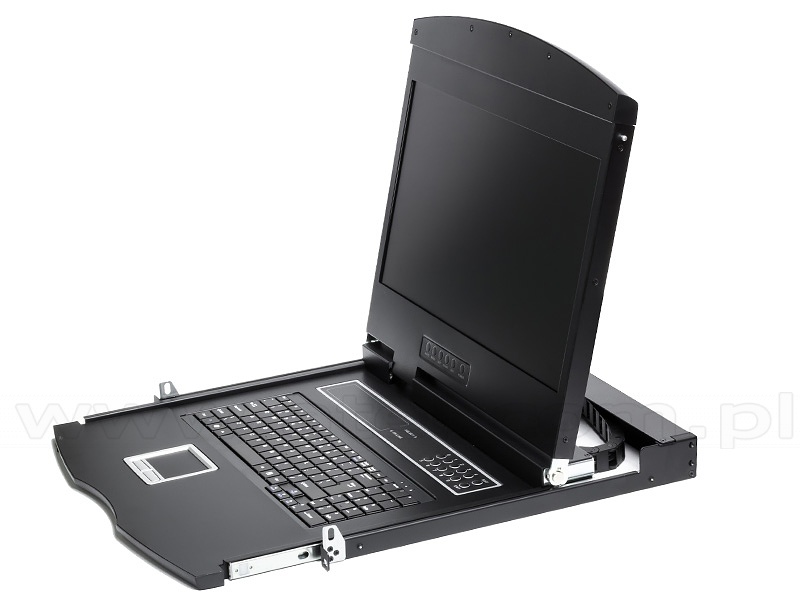

#07468
KVM LCD modular console, Wave KVM , 19", 1-port KVM, 1U, single rail
KVM console module featuring an integrated 19" LCD panel, a keyboard and a touchpad can save almost 75% server cabinet space (compared to traditional keyboards, monitor and mouse).
The modular structure enables easy expansion of the device with a replacable KVM module witha higher number of ports (8, 16 ports).
The modular structure enables easy expansion of the device with a replacable KVM module witha higher number of ports (8, 16 ports).
| Description | 1 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 19" XGA |
| Max. resolution | 1920x1080 |
| Optimal resolution | 1280x1024 |
| Contrast | 1000 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | LED |
| Supported colors | 16.7M |
| Mean Time Between Failures | 100 000 hours |
| PC or KVM ports | 1 PS2 or USB |
| Keyboard |
105 keys, touchpad |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 463x446x42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 18.0 kg |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
#07469

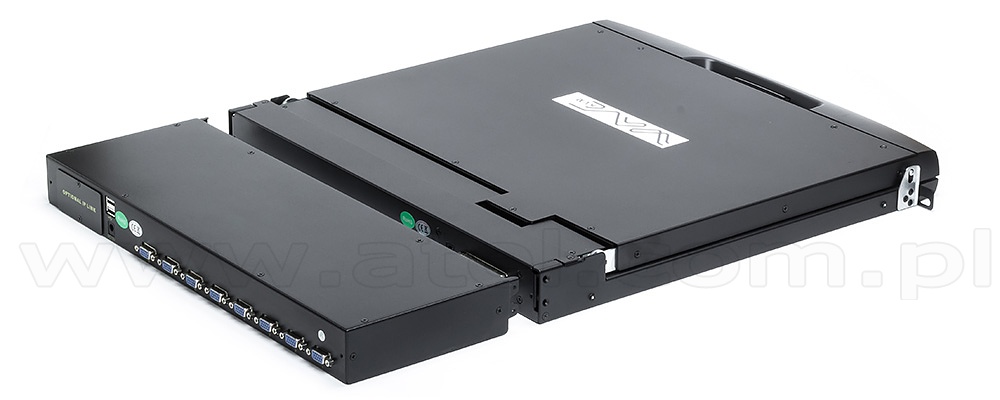

KVM LCD modular console, Wave KVM ,19", 8-port KVM, 1U, single rail
KVM console module featuring an integrated 19" LCD panel, a keyboard and a touchpad can save almost 75% server cabinet space (compared to traditional keyboards, monitor and mouse).
The modular structure enables easy expansion of the device with a replacable KVM module with a higher number of ports (16 ports) amd an additional module for IP communication.
The modular structure enables easy expansion of the device with a replacable KVM module with a higher number of ports (16 ports) amd an additional module for IP communication.
| Description | 8 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 19" XGA, 4÷3 |
| Max. resolution | 1920x1080 |
| Optimal resolution | 1280x1024 |
| Contrast | 1000 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | LED |
| Supported colors | 16.7M |
| Mean Time Between Failures | 100 000 hours |
| PC or KVM ports | 8 PS2 or USB |
| Keyboard |
105 keys, touchpad |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 636x446x42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 18.0 kg |
| Warranty | 2 years |
| Manufacturer | Wave KVM |

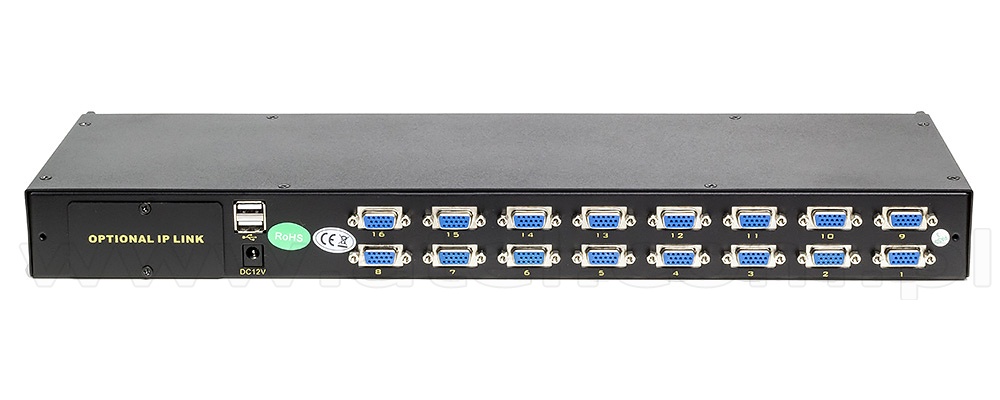

#07470
KVM LCD modular console, Wave KVM ,19", 16-port KVM, 1U, single rail
KVM console module featuring an integrated 19" LCD panel, a keyboard and a touchpad can save almost 75% server cabinet space (compared to traditional keyboards, monitor and mouse).
The modular structure enables easy expansion of the device with an additional module for IP communication.
The modular structure enables easy expansion of the device with an additional module for IP communication.
| Description | 16 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 19" XGA |
| Max. resolution | 1920x1080 |
| Optimal resolution | 1280x1024 |
| Contrast | 1000 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | LED |
| Supported colors | 16.7M |
| PC or KVM ports | 16 |
| Keyboard |
105 keys, touchpad |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 636x446x42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 18.0 kg |
| Manufacturer | Wave KVM |

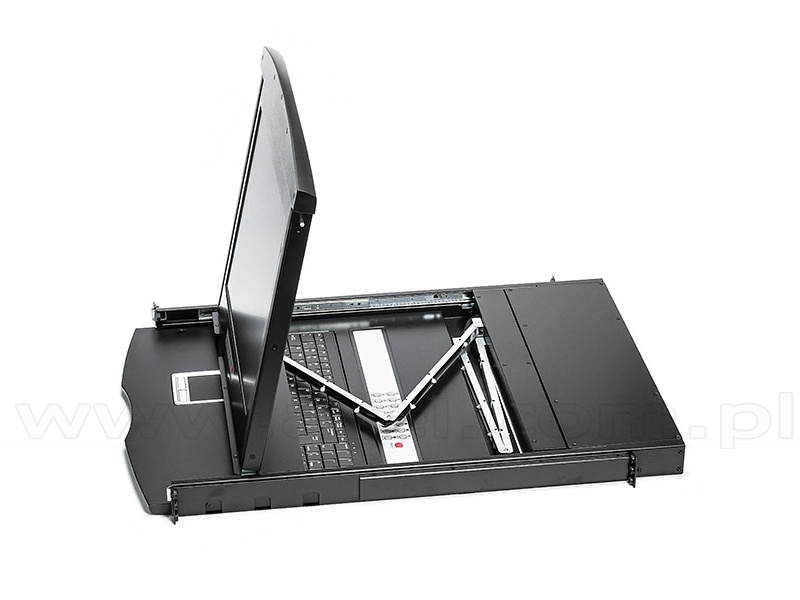

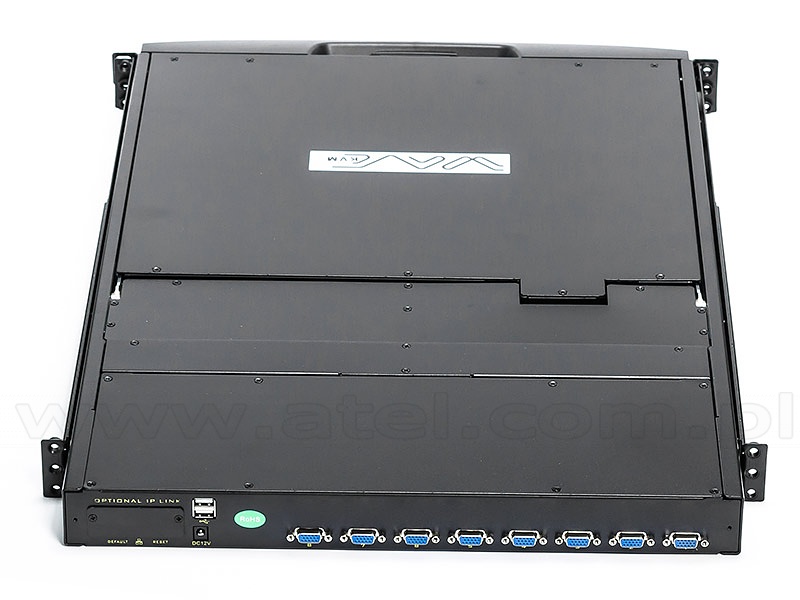

#07383

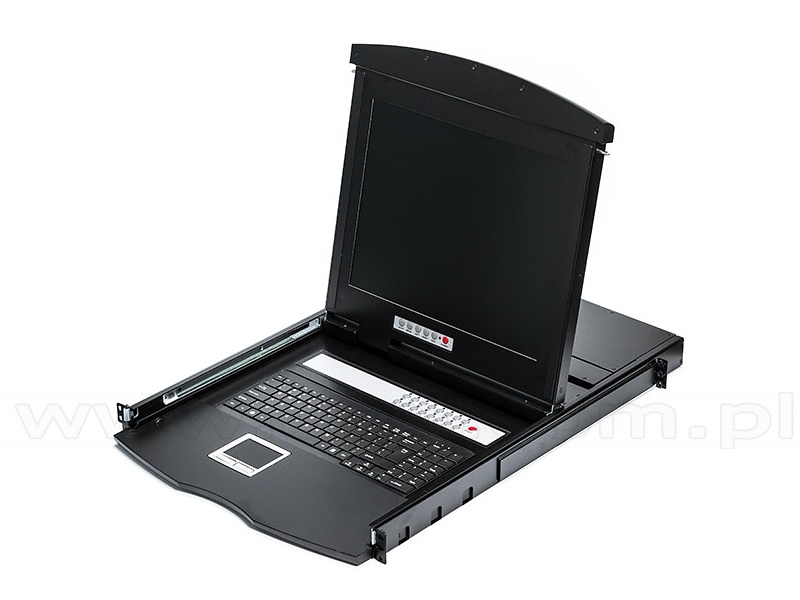

KVM LCD console, Wave KVM , 17", 8-port KVM, 1U, dual rail
The KVM console module featuring an integrated 17" LCD panel, a keyboard and a touchpad can save almost 75% server cabinet space (compared with traditional keyboards, monitor and mouse). The double racks enable pulling out only the monitor and simultaneous viewing with the closed cabinet door.
| Description | 1 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 17" SXGA |
| Max. resolution | 1920x1080 |
| Optimal resolution | 1280x1024 |
| Contrast | 1000 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | 2 lamps |
| Supported colors | 16.7M |
| Mean Time Between Failures | 50 000 hours |
| PC or KVM ports | 8 PS2 or USB |
| Keyboard |
105 keys, touchpad |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 640*443*42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 18.6 kg |
| Warranty | 2 years |
| Manufacturer | Wave KVM |

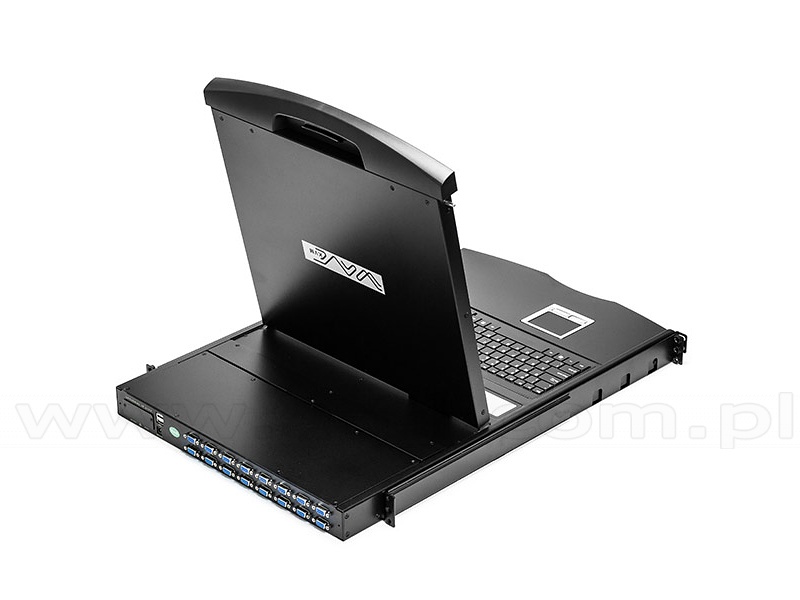

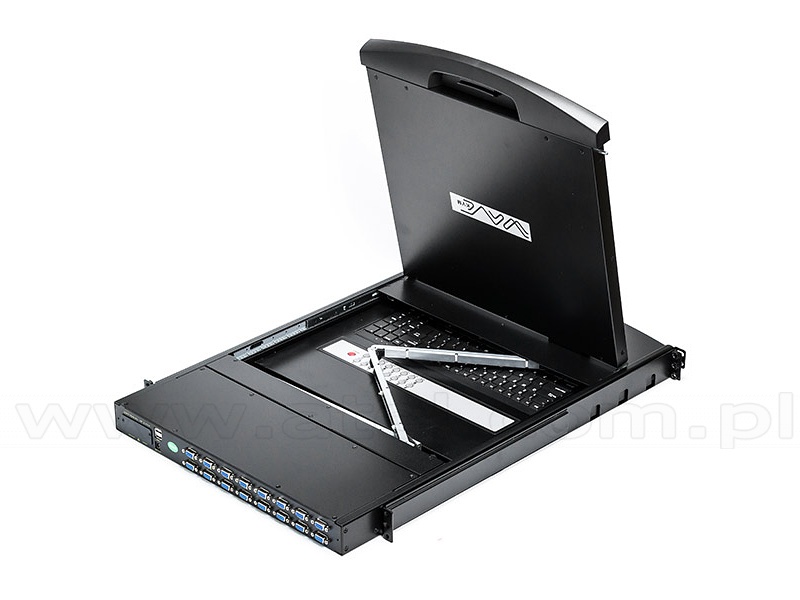

#07384

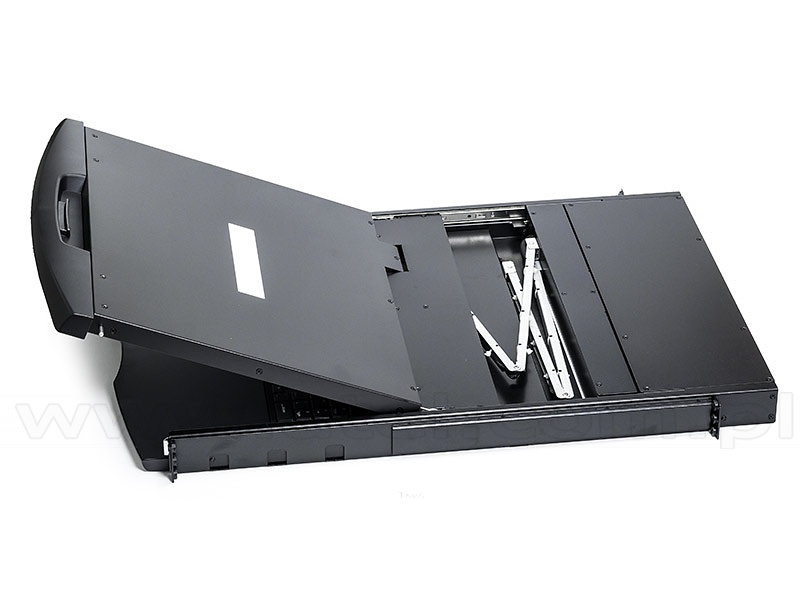

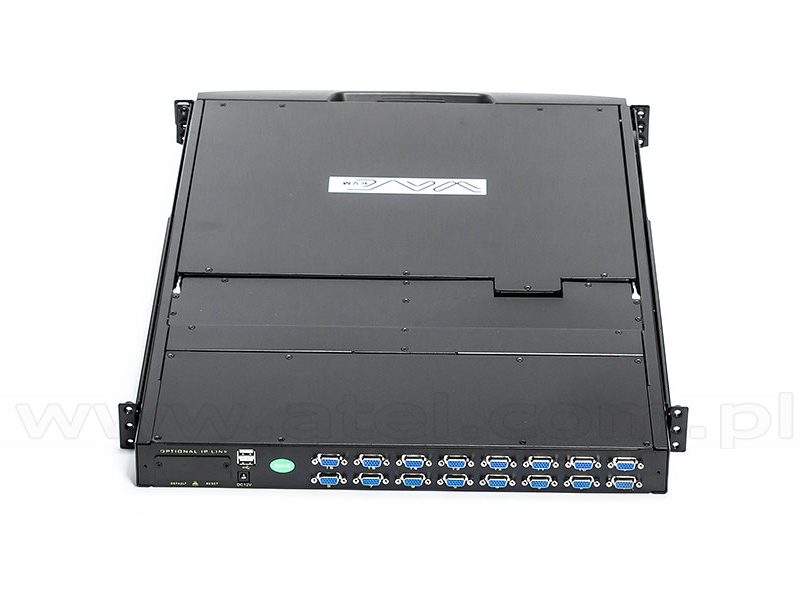

KVM LCD console, Wave KVM , 17", 16-port KVM, 1U, dual rail
The KVM console module featuring an integrated 17" LCD panel, a keyboard and a touchpad can save almost 75% server cabinet space (compared with traditional keyboards, monitor and mouse). The double racks enable pulling out only the monitor and simultaneous viewing with the closed cabinet door.
| Description | 16 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 17" SXGA |
| Max. resolution | 1920x1080 |
| Optimal resolution | 1280x1024 |
| Contrast | 1000 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | 2 lamps |
| Supported colors | 16.7M |
| Mean Time Betweem Failures | 50 000 hours |
| PC or KVM ports | 16 PS2 or USB |
| Keyboard |
105 keys, touchpad |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 640*443*42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 18.6 kg |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
#07385

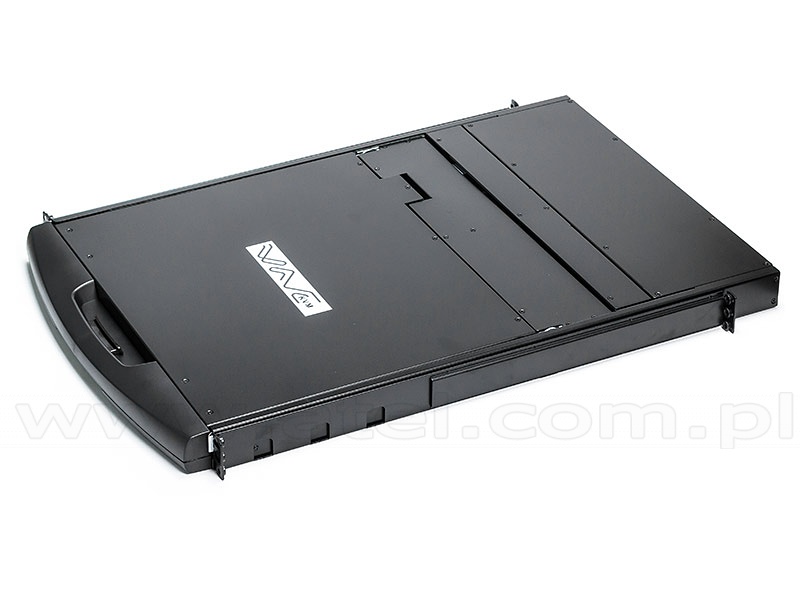

KVM LCD console, Wave KVM , 19", 8-port KVM, 1U, dual rail
The KVM console module featuring an integrated 19" LCD panel, a keyboard and a touchpad can save almost 75% server cabinet space (compared with traditional keyboards, monitor and mouse). The double racks enable pulling out only the monitor and simultaneous viewing with the closed cabinet door.
| Description | 8 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 19" SXGA |
| Max. resolution | 1920x1080 |
| Optimal resolution | 1280x1024 |
| Contrast | 1000 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | 2 lamps |
| Supported colors | 16.7M |
| Mean Time Between Failures | 50 000 hours |
| PC or KVM ports | 8 PS2 or USB |
| Keyboard |
105 keys, touchpad |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 630*450*42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 18.6 kg |
| Warranty | |
| Manufacturer | Wave KVM |

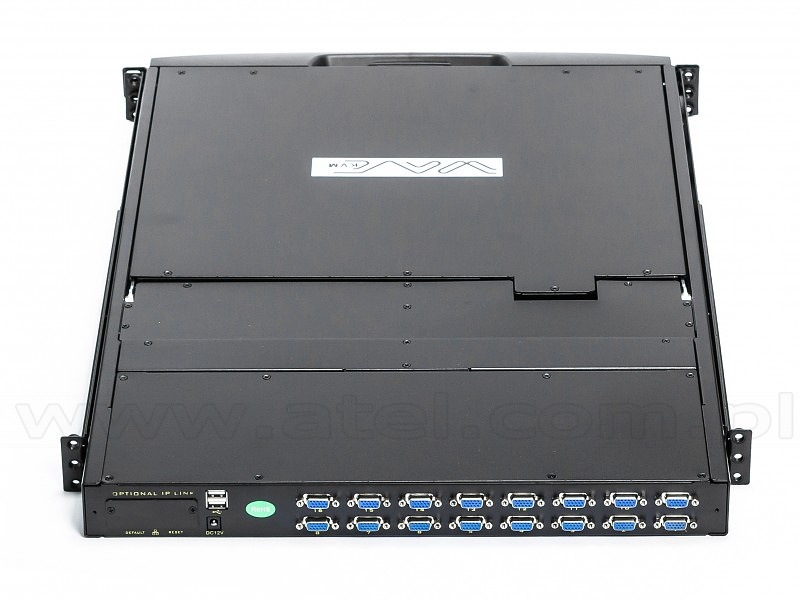

#07386
KVM LCD console, Wave KVM , 19", 16-port KVM, 1U, dual rail
The KVM console module featuring an integrated 19" LCD panel, a keyboard and a touchpad can save almost 75% server cabinet space (compared with traditional keyboards, monitor and mouse). The double racks enable pulling out only the monitor and simultaneous viewing with the closed cabinet door.
| Description | 16 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 19" SXGA, 4÷3 |
| Max. resolution | 1920x1080 |
| Optimal resolution | 1280x1024 |
| Contrast | 1000 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | 2 lamps |
| Supported colors | 16.7M |
| Mean Time Between Failures | 50 000 hours |
| PC or KVM ports | 16 PS2 or USB |
| Keyboard |
105 keys, touchpad |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 630*450*42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 18.6 kg |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
#07471

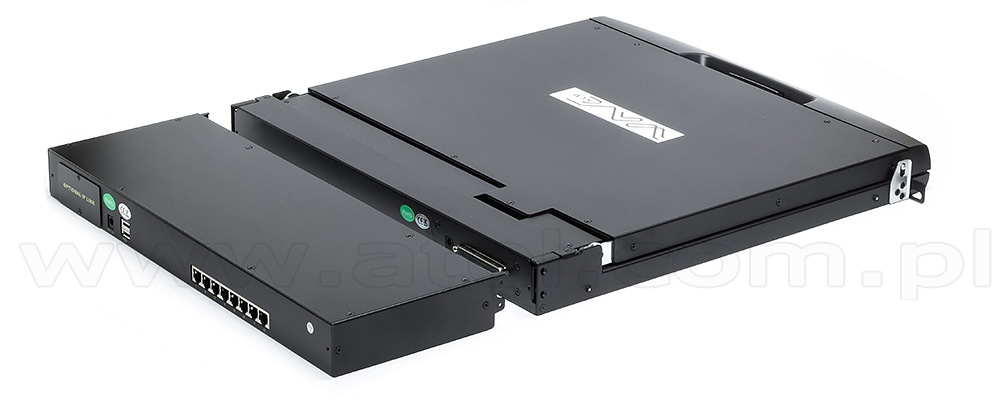

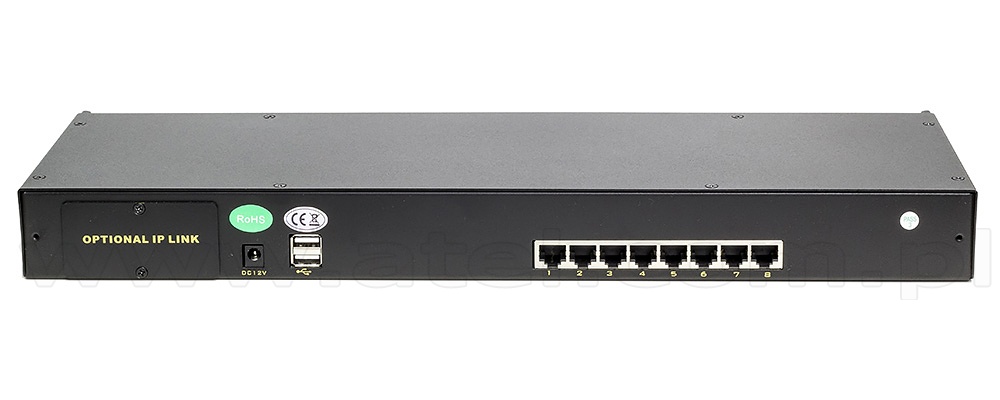

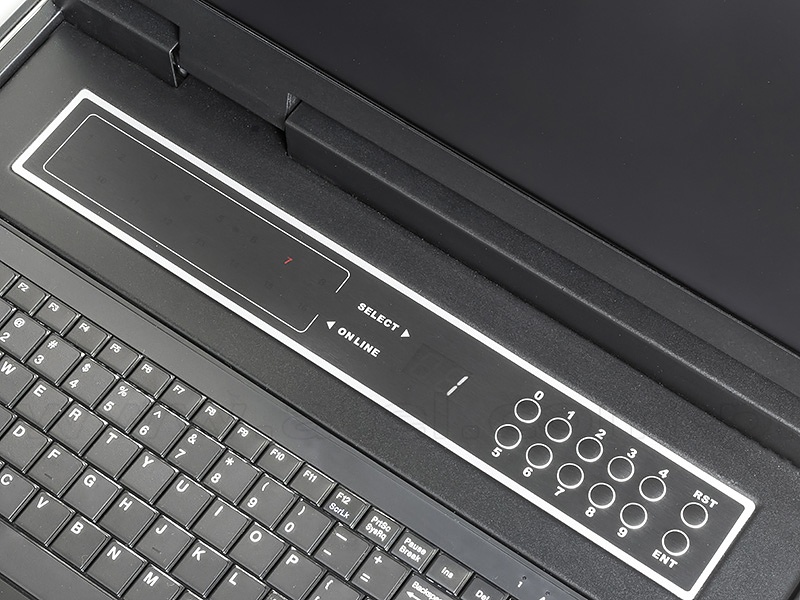

KVM LCD modular console, Wave KVM, 17", cat.5, 8-port KVM, 1U, single rail
The KVM console with RJ-45 sockets allows to connect computers using standard cat.5e patchcords and adapters installed on the server side. The possibility of using universal connectors of various lengths in addition to the advantages of a typical KVM console (high resolution LCD, keyboard and touchpad) distinguishes the console from other solutions.
The modular design allows for easy expansion of the device with a removable KVM module with more ports (16 ports) and an additional module for IP communication.
The modular design allows for easy expansion of the device with a removable KVM module with more ports (16 ports) and an additional module for IP communication.
| Description | 8 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 17" XGA, 4÷3 |
| Max. resolution | 1920x1440 |
| Optimal resolution | 1280x1024 |
| Contrast | 1000 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | LED |
| Supported colors | 16.7M |
| Mean Time Between Failures | 100 000 hours |
| PC or KVM ports | 8 PS2 or USB |
| Keyboard |
105 keys, touchpad |
| Transmission distance | up to 60m |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 636x446x42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 18.0 kg |
| Warranty | 2 years |
| Manufacturer | Wave KVM |

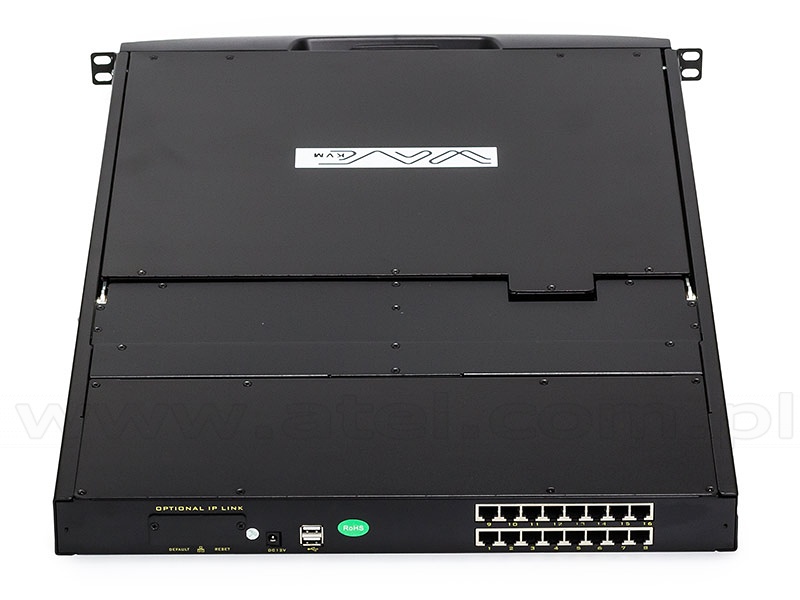

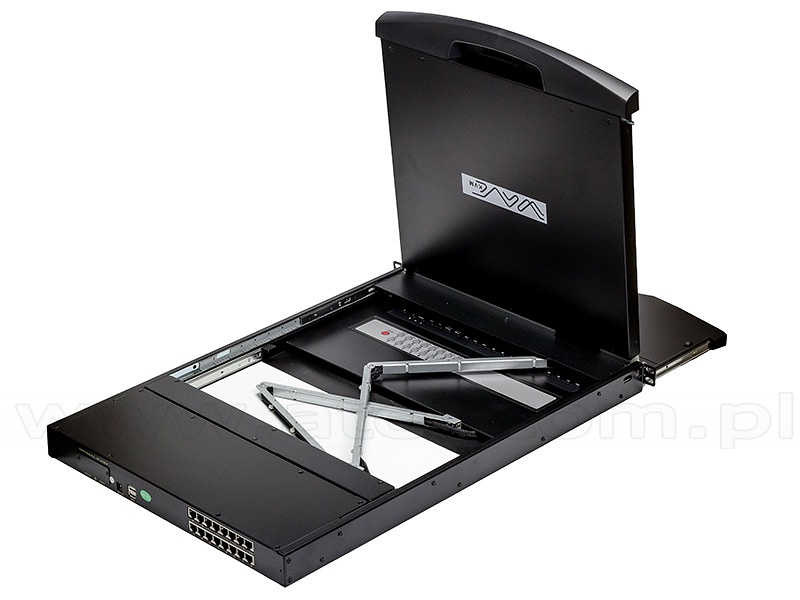

#07472

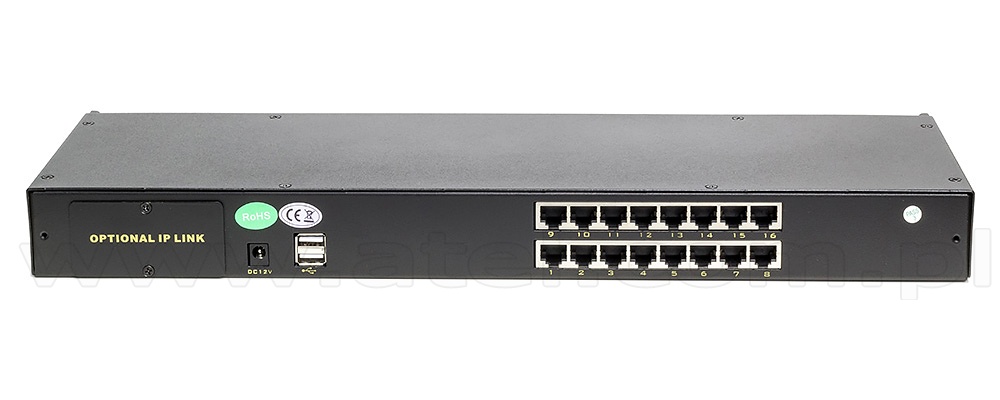

KVM LCD modular console, Wave KVM, 17", cat.5, 16-port KVM, 1U, single rail
The KVM console with RJ-45 sockets allows to connect computers using standard cat.5e patchcords and adapters installed on the server side. The possibility of using universal connectors of various lengths in addition to the advantages of a typical KVM console (high resolution LCD, keyboard and touchpad) distinguishes the console from other solutions.
The modular design allows for easy expansion of the device with an additional module for IP communication.
The modular design allows for easy expansion of the device with an additional module for IP communication.
| Description | 16 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 17" XGA, 4÷3 |
| Max. resolution | 1920x1440 |
| Optimal resolution | 1280x1024 |
| Contrast | 1000 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | LED |
| Supported colors | 16.7M |
| Mean Time Between Failures | 100 000 hours |
| PC or KVM ports | 16 RJ45 |
| Keyboard |
105 keys, touchpad |
| Transmission distance | up to 60m |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 636x446x42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 18.0 kg |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
#07473

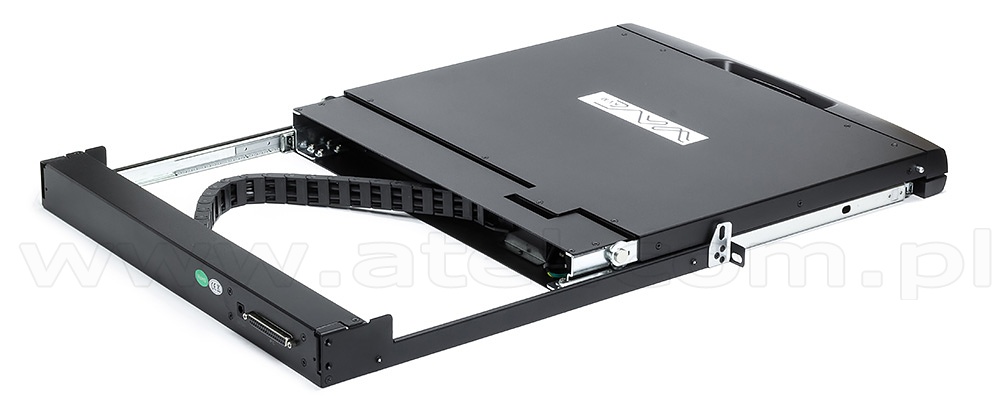

KVM LCD modular console, Wave KVM, 19", cat.5, 8-port KVM, 1U, single rail
The KVM console with RJ-45 sockets allows to connect computers using standard cat.5e patchcords and adapters installed on the server side. The possibility of using universal connectors of various lengths in addition to the advantages of a typical KVM console (high resolution LCD, keyboard and touchpad) distinguishes the console from other solutions.
The modular design allows for easy expansion of the device with a removable KVM module with more ports (16 ports) and an additional module for IP communication.
The modular design allows for easy expansion of the device with a removable KVM module with more ports (16 ports) and an additional module for IP communication.
| Description | 8 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 19" XGA, 4÷3 |
| Max. resolution | 1920x1440 |
| Optimal resolution | 1280x1024 |
| Contrast | 1000 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | LED |
| Supported colors | 16.7M |
| Mean Time Between Failures | 100 000 hours |
| PC or KVM ports | 8 PS2 or USB |
| Keyboard |
105 keys, touchpad |
| Transmission distance | up to 60m |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 636x446x42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 18.0 kg |
| Warranty | 2 years |
| Manufacturer | Wave KVM |

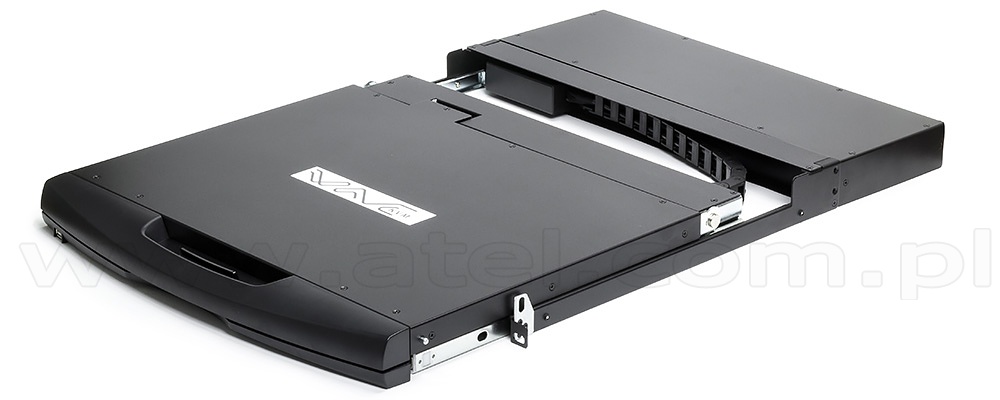

#07474

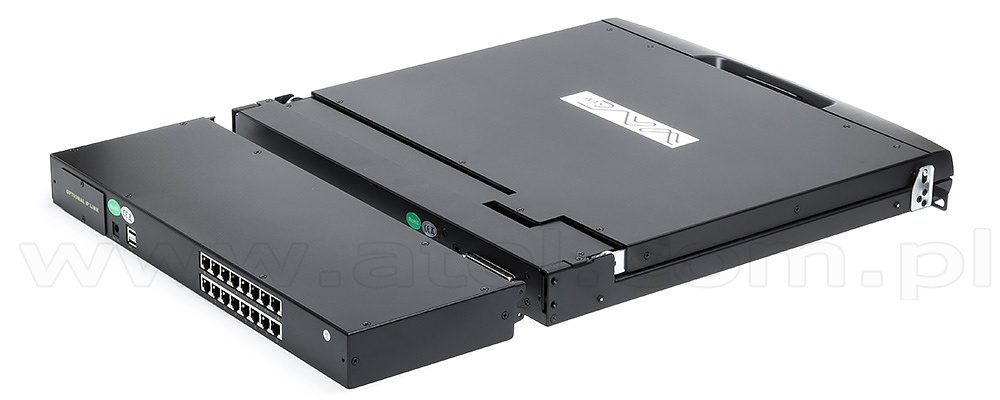

KVM LCD modular console, Wave KVM, 19", cat.5, 16-port KVM, 1U, single rail
The KVM console with RJ-45 sockets allows to connect computers using standard cat.5e patchcords and adapters installed on the server side. The possibility of using universal connectors of various lengths in addition to the advantages of a typical KVM console (high resolution LCD, keyboard and touchpad) distinguishes the console from other solutions.
The modular design allows for easy expansion of the device with an additional module for IP communication.
The modular design allows for easy expansion of the device with an additional module for IP communication.
| Description | 16 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 19" XGA, 4÷3 |
| Max. resolution | 1920x1440 |
| Optimal resolution | 1280x1024 |
| Contrast | 1000 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | LED |
| Supported colors | 16.7M |
| Mean Time Between Failures | 100 000 hours |
| PC or KVM ports | 16 PS2 or USB |
| Keyboard |
105 keys, touchpad |
| Transmission distance | up to 60m |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 636x446x42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 18.0 kg |
| Warranty | 2 years |
| Manufacturer | Wave KVM |

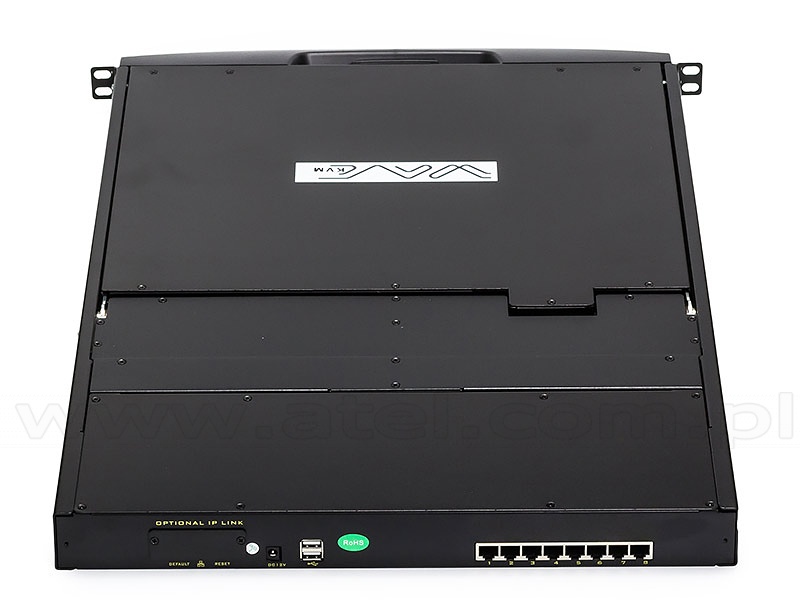

#07387
KVM LCD console, Wave KVM, 17", cat.5, 8-port KVM, 1U, dual rail
The KVM console with RJ-45 sockets allows to connect computers using standard cat.5e patchcords and adapters installed on the server side. The possibility of using universal connectors of various lengths in addition to the advantages of a typical KVM console (high resolution LCD, keyboard and touchpad) distinguishes the console from other solutions. The double rails enable pulling out only the monitor and viewing it with closed cabinet doors.
| Description | 8 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 17" XGA, 4÷3 |
| Max. resolution | 1920x1440 |
| Optimal resolution | 1280x1024 |
| Contrast | 700 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | 4 CCFL lamps |
| Supported colors | 16.7M |
| Mean Time Between Failures | 50 000 hours |
| PC or KVM ports | 8 RJ45 |
| Keyboard |
105 keys, touchpad |
| Transmission distance | up to 60m |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 640*443*42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 23.5 kg |
| Warranty | 2 years |
| Manufacturer | Wave KVM |

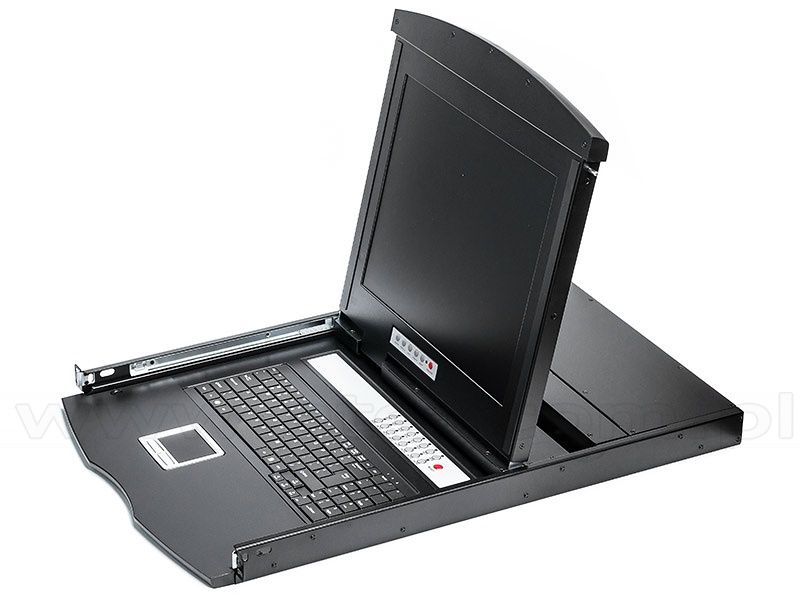

#07388

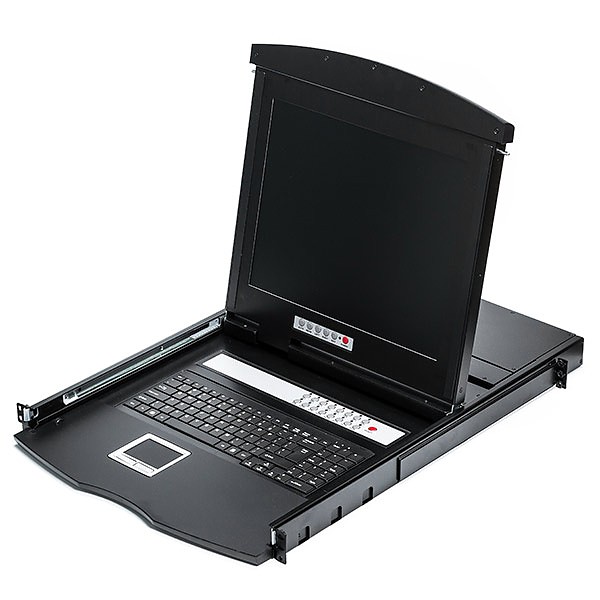

KVM LCD console, Wave KVM, 17", cat.5, 16-port KVM, 1U, dual rail
The KVM console with RJ-45 sockets allows to connect computers using standard cat.5e patchcords and adapters installed on the server side. The possibility of using universal connectors of various lengths in addition to the advantages of a typical KVM console (high resolution LCD, keyboard and touchpad) distinguishes the console from other solutions. The double rails enable pulling out only the monitor and viewing it with closed cabinet doors.
| Description | 16 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 17" XGA, 4÷3 |
| Max. resolution | 1920x1440 |
| Optimal resolution | 1280x1024 |
| Contrast | 700 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | 4 CCFL lamps |
| Supported colors | 16.7M |
| Mean Time Between Failures | 50 000 hours |
| PC or KVM ports | 16 RJ45 |
| Keyboard |
105 keys, touchpad |
| Transmission distance | up to 60m |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 640*443*42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 23.88 kg |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
#07389

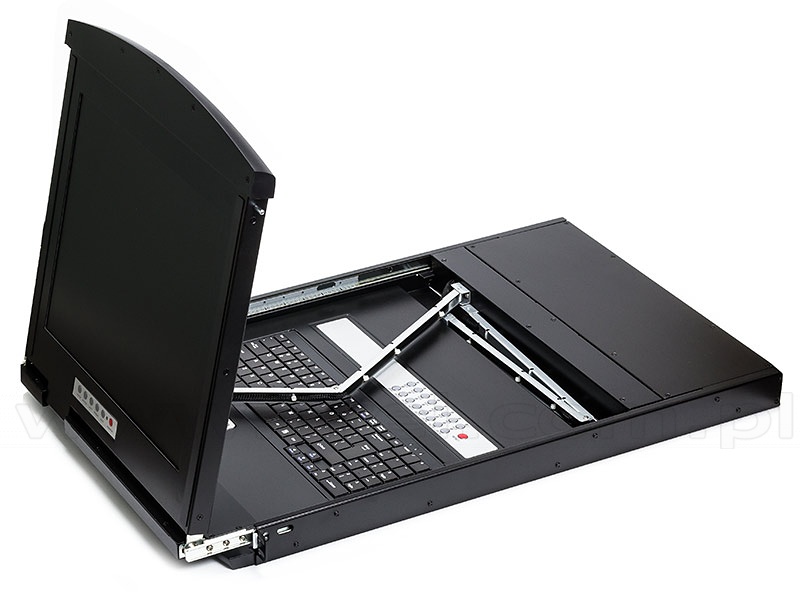

KVM LCD console, Wave KVM, 19", cat.5, 8-port KVM, 1U, dual rail
The KVM console with RJ-45 sockets allows to connect computers using standard cat.5e patchcords and adapters installed on the server side. The possibility of using universal connectors of various lengths in addition to the advantages of a typical KVM console (high resolution LCD, keyboard and touchpad) distinguishes the console from other solutions. The double rails enable pulling out only the monitor and viewing it with closed cabinet doors.
| Description | 8 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 19" XGA, 4÷3 |
| Max. resolution | 1920x1440 |
| Optimal resolution | 1280x1024 |
| Contrast | 700 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | 4 CCFL lamps |
| Supported colors | 16.7M |
| Mean Time Between Failures | 50 000 hours |
| PC or KVM ports | 8 RJ45 |
| Keyboard |
105 keys, touchpad |
| Transmission distance | up to 60m |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 630*450*42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 19.34 kg |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
#07390

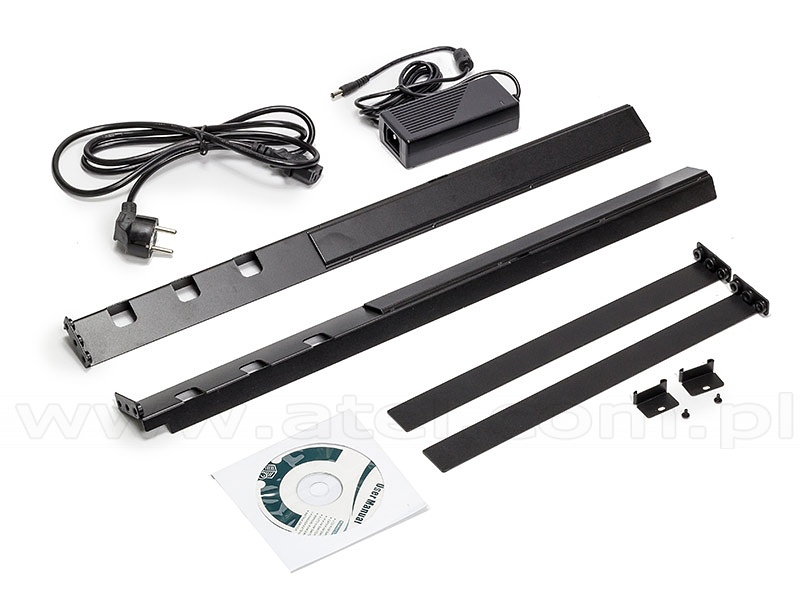

KVM LCD console, Wave KVM, 19", cat.5, 16-port KVM, 1U, dual rail
The KVM console with RJ-45 sockets allows to connect computers using standard cat.5e patchcords and adapters installed on the server side. The possibility of using universal connectors of various lengths in addition to the advantages of a typical KVM console (high resolution LCD, keyboard and touchpad) distinguishes the console from other solutions. The double rails enable pulling out only the monitor and viewing it with closed cabinet doors.
| Description | 16 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 17" XGA, 4÷3 |
| Max. resolution | 1920x1440 |
| Optimal resolution | 1280x1024 |
| Contrast | 700 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | 4 CCFL lamps |
| Supported colors | 16.7M |
| Mean Time Between Failures | 50 000 hours |
| PC or KVM ports | 16 RJ45 |
| Keyboard |
105 keys, touchpad |
| Transmission distance | up to 60m |
| Free slots | IP module or cat.5 |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 630*450*42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 20.41 kg |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
#07340
KVM switch, Wave KVM , 8 to 1, PS/2 or USB console, PS/2 and USB PC ports, 19"
KVM switch allows to manage up to 8 servers from a single keyboard, monitor and mouse. Switching between the units is done using the front panel buttons or keyboard shortcuts.
| Description | 8 PC to 1 user |
|---|---|
| PC ports | 8x HDB15(F) |
| PC port type (keyboard/mouse) | PS/2 or USB |
| Console ports |
1x VGA HDB15(F), 2x USB A(F), 2x PS/2(F) |
| PC selection | keyboard shortcut / OSD / button |
| Status LEDs | 16 (2 for each PC port) |
| OSD | yes |
| Max. resolution (local console) | 1600 x 900 |
| Housing |
19", metal |
| Power |
5V DC 1A, ~230V AC 50Hz |
| Warranty | 2 years |
| Manufacturer | Wave KVM |

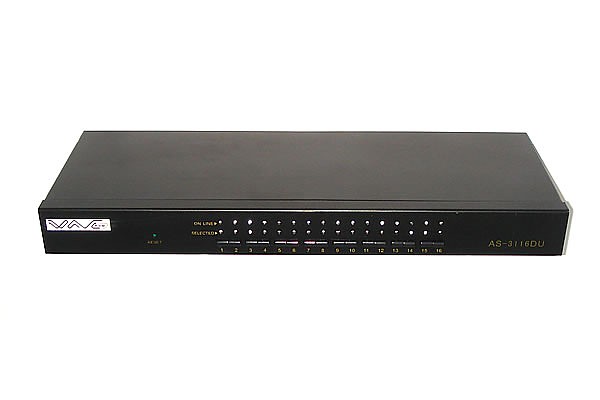

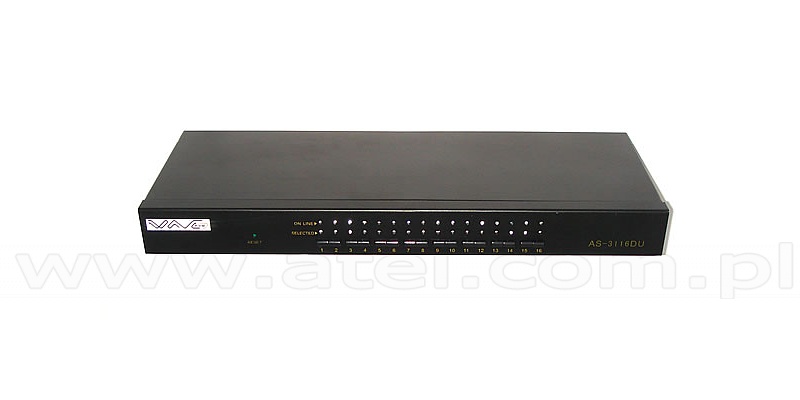

#07341

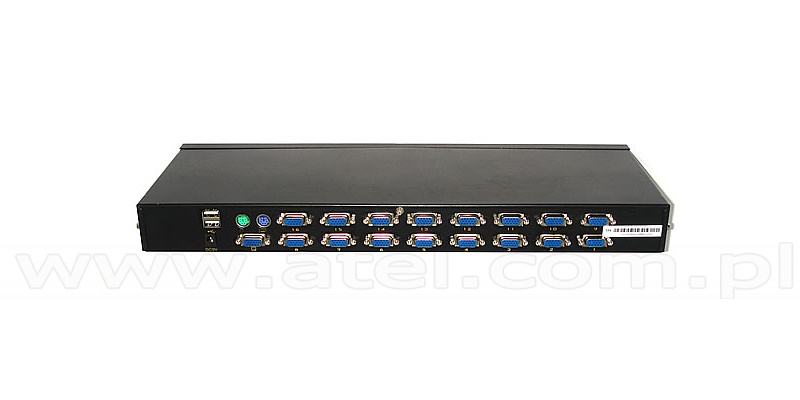

KVM switch, Wave KVM , 16 to 1, PS/2 or USB console, PS/2 and USB PC ports, 19"
KVM switch allows to manage up to 16 servers from a single keyboard, monitor and mouse. Switching between the units is done using the front panel buttons or a keyboard shortcut.
| Description | 16 PC to 1 users |
|---|---|
| PC ports | 16x HDB15(F) |
| PC port type (keyboard/mouse) | PS/2 or USB |
| Console ports |
1x VGA HDB15(F), 2x USB A(F), 2x PS/2(F) |
| PC selection | keyboard shortcut / OSD / button |
| Status LEDs | 32 (2 for each PC port) |
| OSD | yes |
| Max. resolution (local console) | 1600 x 900 |
| Housing |
19", metal |
| Power |
5V DC 1A, ~230V AC 50Hz |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
#07324
KVM switch, Wave KVM , 2 to 1, PS/2, audio
KVM switch allows to manage up to 2 servers from a single keyboard, monitor and mouse. Switching between the units is done using the front panel buttons.
| Description | 2 PC to 1 user |
|---|---|
| PC selection |
keyboard shortcut, buttons on front panel |
| Console connectors |
2x PS/2(F), 1x HDB-15(F), 1x 3,5mm jack (audio in), 1x 3,5mm jack (audio out) |
| PC connectors |
2x HDB-15(M), 2x 3.5mm jack (audio) |
| Max. resolution | 1280 × 1024 |
| Power | from ports |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
Cables included

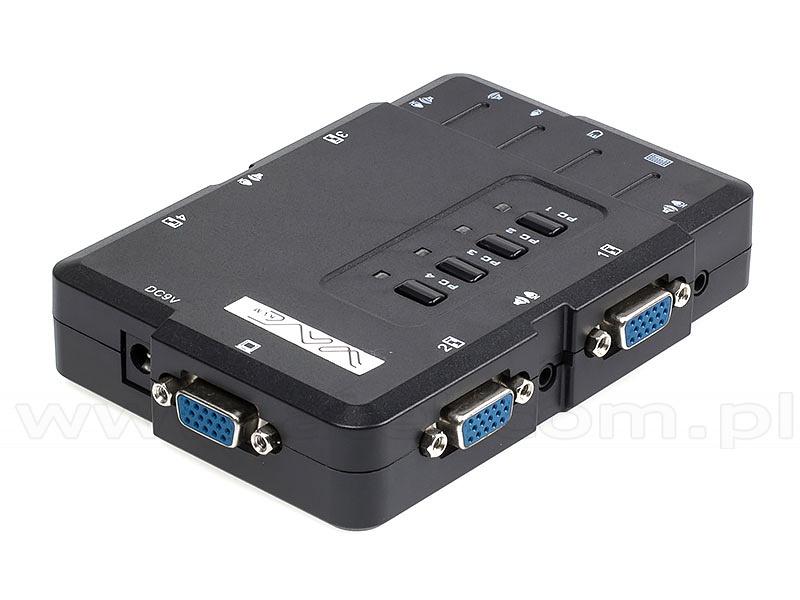

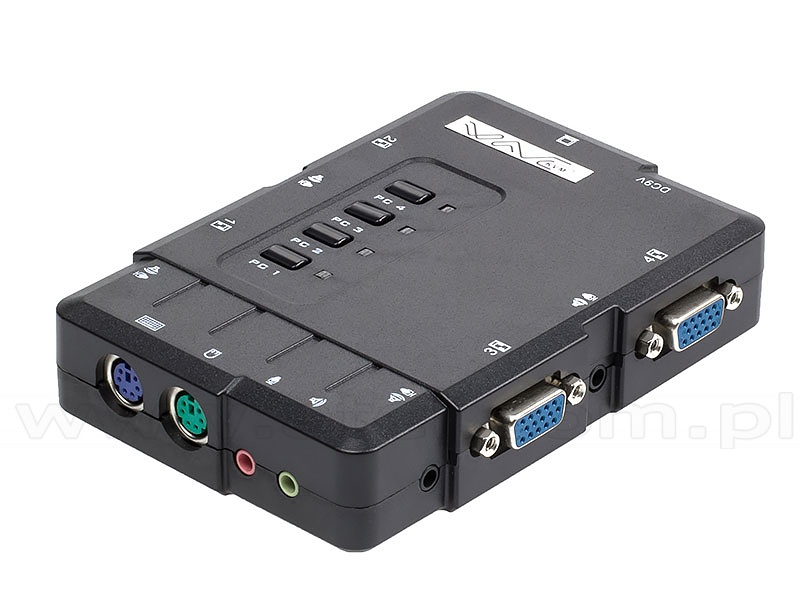

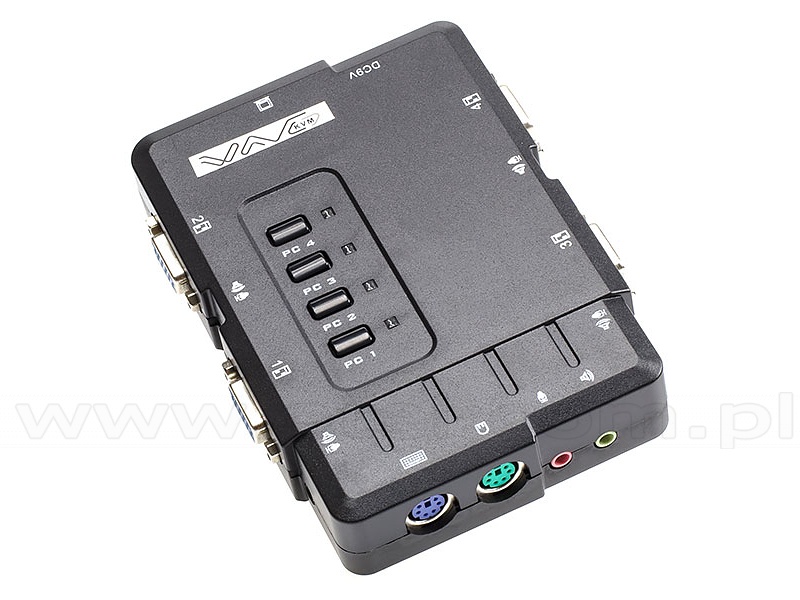

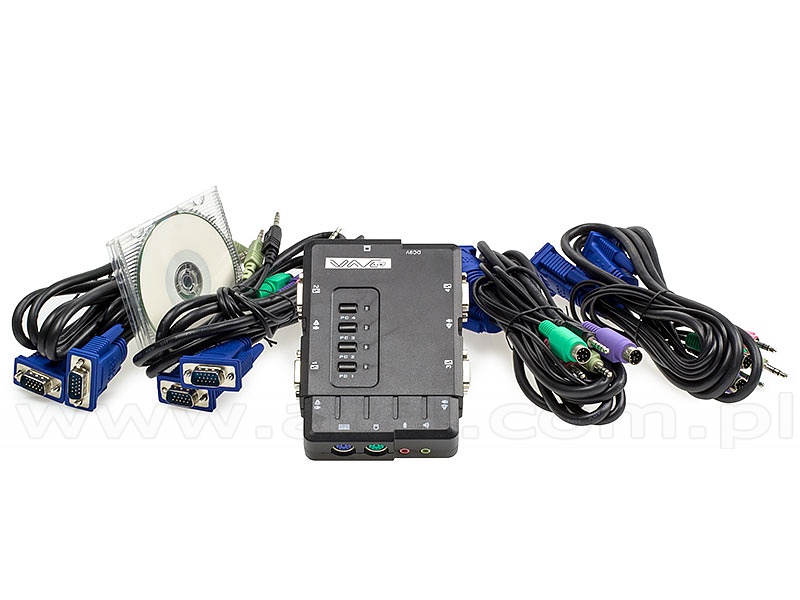

#07326

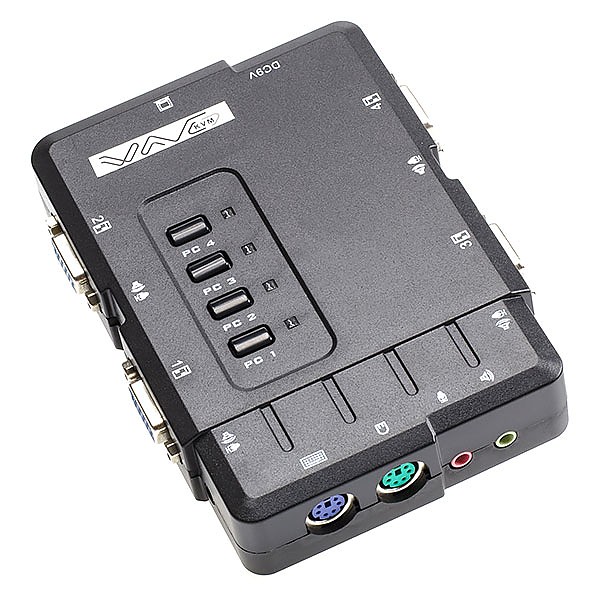

KVM switch, Wave KVM , 4 to 1, PS/2, audio
KVM switch allows to manage up to 4 servers from a single keyboard, monitor and mouse. Switching between the units is done using the front panel buttons.
| Description | 4 PC to 1 user |
|---|---|
| PC selection |
keyboard shortcut, buttons on front panel |
| Console connectors |
2x PS/2(F), 1x HDB-15(F), 1x 3,5mm jack (audio in), 1x 3,5mm jack (audio out) |
| PC connectors |
4x HDB-15(M), 4x 3.5mm jack (audio) |
| Max. resolution | 1280 × 1024 |
| Power | from USB ports |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
#07131

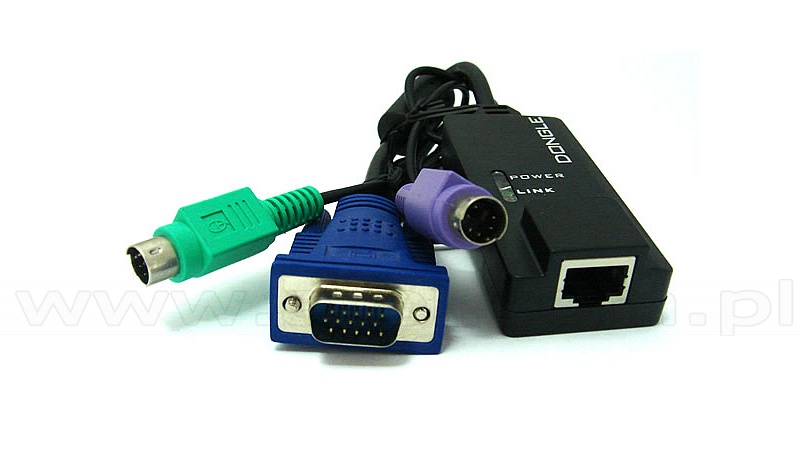

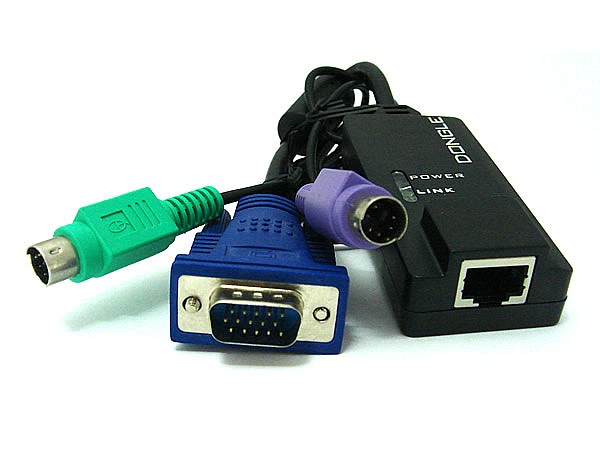

KVM dongle, Wave KVM , RJ-45 to PS/2+VGA , Cat.5 (WK-C5PS2)
PS/2 Cat5 adapter dedicated for KVM consoles and switches equipped with RJ45 ports. Servers are connected via standard patch cords UTP CAT5 (or better).
| To be used with | Cat.5 Wave KVM switches and LCD consoles |
|---|---|
| PC port | 1x VGA HDB15(F) + 2x PS/2 |
| PC port type (keyboard/mouse) | PS/2 |
| KVM port | 1x 8p8c(F) RJ-45 |
| Transmission distance | up to 60m |
| Power |
from PS/2 ports, no additional power source required |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
Compatible with:
#07471 KVM LCD modular console, Wave KVM, 17", cat.5, 8-port KVM, 1U, single rail
#07472 KVM LCD modular console, Wave KVM, 17", cat.5, 16-port KVM, 1U, single rail
#07473 KVM LCD modular console, Wave KVM, 19", cat.5, 8-port KVM, 1U, single rail
#07474 KVM LCD modular console, Wave KVM, 19", cat.5, 16-port KVM, 1U, single rail
#07387 KVM LCD console, Wave KVM, 17", cat.5, 8-port KVM, 1U, dual rail
#07388 KVM LCD console, Wave KVM, 17", cat.5, 16-port KVM, 1U, dual rail
#07389 KVM LCD console, Wave KVM, 19", cat.5, 8-port KVM, 1U, dual rail
#07390 KVM LCD console, Wave KVM, 19", cat.5, 16-port KVM, 1U, dual rail
#07471 KVM LCD modular console, Wave KVM, 17", cat.5, 8-port KVM, 1U, single rail
#07472 KVM LCD modular console, Wave KVM, 17", cat.5, 16-port KVM, 1U, single rail
#07473 KVM LCD modular console, Wave KVM, 19", cat.5, 8-port KVM, 1U, single rail
#07474 KVM LCD modular console, Wave KVM, 19", cat.5, 16-port KVM, 1U, single rail
#07387 KVM LCD console, Wave KVM, 17", cat.5, 8-port KVM, 1U, dual rail
#07388 KVM LCD console, Wave KVM, 17", cat.5, 16-port KVM, 1U, dual rail
#07389 KVM LCD console, Wave KVM, 19", cat.5, 8-port KVM, 1U, dual rail
#07390 KVM LCD console, Wave KVM, 19", cat.5, 16-port KVM, 1U, dual rail

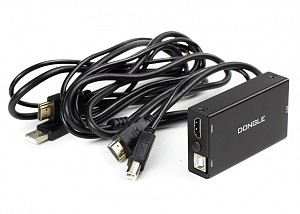

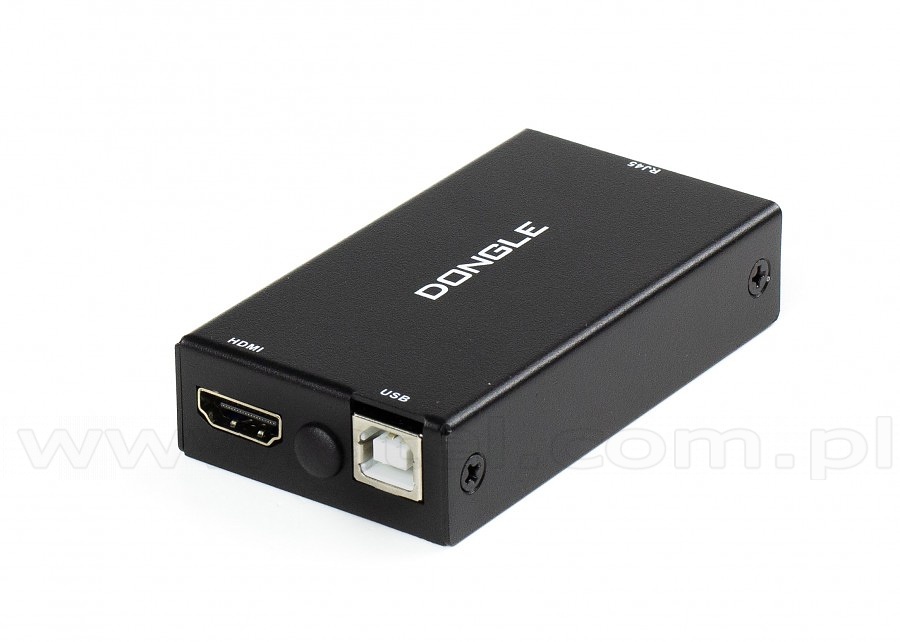

#06087

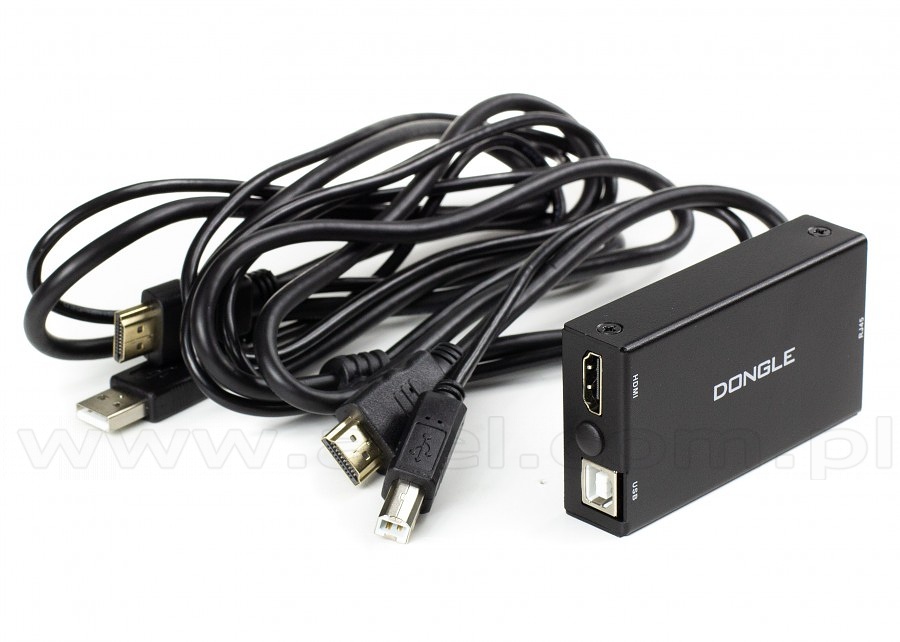

KVM dongle, Wave KVM , RJ-45 to USB+HDMI , kat.5 (WK-C5HDMI)
HDMI Cat5 adapter dedicated for KVM consoles and switches equipped with RJ45 ports. Servers are connected via standard patch cords UTP CAT5 (or better).
| To be used with | Cat.5 Wave KVM switches and LCD consoles |
|---|---|
| PC port | 1x HDMI + 1x USB mini DIN 6(F) |
| PC port type (keyboard/mouse) | USB |
| KVM port | 1x 8p8c(F) RJ-45 |
| Transmission distance | up to 60m |
| Power |
from USB ports, no additional power source required |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
Compatible with:
#07471 KVM LCD modular console, Wave KVM, 17", cat.5, 8-port KVM, 1U, single rail
#07472 KVM LCD modular console, Wave KVM, 17", cat.5, 16-port KVM, 1U, single rail
#07473 KVM LCD modular console, Wave KVM, 19", cat.5, 8-port KVM, 1U, single rail
#07474 KVM LCD modular console, Wave KVM, 19", cat.5, 16-port KVM, 1U, single rail
#07387 KVM LCD console, Wave KVM, 17", cat.5, 8-port KVM, 1U, dual rail
#07388 KVM LCD console, Wave KVM, 17", cat.5, 16-port KVM, 1U, dual rail
#07389 KVM LCD console, Wave KVM, 19", cat.5, 8-port KVM, 1U, dual rail
#07390 KVM LCD console, Wave KVM, 19", cat.5, 16-port KVM, 1U, dual rail
#07471 KVM LCD modular console, Wave KVM, 17", cat.5, 8-port KVM, 1U, single rail
#07472 KVM LCD modular console, Wave KVM, 17", cat.5, 16-port KVM, 1U, single rail
#07473 KVM LCD modular console, Wave KVM, 19", cat.5, 8-port KVM, 1U, single rail
#07474 KVM LCD modular console, Wave KVM, 19", cat.5, 16-port KVM, 1U, single rail
#07387 KVM LCD console, Wave KVM, 17", cat.5, 8-port KVM, 1U, dual rail
#07388 KVM LCD console, Wave KVM, 17", cat.5, 16-port KVM, 1U, dual rail
#07389 KVM LCD console, Wave KVM, 19", cat.5, 8-port KVM, 1U, dual rail
#07390 KVM LCD console, Wave KVM, 19", cat.5, 16-port KVM, 1U, dual rail
#07130

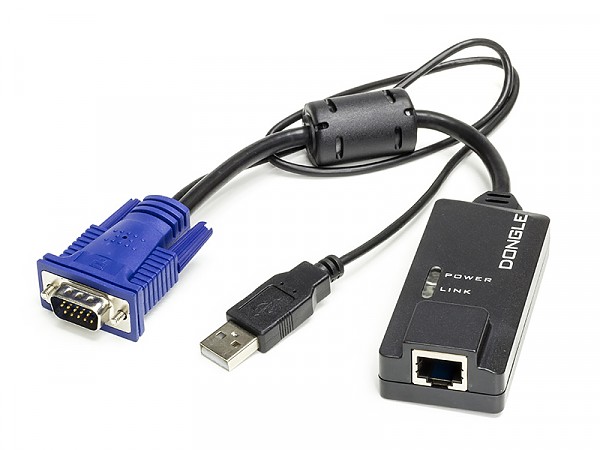

KVM dongle, Wave KVM , RJ-45 to USB+VGA , Cat.5 (WK-C5USB)
USB Cat5 adapter dedicated for KVM consoles and switches equipped with RJ45 ports. Servers are connected via standard patch cords UTP CAT5 (or better).
| To be used with | Cat.5 Wave KVM switches and LCD consoles |
|---|---|
| PC port | 1x VGA HDB15(F) + 1x USB mini DIN 6(F) |
| PC port type (keyboard/mouse) | USB |
| KVM port | 1x 8p8c(F) RJ-45 |
| Transmission distance | up to 60m |
| Power |
from USB ports, no additional power source required |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
Compatible with:
#07471 KVM LCD modular console, Wave KVM, 17", cat.5, 8-port KVM, 1U, single rail
#07472 KVM LCD modular console, Wave KVM, 17", cat.5, 16-port KVM, 1U, single rail
#07473 KVM LCD modular console, Wave KVM, 19", cat.5, 8-port KVM, 1U, single rail
#07474 KVM LCD modular console, Wave KVM, 19", cat.5, 16-port KVM, 1U, single rail
#07387 KVM LCD console, Wave KVM, 17", cat.5, 8-port KVM, 1U, dual rail
#07388 KVM LCD console, Wave KVM, 17", cat.5, 16-port KVM, 1U, dual rail
#07389 KVM LCD console, Wave KVM, 19", cat.5, 8-port KVM, 1U, dual rail
#07390 KVM LCD console, Wave KVM, 19", cat.5, 16-port KVM, 1U, dual rail
#07471 KVM LCD modular console, Wave KVM, 17", cat.5, 8-port KVM, 1U, single rail
#07472 KVM LCD modular console, Wave KVM, 17", cat.5, 16-port KVM, 1U, single rail
#07473 KVM LCD modular console, Wave KVM, 19", cat.5, 8-port KVM, 1U, single rail
#07474 KVM LCD modular console, Wave KVM, 19", cat.5, 16-port KVM, 1U, single rail
#07387 KVM LCD console, Wave KVM, 17", cat.5, 8-port KVM, 1U, dual rail
#07388 KVM LCD console, Wave KVM, 17", cat.5, 16-port KVM, 1U, dual rail
#07389 KVM LCD console, Wave KVM, 19", cat.5, 8-port KVM, 1U, dual rail
#07390 KVM LCD console, Wave KVM, 19", cat.5, 16-port KVM, 1U, dual rail
#07128
KVM cable, Wave KVM , M-P15F, combo, 1.8 m
Connection cable compatible with WaveKVM devices.
| PC connectors |
1x HD-15M, 2x MD-6M, 1x USB |
|---|---|
| Console connectors | 1x HD-15F |
| Manufacturer | Wave KVM |
Fits all Wave KVM LCD consoles and KVM switches. Please contact our Sales Department staff to get assistance with choosing right cables for your application.
#07129
KVM cable, Wave KVM , M-P15F, combo, 3.0 m
Connection cable compatible with WaveKVM devices.
| PC connectors |
1x HD-15M, 2x MD-6M, 1x USB |
|---|---|
| Console connectors | 1x HD-15F |
| Manufacturer | Wave KVM |
Fits all Wave KVM LCD consoles and KVM switches. Please contact our Sales Department staff to get assistance with choosing right cables for your application.
#07124

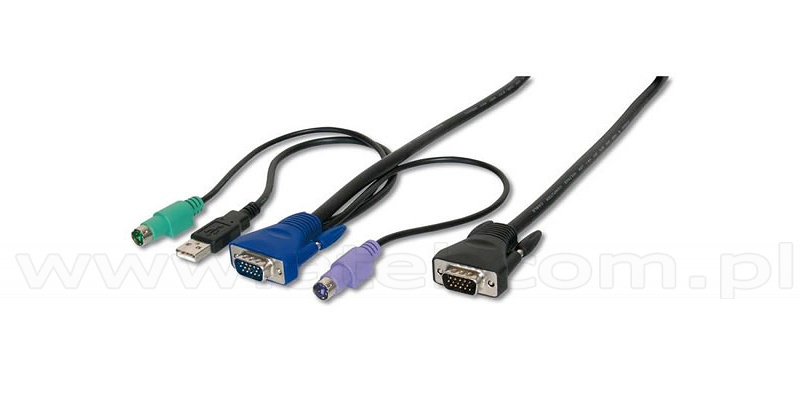

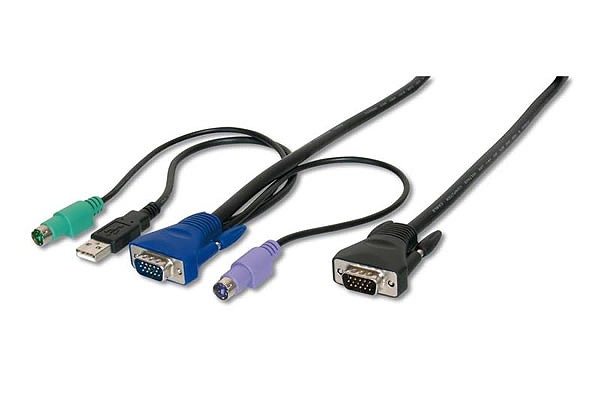

KVM cable, Wave KVM , M-P15F, combo, 5.0 m
Connection cable compatible with WaveKVM devices.
| PC connectors |
1x HD-15M, 2x MD-6M, 1x USB |
|---|---|
| Console connectors | 1x HD-15F |
| Manufacturer | Wave KVM |
Fits all Wave KVM LCD consoles and KVM switches. Please contact our Sales Department staff to get assistance with choosing right cables for your application.
#06086

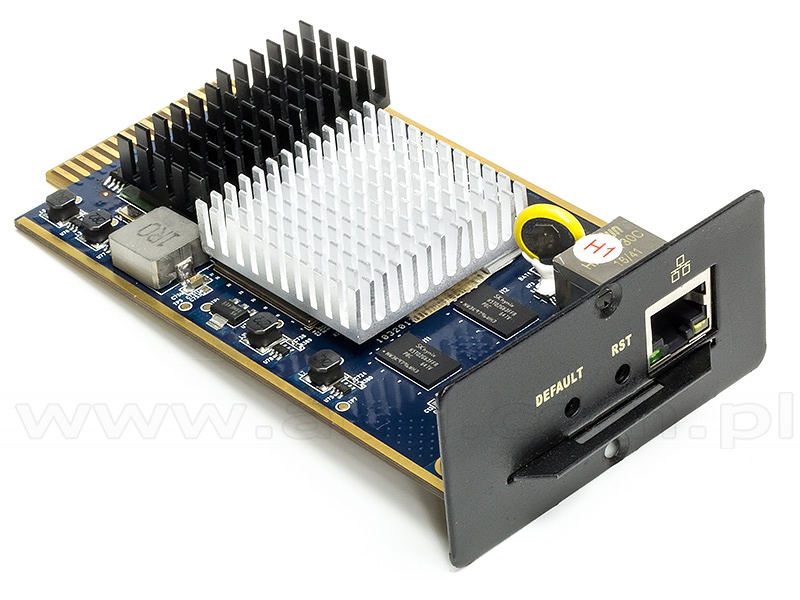

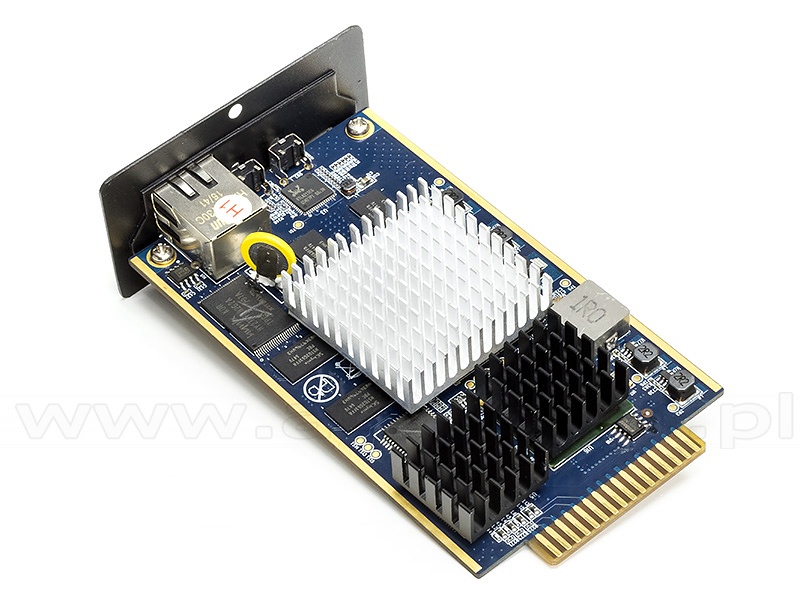

IP module for KVM (Wave KVM KI-4101)
The module is designed to connect to a switch or a KVM console via an IP network. Thanks to the 1 Gbps interface, it supports resolutions up to 1080p.
#06085
KVM module cat.5, Wave KVM , 16 to 1, PS/2 or USB console, rack 19"
Removable KVM cat.5 module for 19" rack consoles with 17" or 19" screen diagonals. It allows to expand the console by up to 16 ports and an additional IP communication module.
| Description | 16 PC to 1 user |
|---|---|
| Console ports |
16x RJ45(F), 2x USB A(F) |
| PC port type (keyboard/mouse) | PS/2 or USB |
| Transmission distance | up to 60m |
| Console Connector | DB 37PIN |
| Max. resolution | 1920 x 1200 @ 60 Hz Local & Remote |
| Housing |
19", metal |
| Power |
12V DC 4A, ~230V AC 50Hz |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
#06084
KVM module cat.5, Wave KVM , 8 to 1, PS/2 or USB console, rack 19"
Removable KVM cat.5 module for 19" rack consoles with 17" or 19" screen diagonals. It allows to expand the console by up to 8 ports and an additional IP communication module.
| Description | 8 PC to 1 user |
|---|---|
| Console ports |
8x RJ45(F), 2x USB A(F) |
| PC port type (keyboard/mouse) | PS/2 or USB |
| Transmission distance | up to 60m |
| Console Connector | DB 37PIN |
| Max. resolution | 1920 x 1200 @ 60 Hz Local & Remote |
| Housing |
19", metal |
| Power |
12V DC 4A, ~230V AC 50Hz |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
#06082

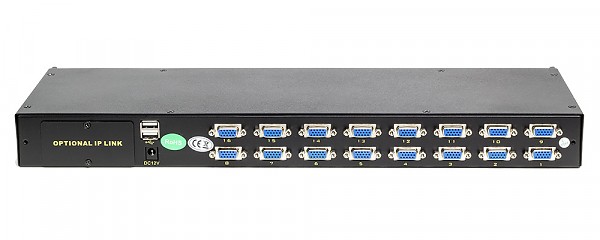

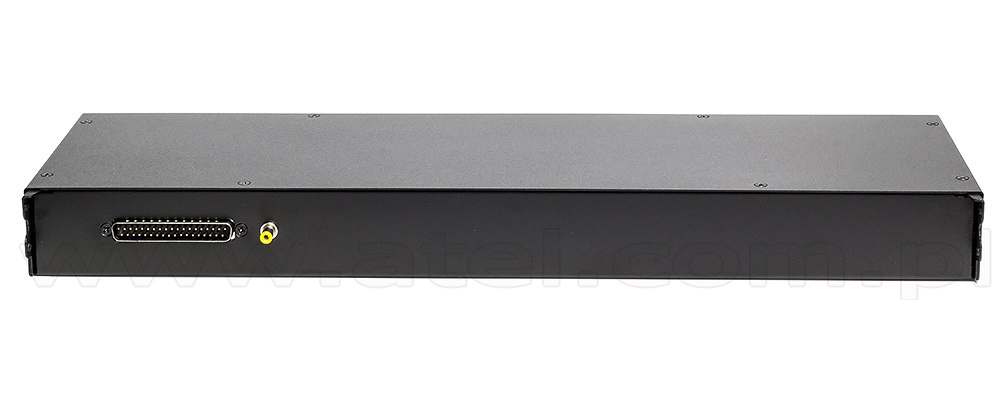

KVM module, Wave KVM, 16 to 1, PS/2 or USB console, rack 19"
Removable KVM module for 19" rack consoles with 17"" or 19" screen diagonals. It allows to expand the console by up to 16 ports and an additional IP communication module.
| Description | 16 PC to 1 user |
|---|---|
| Console ports |
16x DB15(F), 2x USB A(F) |
| PC port type (keyboard/mouse) | PS/2 or USB |
| Console Connector | DB 37PIN |
| Max. resolution | 1920 x 1200 @ 60 Hz |
| Housing |
19", metal |
| Power |
12V DC 4A, ~230V AC 50Hz |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
#06081
KVM module, Wave KVM, 8 to 1, PS/2 or USB console, rack 19"
Removable KVM module for 19" rack consoles with 17" or 19" screen diagonals. It allows to expand the console by up to 8 ports and an additional IP communication module.
| Description | 8 PC to 1 user |
|---|---|
| Console ports |
8x DB15(F), 2x USB A(F) |
| PC port type (keyboard/mouse) | PS/2 or USB |
| Console Connector | DB37 |
| Max. resolution | 1920 x 1200 @ 60 Hz |
| Housing |
19", metal |
| Power |
12V DC 4A, ~230V AC 50Hz |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
#05825

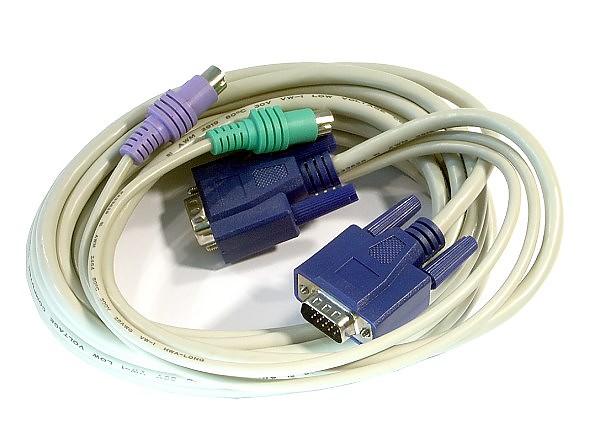

KVM cable, Oxca , M-P15F, PS/2, 5.0 m (KC-1505)
Connection cable compatible with Oxca devices.
| PC connectors |
1x HD-15M, 2x MD-6M |
|---|---|
| Console connectors | 1x HD-15F |
| Manufacturer | Broadrack / Oxca |
Fits all KSR/KDR series of LCD consoles and modular KVM switches from Broadrack, as well as KVM switches from Oxca. Please contact our Sales Department staff to get assistance with choosing right cables for your application.
