#04693
GPON / EPONTP-LINKXZ000-G3

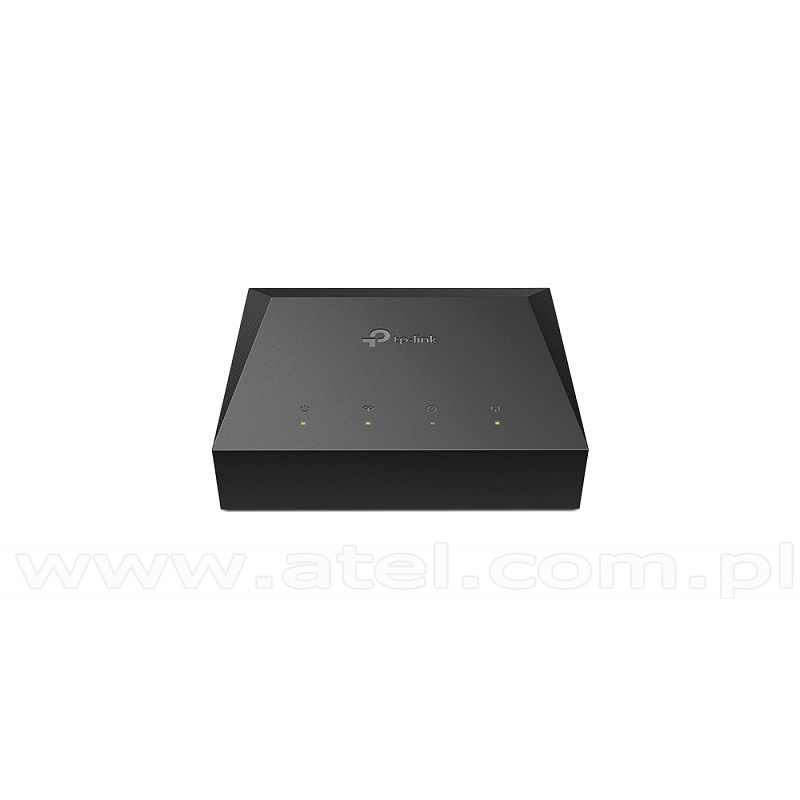

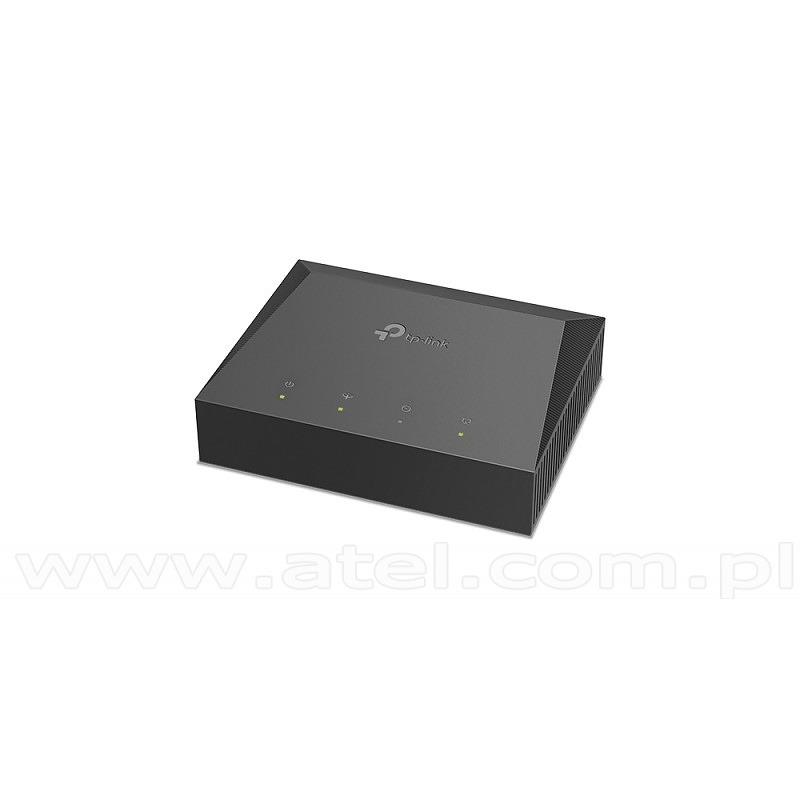

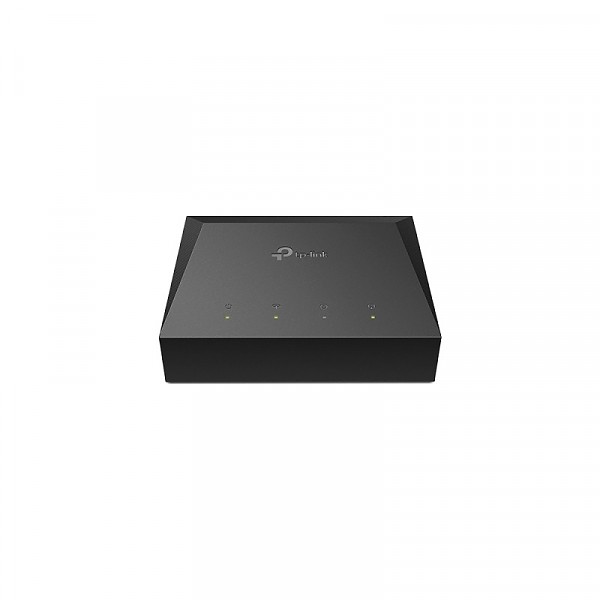

GPON Terminal, 1-Port Gigabit (TP-Link XZ000-G3)

  • Quality of Service-Quality of Service control for transaction prioritization and bandwidth management
  • Durability-Intelligent power-saving method
  • Easy Remote Management-TR-069 protocol enables an operator to remotely configure and manage end-user devices
  • Full Gigabit Port-Fiber access and gigabit port provide incredibly fast transfer speeds
HARDWARE FEATURES:
Standards and Protocols IEEE 802.3, 802.3u,
802.1Q,
802.1p
Interface 1x10/100/1000Mbps RJ45,
1 SC/APC Port
Button 1 RESET Button
External Power Supply 9VDC / 0.6A
Dimensions (W X D X H) 3.7 x 3.0 x 1.2 in. (95.0 x 75.0 x 29.3 mm)
Distance 0~ 20Km
Signal Rate Upstream 1.244Gbps,
Downstream 2.488Gbps
GPON Standards ITU-T G.984.1,
G.984.2,
G.984.3,
G.984.4
Optical Module Class B+
Receiver Super-TIA
Transmitter DFB Laser
Wavelength Upstream 1310nm,
Downstream 1490nm
SOFTWARE FEATURES:
Quality of Service Service Flow Classification based on VLAN,
Schedule rules Support SP/WRR,
Upstream Priority Label Support 802.1D User Priority,
Rate Limit and Traffic shaping,
Congestion Control Support Tail-Drop
VLAN 802.1Q tag VLAN,
VLAN transparent mode/VLAN translation mode/VLAN trunk mode,
Authentication based on SN and Password,
VLAN Auto Detect
Security AES Encryption,
Packet Filter based on VLAN
Management Managed by Web,
OMCI and Telnet,,
Specified the management IP,
Reset to Factory default by Reset button or Web UI,
Real-time statistics,
Optical Diagnostic
Advanced Features Upstream and Downstream FEC,
Dynamic Bandwidth Allocation(DBA) support NSR/SR,
Up to 16 T-CONTs and 256 GEM Ports,
Optical power detection,
Dying Gasp,
Terminal Silent mechanism,
802.3az EEE Energy Conservation
IGMP IGMP v1/v2/v3
OTHERS:
Certification CE,
FCC,
RoHS
Package Contents XZ000-G3,
RJ-45 Ethernet Cable,
Power Adapter,
Quick Installation Guide
System Requirements Windows 8/7/Vista/XP or Mac OS or Linux-based operating system.
Environment Operating Temperature 0°~40° (32°~104°),
Storage Temperature -40°~70° (-40°~158°),
Operating Humidity 10%~90% non-condensing,
Storage Humidity 5%~90% non-condensing
Warranty 2 years limited warranty. Advanced replacement service is available.
Manufacturer TP-Link

« previous product  |  next product »     » show on list«» GPON / EPON «
Net Price: 20.10 USD  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
