#03060

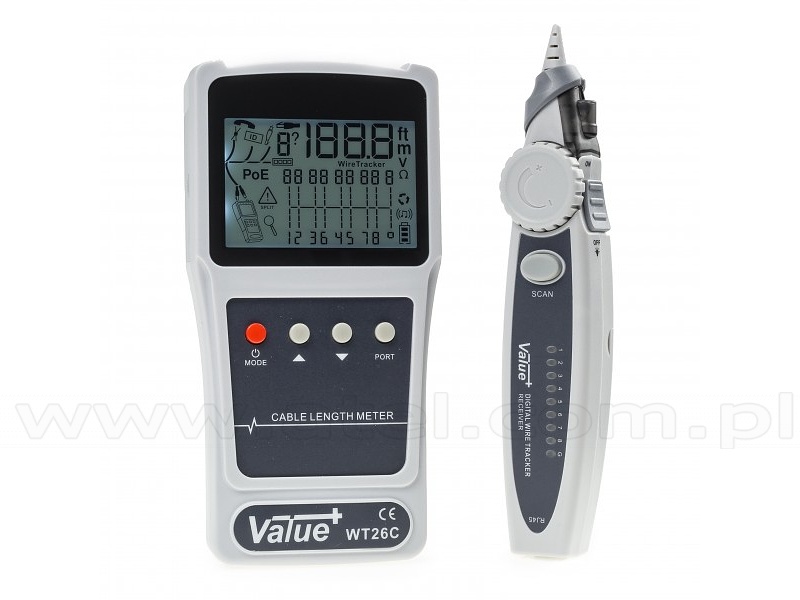

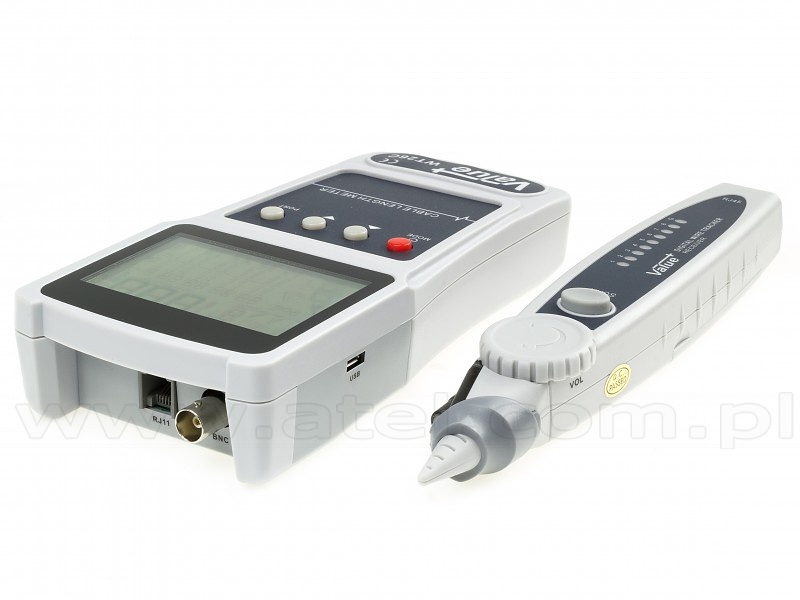

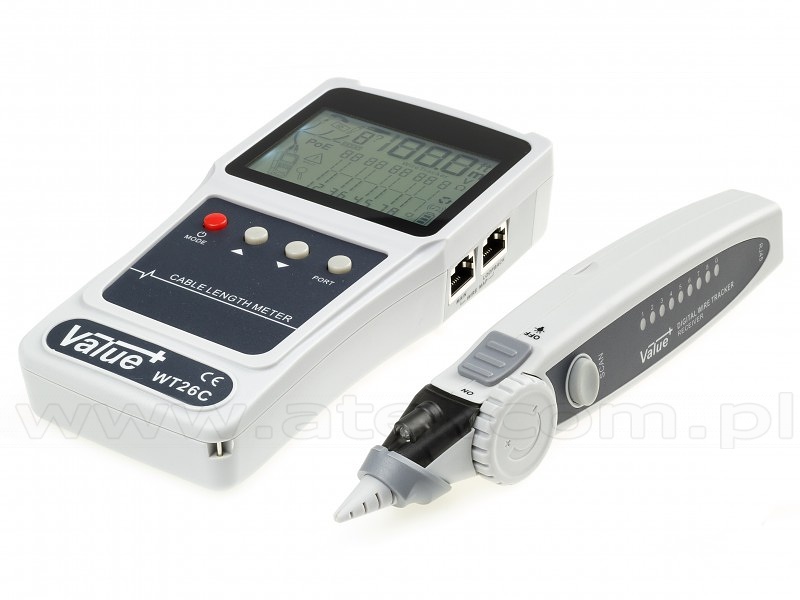

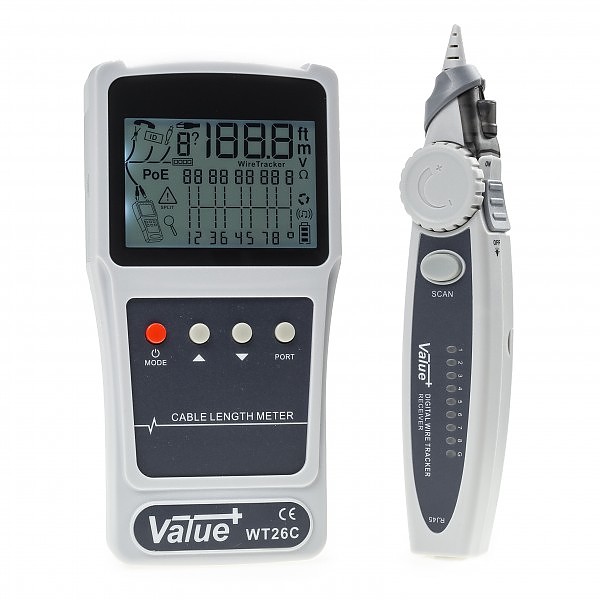

Cable tester RJ-45, w/LCD, digital wire tracker, WT26C
The WT26C digital wire tracker is an advanced device used for complex network cabling tests. It enables basic network cabling diagnostics- connection map, measurement of length and distance to fault.
Additionally, it is equipped with a digital and analog signal generator, enabling tracing the cable route and identifying pairs.
The device is equipped with a clear, backlit LCD display.
Additionally, it is equipped with a digital and analog signal generator, enabling tracing the cable route and identifying pairs.
The device is equipped with a clear, backlit LCD display.
| Tested cabling |
RJ45, RJ11, BNC |
|---|---|
| Functionality |
location of the damage site, cable length measurement, short circuit detection, interruptions, reverse connections, measurement of the distance to damage, temperature compensation, sound signaling |
| Wiring tests |
cable lenght, connection map, digital pair finder with generator |
| Cable length measurement | 300 m |
| Measurement of the distance to damage | yes |
| Ergonomics |
big and clear LCD display, automatic shutdown, long operating time |
| Power |
1800mAh battery, rechargable by micro USB |
| Dimensions |
173x87x37 mm (main), 187x35x29 mm (reciever) |

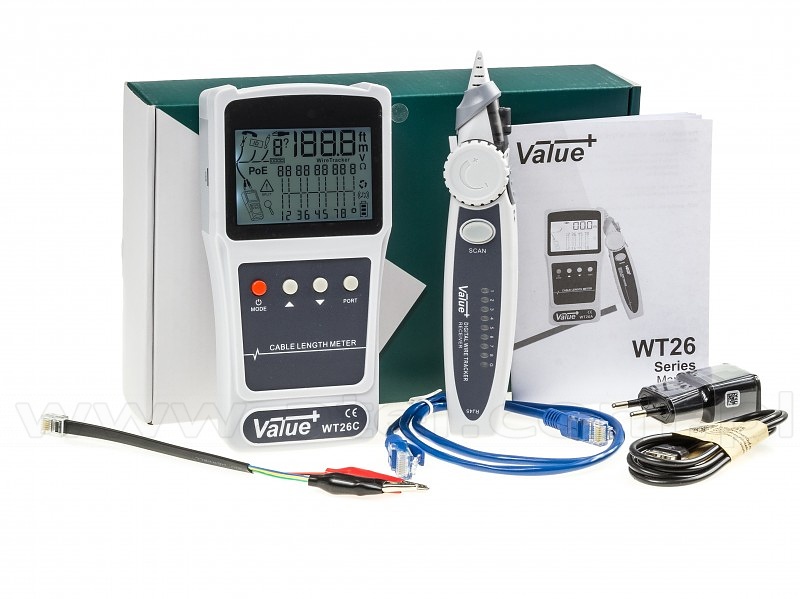

The kit includes:
- main unit,
- wire pair finder
- USB A (M) - micro USB (M) connector
- crocodile clips
- RJ45-RJ45 connector
- main unit,
- wire pair finder
- USB A (M) - micro USB (M) connector
- crocodile clips
- RJ45-RJ45 connector
#03059
Cable tracker and cable tester, VFL WT22C
The cable tracker is made for identifying and searching cables without breaching their insulation.
Additionaly, the device enables displaying the network cable connection map. The WT22C tester is equipped with a laser source of visible light, which also enables diagnostics of optical networks.
Additionaly, the device enables displaying the network cable connection map. The WT22C tester is equipped with a laser source of visible light, which also enables diagnostics of optical networks.
| Cables tested |
RJ45, RJ11, 2.5mm ferrule fiber |
|---|---|
| Operational modes | normal and slow |
| Performed tests |
connection map, telephone line voltage indicator, polarization index, continuity test |
| Signal | dual alternating tone |
| Output signal level | 15V p-p |
| Battery type |
6F22 9V (reciever), 3x 1.5V AA (toner) |
The set includes a transmitting and receiving module, a RJ45 patchcord, a test lead finished with crocodile clips and earphones.
#09347
Digital cable tracker and cable tester WT20B
The cable tracker is made for identifying and searching cables without breaching their insulation.
Thanks to the use of a digital signal, the sound heard in the receiver is free from any kind of interference that occurs when using analog finders.
Additionaly, the device enables displaying the network cable connection map and test PoE devices.
Thanks to the use of a digital signal, the sound heard in the receiver is free from any kind of interference that occurs when using analog finders.
Additionaly, the device enables displaying the network cable connection map and test PoE devices.
| Cables tested |
RJ45, RJ11 |
|---|---|
| Performed tests |
connection map, crimping quality test (RJ45 and RJ11), port flash, PoE tests, NCV detecor |
| Signal | digital |
| Output signal level | 15V p-p |
| Battery type |
6F22 9V (transmitter), 3.7V 800mAh (toner) |
The set includes a transmitting and receiving module, a RJ45 patchcord and a test lead finished with crocodile clips.
#03057
Digital cable tracker and cable tester WT22D
The cable tracker is made for identifying and searching cables without breaching their insulation.
Thanks to the use of a digital signal, the sound heard in the receiver is free from any kind of interference that occurs when using analog finders.
Additionaly, the device enables displaying the network cable connection map.
Thanks to the use of a digital signal, the sound heard in the receiver is free from any kind of interference that occurs when using analog finders.
Additionaly, the device enables displaying the network cable connection map.
| Cables tested |
RJ45, RJ11 |
|---|---|
| Operational mode | normal and slow |
| Performed tests |
connection map, telephone line voltage indicator, polarization index, continuity test |
| Signal | dual alternating tone or digital |
| Output signal level | 23V p-p |
| Battery type |
6F22 9V (reciever), 3x 1.5V AA (toner) |
The set includes a transmitting and receiving module, a RJ45 patchcord and a test lead finished with crocodile clips.
#03058
Digital cable tracker and cable tester WT22E
The cable tracker is made for identifying and searching cables without breaching their insulation.
Thanks to the use of a digital signal, the sound heard in the receiver is free from any kind of interference that occurs when using analog finders.
Additionaly, the device enables displaying the network cable connection map.
Thanks to the use of a digital signal, the sound heard in the receiver is free from any kind of interference that occurs when using analog finders.
Additionaly, the device enables displaying the network cable connection map.
| Cables tested |
RJ45, RJ11 |
|---|---|
| Operational mode | normal and slow |
| Performed tests |
connection map, telephone line voltage indicator, polarization index, continuity test |
| Signal | dual alternating tone or digital |
| Output signal level | 23V p-p |
| Battery type |
6F22 9V (reciever), 3x 1.5V AA (toner) |
The set includes a transmitting and receiving module, a RJ45 patchcord and a test lead finished with crocodile clips.
#03056
Digital cable tracker and cable tester WT25D
The cable tracker is made for identifying and searching cables without breaching their insulation.
Thanks to the use of a digital signal, the sound heard in the receiver is free from any kind of interference that occurs when using analog finders.
Additionaly, the device enables displaying the network cable connection map.
Thanks to the use of a digital signal, the sound heard in the receiver is free from any kind of interference that occurs when using analog finders.
Additionaly, the device enables displaying the network cable connection map.
| Cables tested |
RJ45, RJ11 |
|---|---|
| Operational mode | normal and slow |
| Performed tests |
connection map, telephone line voltage indicator, polarization index, continuity test |
| Signal | dual alternating tone or digital |
| Output signal level | 23V p-p |
| Battery type | 2x 6F22 9V |
The set includes a transmitting and receiving module, soft case, a RJ45 patchcord and a test lead finished with crocodile clips.
#03055
Digital cable tracker WT25C
The cable tracker is made for identifying and searching cables without breaching their insulation.
Thanks to the use of a digital signal, the sound heard in the receiver is free from any kind of interference that occurs when using analog finders.
Thanks to the use of a digital signal, the sound heard in the receiver is free from any kind of interference that occurs when using analog finders.
| Signal | dual alternating tone or digital |
|---|---|
| Output signal level | 23V p-p |
| Battery type | 2x 6F22 9V |
The set includes a transmitting and receiving module, a soft case, a RJ45 patchcord and a test lead finished with crocodile clips.
#08221

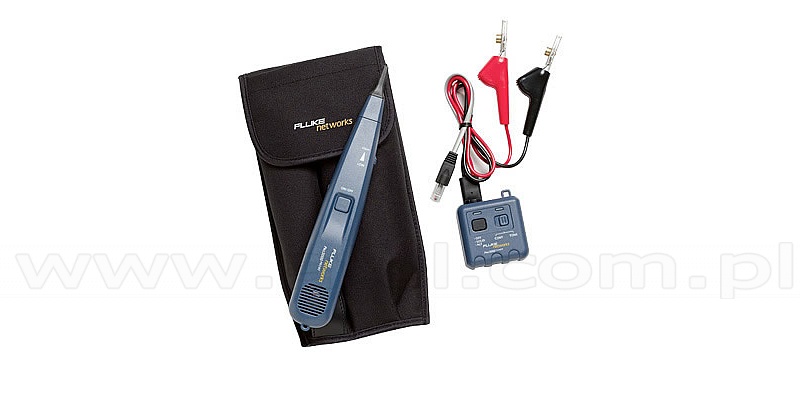

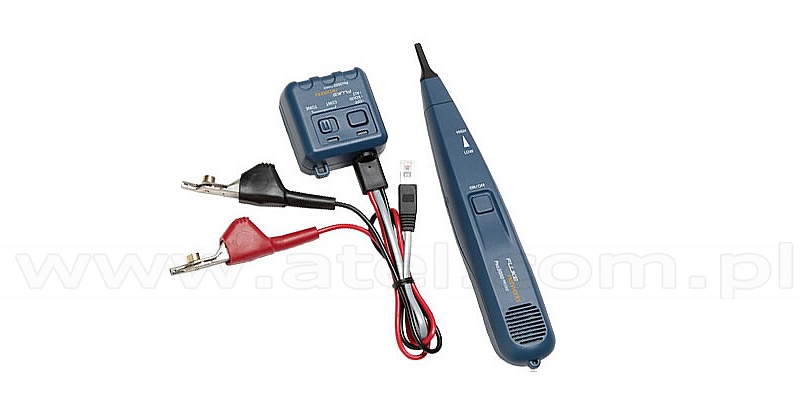

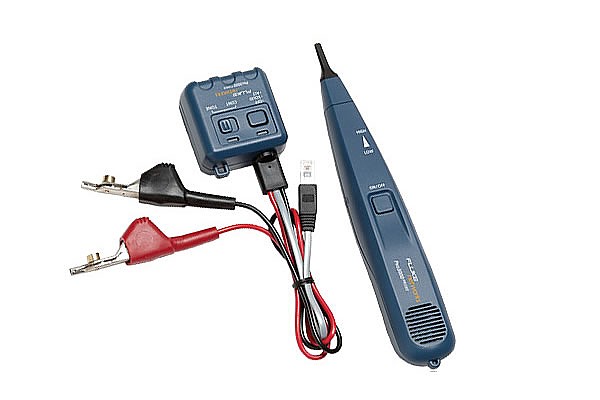

FLUKE PRO 3000 - Cable locator
The Pro3000 Analog Tone and Probe is the best choice for toning and tracing wires on non-active networks, specifically for identifying individual pairs with SmartTone™ technology. Angled bed-of-nails clips allow easy access to individual wires, and the RJ11 connector is ideal for use on telephone jacks. The large, loud speaker on the probe allows you to find wires quickly and easily behind drywall, wood, etc. Case attached.
| Transmitter | |
|---|---|
| Solid Frequency | 1000 Hz |
| Over Voltage Protection | 60VDC |
| Output Power in Tone Mode | 8 dBm 600Ohms |
| Output Voltage | 8 VDC dla pomiaru ciągłości |
| Battery | 9V alkaline |
| Case dimensions | 69 x 61 x 36 mm |
| Reciever | |
| Battery | 9V alkaline |
| Temp. operating | (-20 +60)C |
| Temperatura storage | (-40 +70)C |
| Dimmensions | 249 x 41 x 33 mm |
| Warranty | 12 months |
#08220
IntelliTone 200 Probe (Fluke Networks MT-8200-63A)
| Interface | Main RJ45 port for mapping all 4 UTP / STP cabling pairs. |
|---|---|
| Dimensions | 222x48x32 mm |
| Display |
8x LED, 1x Sync LED |
| Control |
thumbwheel switch, volume control wheel |
| Auto power down | yes |
#02309
Mastech MS6812A - Signal probe, link tester
- searching for broken wires,
- searching for the place of cable damage,
- detecting the ringing tone on telephone lines,
- identification of the telephone line condition.
The wire pair finder is designed to identify and search wires without disturbing their insulation.
Functions:
| Transmitter signal | 1.5KHz |
|---|---|
| Receiver signal | 100 - 300kHz |
| Weight [transmitter/receiver] | 114 / 106g |
| Dimensions [transmitter/receiver] | 145x35x25 / 238x43x26 mm |
| Battery type | 6F22 9V |
| Manufacturer | Mastech |
The kit consists of two devices - toner and probe.
