#09270
Managed switch, 6x 10G RJ-45, 2x SFP+, PoE++, 11.6", 19" Rack-mounting Bracket (TP-Link TL-SX3206HPP)
- Full 10G Lightning-Fast Connection: Offers high-bandwidth connectivity with lightning-fast 4× 10 Gbps RJ45 ports and 2× 10 Gbps SFP+ slots.
- PoE++ Output with 200 W Power Budget†: Four 802.3af/at/bt PoE++ 10G ports with up to 60 W PoE output on each port make it ideal for the deployment of Omada WiFi 6 and WiFi 6E APs.
- Abundant L2 and L2+ Features: Supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping.
- Robust Security Strategies: Supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
| Ports |
4× 100/1000/2500/5000/10000 Mbps RJ45 Ports, 2× 10G SFP+ Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port |
|---|---|
| PoE Ports (RJ45) |
Standard 802.3bt/at/af compliant, PoE+ Ports 4 Ports, up to 60 W per port, Power Budget 200 W |
| Auto MDI/MDI-X | yes |
| Auto-negotiation (Nway) | yes |
| Fan Quantity | 2 |
| Switching Capacity | 120 Gbps |
| Packet Forwarding Rate | 89.28 Mpps |
| MAC Address Table | 32 K |
| Jumbo Frame | 9 KB |
| Software features | |
| Quality of Service |
802.1p CoS/DSCP priority, 8 priority queues, Priority Schedule Mode, SP (Strict Priority), WRR (Weighted Round Robin), Queue Weight Config, Bandwidth Control, Port/Flow-based Rating Limit, Smoother Performance, Storm Control, Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control |
| L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
| L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
| IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN 12 Entries, Protocol VLAN, GVRP, Voice VLAN |
| Access Control List |
Support up to 230 entries, Time-Range, Time Slice, Week Time-Range, Absolute Time-Range, Holiday, Time-based ACL, MAC ACL, Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type, IP ACL, Source IP, Destination IP, IP Protocol, TCP Flag, TCP/UDP Source Port, TCP/UDP Destination Port, DSCP/IP TOS, IPv6 ACL, Combined ACL, Rule Operation, Permit/Deny, Policy Action, Mirror, Rate Limit, Redirect, QoS Remark, ACL Rules Binding, Port Binding, VLAN Binding, Actions for flows, Mirror (to supported interface), Redirect (to supported interface), Rate Limit, QoS Remark |
| Security |
AAA, 802.1X, Port-based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC-based access control |
| Advanced Features |
Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule |
| MIBs |
MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9) |
| Management | |
| Omada App |
Yes, through, Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller |
| Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes, through, Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
| Housing / case type |
11.6", metal |
| Dimensions | 294×180×44 mm |
| Operating temperature | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Power | 100-240 V AC~50/60 Hz |
| Max Power Consumption |
27.29 W (110V/60Hz) (no PD connected), 244.90 W (110V/60Hz) (with 200 W PD connected) |
| Max Heat Dissipation |
93.12 BTU/h (110 V/60 Hz) (no PD connected), 835.67 BTU/h (110 V/60 Hz) (with 200 W PD connected) |
| Certificates |
CE, FCC ,RoHS |
| Warranty period | 5 years |
| Manufacturer | TP-Link |
#09467
Managed switch, 24x 10/100/1000 RJ-45, 4 slide-in 10G SFP+ slot, PoE++, 19" (TP-Link SG3428XMPP)
- 4× 10 Gbps SFP+ slots
- 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
- 16× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
- 500 W total PoE budget
- Centralized cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing, VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
| Standards |
IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX |
|---|---|
| Copper ports |
24x 10/100/1000 Mbps RJ-45 (8× PoE++, 16× PoE+) |
| Free slots | 4x SFP+ 10G |
| Additional ports |
1× RJ45 Console Port, 1× Micro-USB Console Port |
| Fan Quantity | 3 |
| Porty PoE+ (RJ45) | |
| Standard | 802.3at/af/bt compliant |
| PoE Ports |
PoE++ Ports Ports 1~8 (up to 90 W PoE Output per Port), PoE+ Ports Ports 9-24 (up to 30 W PoE Output per Port) |
| Power Budget | 500 W |
| Max Power Consumption | 605,5 W (110V/60Hz) ( with 500 W PD connected) |
| Max Heat Dissipation | 2064,96 BTU/hr (110 V/60 Hz) (with 500 W PD connected) |
| Performance | |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95,23 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| Software features | |
| Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
| L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
| L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
| IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
| Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
| Management | |
| Omada App | Yes |
| Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
| Housing / case type | Rack Mountable |
| Dimensions | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
| Operating temperature | 0°C ÷ 40°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Power |
internal, 100~230VAC 50/60Hz |
| Certificates |
CE, FCC |
| Warranty period | 5 years |
| Manufacturer | TP-Link |
#09232
Managed switch, 48x 10/100/1000 RJ-45, 4 slide-in 10G SFP+ slot, PoE+, 19" (TP-Link TL-SG3452XP)
- 10G Lightning-Fast Uplink: Enjoy high-bandwidth connectivity and non-blocking switching capacity with four 10 Gbps SFP+ slots.
- PoE+ Output with 500 W Power Budget: Design your optimal network layout with forty-eight 802.3af/at PoE+ gigabit ports.*
- Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
- Abundant L2 and L2+ Features: It supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping.
- Robust Security Strategies: Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, and 802.1X Authentication.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
| Standards |
IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX |
|---|---|
| Copper ports | 48x 10/100/1000 Mbps RJ-45 |
| Free slots | 4x SFP+ 10G |
| Additional ports |
1× RJ45 Console Port, 1× Micro-USB Console Port |
| Fan Quantity | 3 |
| Porty PoE+ (RJ45) | |
| Standard | 802.3at/af compliant |
| PoE+ Ports |
48 Ports, up to 30 W per port |
| Power Budget | 500 W |
| Max Power Consumption |
49.19 W (110V/60Hz) ( no PD device connected), 635.7 W (110V/60Hz) ( with 500 W PD device connected) |
| Max Heat Dissipation |
167.85 BTU/hr (110 V/60 Hz) (no PD connected), 2169.2 BTU/hr (110 V/60 Hz) (with 500 W PD connected) |
| Performance | |
| Switching Capacity | 176 Gbps |
| Packet Forwarding Rate | 130.9 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| Software features | |
| Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
| L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
| L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
| IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
| Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
| Management | |
| Omada App | Yes |
| Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
| Housing / case type | Rack Mountable |
| Dimensions | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
| Operating temperature | 0°C ÷ 45°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Power |
internal, 100~230VAC 50/60Hz |
| Certificates |
CE, FCC |
| Warranty period | 5 years |
| Manufacturer | TP-Link |
#09466
Managed switch, 24x 2,5G, 4 slide-in 10G SFP+ slot, PoE++, 19" (TP-Link SG3428XPP-M2)
- 8× 2.5G PoE++ ports (up to 60 W PoE out per port)
- 16× 2.5G PoE+ ports (up to 30 W PoE out per port)
- 4× 10G SFP+ slots
- Centralized cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
-500 W total PoE budget
| Standards |
IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX |
|---|---|
| Copper ports |
24× 2.5 Gbps RJ45 Ports (8× PoE++, 16× PoE+) |
| Free slots | 4x SFP+ 10G |
| Additional ports |
1× RJ45 Console Port, 1× Micro-USB Console Port |
| Fan Quantity | 3 |
| Porty PoE+ (RJ45) | |
| Standard | 802.3at/af/bt compliant |
| PoE Ports |
8 Ports, up to 60 W per port, PoE+ Ports (802.3at/af PoE) 16 Ports, up to 30 W per port |
| Power Budget | 500 W |
| Max Power Consumption | 629,1 W (110V/60Hz) |
| Max Heat Dissipation | 2153,45 BTU/hr (110 V/60 Hz) |
| Performance | |
| Switching Capacity | 200 Gbps |
| Packet Forwarding Rate | 148.80 Mpps |
| MAC Address Table | 32 K |
| Packet Buffer Memory | 16 Mbit |
| Jumbo Frame | 9 KB |
| Software features | |
| Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
| L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
| L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
| IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
| Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
| Management | |
| Omada App | Yes |
| Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
| Housing / case type | Rack Mountable |
| Dimensions | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
| Operating temperature | 0°C ÷ 40°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Power |
internal, 100~230VAC 50/60Hz |
| Certificates |
CE, FCC |
| Warranty period | 5 years |
| Manufacturer | TP-Link |
#09464
Managed switch, 32x slide-in 10G SFP+ slot, 19" (TP-Link SX3032F)
- 32× 10 Gbps SFP+ slots
- 640 Gbps switching capacity
- Two internal fixed power supply modules back each other up
- Centralized cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
| Ports |
32× 1/10G SFP+ Slots, 1× RJ45 Console Port, 1× microUSB Console Port |
|---|---|
| Fan Quantity | 2 internal fixed fans |
| Software features | |
| Quality of Service |
8 priority queues, 802.1p CoS/DSCP priority, Queue scheduling SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR, Bandwidth Control Port/Flow-based Rating Limiting, Smoother Performance, Action for Flows QoS remark (802.1P Remark, DSCP Remark) |
| L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
| L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
| IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
| Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
| Management | |
| Omada App | Yes |
| Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
| Switching capacity [Gbps] | 640 Gbps |
| Packet Forwarding Rate | 240 Mp/s |
| MAC Address Table | 32 K |
| Jumbo Frame | 9 KB |
| Housing / case type | Rack Mountable |
| Dimensions | 17.3×13.0×1.7 in (440×330×44 mm) |
| Operating temperature | -5°C ÷ 45°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Power |
1+1 Redundant Power Supply (internal fixed) (100–240 VAC, 50/60 Hz) |
| Max Power Consumption | 49.4 W (110 V/60 Hz) |
| Certificates |
CE, FCC, RoHS |
| Warranty period | 5 years |
| Manufacturer | TP-Link |
#09465
Managed switch, 48x 10/100/1000 RJ-45, 4 slide-in 10G SFP+ slot, PoE++, 19" (TP-Link SG3452XMPP)
- 4× 10 Gbps SFP+ slots
- 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
- 40× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
- 750 W total PoE budget*
- Centralized cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
| Standards |
IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX |
|---|---|
| Copper ports |
48x 10/100/1000 Mbps RJ-45 (8× PoE++, 40× PoE+) |
| Free slots | 4x SFP+ 10G |
| Additional ports |
1× RJ45 Console Port, 1× Micro-USB Console Port |
| Fan Quantity | 3 |
| Porty PoE+ (RJ45) | |
| Standard | 802.3at/af/bt compliant |
| PoE Ports |
PoE++ Ports Ports 1~8 (up to 90 W PoE Output per Port), PoE+ Ports Ports 9~48 (up to 30 W PoE Output per Port) |
| Power Budget | 750 W |
| Max Power Consumption | 913.4 W (110V/60Hz) ( with 750 W PD connected) |
| Max Heat Dissipation | 3114.69 BTU/hr (110 V/60 Hz) (with 750 W PD connected) |
| Performance | |
| Switching Capacity | 176 Gbps |
| Packet Forwarding Rate | 130.9 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| Software features | |
| Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
| L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
| L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
| IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
| Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
| Management | |
| Omada App | Yes |
| Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
| Housing / case type | Rack Mountable |
| Dimensions | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
| Operating temperature | 0°C ÷ 40°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Power |
internal, 100~230VAC 50/60Hz |
| Certificates |
CE, FCC |
| Warranty period | 5 years |
| Manufacturer | TP-Link |
#09564
Managed switch, 24x 10G RJ-45, 8 slide-in 10G SFP+ slot,19" (TP-Link SX3832)
- 24× 1/2.5/5/10 Gbps RJ45 ports
- 8× 1/10 Gbps SFP+ slots
- 640 Gbps switching capacity
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
| Standards |
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz |
|---|---|
| Copper ports |
24× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX), 8× 1/10G SFP+ Slots, 1× RJ45 Console Port, 1× USB Type C Console Port |
| Fan Quantity | 2 |
| Auto MDI/MDI-X | yes |
| Auto-negotiation (Nway) | yes |
| Fan Quantity | 1 (Intelligent fan speed adjustment) |
| Switching Capacity | 640 Gbps |
| Packet Forwarding Rate | 240 Mpps |
| MAC Address Table | 32 K |
| Packet Buffer Memory | 24 Mb |
| Jumbo Frame | 9 KB |
| Housing / case type |
19", metal |
| Dimensions | 17.3×8.7×1.7 in (440×220×44 mm) |
| Operating temperature | -5°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Power | 100-240 V AC~50/60 Hz |
| Max Power Consumption |
104.9 W (@110V/60Hz), 106.5 W (@220V/50Hz) |
| Certificates |
CE, FCC ,RoHS |
| Warranty period | 5 years |
| Manufacturer | TP-Link |
#09463
Managed switch, 24x 10/100/1000 RJ-45, 4 slide-in SFP+ 10G slot, 19" (TP-Link SG6428X)
- 24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
- 128 Gbps switching capacity per unit
- Physical Stacking up to 8 units for built-in redundancy and performance**
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, and DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two internal fixed power supplies, VRRP, and ERPS
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
| Ports |
24× 10/100/1000 Mbps RJ45 Ports, 4× 1/10G SFP+ Slots, 2× USB 2.0 Ports, 1× RJ45 Console Port, 1× USB Type C Console Port, 1× RJ45 Management Port |
|---|---|
| Fan Quantity | Four field-replaceable and hot-swappable fans (N+1 redundant) |
| Software features | |
| Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
| L3 Features |
IP Interfaces, IPv4 Max 256, IPv6 Max 256, Static Routing, IPv4 Max 2,048, IPv6 Max 1,024, Host Route Table Max 15,300 entries, RIP Version v1/v2, Max 102,400, RIPng Max 51,200, OSPF Version v2/v3;, v2 Max 102,400, v3 Max 51,200, VRRP Version v2/v3, Max 64 groups, ECMP 256 entries, max 32 ECMP Nexhops per Destination, Static ARP, 1,024 static entries, Dynamic ARP, 24,576 dynamic entries, Proxy ARP, DHCP Server, Max 64 IP Pools, Max 1,000 Manual Binding Entries. DHCP Relay, Relayed Interface, Relayed VLAN |
| L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
| L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
| IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
| Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
| Management | |
| Omada App | Yes |
| Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
| Switching capacity [Gbps] | 128 Gbps |
| Stacking |
Number 8, Stacking Port 10G SFP+ Slot (all uplink ports can be used as stacking ports), Stack Bandwidth Up to 80 Gb/s (4 stack ports) |
| Packet Forwarding Rate | 95,2 Mp/s |
| MAC Address Table | 32 K |
| Jumbo Frame | 9 KB |
| Housing / case type | Rack Mountable |
| Dimensions | 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm) |
| Operating temperature | -5°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Power |
Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC, 50/60 Hz), *Ships with one PSM550-AC module by default, and another field-replaceable redundant power supply requires a separate purchase. |
| Max Power Consumption | 28,4 W (220 V/50 Hz) |
| Max Heat Dissipation | 96,91 BTU/godz (220 V/50 Hz) |
| Certificates |
CE, FCC, RoHS |
| Warranty period | 5 years |
| Manufacturer | TP-Link |
1.0_omada_enterprise_l3_switch-02_large_20231110111256p.jpg?1740842680)
1.0_omada_enterprise_l3_switch-03_large_20231110111311c.jpg?1740842729)
1.0_omada_enterprise_l3_switch-04_large_20231110111322n.jpg?1740842773)
#09351
Managed switch, 16x 10G SFP+ Ports, 2x 40G QSFP+ Ports, 19" (Edge-corE ECS5520-18X)
- 16x 10 gigabit SFP+ and 2x 40 gigabit QSFP+ ports
- Static Routing: Helps route internal traffic for more efficient use of network resources.
| Standards |
IEEE 802.3ae (10GBASE-SR/LR/ZR/ER), 10G DAC/AOC, IEEE 802.3z (1000BASE-SX/LX/LHX/ZX) |
|---|---|
| SFP ports |
16x 10G SFP+, 2x 40G QSFP+ |
| Additional ports |
1× RJ45 Console Port, 1x GE out-of-band Management Port, USB port |
| Software features | |
| Quality of Service |
8 hardware queues per port, Traffic classification, IEEE 802.1p CoS, IP Precedence, DSCP, MAC Access control list (source/destination MAC Ether type priority ID/ VLAN ID ), IP Standard access control list (source IP), IP extended access control list (source/destination IP protocol TCP/UDP port number), Traffic scheduling, Strict priority, Weighted Round Robin, Strict + WRR, Single/ Two rate Three color marker, Ingress policy map, Egress policy map, Rate Limiting (Ingress and Egress, per port base), 10G Resolution 64Kbps ~ 10,000Mbps, Auto Traffic Control |
| L2 and L2+ Features |
Flow Control IEEE 802.3x for full duplex mode, Back-Pressure for half duplex mode, Jumbo frames 10KB, Broadcast/multicast/ unknown unicast storm control, IEEE 802.1D Spanning Tree Protocol (STP), IEEE 802.1w Rapid Spanning Tree Protocol (RSTP), IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) 64 instances, BPDU Guard, BPDU filtering, Root Guard, Loopback detection, Non-Spanning Tree loopback detection, ITU-T G.8032 Ethernet Ring Protection, Sub 50 msec convergence, Revertive operation mode, Multiple-ring network, Link Aggregation Static trunk, IEEE 802.3ad Link Aggregation Control Protocol, Trunk Groups 12 up to 8 10G/ 2 40G ports per group, Load Balancing SA+DA/SA/DA/SIP+DIP, SIP, DIP, MLAG, IGMP v1/v2/v3 snooping, IGMP Proxy Reporting, IGMP Filtering, IGMP Throttling, IGMP Immediate Leave, IGMP Querier, MVR (Multicast VLAN Registration), Supports 5 multicast VLANs, Port mirroring, Remote port mirror (RSPAN) |
| L3 Routing | Static route |
| Advanced L3 Routing |
RIP1/v2, RIPng, OSPF v2/v3, BGP4+, VRRP, IGMP v1/v2/v3 Proxy, PIM-DM/SM, PIM-DM6/SM6 - With License (RIP, OSPF, VRRP, BGP, PIM, IGMP Proxy) |
| VLAN |
Supports 4K VLANs, Port-based VLANs, IEEE 802.1Q VLANs, GVRP, VLAN trunking, IEEE 802.1v protocol-based VLANs, IP subnet-based VLANs, MAC-based VLANs, Traffic Segmentation, L2 Virtual Private VLAN Q-in-Q, L2 protocol tunneling (xSTP/CDP/VTP & PVST+), CDP/PVST+ filtering |
| IPv6 Support |
IPv4/IPv6 dual protocol stack, IPv6 Address Types Stack - Unicast, IPv6 Neighbor Discovery, Duplicate address, Address resolution, Unreachable neighbor detection, Stateless auto-configuration, Manual configuration, Remote IPv6 ping, IPv6 Telnet suport, IPv6 DNS Resolver, HTTP over IPv6, SNMP over IPv6, SSH over IPv6, IPv6 Syslog suport, IPv6 SNTP support, IPv6 TFTP suport, RA Guard, IPv6 ND Snooping, MLD Snooping v1/v2, IPv6 source guard, DHCPv6 snooping |
| Security |
IEEE 802.1X port based and MAC based authentication, Dynamic VLAN assignment, auto QoS, MAC authentication, Web authentication, Voice VLAN, Guest VLAN, User Security for ISP/MSO, DHCP Snooping, DHCP Option 82, IP Source Guard, PPPoE IA, L2/L3/L4 access control list, MAC access control list (source/destination MAC/ Ether type/ priority ID/ VLAN ID ), IP standard access control list (source IP), IP extended access control list (source/destination IP/ protocol/ TCP/UDP port number), IPv6 ACL, Network Security, Port security, Dynamic ARP Inspection, Denial of Service protection, CPU Guard, CPU/Memory threshold and alarm, Management Security, Login security, RADIUS authentication, RADIUS accounting, RADIUS authorization, TACACS + authentication, TACACS + accounting, TACACS + authorization, Management interface access filtering (SNMP/ Web/ Telnet), SSH (v2.0) for secure Telnet, SSL for HTTPS, SNMPv3 |
| Management | |
| Management Features |
CLI via console port or Telnet/SSH, Web management, SNMP v1/ v2c/ v3, Firmware upgrade via TFTP/HTTP/FTP server, Multiple configuration files, Configuration file upload/download via TFTP/HTTP/FTP server, RMON (groups 1/ 2/ 3/ 9), DHCP client for IP address assignment, DHCP dynamic provision Option 66/67, SNTP, Event/error log, Syslog, SMTP, Supports LLDP (802.1ab), sFlow v4/ v5, IP Clustering (with licence), Cable diagnostic |
| Switching capacity [Gbps] | 480 |
| Packet Forwarding Rate | 357.12 Mpps |
| MAC Address Table | 64K |
| Jumbo Frame | 10 KB |
| Housing / case type | Rack Mountable |
| Dimensions | 43.84 x 28 x 4.34 cm |
| Operating temperature | 0°C ÷ 50°C |
| Operating humidity |
5% ÷ 95%, non-condensing |
| Power |
internal, 100~240VAC 50/60Hz, Optional 2nd Power module for |
| redundancy | |
| Max Power Consumption | 132W |
| Certificates |
CE, FCC |
| Warranty period | 3 years |
| Manufacturer | Edge-core |
#09462
Managed switch, 24x 10/100/1000 RJ-45, 4 slide-in SFP+ 10G slot, PoE+, 19" (TP-Link SG6428XHP)
- 24× Gigabit RJ45 PoE+ ports
- 4× 10 Gbps SFP+ slots
- Up to 720 W total PoE budget
- Fast PoE and Perpetual PoE
- Physical Stacking up to 8 units for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, and DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two field-replaceable power supplies, VRRP, and ERPS
- Centralized cloud management via Omada SDN controllers
- Standalone management via web, CLI, SNMP, and RMON
| Ports |
48× 10/100/1000 Mbps PoE+ RJ45 Ports, 6× 1/10G SFP+ Slots, 2× USB 2.0 Ports, 1× RJ45 Console Port, 1× USB Type C Console Port, 1× RJ45 Management Port |
|---|---|
| Fan Quantity | Four field-replaceable and hot-swappable fans (N+1 redundant) |
| PoE Ports (RJ45) |
Standard 802.3at/af compliant, PoE+ Ports 48 Ports, up to 30 W per port, PoE Power Budget up to 720 W |
| Software features | |
| Quality of Service |
Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
| L3 Features |
IP Interfaces, IPv4 Max 256, IPv6 Max 256, Static Routing, IPv4 Max 2,048, IPv6 Max 1,024, Host Route Table Max 15,300 entries, RIP Version v1/v2, Max 102,400, RIPng Max 51,200, OSPF Version v2/v3;, v2 Max 102,400, v3 Max 51,200, VRRP Version v2/v3, Max 64 groups, ECMP 256 entries, max 32 ECMP Nexhops per Destination, Static ARP, 1,024 static entries, Dynamic ARP, 24,576 dynamic entries, Proxy ARP, DHCP Server, Max 64 IP Pools, Max 1,000 Manual Binding Entries. DHCP Relay, Relayed Interface, Relayed VLAN |
| L2 and L2+ Features |
DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security TC Protect, BPDU Filter/Protect, Root Protect, Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both, Device Link Detect Protocol (DLDP), 802.1ab LLDP/ LLDP-MED |
| L2 Multicast |
511 IPv4, IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config, Multicast VLAN Registration (MVR), Multicast Filtering, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast (256 profiles and 16 entries per profile) |
| IPv6 Support |
IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| VLAN |
VLAN Group, Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN |
| Security |
AAA, 802.1X, Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability, IP/IPv6-MAC Binding, 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection, IP Source Guard, 253 Entries, Source IP+Source MAC, IPv6 Source Guard, 183 Entries, Source IPv6 Address+Source MAC, DoS Defend, Static/Dynamic/Permanent Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
| Management | |
| Omada App | Yes |
| Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Management Features |
Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
| Switching capacity [Gbps] | 128 Gbps |
| Stacking |
Number 8, Stacking Port 10G SFP+ Slot (all uplink ports can be used as stacking ports), Stack Bandwidth Up to 80 Gbps (4 stack ports) |
| Packet Forwarding Rate | 95,2 Mp/s |
| MAC Address Table | 32 K |
| Jumbo Frame | 9 KB |
| Housing / case type | Rack Mountable |
| Dimensions | 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm) |
| Operating temperature | -5°C ÷ 45°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Power |
Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC, 50/60 Hz), *Ships with one PSM550-AC module by default, and another field-replaceable redundant power supply requires a separate purchase. |
| Max Power Consumption |
42.9 W (110 V/60 Hz) (With no PD connected), 916.6 W (110 V/60 Hz) (With 720 W PD connected and powered by 2× PSM500-AC) |
| Max Heat Dissipation |
146.29 BTU/hr (110 V/60 Hz) (With no PD connected), 3,125.61 BTU/hr (110 V/60 Hz) (With 720W PD connected and powered by 2× PSM500-AC) |
| Certificates |
CE, FCC, RoHS |
| Warranty period | 5 years |
| Manufacturer | TP-Link |

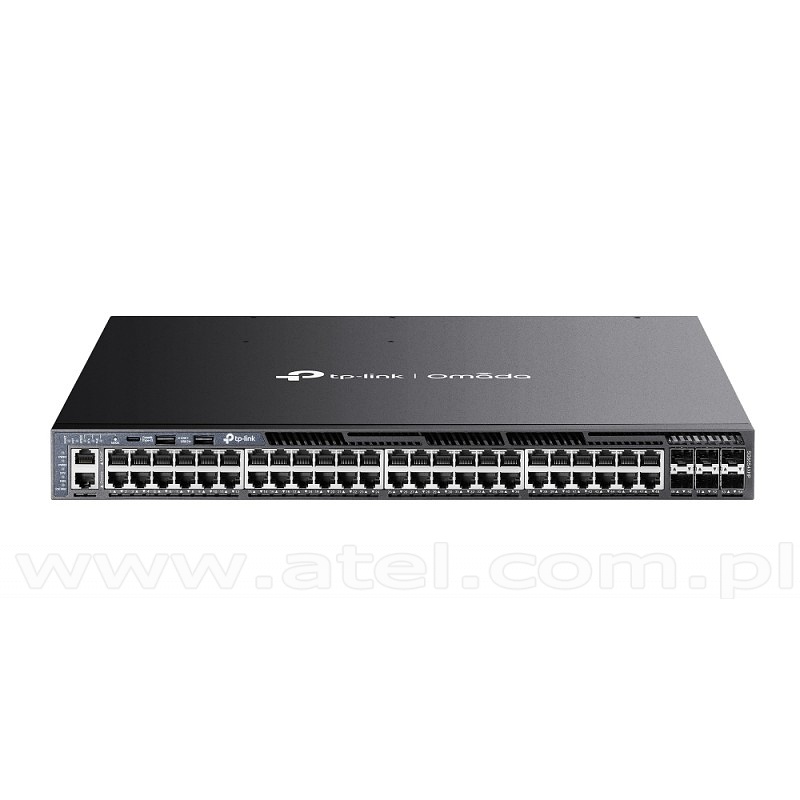

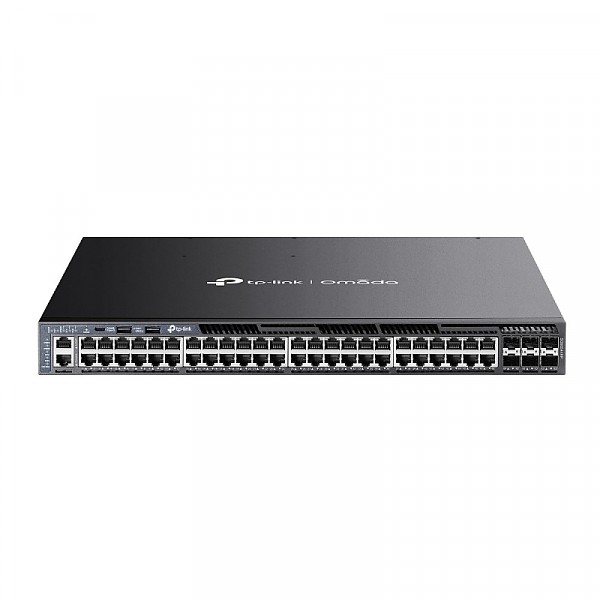

1.0_omada_enterprise_l3_switch-03_large_20231110114422r.jpg?1750134479)

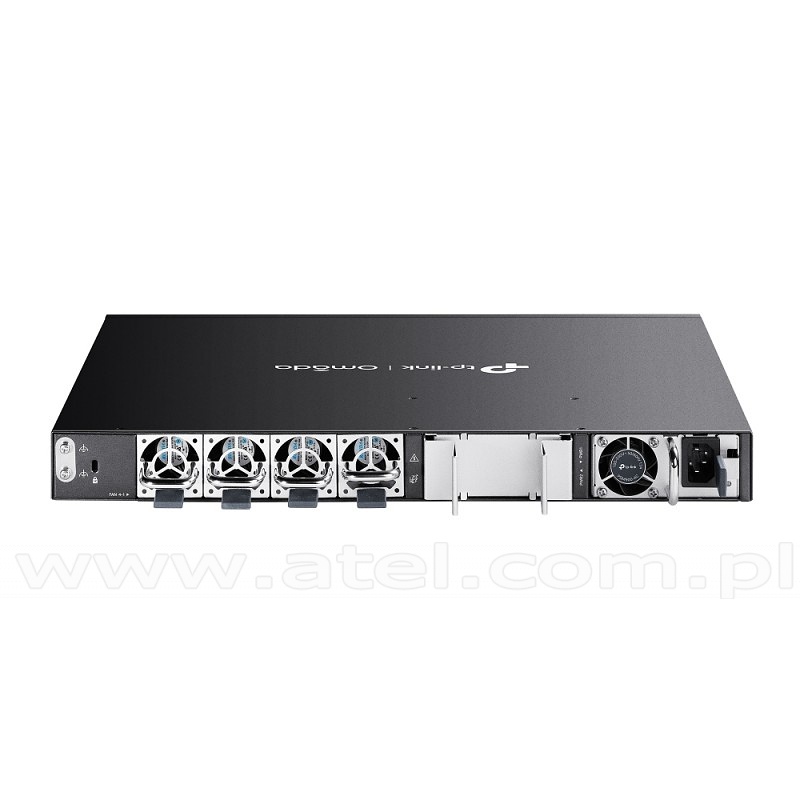

1.0_omada_enterprise_l3_switch-02_large_20231110114433d.jpg?1744996978)

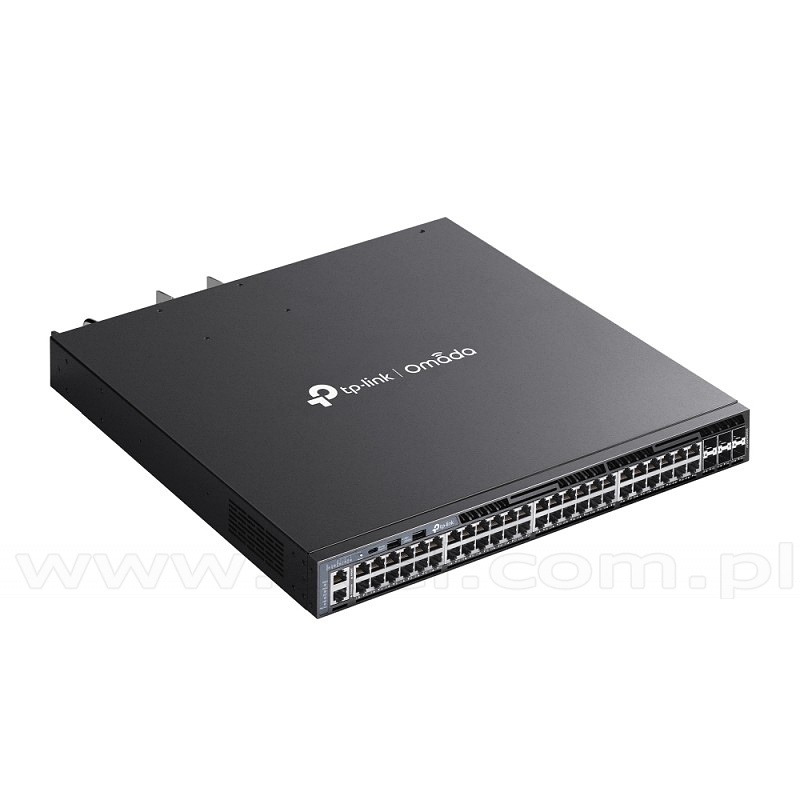

1.0_omada_enterprise_l3_switch-04_large_20231110114445l.jpg?1752413753)
Page 17 of 18
|
