| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at |
|---|---|
| Fan Quantity | 0 |
| Copper ports | 2× 10/100/1000 Mbps PoE++ RJ45 Ports, 6× 10/100/1000 Mbps PoE+ RJ45 Ports, 2× Gigabit SFP/RJ45 Combo Slots |
| PoE Ports | Standard 802.3af/at/bt compliant, PoE++ Ports (802.3af/at/bt PoE) 2 Ports, up to 60W per port, PoE+ Ports (802.3af/at PoE) 6 Ports, up to 30W per port |
| PoE Budget | 60W (Input 12V / 7.2A - 21V / 3.7A)), 120W (Input 21V / 6.7A - 46V / 3.1A), 240W (Input 46V / 5.7A - 57V / 4.4A), Fast PoE, Perpetual PoE |
| Switching Capacity | 20Gbps |
| Packet Forwarding Rate | 14,88 Mpps |
| Mac Address Table | 8K |
| Jumbo Frame | 15 KB |
| Packet Buffer Memory | 4 Mb |
| Auto MDI/MDI-X | yes |
| Auto-negotiation (Nway) | yes |
| Switching architecture / speed | Store and Forward |
| Quality of Service | Support Port-Based/802.1p/DSCP priority, Support 4 priority queues, Rate Limit, Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention, PoE Auto Recovery, Extend Mode |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN |
| Management | |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | Web-based GUI, DHCP Client, Cable Diagnostics, Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Unified Configuration |
| Installation | DIN-rail mounting, Wall mounting |
| Dimensions | 6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm) |
| Operating temperature | -40°C ÷ 75°C |
| Operating humidity | 5% ÷ 95%, non-condensing |

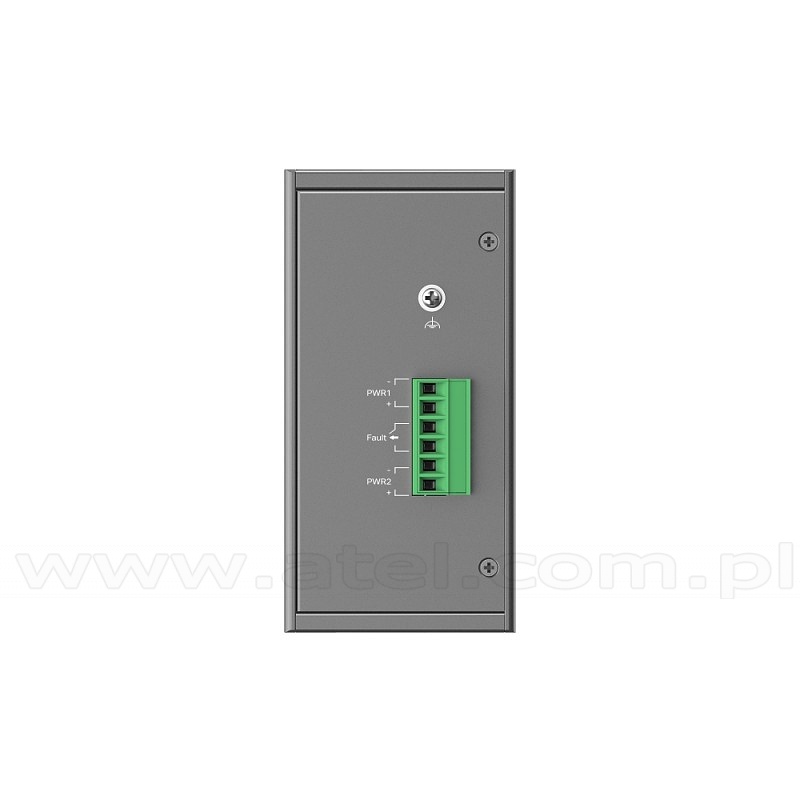

| Power | 12-57V 1+1 Redundant DC Power Input |
| Certificates | CE, FCC, RoHS |
| Package Contents | IES210GPP, DIN-Rail Mounting Bracket, Wall-Mounting Plates, Installation Guide |
| Warranty | 5 years |
| Manufacturer | TP-Link |
Net Price: 237.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
