Transporter EN50155 DevicesORING NETWORKINGTXPS-141XT-M12-24V

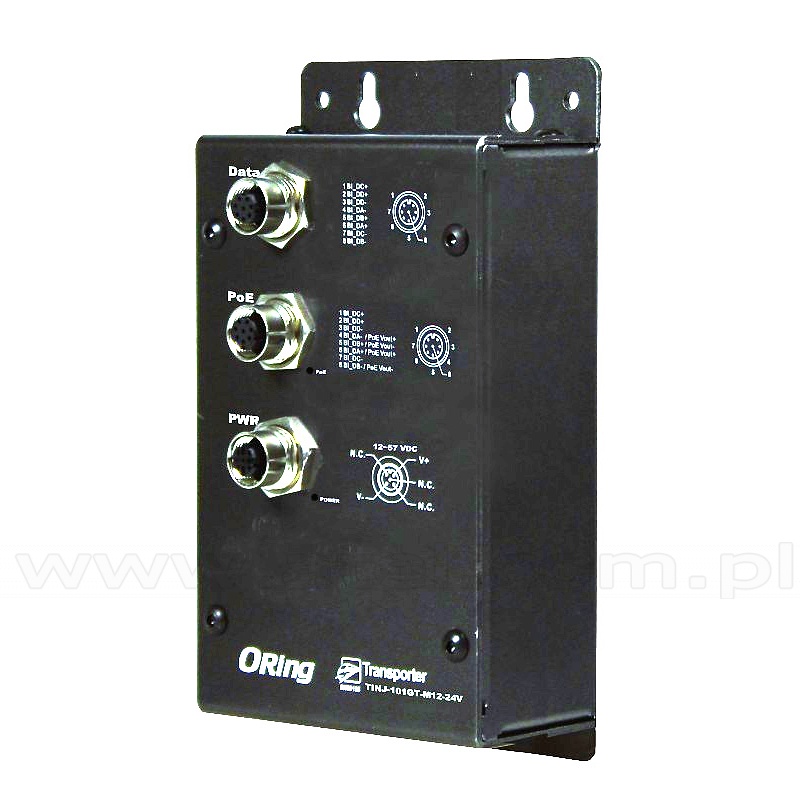

Unmanaged switch, 5x 10/100/500 M12 PoE (ORing TXPS-141XT-M12-24V)

ORing’s TransporterTM series Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. TXPS-141XT-M12 series are unmanaged PoE Ethernet switch with 4x10/100/500Base-T(X) P.S.E. ports and 1x10/100/500Base-T(X) port which is compliant with EN50155 requirement. It is specifically designed for the toughest industrial environments. TXPS-141XT-M12 series EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. TXPS-141XT-M12 series also support Power over Ethernet, a system to transmit electrical power up to 30 watts, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. TXPS-141XT-M12 series switch has 4x10/100/500Base-T(X) P.S.E. (Power Sourcing Equipment) port to provide power in a PoE setup. The very wide operating temperature range from -40 oC to 75oC can satisfy most operating environment.
Physical Ports
10/100/500Base-T(X) with P.S.E. Ports in M12 Auto MDI/MDIX 4
10/100/500Base-T(X) Port in M12 Auto MDI/MDIX 1
Connector Type M12
Technology
Ethernet Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X),
IEEE 802.3x for Flow control,
IEEE 802.3at compliant PoE specification (Maximum 30Watts per port)
Processing Store-and-Forward
LED Indicators
Power / Ready indicator Green Power LED x 1
10/100/500Base-T(X) M12 port indicator and PoE indicator Top for port Link/Act indicator. Green for 10/100Mbps link,
Middle Green for 500Mbps port Link/Act indicator,
Bottom blue for PoE Injected indicator
10/100/500Base-T(X) M12 port indicator Top Green for port Link/Act at 10/100Mbps,
Bottom Green for port Link/Act at 500Mbps
Power
Redundant Input Power 12~57VDC power input on M12 female connector (5-pin M12 A-coding)
Power consumption (typical) 2W
PoE Output Power 60W (12~24VDC) / 120W (24~57VDC)
Overload current protection present
Reverse polarity protection Present
Physical Characteristic
Dimension (W x D x H) 88.9 x 55 x 178.2 mm
Weight 643 g
Environmental
Enclosure IP-30
Storage Temperature -40÷85°C (-40÷185°F)
Operating Temperature -40÷75°C (-40÷167°F)
Operating Humidity 5%÷95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A,
EN50155 (EN50121-3-2,
EN55011,
EN50121-4)
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27,
EN61373
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
Warranty
Warranty period 5 years

TAGS: EN50155, M12
* For special orders only
Net Price: 676.00 USD  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
