#06879
Industrial SwitchesORING NETWORKINGIGS-1041GPA

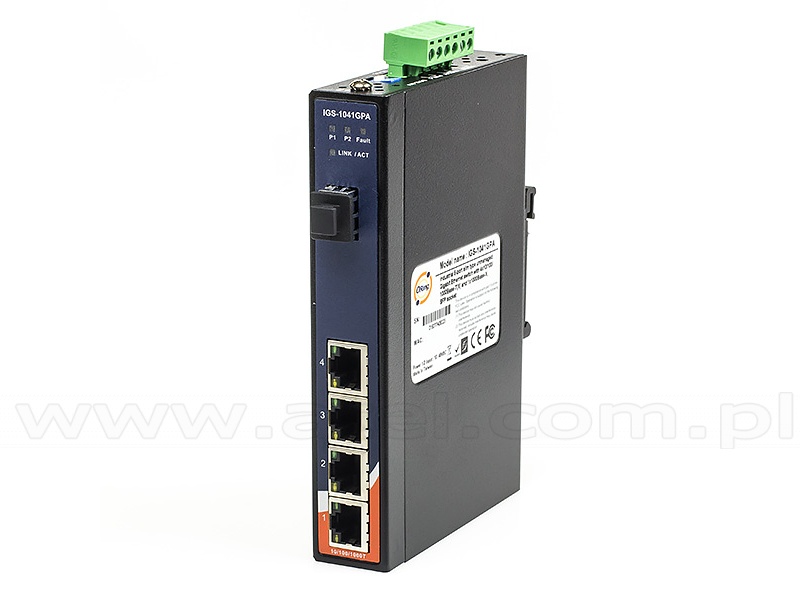

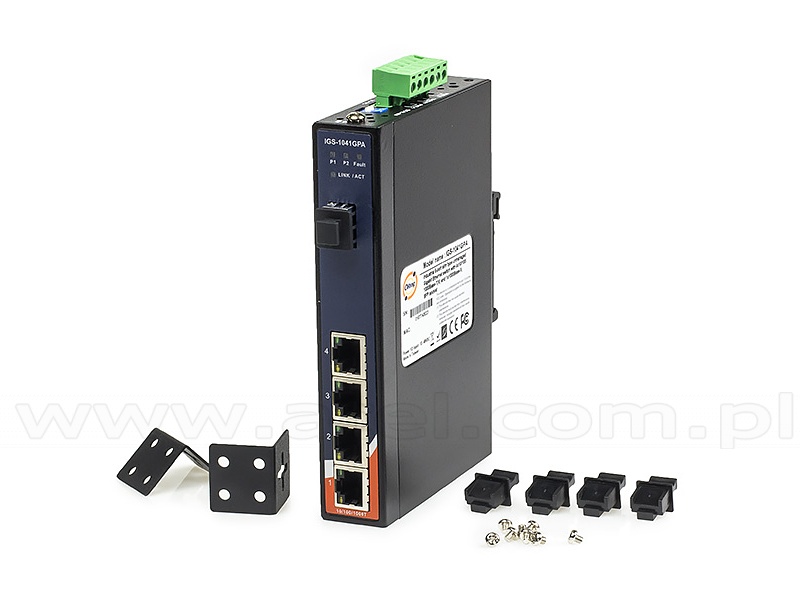

Unmanaged switch, 4x 10/1000 RJ-45 + 1x 1000 SFP , slim housing (ORing IGS-1041GPA)

IGS-1050A/IGS-1041GPA series are unmanaged gigabit Ethernet switches with 5 x 10/100/1000Base-T(X) ports or 4 x 10/100/1000Base-T(X) and 1 x 1000Base-X SFP ports. IGS-1050A/IGS-1041GPA series support redundant power inputs, rigid IP-30 housing and have DIP switches for enabling or disabling relay output alarm. In addition, the wide operating temperature range from -40 to 70C can satisfy most of operating environment.
Physical Ports
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX 4
1000Base-X SFP Ports 1
Technology
Ethernet Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X) and 100BaseFX,,
IEEE 802.3z for 1000Base-X,
IEEE 802.3x for Flow control
MAC Table 1024 MAC addresses
Processing Store-and-Forward
LED Indicators
Power indicator Green - Power LED x 2
Fault indicator Amber - Indicate PWR1 or PWR2 failure
10/100/1000TX RJ45 port Indicator Green on only for 1000Mbit,
Green and Amber on for 100Mbit,
Amber on only for 10Mbit
1000X SFP port Indicator Green for port Link/Act
Fault contact
Relay Relay output to carry capacity of 1A at 24VDC
Power
Input power Dual DC inputs. 1248VDC on 6-pin terminal block
Power consumption (typical) 5.5W
Overload current protection present
Reverse polarity protection present on terminal block
Physical Characteristic
Enclosure IP-30
Dimension (W x D x H) 26.1mm x 94.9m x 144.3mm
Weight 403g
Environmental
Storage Temperature -4085C (-40185F)
Operating Temperature -1060C (-40158F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950
Warranty
Warranty period 5 years

* For special orders only
Net Price: 193.00 USD  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
