#06675
SELL OUT
Industrial Power SuppliesMEAN WELLMDR-20-24

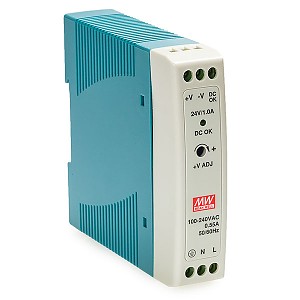

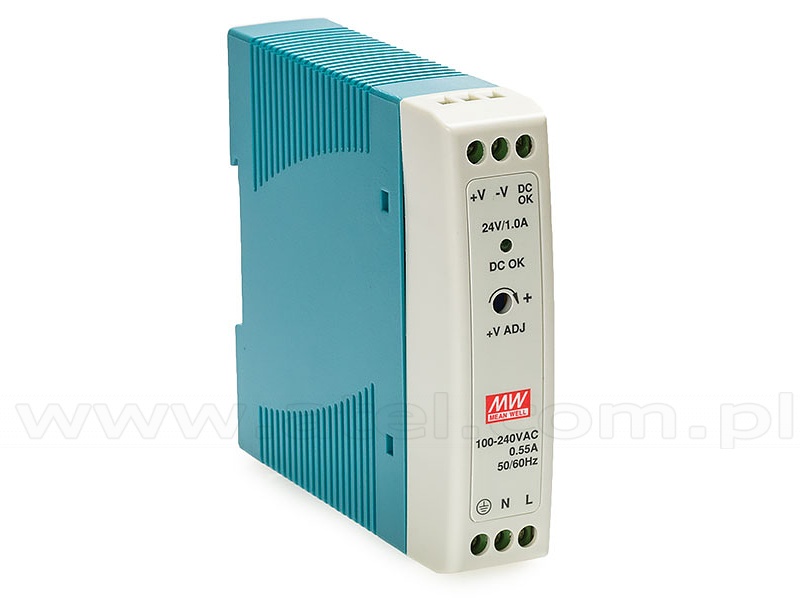

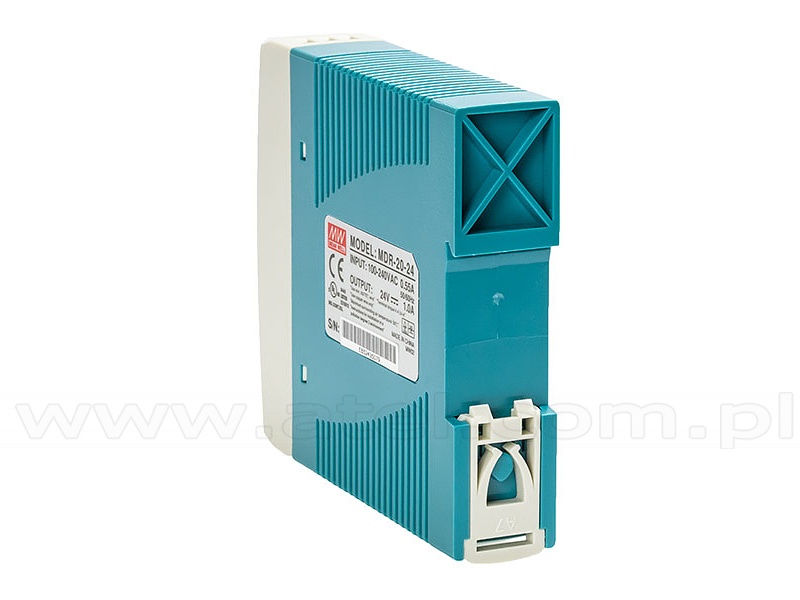

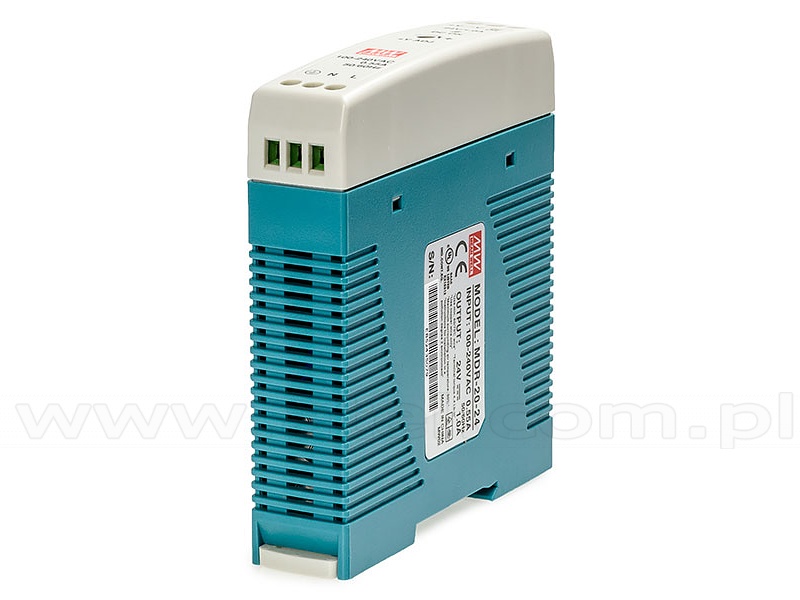

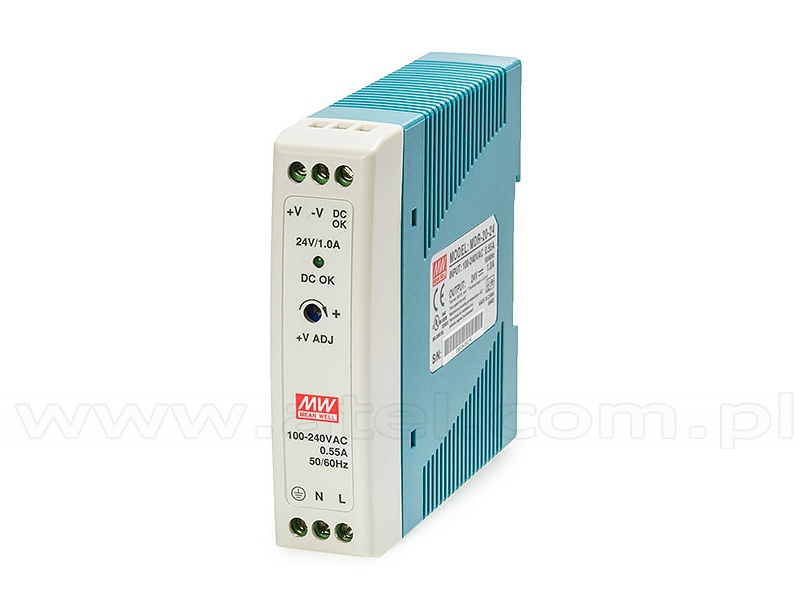

Power supply 24W 24VDC, mini, DIN TS35 (Mean Well MDR-20-24)

DIN rail Mean Well MDR series meets the highest standards and criteria, so that it can be used to work in the industrial automation systems, machine control, power, lighting and a wide range of devices.

The power supply is cooled by free air flow, making it a highly fault-free - a very important feature when power supply is working continuously. Operating temperature for this model ranges from -20 to +70 degrees Celsius.
Moreover, the PSU has an overload protection 105-160% of the nominal value.
Output
DC Voltage 24V
Rated current 1A
Current Range 0÷1A
Rated Power 24W
Ripple & noise (max.) 150mVp-p
Voltage adjustment range 21.6÷26.4V
Voltage tolerance ±1.0%
Line regulation ±1.0%
Load regulation ±1.0%
Setup & rise time 500ms & 30ms/230VAC at full load,
1000ms & 30ms/115VAC at full load
Hold up time (typ.) 50ms/230VAC at full load,
20ms/115VAC at full load
Input
Voltage range 85÷264VAC,
120÷370VDC
Frequency range 47÷63Hz
Efficiency (typ.) 84%
AC current (typ.) 0.55A/115VAC,
0.35A/230VAC
Inrush current (typ.) 20A/115VAC cold start,
40A/230VAC cold start
Leakage current <1mA/240VAC
Protection
Overload 105%÷160% rated output power,
protection type - constant current limiting - recovers automatically after fault condition is removed
Overvoltage 27.6÷32.4V,
protection type - shut down o/p voltage & re-power on to recover
Function
DC OK active signal 18÷27V/20mA
Environment
Working temperature -20°C ÷ 70°C
Working humidity 20÷90% RH non-condensing
Storage temperature -40°C ÷ 85°C
Storage Humidity 10÷95% RH
Temperature coefficient ±0.03%/°C (0÷50°C)
Vibration (component) 10÷500Hz,
2G 10min./1cycle,
60min. each along X Y Z axes
Vibration (mounting) compliance to IEC60068-2-6
Safety & EMC
Safety standards UL508,
TUV EN60950-1,
NEC class 2 / LPS
Withstand voltage I/P-O/P 3kVAC,
I/P-FG 1.5kVAC,
O/P-FG 0.5kVAC
Isolation resistance I/P-O/P 100MΩ/500VDC,
I/P-FG 100MΩ/500VDC,
O/P-FG 100MΩ/500VDC
EMI conduction & radiation EN55011,
EN55022 (CISPR22),
EN61204-3 Class B
Harmonic current EN61000-3-2,
EN61000-3-3
EMS immunity EN61000-4-2/3/4/5/6/8/11,
ENV50204,
EN55024,
EN61000-6-1,
EN61204-3,
light industry level criteria A
Others
MTBF min. 236900h MIL-HDBK-217F (25°C)
Dimension (W x H x D) 22.5mm x 90mm x 100mm
Weight 0.19kg
Warranty 3 years

Net Price: 13.00 USD  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
