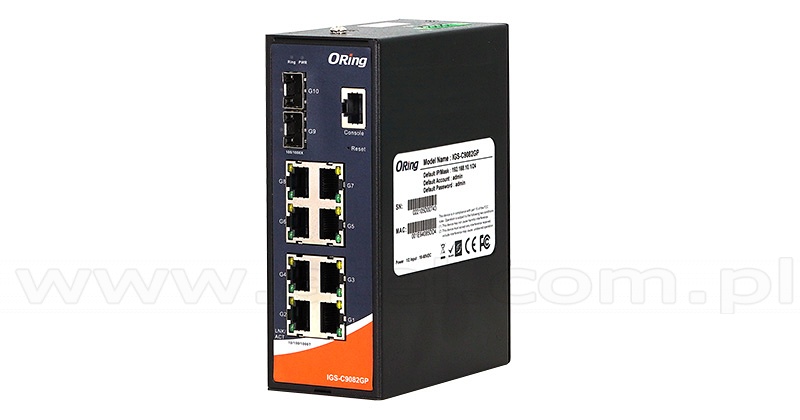

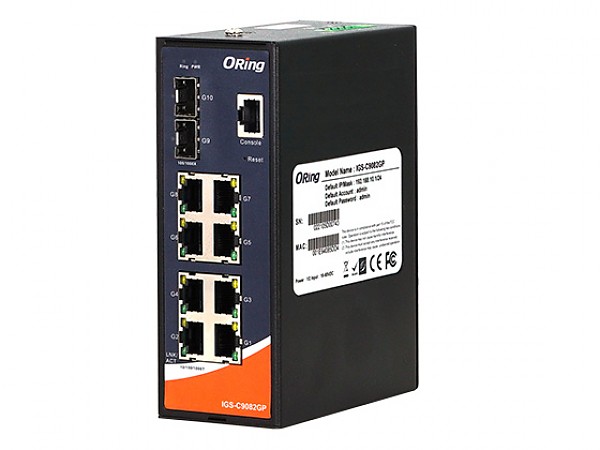

Managed switch, 8x 10/1000 RJ-45 + 2x100/1G/2.5G SFP, O/Open-Ring <30ms (ORing IGS-C9082GP)
IGS-C9082GP Series are managed redundant ring Ethernet switch with up to 8x10/100/1000 Base-T(X) ports and
2x100/1G/2.5G Base-X, SFP socket which is specifically designed for the toughest. IGS-C9082GP Series support wide
operating temperature from -40℃ to 75℃ which can fulfill most of the requirement of operation environment. Therefore,
the IGS-C9082GP Series switch is one of the most reliable choices for highly-managed Ethernet application.
2x100/1G/2.5G Base-X, SFP socket which is specifically designed for the toughest. IGS-C9082GP Series support wide
operating temperature from -40℃ to 75℃ which can fulfill most of the requirement of operation environment. Therefore,
the IGS-C9082GP Series switch is one of the most reliable choices for highly-managed Ethernet application.
| Physical Ports | |
|---|---|
| 10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX | 8 |
| 100/1G/2.5GBase-X, SFP socket | 2 |
| RS-232 Serial Console Port | RS-232 in RJ45 connector with console cable (115200bps 8 N 1) |
| Technology | |
| Ethernet Standards | IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000Base-X, IEEE 802.3ab for 1000Base-T, IEEE 802.3x for Flow control, IEEE 802.3ad for LACP (Link Aggregation Control Protocol), IEEE 802.1D for STP (Spanning Tree Protocol), IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1x for Authentication, IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
| MAC Table | 8192 MAC addresses |
| Priority Queues | 8 |
| Processing | Store-and-Forward |
| Switching latency | 7 µs |
| Switching bandwidth | 18 Gbps |
| Max. Number of Available VLANs | 4096 |
| IGMP multicast groups | 128 for each VLAN |
| Port rate limiting | User Define |
| Security Features | Enable/disable ports, MAC based port security, Port based network access control (802.1x), VLAN (802.1q ) to segregate and secure network traffic, Radius centralized password management, SNMPv3 encrypted authentication and access security |
| Software Features | STP/RSTP (IEEE 802.1D/w), Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units, TOS/Diffserv supported, Quality of Service (802.1p) for real-time traffic, VLAN (802.1Q) with VLAN tagging and GVRP supported, IGMP Snooping for multicast filtering, Port configuration, Port status, Port statistics, Port monitoring, Port security |
| Network Redundancy | STP, RSTP, MSTP, O-Ring |
| DDM Function | Voltage, Current, Temperature |
| Power | |
| Input power | Dual DC inputs. 12÷48VDC on 5-pin terminal block |
| Power consumption (typical) | 10W |
| Overload current protection | present |
| Physical Characteristic | |
| Enclosure | IP-40 |
| Dimension (W x D x H) | 52mm x 110mm x 140mm |
| Weight | <700 g |
| Environmental | |
| Storage Temperature | -40÷85°C(-40÷185°F) |
| Operating Temperature | -40÷75°C (-14÷163°F) |
| Operating Humidity | 5%÷95% Non-condensing |
| Regulatory approvals | |
| EMI | FCC Part 15, CISPR (EN55032) class A |
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-31 |
| Vibration | IEC60068-2-6 |
| MTBF | >400,000 Hours |
| Warranty | |
| Warranty period | 5 years |
TAGS:
SFP slot
Net Price: 992.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
