#06526
Serial Device ServersORING NETWORKINGIDS-312L

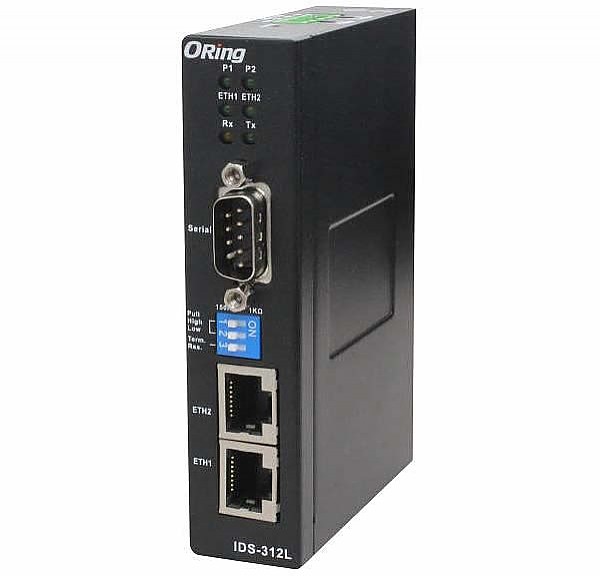

Device server, 1x RS-232/422/485 + 2x 10/100 RJ-45 (LAN) (ORing IDS-312L)

IDS-312L is an innovative secure 1 port RS-232/422/485 to 2 port LAN device server with standard features of device server, such like TCP/IP interface and versatile operation modes: Virtual Com, Serial Tunnel, TCP Server, TCP Client, and UDP. In addition, the Windows untility, DS-Tool, could configure multiple devices and set up the mappings of Virtual Com. On the other hand, IDS-312L can simultaneously transfer data up to 5 redundant host PCs to aovid Ethernet connection breakdown or any host PC fails.
IDS-312L supports RS-232/422/485 and provides dual redundant power inputs, 12~48 VDC, on terminal block to guarantee a non-stop operation. With wide operating temperature, -40~70oC, and rugged IP-30 housing design, IDS-312L series could operate in the harsh industrial environment. Therefore, IDS-312L is the best solution to the high demand of secure serial to Ethernet critical data communication.
Physical Ports
10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX 2
Serial Ports
Connector DB9 x1
Operation Mode RS-232,
RS-422,
RS-485 4/2-wire,
can be configured by DS-Tool
Serial Baud Rate 110 bps to 460.8 Kbps
Data Bits 7, 8
Parity odd,
even,
none,
mark,
space
Stop Bits 1, 1.5, 2
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485 (4-wire) Tx+, Tx-, Rx+, Rx-, GND
RS-485 (2-wire) Data+, Data-, GND
Flow Control XON/XOFF,
RTS/CTS,
DTR/DSR
Network Protocol ICMP,
IP,
TCP,
UDP,
DHCP,
BOOTP,
DNS,
SNMP V1/V2c,
HTTPS
LED Indicators
Power indicator PWR 1(2) / Ready Green On - Power is on
10/100TX RJ45 port indicator Green for port Link/Act
Serial TX / RX LEDs Amber - Serial port is receiving data,
Green - Serial port is transmitting data
Power
Input power Dual DC inputs. 12÷48VDC on 4-pin terminal block
Power consumption (typical) 1.44W
Overload current protection present
Reverse polarity protection present
Physical Characteristic
Enclosure IP-30
Dimension (W x D x H) 26 (W) x 75 (D) x 110 (H) mm
Weight 227g
Environmental
Storage Temperature -40÷85°C (-40÷185°F)
Operating Temperature -40÷70°C (40÷158°F)
Operating Humidity 5%÷95% Non-condensing
Regulatory approvals
EMI FCC Part 15B,
CISPR 32 ( EN55032 Class A)
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
Warranty
Warranty period 5 years

« previous product  |  next product »     » show on list«» Serial Device Servers «
* For special orders only
Net Price: 208.00 USD  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
[+]add item to comparison | show comparison [0]
