#04453
Surge protectorsSUG-7 / 12VDC

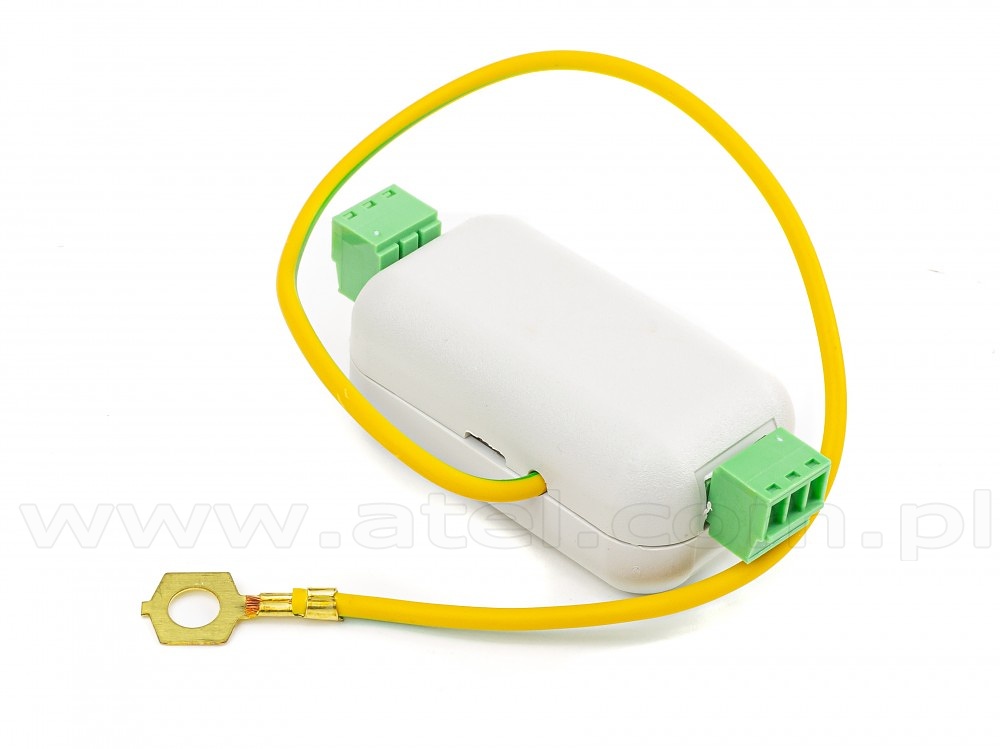

12VDC surge protector (SUG-7/12VDC)

Protection for devices powered with DC voltage up to 12V. It protects against sudden voltage increase, overvoltage pulses and lightning. The built-in fuse protects the power sources in the event of a short circuit in the receiver or cables, and reduces the possibility of fire.
Purpose 12VDC powered devices
Maximum voltage 16VDC (line-to-line),
90VDC (line-to-ground)
Maximum current 2A (pulse)
Protection level 67A (line-to-line),
2x10kA (line-to-ground)
Connectors screw connectors (input and output),
cable with 2.1 / 5.5 plug
Dimensions 74x32x25mm
Manufacturer Ewimar Sp. z o.o.
It is recommended to use two earthed protective devices. One at the power source, the other at the receiving device.

Net Price: 18.60 USD  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
