#04457
Surge protectorsSUG-7-DIN / 48VDC

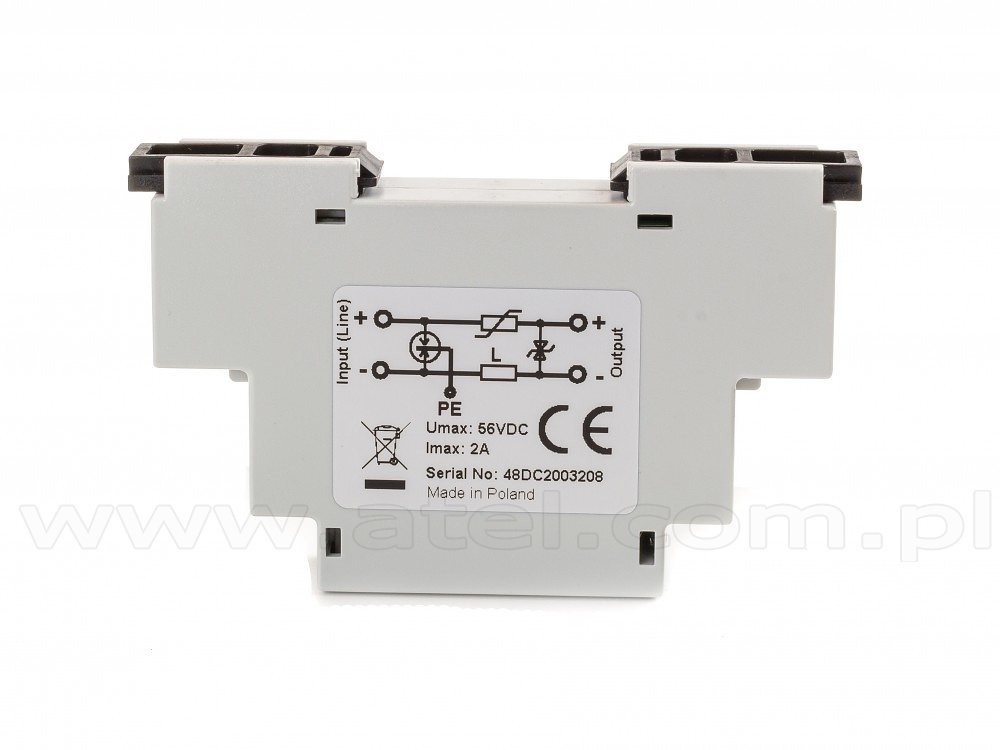

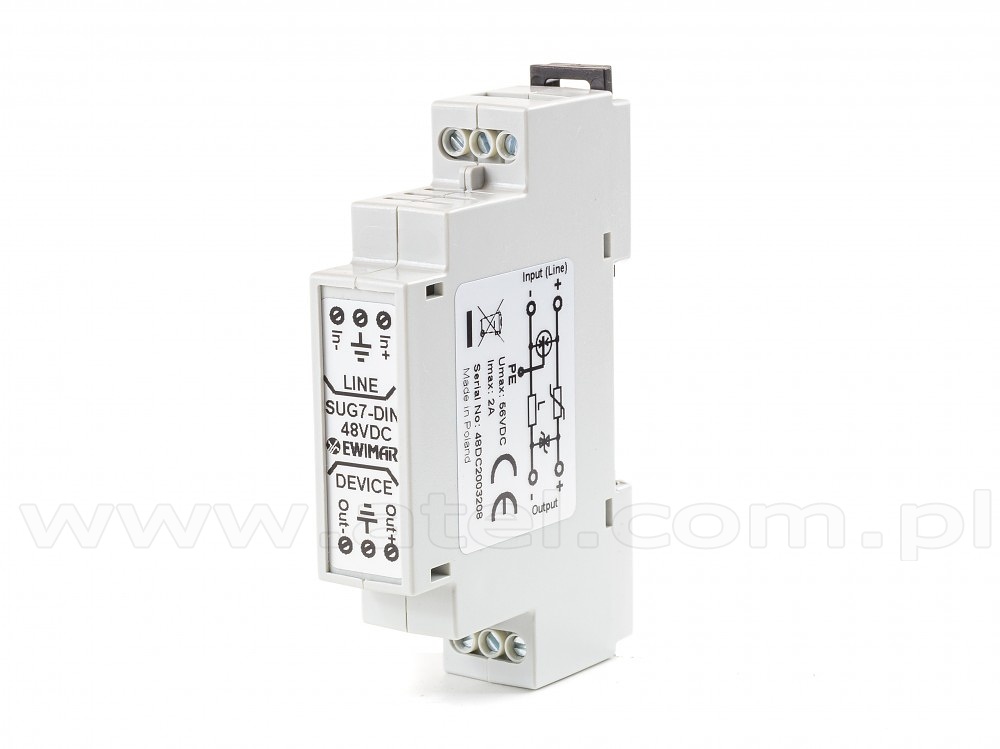

48VDC surge protector, DIN mounted (SUG-7-DIN/48VDC)

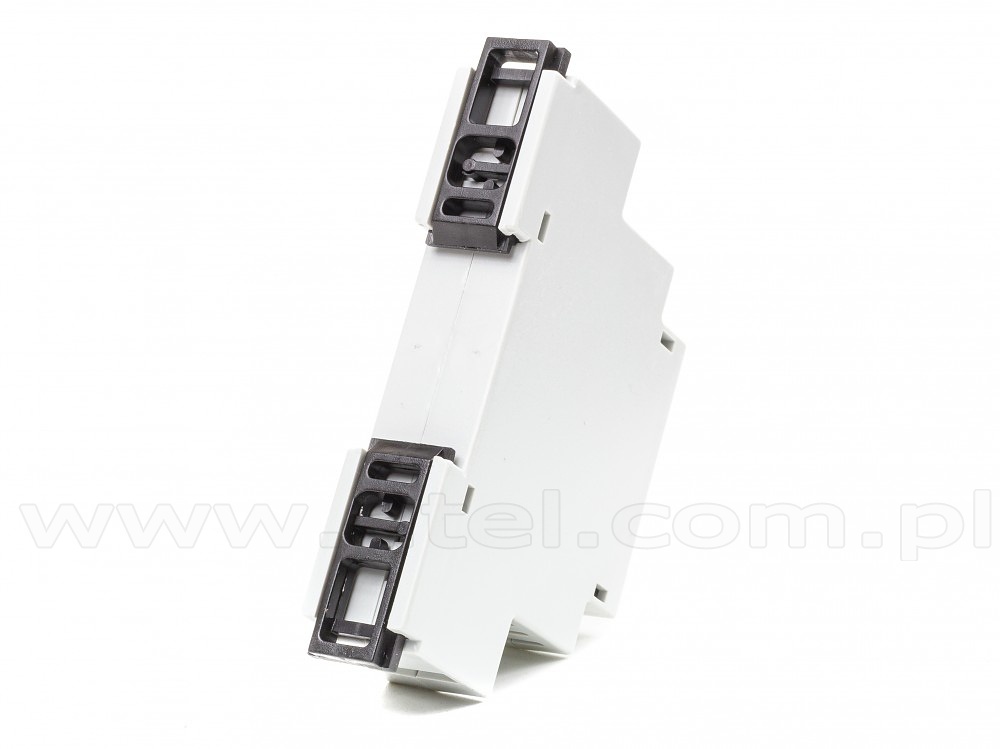

Protection for devices powered with DC voltage up to 48V. It protects against sudden voltage increase, overvoltage pulses and lightning. The built-in fuse protects the power sources in the event of a short circuit in the receiver or cables, and reduces the possibility of fire. The handle enables mounting directly on a DIN rail.
Designed for 48VDC powered devices
Maximum voltage 56VDC (line-to-line),
90VDC (line-to-ground)
Maximum current 2A (pulse)
Protection level 19,7A (line-to-line),
2x10kA (line-to-ground)
Connectors screw connectors (input and output)
Dimensions 18x90x59mm
Manufacturer Ewimar Sp. z o.o.
It is recommended to use two earthed protective devices. One at the power source, the other at the receiving device.

Net Price: 27.10 USD  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
