MENU#09307
| HARDWARE FEATURES: | |
|---|---|

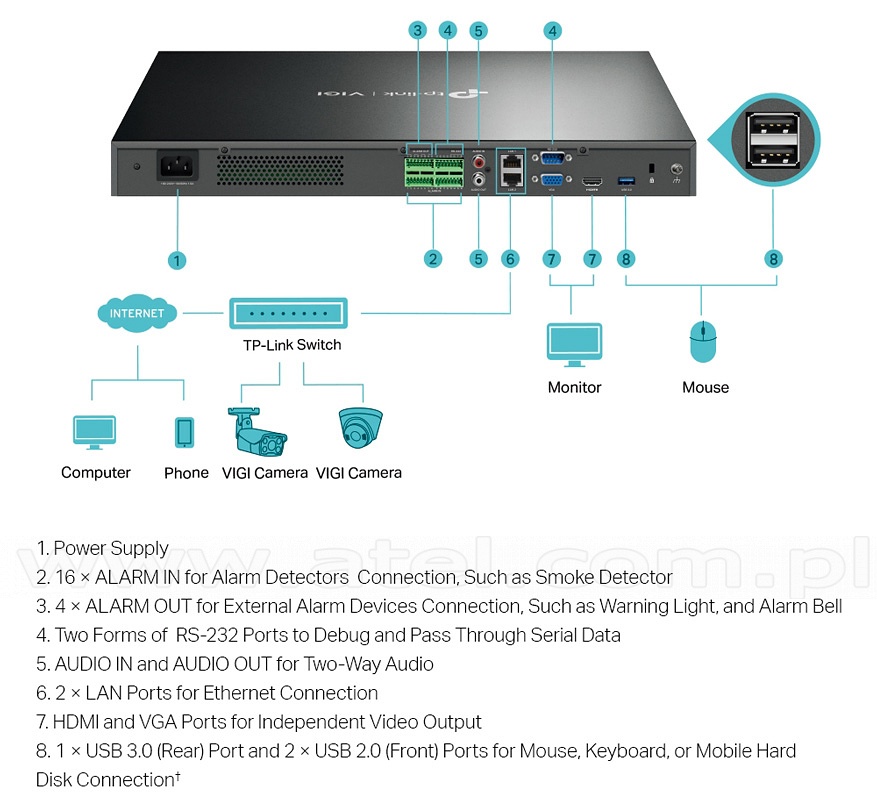

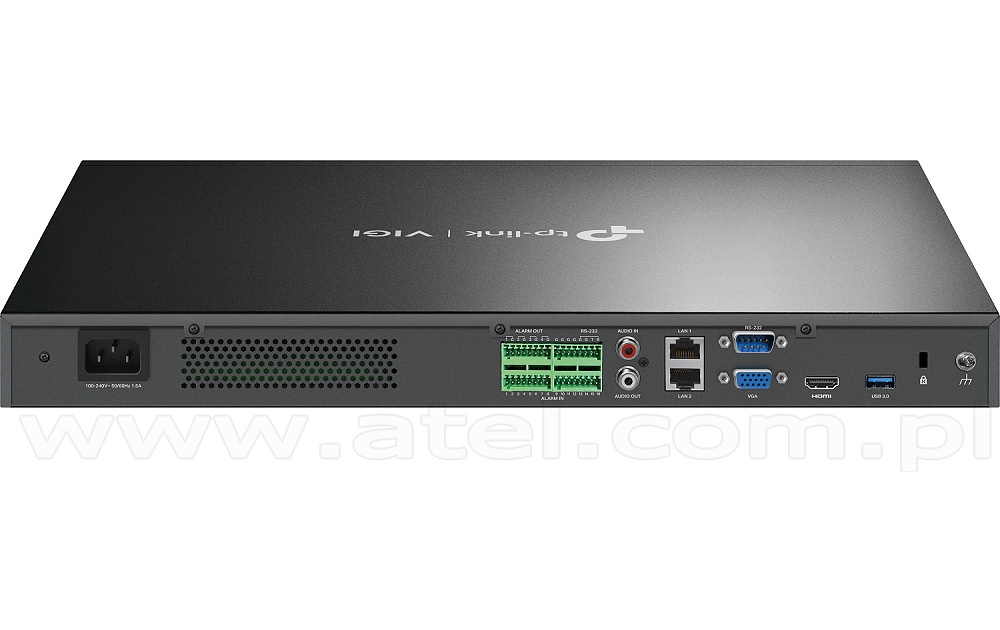

| Network Interface | 2 RJ45 10/100/1000M Self-Adaptive Ethernet Port, USB 2.0, 1 Audio In, 1 Audio Out, 1 RS232 |
| External Power Supply | 100-240 VAC, 50 to 60HZ, 1.5A |
| Dimensions( H X W X D ) | 440 × 330 × 44 mm |
| Weight | 4.0 Kg |
| Power Consumption | 5 W (Without Disk), 48 W (With Disk) |
| NETWORK: | |
| Protocol | UPnP (Plug and Play), NTP (Network Timing) |
| Incoming Bandwith | 320 Mbps |
| Outgoing Bandwidth | 320 Mbps |
| Interoperability | ONVIF, CGI |
| Mobile Phone Access | Android, iOS |
| Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| ALARM | |
| General Alarm | Motion Detection, Video Tampering, Intrusion Detection, Line-Crossing Detection |
| Anomaly Alarm | Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception |
| Alarm Linkage | Recording, White Ligh Alarm, Buzzer, Log, Audible Alarm |
| VIDEO/IMAGE: | |
| Video Input | 32-Channel IP Video Input |
| Multi-View Dispaly | 1/4/6/8/9/16/25/32/36 |
| Video Output Mode | HDMI/VGA Independent Output |
| Recording Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| HDMI Output Resolution | 1 Channel, Resolution 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA Output Resolution | 1 Channel, Resolution 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| DECODING: | |
| Decoding Format | H.265+/H.265/ H.264+/H.264 |
| Live View/Playback Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-Channel |
| Capability | 16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP (30 fps) |
| HARD DISK: | |
| SATA | 4 SATA Interfaces |
| Capacity | Up to 10 TB Capacity for Each HDD |
| OTHERS: | |
| Working Temperature | -10–55 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Package Contents | VIGI Network Video Recorder, Power Adapter, HDD Screws, Mouse, Quick Installation Guide |
| Environment | Operating Temperature -10°~55° |
Net Price: 969.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
