#09090
Standard ACTP-LINKEAP265 HD

1750Mbps Outdoor Wireless Access Point, AC1750 (TP-Link EAP265 HD)

  • Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz totals 1750 Mbps Wi-Fi speeds.
  • High-Density Connectivity: MU-MIMO, Load Balance, and professional antennas improve capacity in high-density environments to connect more devices simultaneously.
  • Integrated into Omada SDN: Supports Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
  • PoE Support: Supports both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Standards IEEE 802.11ac/n/g/b/a
Ports 2 × Gigabit Ethernet (RJ-45) Port (One port supports IEEE802.3af/at PoE and Passive PoE)
Button Reset
Frequency range 2.4GHz and 5GHz
Signal Rate 5GHz Up to 1300Mbps,
2.4GHz Up to 450Mbps
EIRP CE <20dBm(2,4GHz) <23dBm(5GHz),
FCC <27dBm
Wireless Functions Multiple SSIDs (Up to 16 SSIDs,
8 for each band),
Enable/Disable Wireless Radio,
Automatic Channel Assignment,
Transmit Power Control (Adjust Transmit Power on dBm),
QoS(WMM),
Airtime Fairness,
Beamforming,
Band Steering,
Load Balance,
Rate Limit,
Link Aggregation,
Reboot Schedule,
Wireless Schedule,
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication,
Access Control,
Wireless Mac Address Filtering,
Wireless Isolation Between Clients,
SSID to VLAN Mapping,
Rogue AP Detection,
802.1X Support,
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
MANAGEMENT
Omada App Yes
Centralized Management Omada Cloud-Based Controller,
Omada Hardware Controller (OC300),
Omada Hardware Controller (OC200),
Omada Software Controller
Cloud Access Yes (Through OC300,
OC200,
Omada Cloud-Based Controller,
or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Antenna 2 Dual-Band Antennas,
2.4GHz- 2*3.5dBi,
5GHz- 2*4dBi
Dimensions 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
Power 802.3af/at PoE,
48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption 12.3 W
Mounting Ceiling /Wall Mounting (Kits included)
Physical Security Lock Yes
Operating Temperature 0°C~40°C (-32℉~104℉)
Storage Temperature -40℃~70℃ (-40℉~158℉)
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing

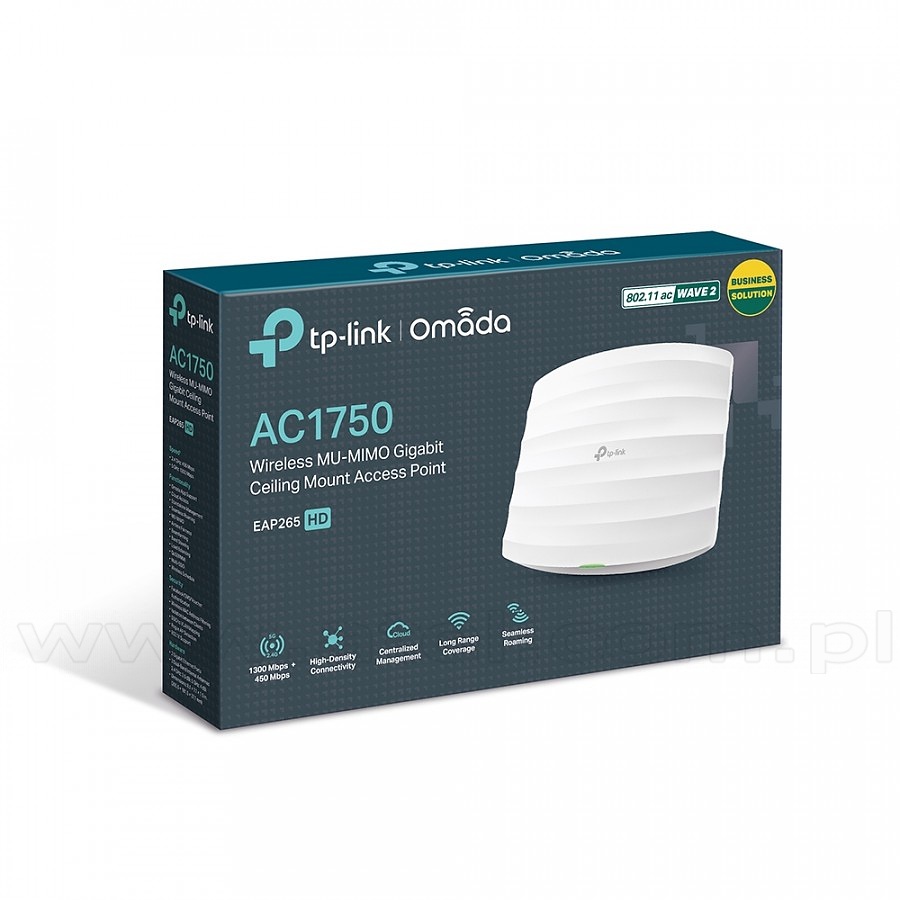

Package Contents AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP265 HD,
Gigabit Passive PoE Adapter,
Power Cord,
Mounting Kits,
Installation Guide
System Requirements Microsoft Windows XP,
Vista,
Windows 7,
Windows 8,
Windows 10,
Linux
Certificates CE,
FCC,
RoHS

TAGS: PoE
Net Price: 101.00 USD  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
