Wireless Communication
Monday, 4 November
Search for product:
#06238
Standard ACTP-LINKArcher C6

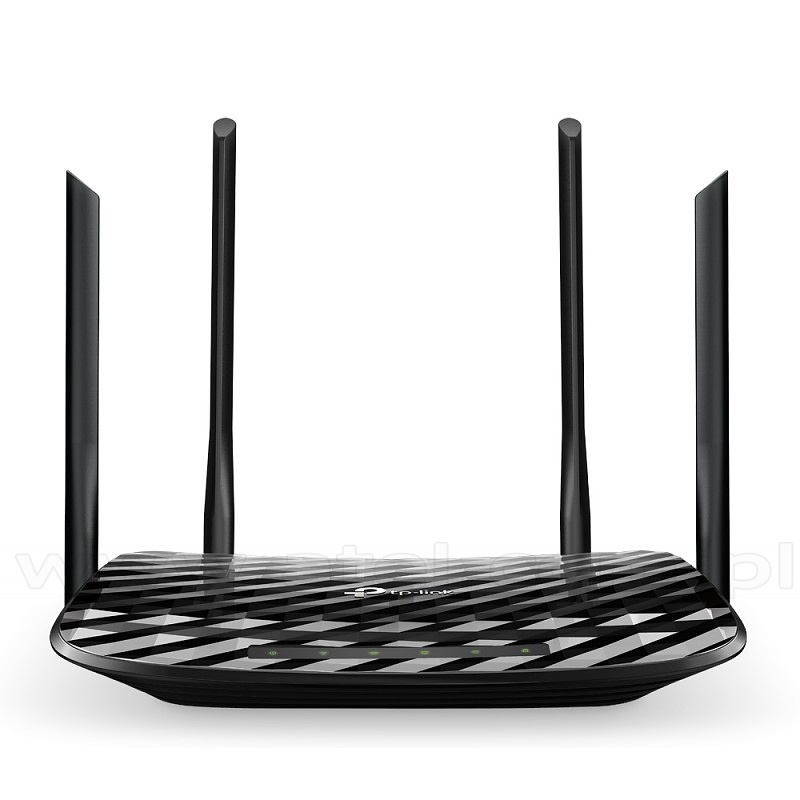

1200Mbps Wireless Gigabit Router Dualband AC1200 (TP-Link Archer C6)

  • Supports 802.11ac standard
  • Simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of total available bandwidth
  • 4 external antennas and one internal antenna provide stable wireless connections and optimal coverage
  • Easy network management at your fingertips with TP-Link Tether
  • MU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once
  • Supports Access Point mode to create a new Wi-Fi access point
HARDWARE FEATURES:
Standards and Protocols IEEE 802.11ac/n/a 5GHz,
IEEE 802.11b/g/n 2.4GHz
Interface 4 10/100/1000Mbps LAN Ports,
1 10/100/1000Mbps WAN Port
Button WPS Button,
Wireless On/Off Button,
Reset Button,
On/Off Button
External Power Supply 12V/1A
Dimensions (W X D X H) 230 × 144 × 35 mm (9,1 × 5,7 × 1,4 in.)
Antenna 3 external detachable dual band antennas (RP-SMA)
WIRELESS FEATURES:
Frequency 2.4GHz & 5GHz
Signal Rate 5GHz Up to 867Mbps,
2.4GHz Up to 300Mbps
EIRP CE EIRP <20dBm(2.4GHz); <23dBm(5GHz)
Reception Sensitivity 5GHz - 11a 6Mbps-93dBm,
11a 54Mbps -78dBm,
11ac HT20 -69dBm,
11ac HT40 -65dBm,
11ac HT80 -62dBm,
2.4GHz - 11g 54M -78dBm,
11n HT20 -74dBm,
11n HT40 -71dBm
Wireless Functions Enable/Disable Wireless Radio,
WDS Bridge,
WMM,
Wireless Statistics
Wireless Security 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
SOFTWARE FEATURES:
WAN Type Dynamic IP/Static IP/PPPoE/,
PPTP (Dual Access)/L2TP (Dual Access)/BigPond
DHCP Server,
Client,
DHCP Client List,
Address Reservation
Quality of Service WMM,
Bandwidth Control
Port Forwarding Virtual Server, Port Triggering,
UPnP,
DMZ
Dynamic DNS DynDns,
Comexe,
NO-IP
VPN Pass-Through PPTP,
L2TP,
IPSec
Access Control Parental Control,
Local Management Control,
Host List,
Access Schedule,
Rule Management
Firewall Security DoS,
SPI Firewall,
IP Address Filter/MAC Address Filter/Domain Filter,
IP and MAC Address Binding
USB Sharing Support Samba(Storage)/FTP Server/Media Server/Printer Server
Management Access Control,
Local Management,
Remote Management
Guest Network 2.4GHz guest network × 1, 5GHz guest network × 1
OTHERS:
Certification CE,
FCC, IC,
RoHS
Package Contents Wireless Router Archer C6,
Power Adapter,
RJ45 Ethernet Cable,
Quick Installation Guide
System Requirements Microsoft® Windows® 98SE,
NT,
2000,
XP,
Vista™,
Windows 7 or Windows 8,
MAC® OS,
NetWare®,
UNIX® or Linux.
Environment Operating Temperature 0°~40° (32°~104°),
Storage Temperature -40°~70° (-40°~158°),
Operating Humidity 10%~90% non-condensing,
Storage Humidity 5%~90% non-condensing
Warranty 2 years limited warranty. Advanced replacement service is available.
Manufacturer TP-Link

Net Price: 35.40 USD  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
