#04572
Standard ACTP-LINKArcher C20

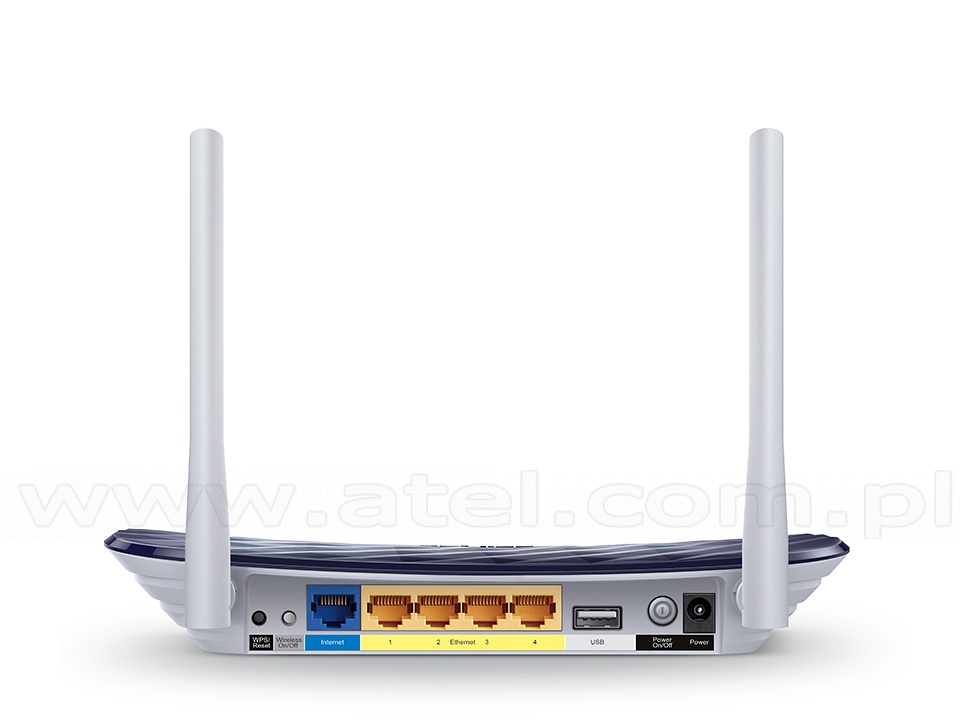

750Mbps Wireless Router Dual-band AC750 (TP-Link Archer C20)

  • Supports 802.11ac standard - the next generation of Wi-Fi
  • Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections for 733Mbps of total available bandwidth
  • 3 external antennas provide stable omnidirectional signal and superior wireless coverage
HARDWARE FEATURES:
Standards and Protocols IEEE 802.11ac/n/a 5GHz,
IEEE 802.11b/g/n 2.4GHz
Interface 4 10/100Mbps LAN Ports,
1 10/100Mbps WAN Port
Button WPS/Reset Button,
Wireless On/Off Button,
Power On/off Button
External Power Supply 9VDC / 0.6A
Dimensions (W X D X H) 230 x 144 x 35mm (9,1 x 5,7 x 1,4 in.)
Antenna 3 Antennas
WIRELESS FEATURES:
Frequency 2.4GHz & 5GHz
Signal Rate 5GHz Up to 433Mbps,
2.4GHz Up to 300Mbps
EIRP CE <20dBm(2,4GHz),
<23dBm(5GHz),
FCC <30dB
Wireless Functions Enable/Disable Wireless Radio,
WMM,
Wireless Statistics
Wireless Security 64/128-bit WEP,
WPA/WPA2,
WPA-PSK/WPA2-PSK encryption
SOFTWARE FEATURES:
WAN Type Dynamic IP/Static IP/PPPoE/,
PPTP (Dual Access)/L2TP (Dual Access)/BigPond
DHCP Server,
Client,
DHCP Client List,
Address Reservation,
DHCP relay
Quality of Service WMM,
Bandwidth Control
Port Forwarding Virtual Server, Port Triggering,
UPnP,
DMZ
Dynamic DNS DynDns,
Comexe,
NO-IP
VPN Pass-Through PPTP,
L2TP,
IPSec Passthrough
Access Control Parental Control,
Local Management Control,
Host List,
Access Schedule,
Rule Management
Firewall Security DoS,
SPI Firewall,
IP Address Filter/MAC Address Filter/Domain Filter,
IP and MAC Address Binding
USB Sharing Support Samba(Storage)/FTP Server/Media Server/Printer Server
Management Access Control,
Local Management,
Remote Management
Guest Network 2.4GHz guest network × 1, 5GHz guest network × 2
OTHERS:
Certification CE,
FCC, IC,
RoHS
Package Contents Archer C20,
Power supply unit,
Quick Installation Guide,
Ethernet Cable
System Requirements Microsoft® Windows® XP,
Vista™,
Windows 7 or Windows 8,
MAC® OS,
NetWare®,
UNIX® or Linux.
Environment Operating Temperature 0°~40° (32°~104°),
Storage Temperature -40°~70° (-40°~158°),
Operating Humidity 10%~90% non-condensing,
Storage Humidity 5%~90% non-condensing
Warranty 2 years limited warranty. Advanced replacement service is available.
Manufacturer TP-Link

Net Price: 27.80 USD  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
