#09103
Standard ACTP-LINKAC12

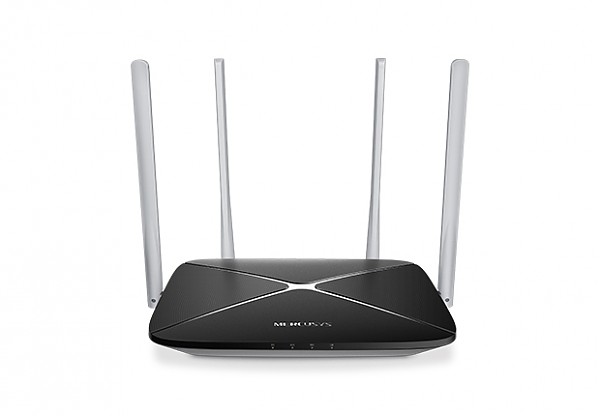

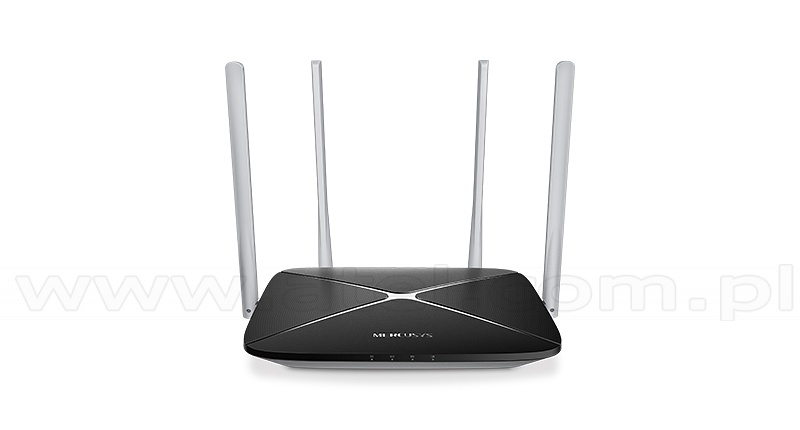

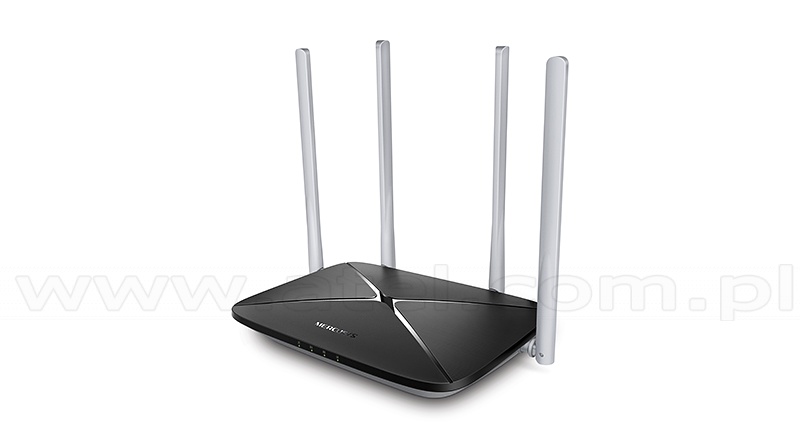

1200Mbps Wireless Router Dual-band AC1200 (TP-Link Mercusys AC12)

  • Supports 802.11ac standard - the next generation of Wi-Fi
  • Enjoy smooth online gaming and video streaming with dual band 1200Mbps Wi-Fi
  • 4 External Antennas Greatly Expand Wireless Coverage
  • Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network
  • Easy installation - intuitive webpage guides you through the setup process in minutes
  • IPTV and IPv6 Supported
HARDWARE FEATURES:
Standards and Protocols IEEE 802.11ac/n/a 5GHz,
IEEE 802.11b/g/n 2.4GHz

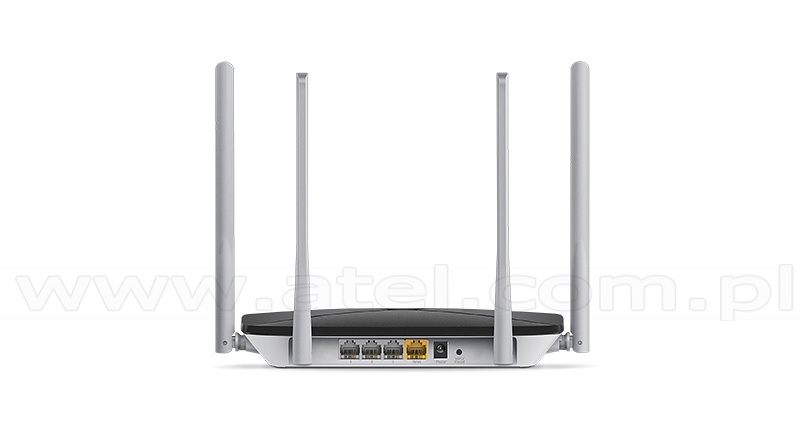

Interface 3 10/100Mbps LAN Ports,
1 10/100Mbps WAN Port
Button WPS/Reset Button
External Power Supply 9V/0.85A
Dimensions (W X D X H) 222 x 140 x 32 mm
Antenna 4 5 dBi
WIRELESS FEATURES:
Frequency 2.4GHz & 5GHz
Signal Rate 5GHz Up to 867Mbps,
2.4GHz Up to 300Mbps
EIRP < 20 dBm
Reception Sensitivity 5 GHz - 11a 6M -92 dBm,
11a 54M -75 dBm,
11ac 20M MCS8 -70 dBm,
11ac 40M MCS9 -64 dBm,
11ac 80M MCS9 -60 dBm,
2,4 GHz - 11g 6M -95 dBm,
11g 54M -77 dBm,
11n 20M MCS7 -74 dBm,
11n 40M MCS7 -71 dBm
Wireless Functions Enable/Disable Wireless Radio,
Wireless Statistics
Wireless Security WPA-PSK / WPA2-PSK
SOFTWARE
WAN Type Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management Access Control,
Local Management,
Remote Management
DHCP Server
Port Forwarding Virtual Server,
UPnP,
DMZ
Firewall Security IP and MAC Address Binding
Guest Network 2.4GHz Guest Network,
5GHz Guest Network
OTHERS:
Certifications CE,
ROHS
Package Contents AC1200 Wireless Dual Band Router AC12,
Power Adapter,
Quick Installation Guide,
Ethernet Cable
Environment Operating Temperature 0~40 (32~104),
Operating Humidity 10%~90% non-condensing,
Storage Humidity 5%~90% non-condensing

* For special orders only
Net Price: 24.00 19.10 USD  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
