#03884
Cable tester RJ-45, w/LCD. PoE and port flash (NOYAFA NF-8209S)
The NF8209S cable tester is used to measure cable continuity. It enables the measurement of connection errors in UTP / STP twisted pairs. The device is equipped with an LCD display.
PoE detection and identify the standard (IEEE802.3at/af / non standard)
PoE detection and identify the standard (IEEE802.3at/af / non standard)
| Display | LCD 128x64 dot-matrix with backlight |
|---|---|
| Frequency of analogue generator | 455kHz |
| Max. length of the tested cabling |
200m (length test), 600m (wiremap) |
| Length measuring accuracy | 1.6m |
| Max. current |
<130mA (emitter), <100mA (reciever) |
| Function selection | graphical menu |
| Power supply | 3.7V 1400mAh polymer lithium battery (both transmitter and reciever) |
| PoE test range | 5÷60V |
| Packaging | cardboard box + soft case |
| Warranty | 12 months |
| Manufacturer | NOYAFA |
The kit includes:
- emitter,
- reciever,
- connection wires,
- soft case
- emitter,
- reciever,
- connection wires,
- soft case
#02903
IntelliTone 200 Pro - signal probe, cable tester (Fluke Networks MT-8200-60-KIT)
| Tested cables |
UTP, FTP, STP, RG59, RG6, CCTV |
|---|---|
| Single pair test | yes |
| Wiremap test | yes |
| Detected malfunctions |
break, short-circuit, crossed pairs, reverse pairs |
| Detecting signals | Ethernet |
| Detecting connected devices |
hub, network card |
| Additional features |
locate cables from large distance (1 meter), precision locate cable pairs in wisps |
| Operating temperature | 0°C ÷ 40°C |
| Operating humidity |
5% ÷ 95%, non-condensing |
| Power | 2x 9V 6F22 battery |
| Warranty period | 12 months |
| Manufacturer | Fluke Networks |
| Toner parameters | |
| Dimensions | 141x75x32 mm |
| Display | LED |
| Control | thumbwheel switch |
| Auto power down | yes |
| Ouptut power | 5V p-p |
| Probe parameters | |
| Dimensions | 222x48x32 mm |
| Display |
8x LED, 1x Sync LED |
| Control |
thumbwheel switch, volume control wheel |
| Auto power down | yes |
#03091
MicroScanner PoE cable tester (Fluke Networks MS-POE)
The new generation of the well-known and valued Microscanner. The new tester does not have a socket for coaxial cables. However, new diagnostic possibilities appeared: PoE voltage measurement, determining whether the port is able to provide sufficient power, identification of the port speed up to 10Gbps.
| Display |
LCD, monochrome |
|---|---|
| Tested cables |
UTP, FTP, SSTP, coaxial 75Ω/50Ω/93Ω |
| Connectors |
RJ-11, RJ-45, F |
| Cable length measure | 1500ft (460,0 m) |
| Wiremap | compliant with TIA-568A/B |
| Remote device detection |
switch, POTS, terminator |
| Transmission speed indicator |
10 Mbps, 100 Mbps, 1000 Mbps, 2.5Gbps, 5Gbps, 10Gbps |
| Detected malfunctions |
open, short, separated pairs, crossed pairs, reverse pairs |
| Distance to breakage | yes |
| Working in active networks | yes |
| Tone generator |
digital (two songs), analog (four songs) |
| PoE detection | yes |
| PoE standards |
802.3af, 802.3at, 802.3bt |
| Dimensions | 163x76x36 mm |
| Weight | 363 g |
| Warranty | 12 months |
| Manufaturer | Fluke Networks |
Compatible with:
#02903 IntelliTone 200
#02903 IntelliTone 200
#06106
MicroScanner2 cable tester (Fluke Networks MS2-100)
| Display |
LCD, monochrome |
|---|---|
| Tested cables |
UTP, FTP, SSTP, coaxial 75Ω/50Ω/93Ω |
| Connectors |
RJ-11, RJ-45, F |
| Cable length measure | 1500ft (460,0 m) with a 0.3m resolution |
| Wiremap | compliant with TIA-568A/B |
| Remote device detection |
switch, POTS, terminator |
| Transmission speed indicator |
10 Mbps, 100 Mbps, 1000 Mbps |
| Detected malfunctions |
open, short, separated pairs, crossed pairs, reverse pairs |
| Distance to breakage | yes |
| Working in active networks | yes |
| Tone generator |
digital (two songs), analog (four songs) |
| PoE detection | yes |
| Dimensions | 163x76x36 mm |
| Weight | 363 g |
| Warranty | 12 months |
| Manufaturer | Fluke Networks |
|Compatible with:
#02903 IntelliTone 200
#02903 IntelliTone 200
.jpg?1737026276)
.jpg?1740899578)
.jpg?1740899557)
.jpg?1737025811)
#06249

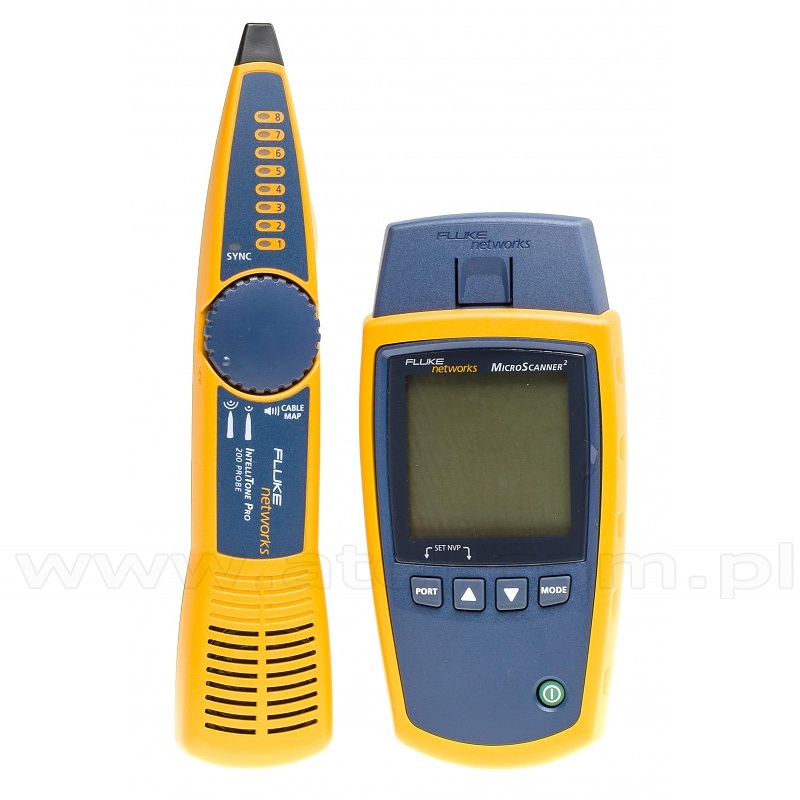

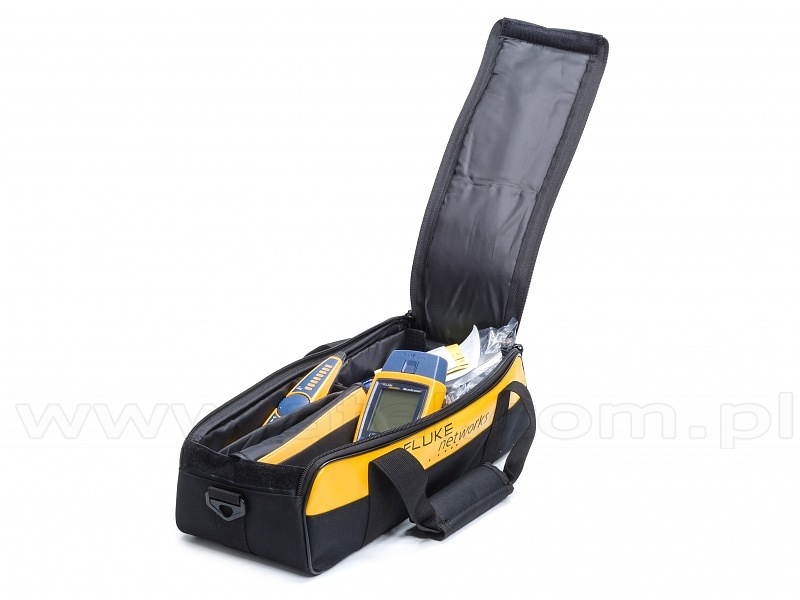

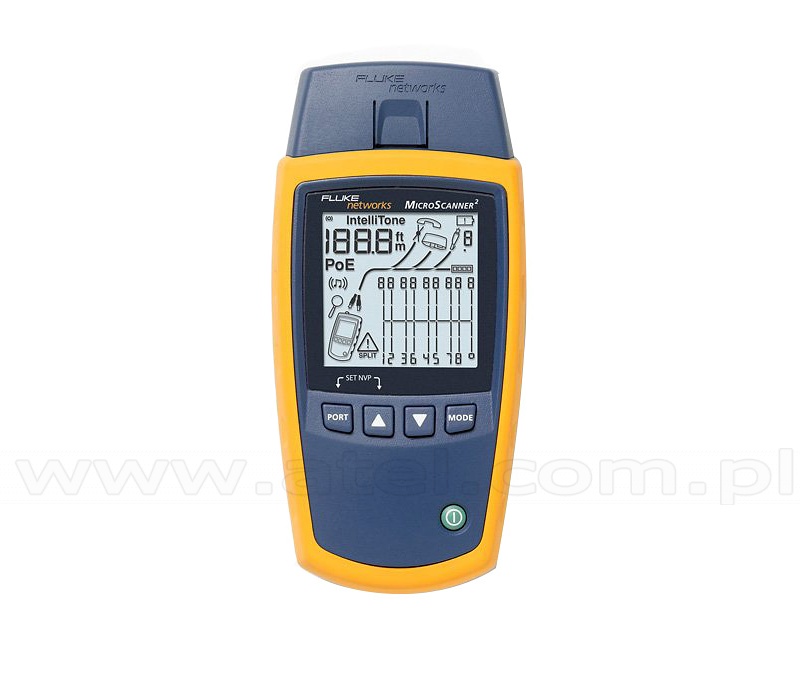

MicroScanner2 Pro Kit (Fluke Networks MS2-KIT)
| MicroScanner² Pro | |
|---|---|
| Display |
LCD, 1.75" x 0.85" |
| Tested cables |
UTP, STP, FTP, RG59, RG9, CCTV |
| Cable parameters test | yes |
| Transmission type detection |
Half Duplex, Full Duplex |
| Device type detection |
hub, network card |
| Transmission speed detection |
10 Mbps, 100 Mbps, 1000 Mbps |
| Cable length measure | 0.5 - 460 m |
| Distance to break/short | yes |
| Working in active networks | yes |
| Continuous test | yes |
| Wiremap test | yes |
| Cable faults detection |
open, short, separated pairs, crossed pairs, reverse pairs |
| Tone generation |
digital (two songs), analog (four songs) |
| PoE detection | yes |
| Dimensions | 163x76x36 mm |
| Warranty period | 12 months |
| Manufacturer | Fluke Networks |
| IntelliTone 200 Probe | |
| Single pair test | yes |
| Additional features |
locate cables from large distance, precision locate cable pairs in wisps |
| Operating temperature | 0°C ÷ 40°C |
| Operating humidity |
5% ÷ 95%, non-condensing |
Included accessories:
Line identifiers (1 to 6)
Wiremap adaptor (FL-MT8203-14)
RJ-45/F adaptor(FL-MT8203-15)
RJ-45/aligator adaptor (FL-MT8203-16)
Line identifiers (1 to 6)
Wiremap adaptor (FL-MT8203-14)
RJ-45/F adaptor(FL-MT8203-15)
RJ-45/aligator adaptor (FL-MT8203-16)
#05718

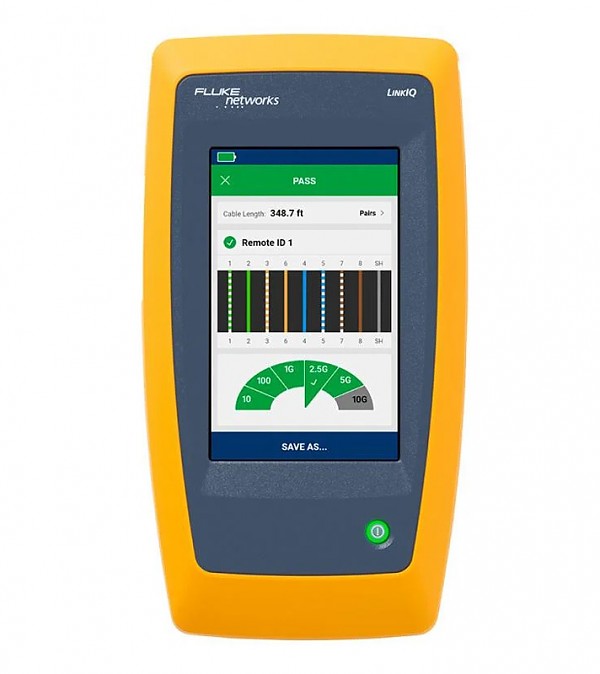

LinkIQ cable tester (Fluke Networks LIQ-100)
| Tested cables | Balanced twisted-pair cabling Unshielded twisted-pair Screened twisted-pair 2-pair and/or 4-pair |
|---|---|
| Qualification autotests |
10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, Wire map Only. Test Speed- 6 seconds for lengths< 70 m |
| Wire Map-Only Tests |
Document wire map, Length of each pair, Diagnose split pairs, User selectable T568A or T568B, User selectable crossover settings (Straight through, Half-crossover, Full-crossover). Test speed- 1 second for lengths < 120 m |
| Length (Maximum) | 305 m (1000 ft) |
| Nominal Velocity of Propagation (NVP) | User settable |
| Tone Generator | Generates digital tones compatible with Fluke Networks IntelliTone probe. Generates analog tones compatible with general analogprobes. |
| Remote ID Locators | Use remote ID terminations to identify up to 7 unique ports or office outlets |
| Power |
Lithium-ion, 3.6 V, 6400 mAh; Life 8 hours typical; Charge time 4.5 hours; Charging temperature range 0 °C to +40 °C |
| Weight | 624g |
| Dimensions | 8.5 in x 4.5 in |
| Warranty period | 12 months |
| Manufacturer | Fluke Networks |
#05717

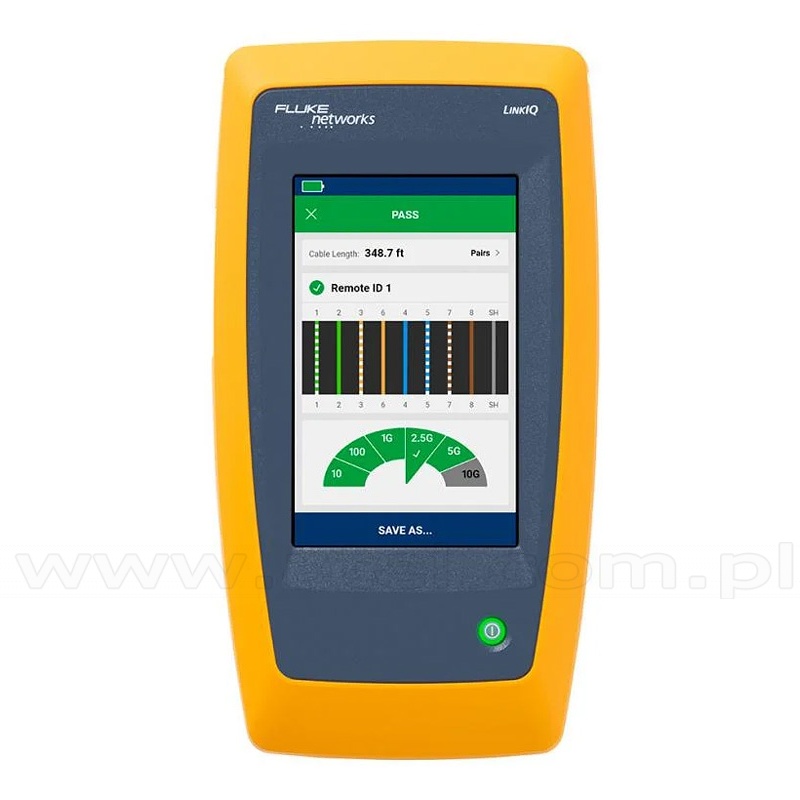

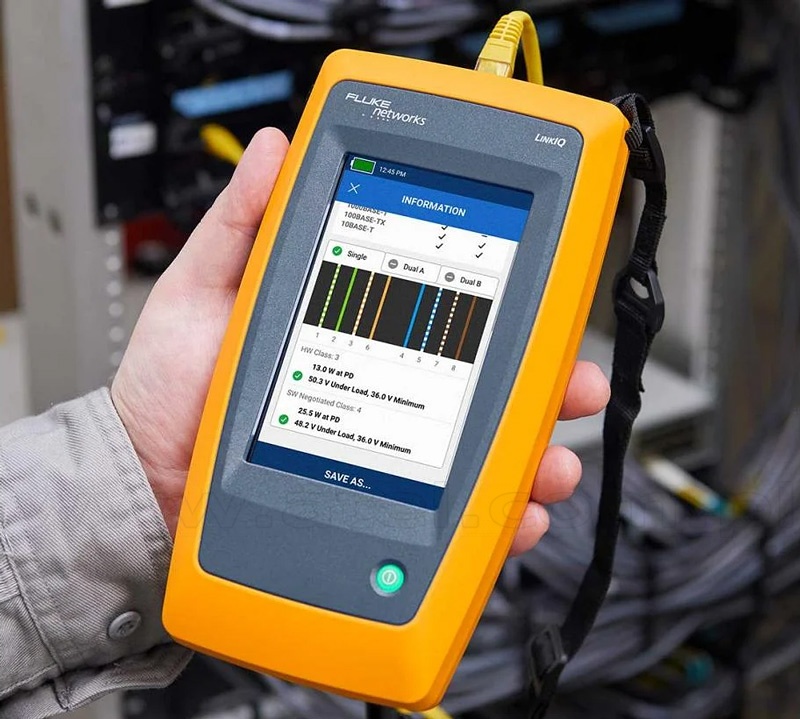

LinkIQ cable tester (Fluke Networks LIQ-KIT)
| Tested cables | Balanced twisted-pair cabling Unshielded twisted-pair Screened twisted-pair 2-pair and/or 4-pair |
|---|---|
| Qualification autotests |
10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, Wire map Only. Test Speed- 6 seconds for lengths< 70 m |
| Wire Map-Only Tests |
Document wire map, Length of each pair, Diagnose split pairs, User selectable T568A or T568B, User selectable crossover settings (Straight through, Half-crossover, Full-crossover). Test speed- 1 second for lengths < 120 m |
| Length (Maximum) | 305 m (1000 ft) |
| Nominal Velocity of Propagation (NVP) | User settable |
| Tone Generator | Generates digital tones compatible with Fluke Networks IntelliTone probe. Generates analog tones compatible with general analogprobes. |
| Remote ID Locators | Use remote ID terminations to identify up to 7 unique ports or office outlets |
| Power |
Lithium-ion, 3.6 V, 6400 mAh; Life 8 hours typical; Charge time 4.5 hours; Charging temperature range 0 °C to +40 °C |
| Weight | 624g |
| Dimensions | 8.5 in x 4.5 in |
| Warranty period | 12 months |
| Manufacturer | Fluke Networks |
#04954

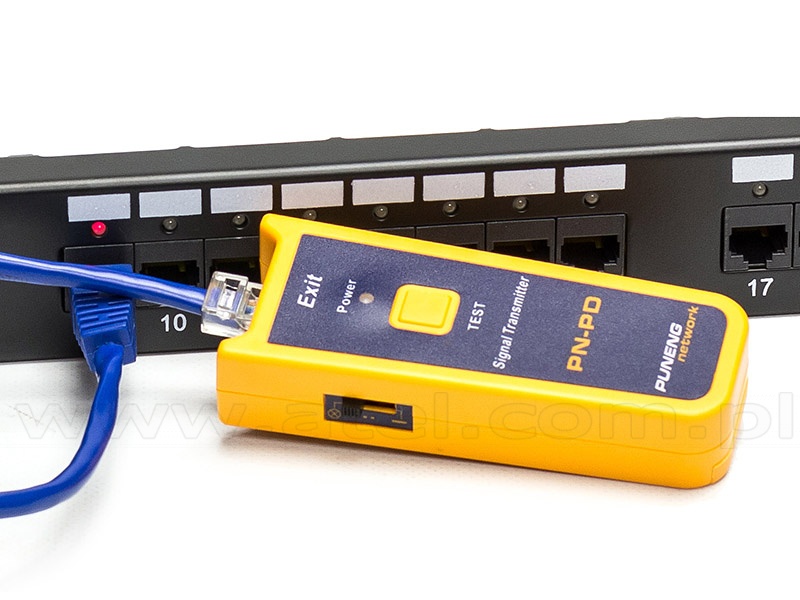

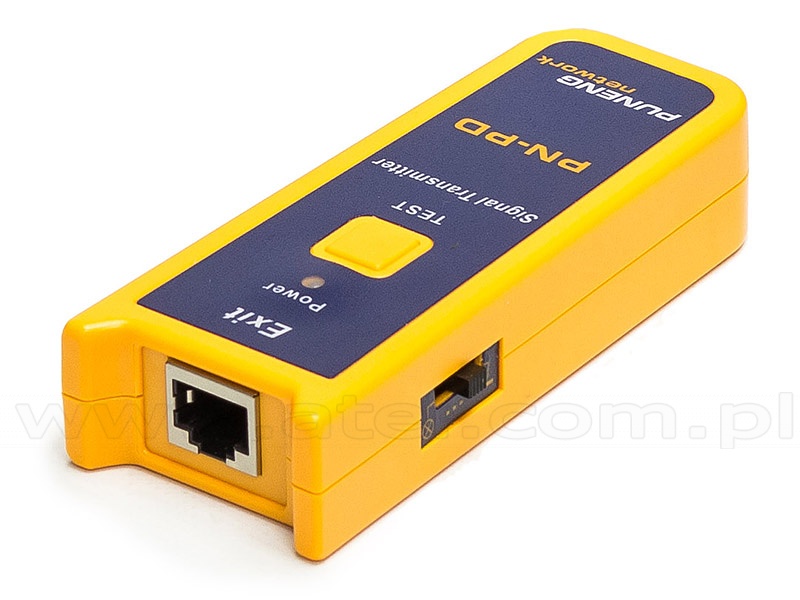

Transmitter for LED Patch Panel
Compatible with patchpanels:
#04941 Patch panel, 24-port, UTP, cat. 5e, 1U, 19", IDC 110, with LED
#04942 Patch panel, 24-port, UTP, cat. 6, 1U, 19", IDC 110, with LED
#04943 Patch panel, 24-port, STP, cat. 5e, 1U, 19", IDC 110, with LED
#04944 Patch panel, 24-port, STP, cat. 6, 1U, 19", IDC 110, with LED
#04941 Patch panel, 24-port, UTP, cat. 5e, 1U, 19", IDC 110, with LED
#04942 Patch panel, 24-port, UTP, cat. 6, 1U, 19", IDC 110, with LED
#04943 Patch panel, 24-port, STP, cat. 5e, 1U, 19", IDC 110, with LED
#04944 Patch panel, 24-port, STP, cat. 6, 1U, 19", IDC 110, with LED
