#07850
Transporter EN50155 DevicesORING NETWORKINGTGXPS-1080-M12-24V

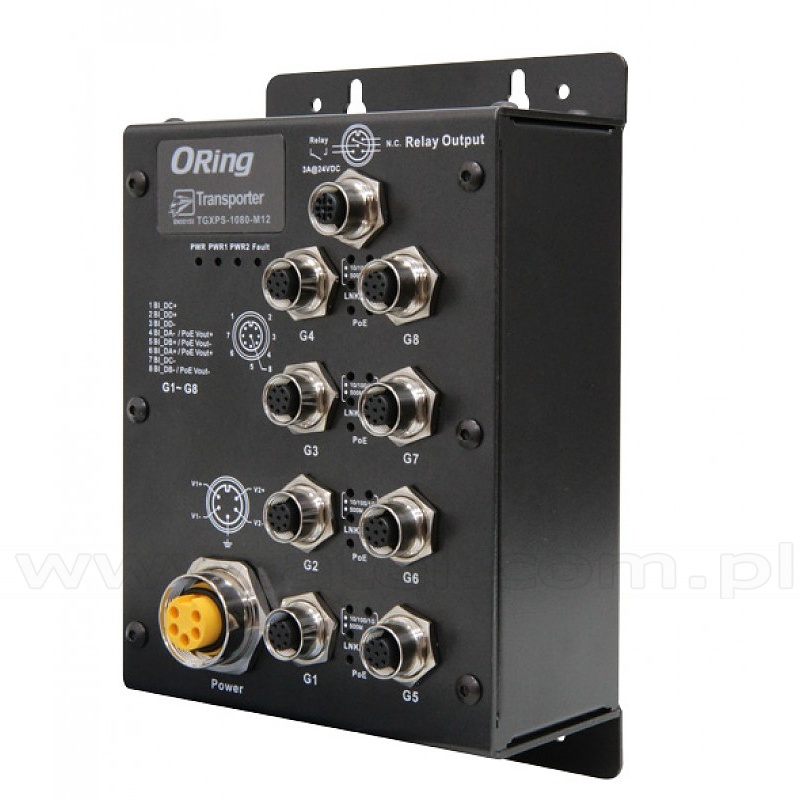

Unmanaged switch, 8x 10/100/1000 M12 PoE (ORing TGXPS-1080-M12-24V)

ORing's TransporterTM series un-managed Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The TGXPS-1080-M12-24V is an un-managed PoE Ethernet switch with 8x10/100/500/1000Base-T(X) P.S.E. which is specifically designed for the toughest and fully compliant with EN50155 requirement. TGXPS-1080-M12-24V also supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. Each TGXPS-1080-M12-24V switch has 8X10/100/500/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. TGXPS-1080-M12-24V EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. In addition, the wide operating temperature range from -40oC to 75oC can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for rolling stock and highly-managed PoE Ethernet application.
While installing in the train, TGXPS-1080-M12-24V is mainly used for in-train monitoring and Entertainment service due to its high speed Gigabit Ethernet
connection and PoE capability. Devices connected will be IP camera or CCTV for the use of train surveillance. As an unmanaged Ethernet Switch, TGXPS-1080-M12-24V is not able and will not be used for any control related application. Its main function is simply forwarding the Ethernet packet from one Ethernet based device to another Ethernet device which are all connected to the Switch.
Physical Ports
10/100/1000 Base-T(X) Auto MDI/MDIX ports 8
Connector Type M12
Technology
Ethernet Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X),
IEEE 802.3x for Flow control,
IEEE 802.3ab for 1000Base-T,
IEEE 802.3at compliant PoE specification (Maximum 30Watts per port)
MAC Table 4k
Processing Store-and-Forward
LED Indicators
Power / Ready indicator Green Power LED x 3
Fault Indicator Amber Indicate PWR1 or PWR2 failure
10/100/1000Base-T(X) M12 port indicator and PoE indicator Top for port Link/Act indicator. Green for 1000Mbps link,
Amber for 10/100 Mbps link,
Middle Amber for 500Mbps port Link/Act indicator,
Bottom blue for PoE Injected indicator
Fault contact
Relay Relay output to carry capacity of 3A at 24VDC on M12 connector (5-pin A-coding)
Power
Redundant Input Power Dual 24 (12~57VDC)VDC on 5-pin M23 connector
Power consumption (typical) 8W
PoE Output Power 60W (12~24VDC) / 120W (24~57VDC)
Overload current protection present
Reverse polarity protection Present
Physical Characteristic
Dimension (W x D x H) 125 x 65 x 196 mm
Weight 979 g
Environmental
Storage Temperature -40÷85°C (-40÷185°F)
Operating Temperature -40÷75°C (-40÷167°F)
Operating Humidity 5%÷95% Non-condensing
Regulatory approvals
EMC CE EMC (EN 55024,
EN 55032),
FCC Part 15B,
EN 50121-3-2 (EN 50155)
EMI EN 55032,
CISPR32,
EN 61000-3-2,
EN 61000-3-3,
FCC Part 15B class A
EMS EN 55024 (IEC/EN 61000-4-2 (ESD),
IEC/EN 61000-4-3 (RS),IEC/EN 61000-4-4 (EFT),
IEC/EN 61000-4-5 (Surge),
IEC/EN 61000-4-6 (CS),
IEC/EN 61000-4-8(PFMF),
IEC/EN 61000-4-11 (DIP))
Shock IEC60068-2-27
Free Fall IEC60068-2-31
Vibration IEC60068-2-6
Safety EN60950-1
Other EN 50155
MTBF 442602 hrs
Warranty
Warranty period 5 years

TAGS: EN50155, M12, PoE
Net Price: 885.00 USD  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
