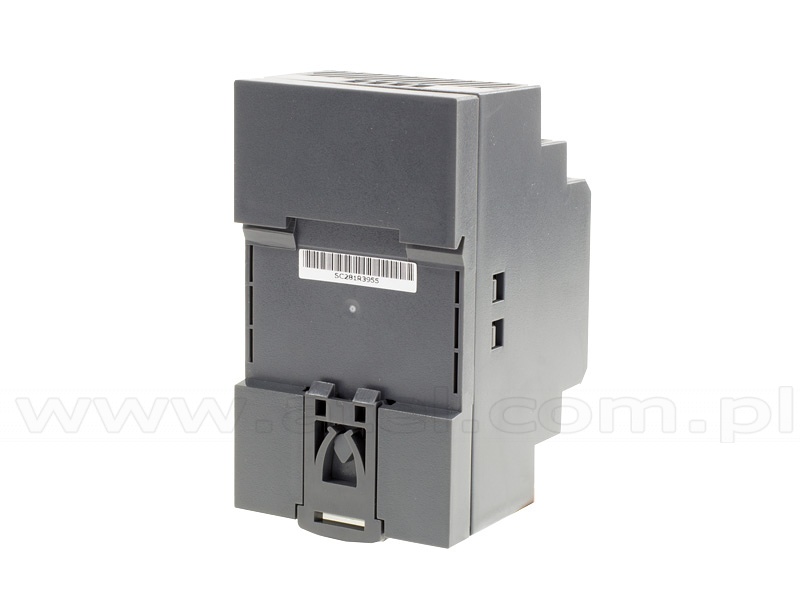

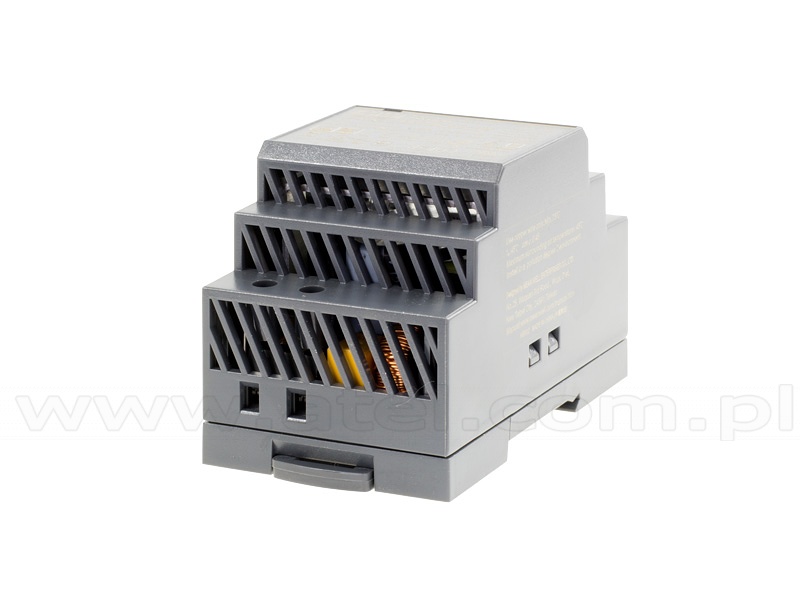

Power supply 60W 48VDC, DIN TS35 (Mean Well HDR-60-48)
| Output | |
|---|---|
| DC Voltage | 48V |
| Rated current | 1.25A |
| Current Range | 0÷1.25A |
| Rated Power | 60W |
| Ripple & noise (max.) | 240mVp-p |
| Voltage adjustment range | 43.2÷55.2V |
| Voltage tolerance | ±1.0% |
| Line regulation | ±1.0% |
| Load regulation | ±1.0% |
| Input | |
| Voltage range | 85÷264VAC, 120÷370VDC |
| Efficiency (typ.) | 91% |
| Protection | |
| Overload | 105%÷160% rated output power, protection type - constant current limiting - recovers automatically |
| Overvoltage | 115%÷150%, protection type - shut down & re-power on to recover |
| Environment | |
| Working temperature | -30°C ÷ 70°C |
| Vibration (component) | 10÷500Hz, 2G 10min./1cycle, 60min. each along X Y Z axes |
| Safety & EMC | |
| Safety standards | UL62368-1, UL508, TUV EN61558-2-16, IEC62368-1, EAC Tp TC 040, BSMI CNS14336-1 approved |
| Withstand voltage | I/P-O/P 4kVAC |
| EMC Standards | EN55032 class B, EN61000-3-2,33, EN61000-6-2, EN61000-4-2,3,4,5,6,8,11, EN61204-3 |
| Others | |
| MTBF | min. 441500h MIL-HDBK-217F (25°C) |
| Dimension (W x H x D) | 52.5mm x 90mm x 5.5mm |
Net Price: 21.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
