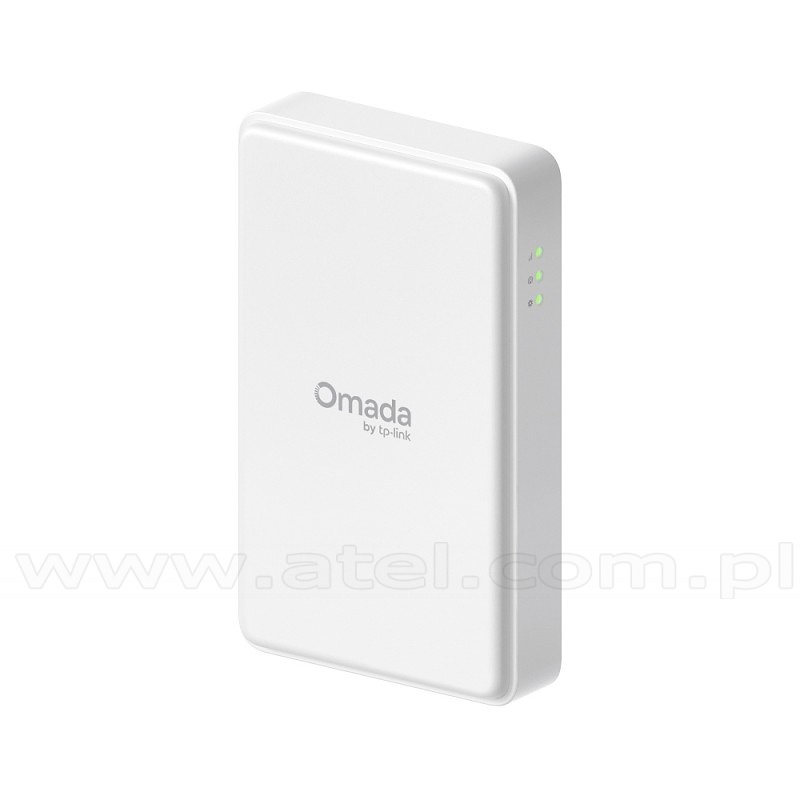

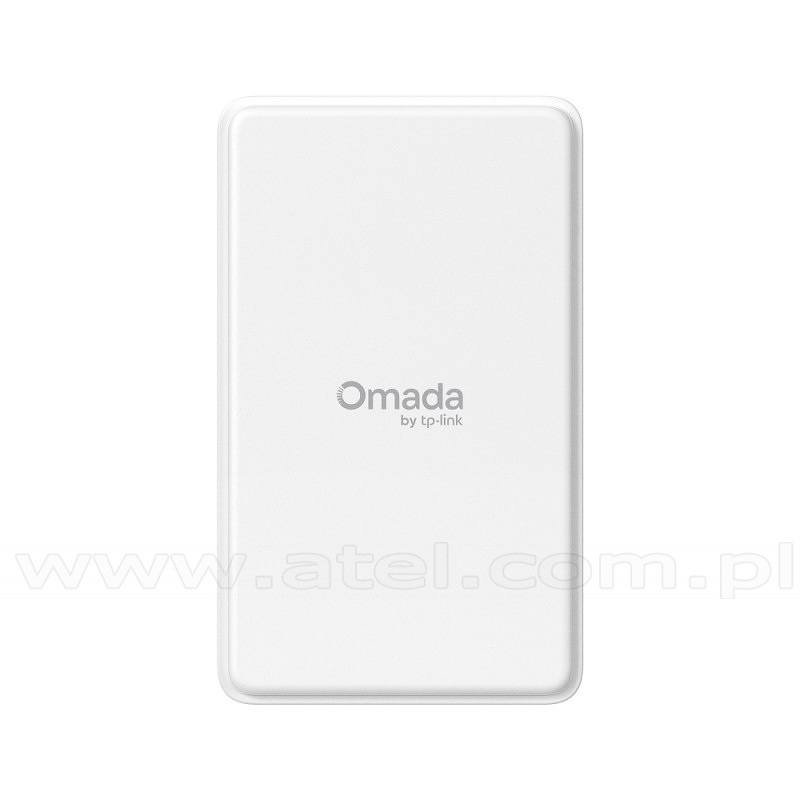

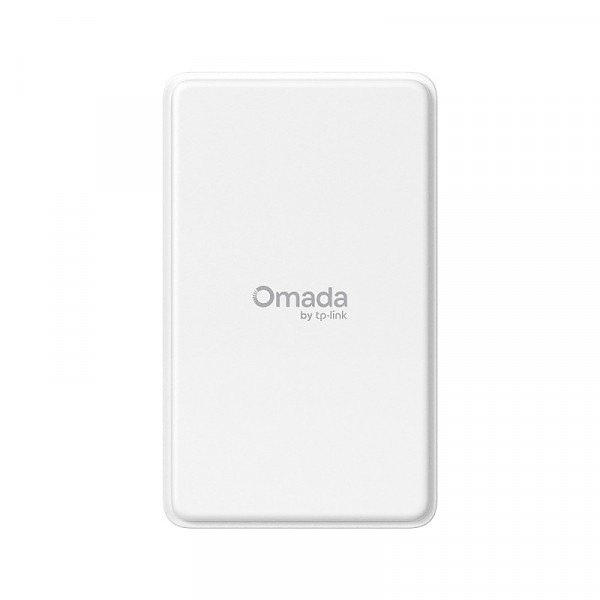

Omada 5G Outdoor Gateway (TP-Link ER701-5G-Outdoor)
- 5G NR up to 7.01 Gbps (SA)/4.5 Gbps (NSA)
- 2× Nano SIM Ensures Business Continuity

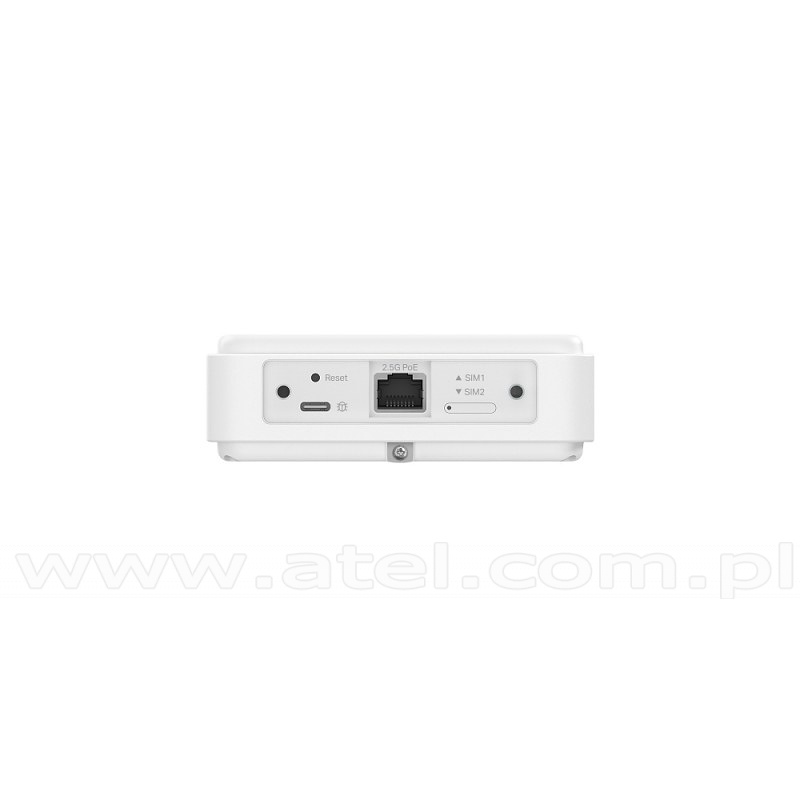

- 1× 2.5G PoE In Port (PoE Adapter Included)
- 9× internal Cellular Antennas and 1× Internal Wi-Fi Antenna
- App-Guided Antenna Alignment for Optimal 5G Performance

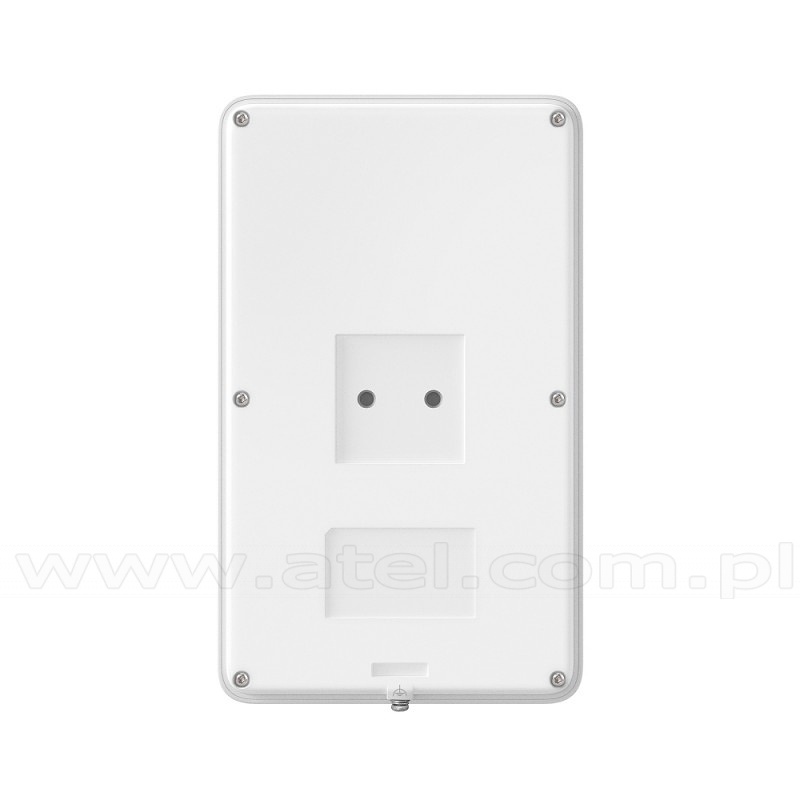

- Omada SDN for One-Click Setup, Pole/Wall/Window Mounting
- Centralized Cloud Management
- IP66 Weatherproof
| Copper ports | 1×2.5G RJ45 Port |
|---|---|
| Flash | 4GB eMMC Flash |
| DRAM | 2GB LPDDR4x |
| Antenna | 9× internal Cellular antennas, 1× internal Wi-Fi antenna |
| Network Type | 5G NR N1/N3/N5/N7/N8/N20/N26/N28/N38/N40/N41/N75/N76/N77/N78 (2100/1800/850/2600/900/800/850/700/2600/2300/2500/1500/1450/3700/3500 MHz), 4G FDD-LTE B1/B3/B5/B7/B8/B20/B26/B28/B32 (2100/1800/850/2600/900/800/850/700/1500 MHz), 4G TDD-LTE B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700MHz), 3G WCDMA B1/B5/B8 (2100/850/900 MHz) |
| SIM Type | Dual Nano SIM |
| Speed | 5G NR Speed, SA Downlink 7.01 Gbps, Uplink 1.25 Gbps, NSA Downlink 4.5 Gbps, Uplink 730 Mbps, LTE Speed, Downlink 1.6 Gbps, Uplink 211 Mbps |
| Performance | |
| Concurrent Session | 500, 000 |
| New Sessions /Second | 6,100 |
| Management | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance | Web Management Interface, Remote Management, Export & Import Configuration, SNMP v1/v2c/v3, Diagnostics (Ping & Traceroute), NTP Synchronize, Syslog Support |
| Management Features | Automatic Device Discovery, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration, ZTP (Zero-Touch Provisioning) |
| Dimensions | 7.2 × 4.3 × 1.4 in (183 × 110 × 36 mm) |
| Mounting | Wall/Pole/Window Mounting |
| Operating temperature | -30°C ÷ 60°C |
| Operating humidity | 5% ÷ 95%, non-condensing |
| Power | 802.3at PoE 42-57V 0.6A, Passive PoE 48V 0.375A |
| Max Power Consumption | 15.3W (802.3at PoE or Passive PoE) |
| Certificates | CE, NCC, BSMI, RoHS |
| Manufacturer | TP-Link |
Net Price: 586.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
