MENU#09635

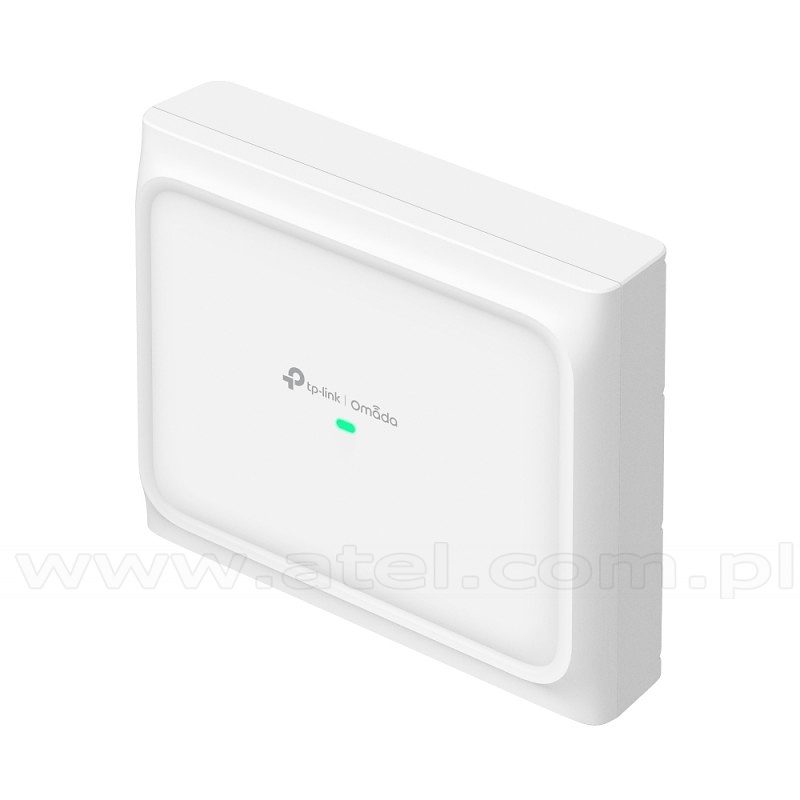

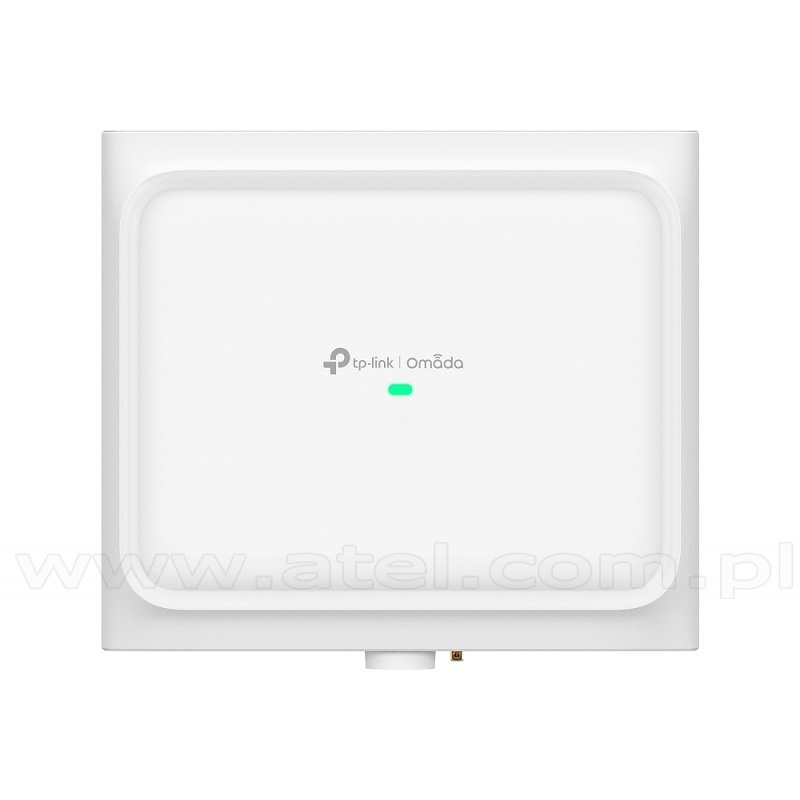

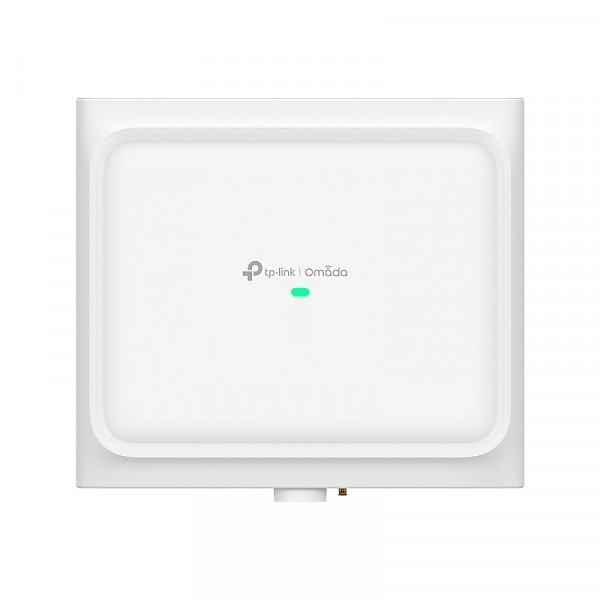

3000Mbps Wireless Access Point, AX3000 (TP-Link EAP650 D30-Outdoor)
- Superior WiFi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
- Directional Ultra-Range Coverage: Equipped with built-in high-gain directional antennas to deliver precise and extended coverage.
- Ideal for Warehouses and Outdoor Scenes: Features an IP68 waterproof enclosure with -30°C to +70°C operating range.
- 802.11k/v/r Seamless Roaming: Ensures uninterrupted connectivity for AGVs and handheld scanners.
- Flexible Deployment: Supports 802.3at PoE and Omada Mesh technology.
- Centralized Cloud Management: Control everything from a single interface anywhere via the Omada app or Web UI.
| Standards | IEEE 802.11ax/ac/n/g/b/a |
|---|---|

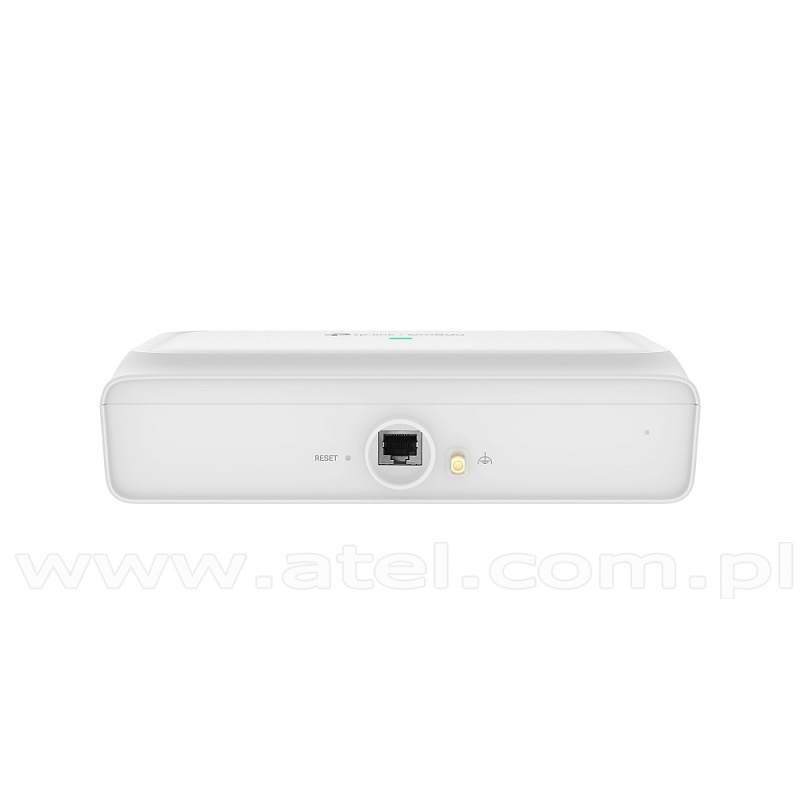

| Ports | 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE) |
| Button | Reset |
| Frequency range | 2.4GHz and 5GHz |
| Signal Rate | 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz) |
| EIRP | < 20 dBm (2.4GHz, EIRP); < 23dBm (5 GHz, band1 & band 2, EIRP);< 30 dBm (5 GHz, band 3, EIRP) |
| Wireless Functions | Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Antenna | Built-in Directional Antennas 2.4 GHz 2× 12 dBi, 5 GHz 2× 15 dBi, Beamwidth 30° Horizontal; 30° Vertical |
| Dimensions | 8.2 × 2.3 × 9.1 in (207.5 × 58 × 230 mm) |
| Power | 802.3at PoE, 48V/0.5A Passive PoE (PoE Adapter Included) |
| Power Consumption | EU 12.5W (802.3at PoE or Passive PoE), US 14.7W (802.3at PoE or Passive PoE) |
| Weatherproof Enclosure | IP68 |

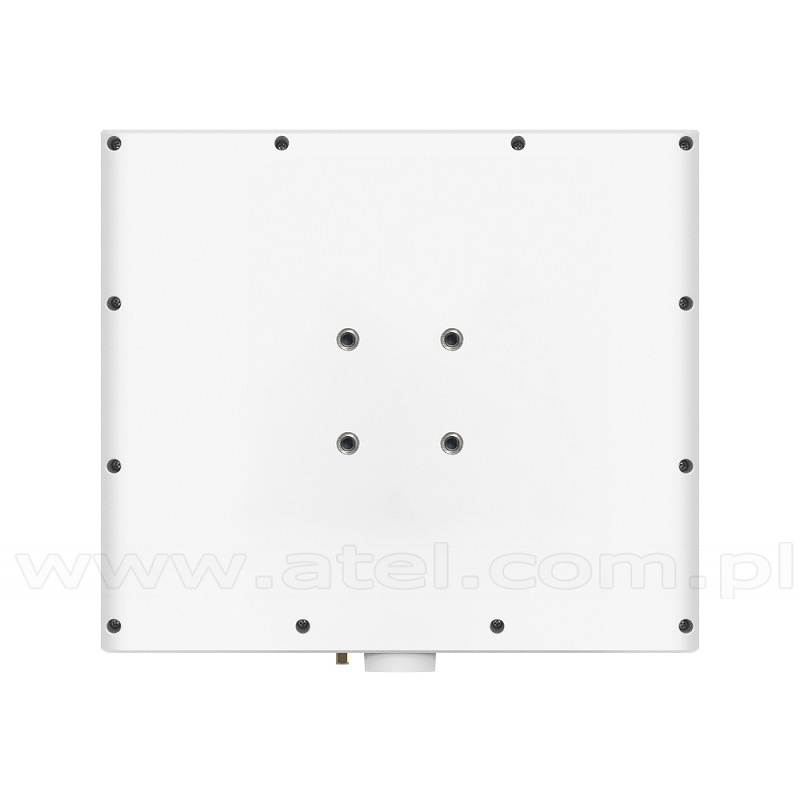

| Mounting | Pole/Wall Mounting (Kits included) |
| Physical Security Lock | Yes |
| Operating Temperature | -30°C~70°C (-22℉~158℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents | Access Point EAP650 D30-Outdoor, Mounting Kits, Waterproof Kits, Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 10, Linux |
| Certificates | CE, FCC, RoHS |
Net Price: 152.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
  |
