TP-LINK Products |
|
TP-LINK - Networking products |
|
TP-LINK is a largest Chinese network hardware manufacturer for SOHO market. Company was founded in 1996. Their market share in networking products is still growing. TP-LINK cooperates with over 600 distributors in China and rest of the world. There are over 100 experienced engineers working for TP-LINK in two factories with 21 production lines. Perfect technical support and management system compliant with ISO9001:2000 gives warranty of reliability and stability of their devices. Quality of products was confirmed with a lot of awards in many independent device tests. TP-LINK is also manufacturing OEM versions of hardware for other network device manufacturers. TP-LINK offers includes:
Manufacturer's website: http://www.tp-link.com |
| HARDWARE FEATURES: | |
|---|---|
| Button | Reset |
| Adapter Input |
100-240VAC, 50/60Hz, 0.3A |
| Adapter Output | 9.0V/0.6A |
| Dimensions( H X W X D ) | 78.4 × 78.4 × 105.6 mm (3.09 × 3.09 × 4.16 in) |
| WIRELESS FEATURES: | |
| Wireless Data Rates |
IEEE 802.11 b/g/n, Up to 72.2Mbps |
| Frequency | 2.4-2.4835GHz |
| Wireless Encryption |
WEP, WPA/WPA2-PSK |
| Security | 128 bit AES encryption with SSL/TLS |
| CAMERA: | |
| Image Sensor | 1/3.2“ |
| Resolution | 1920 × 1080 |
| Lens | F/NO 2.0; Focal Length 4mm |
| Viewing Range |
360° horizontal, 110° vertical |
| Night Vision | 850 nm IR LED up to 40 ft |
| ACTIVITY NOTIFICATIONS | |
| Input Trigger | Motion detection |
| Output Notification | Push notification |
| AUDIO: | |
| Audio Communication | 2-Way |
| Audio Input | Built-in microphone |
| Audio Output | Built-in speaker |
| OTHERS: | |
| Certification |
FCC, IC, CE, NCC |
| Package Contents |
Tapo Pan/Tilt Home Security Wi-Fi Camera, Power Adapter, Quick Start Guide, Mounting Screws, Mounting Plate, Camera Base |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| HARDWARE FEATURES: | |
|---|---|
| Button | Reset |
| Adapter Input |
100-240VAC, 50/60Hz, 0.3A |
| Adapter Output | 9.0V/0.6A |
| Dimensions( H X W X D ) | 3.4 x 3.3 x 4.6 in. (86.6 x 85 x 117.7 mm) |
| WIRELESS FEATURES: | |
| Wireless Data Rates |
IEEE 802.11 b/g/n, Up to 150Mbps |
| Frequency | 2.4-2.4835GHz |
| Wireless Encryption |
WEP, WPA/WPA2-PSK |
| Security | 128 bit AES encryption with SSL/TLS |
| CAMERA: | |
| Image Sensor | 1/2.9“ |
| Resolution | 1080p Full HD |
| Lens | F/NO 2.4; Focal Length 4mm |
| Viewing Range |
360° horizontal, 114° vertical |
| Night Vision | 850 nm IR LED up to 30 ft |
| ACTIVITY NOTIFICATIONS | |
| Input Trigger | Motion detection |
| Output Notification | Push notification |
| AUDIO: | |
| Audio Communication | 2-Way |
| Audio Input | Built-in microphone |
| Audio Output | Built-in speaker |
| OTHERS: | |
| Certification |
FCC, IC, CE, NCC |
| Package Contents |
Tapo Pan/Tilt Home Security Wi-Fi Camera, Power Adapter, Quick Start Guide, Mounting Screws, Mounting Plate, Camera Base |
| System Requirements |
iOS 9+, Android 4.4+ |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| HARDWARE FEATURES: | |
|---|---|
| Button | Reset |
| Adapter Input |
100-240VAC, 50/60Hz, 0.3A |
| Adapter Output | 9.0V/0.6A |
| WIRELESS FEATURES: | |
| Wireless Data Rates |
IEEE 802.11 b/g/n, Up to 150Mbps |
| Frequency | 2.4-2.4835GHz |
| Wireless Encryption |
WEP, WPA/WPA2-PSK |
| Security | 128 bit AES encryption with SSL/TLS |
| CAMERA: | |
| Image Sensor | 1/2.8“ |
| Resolution | 1080p Full HD |
| Lens | F/NO 2.4; Focal Length 3,83mm |
| Viewing Range |
340° horizontal, 70° vertical |
| Night Vision | 850 nm IR LED up to 40 ft |
| ACTIVITY NOTIFICATIONS | |
| Input Trigger | Motion detection |
| Output Notification | Push notification |
| AUDIO: | |
| Audio Communication | 2-Way |
| Audio Input | Built-in microphone |
| Audio Output | Built-in speaker |
| OTHERS: | |
| Certification |
FCC, IC, CE, NCC |
| Package Contents |
Tapo Pan/Tilt Home Security Wi-Fi Camera, Power Adapter, Quick Start Guide, Mounting Screws, Mounting Plate, Camera Base |
| System Requirements |
iOS 9+, Android 4.4+ |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| HARDWARE FEATURES: | |
|---|---|
| Button | Reset |
| Adapter Input |
100-240VAC, 50/60Hz, 0.3A |
| Adapter Output | 9.0V/0.6A |
| Dimensions( H X W X D ) | 67,6 x 54,8 x 98,9 mm |
| WIRELESS FEATURES: | |
| Wireless Data Rates |
IEEE 802.11 b/g/n, Up to 150Mbps |
| Frequency | 2.4-2.4835GHz |
| Wireless Encryption |
WEP, WPA/WPA2-PSK |
| Security | 128 bit AES encryption with SSL/TLS |
| CAMERA: | |
| Image Sensor | 1/3.2“ |
| Resolution | 1080p Full HD |
| Lens | F/NO 2.0; Focal Length 3.3mm |
| Night Vision | 850 nm IR LED up to 30 ft |
| ACTIVITY NOTIFICATIONS | |
| Input Trigger | Motion detection |
| Output Notification | Push notification |
| AUDIO: | |
| Audio Communication | 2-Way |
| Audio Input | Built-in microphone |
| Audio Output | Built-in speaker |
| OTHERS: | |
| Certification |
FCC, IC, CE, NCC |
| Package Contents |
Tapo Home Security Wi-Fi Camera, Power Adapter, Quick Start Guide, Mounting Screws, Mounting Plate, |
| System Requirements |
iOS 9+, Android 4.4+ |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| HARDWARE FEATURES: | |
|---|---|
| Button | Reset |
| Adapter Input |
100-240VAC, 50/60Hz, 0.3A |
| Adapter Output | 5.0V/1A |
| Dimensions( H X W X D ) | 2.65 × 2.26 × 1.74 in (67.4 × 57.4 × 44.1mm) |
| WIRELESS FEATURES: | |
| Wireless Data Rates | IEEE 802.11 b/g/n |
| Frequency | 2.4-2.4835GHz |
| Wireless Encryption |
WEP, WPA/WPA2-PSK |
| Security | 128 bit AES encryption with SSL/TLS |
| CAMERA: | |
| Image Sensor | 1/2.9" Progressive Scan CMOS Starlight Sensor |
| Resolution | 2K QHD 4MP (2560 × 1440) |
| Lens |
Focal Length 3.17mm, Aperture 1.65 |
| Field of View |
120°(Diagonal), 103°(Horizontal), 55°(Vertical) |
| Night Vision |
850 nm IR LED (30 ft / 9 m), 940 nm IR LED (30 ft / 9 m), Full-Color Night Vision |
| ACTIVITY NOTIFICATIONS | |
| Input Trigger | Motion detection |
| Output Notification | Push notification |
| AUDIO: | |
| Audio Communication | 2-Way |
| Audio Input | Built-in microphone |
| Audio Output | Built-in speaker |
| OTHERS: | |
| Certification |
FCC, IC, CE, NCC |
| Package Contents |
Tapo C120 Camera, USB Power Adapter, Quick Start Guide, Mounting Screws, Mounting Template, Metal Plate3M Adhesive, Mounting Anchors, 3-Meter Type-C Wire, Cable Organizers, Detaching Pin |
| Environment |
Operating Temperature -20°~45°, Storage Temperature -20°~60°, Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| HARDWARE FEATURES: | |
|---|---|
| Dimensions ( H x D x W ) | φ56.5 × 84 mm (φ2.2 × 3.3 in) |
| Buttons | RESET |
| WIRELESS FEATURES: | |
| Frequency | 868 MHz |
| OTHERS: | |
| Package Contents |
1 × KE100, 2 × AA/LR6 batteries, 1 × RA adapter, 1 × RAV adapter, 1 × RAVL adapter, 1 × CAL Adapter, 1 × M28 Adapter, 1 × GIA Adapter, Quick Start Guide |
| WORKING STATUS: | |
| Power Requirements |
AC, 100~240V, 50/60Hz, 9V / 0,85A |
| System Requirements |
Android 5.0 or higher, iOS 10 or higher |
| Operating Temperature | 0 ºC ~ 40 ºC (32 °F ~ 104 °F ) |
| Hub Required | Yes |
| Power Requirements | 3.0V DC (2 x AA/LR6 batteries) |
| Certifications |
CE, UKCA, RoHS |
| HARDWARE FEATURES: | |
|---|---|
| Wireless Type |
Smart Radiator Valve- 868 MHz, Kasa Hub- 2.4 GHz Wi-Fi, 868 MHz |
| Dimensions |
Smart Radiator Valve φ56.5 × 84 mm (φ2.2 × 3.3 in), Kasa Hub 72×70.3×51 mm (2.8×2.7×2 in) |
| Buttons |
Smart Radiator Valve- Control Knob, SYNC/Reset Button, Kasa Hub- SYNC/Silence Button |
| OTHERS: | |
| Certification |
CE, UKCA, RoHS |
| Package Contents |
1× KE100, 1× KH100, 2× AA/LR6 batteries, 1× Quick Start Guide, 1× RA adapter, 1× RAV adapter, 1× RAVL adapter, 1× Cover Opener |
| System Requirements |
Android 5.0 or higher, iOS 10 or higher |
| Environment |
Operating Temperature 0°~40°, Operating Humidity 10%~90% non-condensing |
| WORKING STATUS: | |
| Power Requirements |
Smart Radiator Valve- 3.0V DC (2 x AA/LR6 batteries), Kasa Hub- AC, 100-240 V, 50/60 Hz |
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11b/g/n, Bluetooth 4.2 (for onboarding only) |
| Plug Type | EU |
| Wireless Type | 2,4GHz |
| Button |
Power button, Status LED |
| Dimensions ( W x D x H ) | 2.0* 2.8* 1.6 in (51*72.0*40 mm) |
| Power Requirements | AC 220-240 V~50/60 Hz 10 A |
| Maximum Power | 2.3KW |
| OTHERS: | |
| Certification |
RoHS, CE |
| Package Contents |
Smart Plug Tapo P100, Quick Start Guide |
| System Requirements |
Android 4.4 or higher, iOS 9.0 or higher |
| Environment |
Operating Temperature 0°~35° , Operating Humidity 10%~90% non-condensing |
| HARDWARE FEATURES: | |
|---|---|
| Button & Interface |
1× POWER Button, 1× RESET Button, 1× MicroSD Card Slot (Up to 512GB), 1× RJ45 (10M/100M) Ethernet Port |
| Power Source | 12 V DC Power Adapter |
| Input Voltage |
100-240 V, 50/60 Hz |
| Output Voltage |
12 V, 1 A (DC Power) |
| DC Power Connector Size |
Inside Ø 2.1 mm, Outside Ø 5.5 mm |
| Power Cord Length | 3 m |
| Typical Power Consumption | 5.3 W |
| Maximum Power Consumption | 11.2 W |

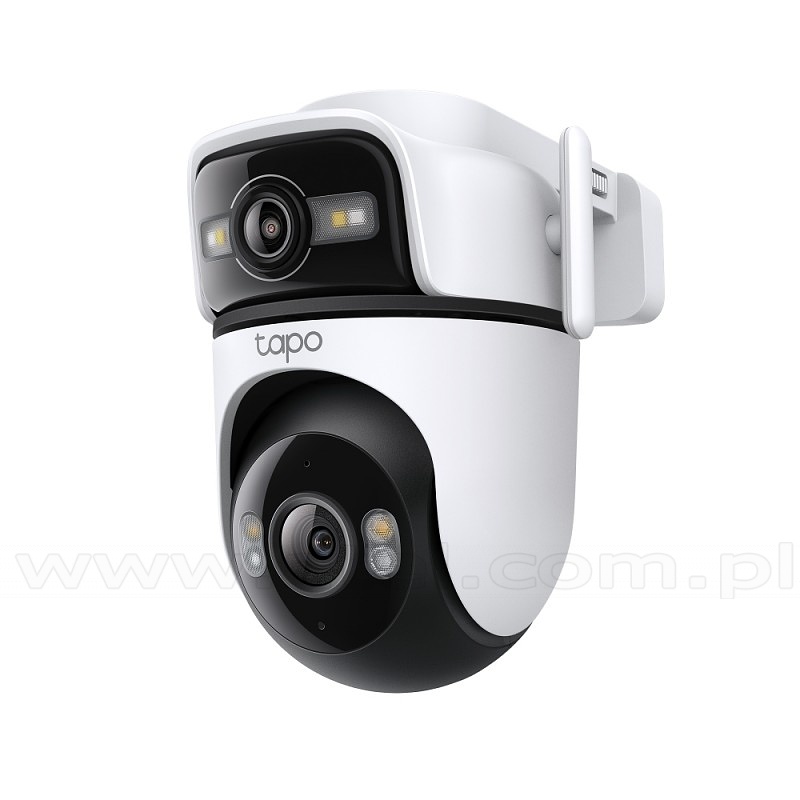

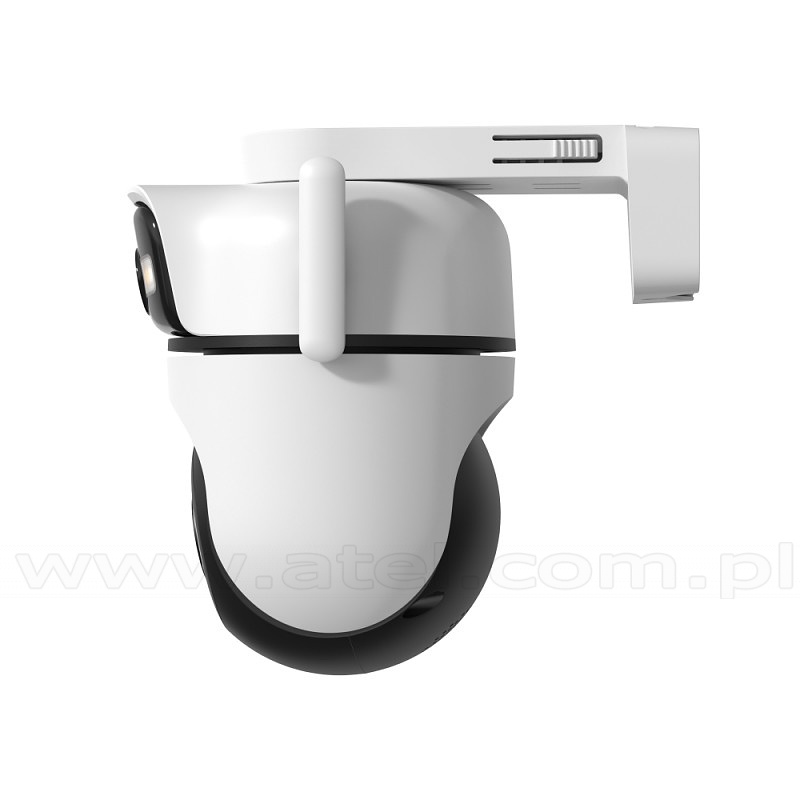

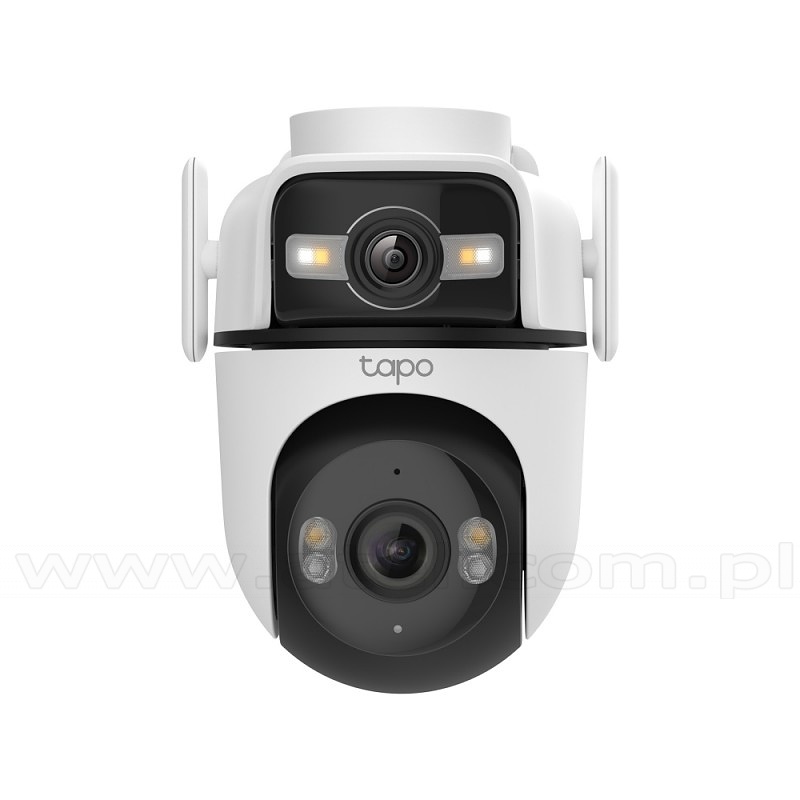

| Dimensions( H X W X D ) | Camera Dimensions 4.51 × 6.28 × 5.99 in (114.57 × 159.55 × 152.1 mm) |
| WIRELESS FEATURES: | |
| Wireless Data Rates |
IEEE 802.11 b/g/n/ax, 2,4 GHz |
| Protocol |
TCP/IP, ICMP, DNS, HTTPS, TCP, UDP |
| Wireless Encryption |
AES Encryption with SSL/TLS, WPA/WPA2-PSK/WPA3 |
| CAMERA: | |
| Image Sensor | 1/2.8“ |
| Resolution |
Fixed Lens 2K 3MP (2304 × 1296 px), Pan/Tilt Lens 2K 3MP (2304 × 1296 px) |
| Lens |
Lens_Wide Angle- Focal Length 2.53 mm, Aperture F1.6, Field of View 165.1° (Diagonal), 137.6°(Horizontal), 73°(Vertical), Lens_Telephone- Focal Length 6mm, Aperture F1.6, Field of View 65.5° (Diagonal), 56.5°(Horizontal), 30.6°(Vertical) |
| Night Vision | 850 nm IR LED up to 40 ft (12m) |
| Video Compression | H.264 |
| Frame Rate | 15 fps |
| ACTIVITY NOTIFICATIONS | |
| Input Trigger | Motion detection |
| Output Notification | Push notification |
| AUDIO: | |
| Audio Communication | 2-Way |
| Audio Input | Built-in microphone |
| Audio Output | Built-in speaker |
| OTHERS: | |
| Package Contents |
Tapo C545D Camera ×1, Mounting Bracket ×1, Mounting Template Sticker ×1, Mounting Screws ×4, Mounting Anchors ×4, Waterproof Seal ×1, Waterproof Cable Attachments ×1, Power Adapter ×1, Quick Start Guide |
| Environment |
Operating Temperature -30°~60° (-22°~140°), Storage Temperature -40°~60° (-40°~140°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
