Items tagged as

PoE:
  • Communication for industry
    • Industrial Switches
      • » PoE SWITCHES UNMANAGED
          #07992

          Unmanaged switch, 4x 10/100 RJ-45 PoE + 2x 100 MM SC, slim housing (ORing IPS-1042-FX-MM-SC-24V)

          IPS-1042FX-24V series are unmanaged PoE Ethernet switches with 4 x 10/100Base-T(X) P.S.E. and 2x100Base-FX ports. IPS-1042FX-24V series supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. IPS-1042FX-24V series has 4X10/100Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. IPS-1042FX-24V series support redundant power inputs, configurable relay output alarm and rigid IP-30 housing. In addition, the wide operating temperature range from -40 to 70oC can satisfy most of operating environment.
          Physical Ports
          10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX 4
          100Base-SX Multimode ports (2km, 1310nm, SC connector) 2
          Technology
          Ethernet Standards IEEE 802.3 for 10BaseT,
          IEEE 802.3u for 100BaseT(X),
          IEEE 802.3x for Flow control,
          802.3at PoE specyfication
          MAC Table 2048 MAC addresses
          Processing Store-and-Forward
          LED Indicators
          Power indicator Green - Power LED x 2
          Fault indicator Amber - Indicate PWR1 or PWR2 failure
          10/100TX RJ45 port Indicator Green for port Link/Act.,
          Green for PoE power injected
          100Base-FX Fiber Port Indicator Green for port Link/Act.
          Fault contact
          Relay Relay output to carry capacity of 1A at 24VDC
          Power
          Input power Dual DC inputs. 12~57VDC on 6-pin terminal block
          Power consumption (typical) 6.78W
          Overload current protection present
          Reverse polarity protection not present
          Physical Characteristic
          Enclosure IP-30
          Dimension (W x D x H) 41mm x 94.9m x 144.3mm
          Weight 530g
          Environmental
          Storage Temperature -40÷85°C
          Operating Temperature -40÷70°C
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950-1
          Warranty
          Warranty period 5 years
          Unmanaged switch, 4x 10/100 RJ-45 PoE + 2x 100 MM SC, slim housing (ORing IPS-1042-FX-MM-SC-24V)
          for special orders only
          Net Price: 428.00 USD
          product card»
          #07993

          Unmanaged switch, 4x 10/100 RJ-45 PoE + 2x 100 SM SC (ORing IPS-1042-FX-SS-SC-24V)

          IPS-1042FX-24V series are unmanaged PoE Ethernet switches with 4 x 10/100Base-T(X) P.S.E. and 2x100Base-FX ports. IPS-1042FX-24V series supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. IPS-1042FX-24V series has 4X10/100Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. IPS-1042FX-24V series support redundant power inputs, configurable relay output alarm and rigid IP-30 housing. In addition, the wide operating temperature range from -40 to 70oC can satisfy most of operating environment.
          Physical Ports
          10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX 4
          100Base-SX Multimode ports (30km, 1310nm, SC connector) 2
          Technology
          Ethernet Standards IEEE 802.3 for 10BaseT,
          IEEE 802.3u for 100BaseT(X),
          IEEE 802.3x for Flow control,
          802.3at PoE specyfication
          MAC Table 2048 MAC addresses
          Processing Store-and-Forward
          LED Indicators
          Power indicator Green - Power LED x 2
          Fault indicator Amber - Indicate PWR1 or PWR2 failure
          10/100TX RJ45 port Indicator Green for port Link/Act.,
          Green for PoE power injected
          100Base-FX Fiber Port Indicator Green for port Link/Act.
          Fault contact
          Relay Relay output to carry capacity of 1A at 24VDC
          Power
          Input power Dual DC inputs. 12~57VDC on 6-pin terminal block
          Power consumption (typical) 5.6W
          Overload current protection present
          Reverse polarity protection not present
          Physical Characteristic
          Enclosure IP-30
          Dimension (W x D x H) 41mm x 94.9m x 144.3mm
          Weight 530g
          Environmental
          Storage Temperature -40÷85°C
          Operating Temperature -40÷70°C
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950-1
          Warranty
          Warranty period 5 years
          Unmanaged switch, 4x 10/100 RJ-45 PoE + 2x 100 SM SC (ORing IPS-1042-FX-SS-SC-24V)
          for special orders only
          Net Price: 482.00 USD
          product card»
          #06517

          Unmanaged switch, 8x 10/1000 RJ-45 PoE + 2x 1000 SFP, slim housing (ORing IGPS-1082GP)

          IGPS-1082GP series is full Gigabit unmanaged PoE Ethernet switches with 8x10/100/1000Base-T(X) P.S.E. ports and 2x100/1000Base-X SFP ports. IGPS-1082GP series also support Power over Ethernet, a system to transmit electrical power up to 30 watts, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. Each IGPS-1082GP series switch has 8x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE connection. And support wide operating temperature from -40 oC to 75 oC. Therefore, the switch is one of the most reliable choices for rolling stock and highly-unmanaged PoE Ethernet application.
          Physical Ports
          10/100/1000 Base-T(X) Ports in RJ45 with P.S.E. Auto MDI/MDIX 8
          100/1000Base-X SFP Ports 2
          Technology
          Ethernet Standards IEEE 802.3 for 10BaseT,
          IEEE 802.3u for 100BaseT(X) and 100BaseFX,,
          IEEE 802.3z for 1000Base-X,
          IEEE 802.3x for Flow control,
          IEEE 802.3af/at PoE specification (up to 30 Watts per port for P.S.E.)
          MAC Table 8k MAC addresses
          Processing Store-and-Forward
          Switch Properties Switching latency less than 7us,
          Switching bandwidth 20Gbps
          Jumbo frame Up to 9.6K Bytes
          Packet buffer 4Mbit
          LED Indicators
          Power indicator Green - Power LED x 3
          Fault indicator Amber - Indicate power failed even warning
          10/100/1000TX RJ45 port Indicator and PoE indicator (P1 ~ P4) Green for port Link/Act.,
          Green for PoE power injected
          1000X SFP port Indicator Green for port Link/Act
          DIP Switch
          DIP-Switch 1 Power-1 failed warning (ON) enable,
          (OFF) disable
          DIP-Switch 2 Power-2 failed warning (ON) enable,
          (OFF) disable
          DIP-Switch 3 DIP switch 3 and 4 (ON) SFP speed setting to 100Mbps
          DIP-Switch 4 DIP switch 3 and 4 (OFF) SFP speed setting to 1000Mbps(default)
          Fault contact
          Relay Relay output to carry capacity of 1A at 24VDC
          Power
          Input power Dual DC inputs. 50-57 VDC on 6-pin terminal block
          Power consumption (typical) 11W
          PoE Power budget 180W
          Overload current protection present
          Reverse polarity protection present
          Physical Characteristic
          Enclosure IP-30
          Dimension (W x D x H) 54.3(W) x 108.3(D) x 145.1(H) mm (2.13x4.26x5.71 inches.)
          Weight 889g
          Environmental
          Storage Temperature -40÷85°C (-40÷185°F)
          Operating Temperature -40÷75°C (-40÷167°F)
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMC EN55032,
          EN55024(CE EMC),
          FCC Part 15B,
          EN61000-3-2,
          EN61000-3-3
          EMI CISPR 32,
          EN55032,
          FCC Part 15B class A
          EMS IEC 61000-4-2 (ESD),
          IEC 61000-4-3 (RS),
          IEC 61000-4-4 (EFT),
          IEC 61000-4-5 (Surge),
          IEC 61000-4-6 (CS),
          IEC 61000-4-8 (PFMF),
          IEC 61000-4-11 (DIP)
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950-1
          Warranty
          Warranty period 5 years
          Unmanaged switch, 8x 10/1000 RJ-45 PoE + 2x 1000 SFP, slim housing (ORing IGPS-1082GP)
          Net Price: 565.00 USD
          product card»
          #06518

          Unmanaged switch, 8x 10/1000 RJ-45 PoE + 2x 1000 SFP, slim housing (ORing IGPS-1082GP-24V)

          IGPS-1082GP series is full Gigabit unmanaged PoE Ethernet switches with 8x10/100/1000Base-T(X) P.S.E. ports and 2x100/1000Base-X SFP ports. IGPS-1082GP series also support Power over Ethernet, a system to transmit electrical power up to 30 watts, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. Each IGPS-1082GP series switch has 8x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE connection. And support wide operating temperature from -40 oC to 75 oC. Therefore, the switch is one of the most reliable choices for rolling stock and highly-unmanaged PoE Ethernet application.
          Physical Ports
          10/100/1000 Base-T(X) Ports in RJ45 with P.S.E. Auto MDI/MDIX 8
          100/1000Base-X SFP Ports 2
          Technology
          Ethernet Standards IEEE 802.3 for 10BaseT,
          IEEE 802.3u for 100BaseT(X) and 100BaseFX,,
          IEEE 802.3z for 1000Base-X,
          IEEE 802.3x for Flow control,
          IEEE 802.3af/at PoE specification (up to 30 Watts per port for P.S.E.)
          MAC Table 8k MAC addresses
          Processing Store-and-Forward
          Switch Properties Switching latency less than 7us,
          Switching bandwidth 20Gbps
          Jumbo frame Up to 9.6K Bytes
          Packet buffer 4Mbit
          LED Indicators
          Power indicator Green - Power LED x 3
          Fault indicator Amber - Indicate power failed even warning
          10/100/1000TX RJ45 port Indicator and PoE indicator (P1 ~ P4) Green for port Link/Act.,
          Green for PoE power injected
          1000X SFP port Indicator Green for port Link/Act
          DIP Switch
          DIP-Switch 1 Power-1 failed warning (ON) enable,
          (OFF) disable
          DIP-Switch 2 Power-2 failed warning (ON) enable,
          (OFF) disable
          DIP-Switch 3 DIP switch 3 and 4 (ON) SFP speed setting to 100Mbps
          DIP-Switch 4 DIP switch 3 and 4 (OFF) SFP speed setting to 1000Mbps(default)
          Fault contact
          Relay Relay output to carry capacity of 1A at 24VDC
          Power
          Input power Dual DC inputs. 12-57 VDC on 6-pin terminal block
          Power consumption (typical) 11W
          PoE Power budget 60W at 12~24VDC,
          120W at 24~57VDC
          Overload current protection present
          Reverse polarity protection present
          Physical Characteristic
          Enclosure IP-30
          Dimension (W x D x H) 54.3(W) x 108.3(D) x 145.1(H) mm (2.13x4.26x5.71 inches.)
          Weight 916g
          Environmental
          Storage Temperature -40÷85°C (-40÷185°F)
          Operating Temperature -40÷75°C (-40÷167°F)
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMC EN55032,
          EN55024(CE EMC),
          FCC Part 15B,
          EN61000-3-2,
          EN61000-3-3
          EMI CISPR 32,
          EN55032,
          FCC Part 15B class A
          EMS IEC 61000-4-2 (ESD),
          IEC 61000-4-3 (RS),
          IEC 61000-4-4 (EFT),
          IEC 61000-4-5 (Surge),
          IEC 61000-4-6 (CS),
          IEC 61000-4-8 (PFMF),
          IEC 61000-4-11 (DIP)
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950-1
          Warranty
          Warranty period 5 years
          Unmanaged switch, 8x 10/1000 RJ-45 PoE + 2x 1000 SFP, slim housing (ORing IGPS-1082GP-24V)
          for special orders only
          Net Price: 628.00 USD
          product card»
      • » GIGABIT ETHERNET / MANAGED SWITCHES
          #07919

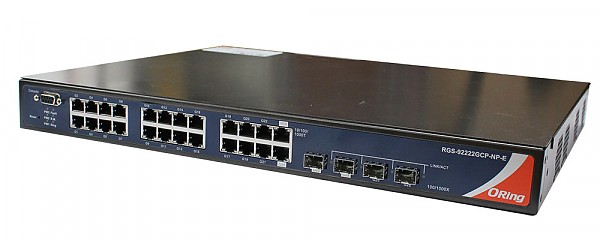

          Managed switch, 22x 10/1000 RJ-45 + 2x 10/100/1000 COMBO Ports with SFP + 2 slide-in SFP slots, O/Open-Ring <30ms (ORing RGS-92222GCP-NP-E)

          RGS-92222GCP-NP series are Gigabit managed redundant ring Ethernet switch with 22x10/100/1000Base-T(X) copper ports and 2xGigabit combo ports and 2x100/1000Base-X SFP ports. These switches support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection), Open-Ring, O-Chain, MRP, Fast Recovery and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. RGS-92222GCP-NP series can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.
          Physical Ports
          10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX 22
          Gigabit Combo port with 10/100/1000Base-T(X) and 100/1000Base-X SFP ports 2
          100/1000Base-X with SFP ports 2
          RS-232 Serial Console Port RS-232 in DB-9 connector with console cable. 115200bps,
          8,
          N,
          1
          Technology
          Ethernet Standards IEEE 802.3 for 10Base-T,
          IEEE 802.3u for 100Base-TX and 100Base-FX,
          IEEE 802.3ab for 1000Base-T,
          IEEE 802.z for 1000Base-X,
          IEEE 802.3ae for 10Gigabit Ethernet,
          IEEE 802.3x for Flow control,
          IEEE 802.3ad for LACP (Link Aggregation Control Protocol ),
          IEEE 802.1p for COS (Class of Service),
          IEEE 802.1Q for VLAN Tagging,
          IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
          IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol),
          IEEE 802.1x for Authentication,
          IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
          MAC Table 8192 MAC addresses
          Priority Queues 8
          Processing Store-and-Forward
          Switching latency 7 µs
          Switching bandwidth 52 Gbps
          IGMP multicast groups 256 for each VLAN
          Port rate limiting User Define
          Security Features Device Binding security feature,
          Enable/disable ports,
          MAC based port security,
          Port based network access control (802.1x),
          Single 802.1x and Multiple 802.1x,
          MAC-based authentication,
          QoS assignment,
          Guest VLAN,
          MAC address limit,
          TACACS+,
          VLAN (802.1Q ) to segregate and secure network traffic,
          Radius centralized password management,
          SNMPv3 encrypted authentication and access security,
          Https / SSH enhance network security,
          Web and CLI authentication and authorization,
          Authorization (15 levels),
          IP source guard
          Software Features STP/RSTP (IEEE 802.1D/w),
          Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units,
          TOS/Diffserv supported,
          Quality of Service (802.1p) for real-time traffic,
          VLAN (802.1Q) with VLAN tagging and GVRP supported,
          IGMP Snooping for multicast filtering,
          Port configuration,
          Port status,
          Port statistics,
          Port monitoring,
          Port security
          Network Redundancy O-Ring,
          Open-Ring,
          O-Chain,
          MRP,
          MSTP(RSTP/STP compatible),
          Fast Recovery
          LED Indicators
          Power Indicator Green LED x 3 Power indicator for AC and DC
          Ring Master indicator Green - indicates system operated in O-Ring Master mode
          O-Ring Indicator (Ring) Green - Indicates that the system operating in O-Ring mode,
          Green Blinking - Indicates that the Ring is broken.
          Fault indicator Amber - Indicate unexpected event occurred
          10/100/1000Base-T(X) RJ45 port indicator Green for Link/Act indicator,
          Dual color LED for speed indicator ~ Green for 1000Mbps / Amber for 100Mbps / Off-light for 10Mbps
          100/1000Base-X SFP+ Port Indicator Green for port Link/Act.
          Fault Contact
          Relay Relay output to carry capacity of 1A at 24VDC
          Power
          Input power 100~240VAC with power cord,
          and dual 48VDC(36~72VDC) power inputs at 6-pin terminal block
          Power consumption (typical) 23W
          Overload current protection present
          Reverse Polarity Protection Present on DC only
          Physical Characteristic
          Dimension (W x D x H) 431mm x 342mm x 44mm
          Weight 4360g
          Environmental
          Storage Temperature -40÷85°C(-40÷185°F)
          Operating Temperature -40 to 75 °C
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Warranty
          Warranty period 5 years
          Managed switch, 22x 10/1000 RJ-45 + 2x 10/100/1000 COMBO Ports with SFP + 2 slide-in SFP slots, O/Open-Ring <30ms (ORing RGS-92222GCP-NP-E)
          for special orders only
          Net Price: 1 460.00 USD
          product card»
      • » SINGLE PAIR ETHERNET SWITCHES
          #07998
          NEW

          Unmanaged SPE switch, 4x 10 T1L + 1x 100 RJ-45 (ORing ITPS-141TX-T1L)

            ITPS-141TX-T1L is an ideal solution for factory, process automation infrastructure. The new single pair Ethernet technology can be integrated easily into an existing Ethernet infrastructure to simplify layout and also reduce the cost of cabling.

          • Supports SPE (Single Paire Ethernet) 10Base-T1L compliant with IEEE 802.3cg standard
          • Long distances point to point transmission up to 1000m
          • Supports SCCP PoDL(Power over Data Line) PSE Types compliant with IEEE 802.3bu standard
          • PoDL up to 50 Watts/1A per port
          • Supports PoDL legacy mode
          • Supports wide range 20~30VDC power input
          • Supports QoS and flow control
          • Rugged IP-30 housing design
          Physical Ports
          10Base-T1L with PoDL 4
          10/100Base-T(X) Port in RJ45 Auto MDI/MDIX 1
          Technology
          Ethernet Standards IEEE 802.3 for 10BaseT,
          IEEE 802.3u for 100BaseT(X),
          IEEE 802.3x for Flow control,
          IEEE 802.3cg for 10Base-T1L
          IEEE 802.3bu for PoDL
          MAC Table 1K MAC addresses
          Processing Store-and-Forward
          LED Indicators
          Power indicator Green - Power LED
          10Base-T1L (PoDL) indicator Green for port Link/Act,
          Amber for PoDL PD device is connected
          10/100Base-T(X) RJ45 port indicator Green for port Link/Act.,
          Amber for 10Mbps/ Green for 100Mbps indicator
          PoDL
          24v Class 10~12,
          up to 20W
          50v Class 13~14,
          up to 30W
          Force mode Up to 50W/1A
          PoDL Dip switch
          PoDL On - Enable PoDL,
          OFF - Disable PoDL
          SCCP mode Turn on SCCP-based classification ensures full operating voltage is applied by the Power Sourcing Equipment (PSE) when a valid PD is connected
          Force mode Force enable PoDL without classification (Does NOT support hot plugging before enabling Force mode)
          Power
          Input power DC 24VDC (20~30VDC)
          Power consumption (typical) Max.3.47A
          PoE Power Budget 80Watts
          Overload current protection present
          Reverse polarity protection present
          Physical Characteristic
          Enclosure IP-30
          Dimension (W x D x H) 28 x 108.3 x 145.1 mm
          Weight 530g
          Environmental
          Storage Temperature -40÷85°C
          Operating Temperature -40÷70°C
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55032) class A
          Warranty
          Warranty period 5 years
          Unmanaged SPE switch, 4x 10 T1L + 1x 100 RJ-45 (ORing ITPS-141TX-T1L)
          for special orders only
          Net Price: 565.00 USD
          product card»
    • Industrial Media Converters
      • » GIGABIT ETHERNET MEDIA CONVERTERS
          #07964

          Industrial mini type Ethernet to fiber PoE media converter LFP with 1x10/1000Base-T(X) P.S.E. and 1x1000Base-FX, SFP socket (ORing IGPMC-111GP)

          Physical Ports
          10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX with PoE (PSE) 1
          1000Base-FX (SFP) 1
          Processing Store-and-Forward
          Technology
          Ethernet Standards IEEE 802.3 for 10BaseT,
          IEEE 802.3u for 100BaseT(X) and 100BaseFX,
          IEEE 802.3x for Flow control,
          IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
          DIP-Switch setting DIP-Switch 1 for LFP mode selection - (ON) enable / (OFF) disable,
          DIP-Switch 2 for Ethernet speed selection - (ON)10Mbps / (OFF) 10/100Mbps Auto-negotiate,
          DIP-Switch 3 for Ethernet full/half duplex selection - (ON) Half-duplex / (OFF) Full/Half-Duplex Auto-negotiate,
          DIP-Switch 4 for fiber full/half duplex selection - (ON) Half-Duplex / (OFF) Full-Duplex
          LED Indicators
          Power indicator Green - Power LED x 2 ( (ON) power input on-line / (OFF) power input off-line)
          10/100TX RJ45 port indicator Green for port Link/Act – (ON) Link up / (Blinking) Acting / (OFF) Link down,
          Amber for 100Mbps/10Mbps indicator – (ON) Working at 100Mbps / (OFF) Working at 10Mbps,
          Green for port duplex indicator – (ON) Full-Duplex / (OFF) Half-Duplex
          100Base-FX fiber port indicator Green for fiber port Link/Act - (ON) Link up / (Flash) Acting / (OFF) Link down,
          Green for fiber port duplex indicator – (ON) Full-Duplex / (OFF) Half-Duplex
          LFP statue indicator Amber LED – (ON) LFP function fail / (OFF) LFP function disable
          PoE indicator Amber for P.S.E. indicator
          Power
          Input power Dual 50~57 VDC voltage power inputs at 4-pin terminal block
          Power consumption (typical) 4 Watts (P.S.E. output included)
          Overload current protection present
          Reverse polarity protection present
          Physical Characteristic
          Enclosure IP-30
          Dimension 40mm x 70mm x 95mm
          Weight 291g
          Environmental
          Storage Temperature -40÷85°C
          Operating Temperature -40÷75°C
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A,
          EN50155 (EN50121-3-2,
          EN55011,
          EN50121-4)
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950-1
          Warranty
          Warranty period 5 years
          Recommended power supply: #06676 Power supply 40W 24VDC, mini, DIN TS35 (Mean Well MDR-40-24).
          In order to optimize the selection of SFP modules, please contact our Sales Department.
          Industrial mini type Ethernet to fiber PoE media converter LFP with 1x10/1000Base-T(X) P.S.E. and 1x1000Base-FX, SFP socket (ORing IGPMC-111GP)
          Net Price: 176.00 USD
          product card»
          #06631

          Industrial mini type Ethernet to fiber PoE media converter LFP with 1x10/1000Base-T(X) P.S.E. and 1x1000Base-FX, SFP socket (ORing IGPMC-111GP-BT-24V)

          The IGPMC-111GP-BT-24V is a cost-effective solution for the conversion interface between 10/100/1000Base-T(X) and 100/1000Base-X SFP socket; it allows you to extend communication distance by optical fiber. IGPMC-111GP-BT-24V supports MDI/MDIX auto detection, so you don’t need to use crossover wires. IGPMC-111GP-BT-24V also support Power over Ethernet, a system to transmit electrical power up to 90 watts, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. Each IGPMC-111GP-BT-24V has 1x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) port to provide power in a PoE setup.

          The IGPMC-111GP-BT-24V also supports the LFP (Link Fault Pass-through) feature. When one side of the link fails, the other side continues transmitting packets, and waiting for a response that never arrives from the disconnected side. Use the DIP-Switch to enable the LFP function, then IGPMC-111GP-BT-24V will force the link to shut down as soon as noticed that the other link has failed, giving the application software a chance to react to the situation.

          The IGPMC-111GP-BT-24V with wide operating temperature range from -40 ~ 75oC and accepts a wide voltage range from dual 12~57 VDC power inputs, so it is suitable for harsh operating environments. Therefore, the IGPMC-111GP-BT-24V is reliable media converter with PoE capability and can satisfy most demand of operating environment.
          Physical Ports
          10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX with PoE (PSE) 1
          1000Base-FX (SFP) 1
          Processing Store-and-Forward
          Technology
          Ethernet Standards IEEE 802.3 for 10BaseT,
          IEEE 802.3u for 100BaseT(X) and 100BaseFX,
          IEEE 802.3x for Flow control,
          IEEE 802.3at PoE specification
          DIP-Switch setting DIP-Switch 1 for LFP mode selection - (ON) enable / (OFF) disable,
          DIP-Switch 2 for Ethernet speed selection - (ON)10Mbps / (OFF) 10/100Mbps Auto-negotiate,
          DIP-Switch 3 for Ethernet full/half duplex selection - (ON) Half-duplex / (OFF) Full/Half-Duplex Auto-negotiate,
          DIP-Switch 4 for fiber full/half duplex selection - (ON) Half-Duplex / (OFF) Full-Duplex
          LED Indicators
          Power indicator Green - Power LED x 2 ( (ON) power input on-line / (OFF) power input off-line)
          10/100/1000TX RJ45 port indicator Green for Link/Act,
          Speed LED– Green for 1000Mbps, Off-light for 100/10Mbps
          100/1000Base-FX fiber port indicator Green for port Link/Act
          LFP statue indicator Amber LED – (ON) LFP function fail / (OFF) LFP function disable
          PoE indicator Amber for P.S.E. indicator
          Power
          Input power Dual 12~57 VDC voltage power inputs at 4-pin terminal block
          Power consumption (typical) IEEE 802.3at(30W) mode - 12VDC,
          IEEE 802.3bt( 60/90W) mode - 24VDC
          Overload current protection present
          Reverse polarity protection present
          Physical Characteristic
          Enclosure IP-30
          Dimension 41mm x 70mm x 95mm
          Weight 300g
          Environmental
          Storage Temperature -40÷85°C
          Operating Temperature -40÷75°C
          Operating Humidity 5%÷95% Non-condensing
          Regulatory approvals
          EMC EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          EMI FEN 55032,
          CISPR32,
          EN 61000-3-2,
          EN 61000-3-3,
          FCC Part 15 B class A
          EMS EN 55024 (IEC/EN 61000-4-2 (ESD Contact 4KV,
          Air 8KV),
          IEC/EN 61000-4-3 (RS 3V),
          IEC/EN 61000-4-4 (EFT Power 0.5KV,
          Signal 0.5KV),
          IEC/EN 61000-4-5 (Surge Power 0.5KV,
          RJ45 1KV),
          IEC/EN 61000-4-6 (CS 3V),
          IEC/EN 61000-4-8(PFMF)
          Shock IEC60068-2-27
          Free Fall IEC60068-2-31
          Vibration IEC60068-2-6
          Safety EN 62368-1
          MTBF 1,183,306hrs
          Warranty
          Warranty period 5 years
          In order to optimize the selection of SFP modules, please contact our Sales Department.
          Industrial mini type Ethernet to fiber PoE media converter LFP with 1x10/1000Base-T(X) P.S.E. and 1x1000Base-FX, SFP socket (ORing IGPMC-111GP-BT-24V)
          for special orders only
          Net Price: 308.00 USD
          product card»
      • » INJECTORS
          #08446

          Industrial Gigabit High Power Injector, 2x10/1000 RJ-45 PoE + 2x10/1000 RJ-45 (ORing INJ-102GT)

          The INJ-102GT PoE Injector is an advanced IEEE802.3at compliant device with Intelligent Detection, that provided 2-ports 10/100/1000Base-T(X) PoE outputs. The device does not turn on power until it detects a valid PoE signature from the PoE devices attached downstream on the Ethernet cable. This protection against damage to non-PoE compliant equipment which may be connected to the Ethernet cable. Because of this intelligent detection, only an IEEE 802.3at/802.3af compliant device can be powered with the INJ-102GT PoE Injector. Typically in gigabit networks the maximum allowable CAT5 cable length is about 100 meters, due to the limitation of the Ethernet standards. Because of its 50~57V insertion, the installer doesn’t need to worry about voltage drops caused by cable length. The INJ-102GT PoE Injector can function with any PoE P.D. equipment which is fully compliant with the IEEE 802.3at/802.3af PoE standards.
          Physical Ports
          10/100/1000Base-T(X) in RJ-45 Ethernet Port Input 2
          10/100/1000Base-T(X) in RJ-45 Ethernet Port with P.S.E. Output 2
          Operating Voltage
          Input Voltage 50 ~ 57 VDC / 4-pin terminal block
          Output Power 50V / 600mA,
          30 Watts max. Per port
          LED Indicators
          Power indicator PWR / Ready 1 x LED,
          Green On - Power is on and functioning Normally
          PoE Indicators 2 x LED,
          Blue On - PoE Device Link,
          Blue Blinking - Detecting PoE Device,
          Blue Off - None PoE Device Detected
          Protection
          Short Circuit Protection present
          Over Load Protection present
          High Voltage Protection present
          Physical Characteristic
          Enclosure IP-30
          Dimension (W x D x H) 26.1mm x 70mm x 95mm
          Weight 250g
          Environmental
          Storage Temperature -40÷80°C(-40÷176°F)
          Operating Temperature -20÷70°C (-4÷158°F)
          Operating Humidity 5%÷90% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950-1
          Warranty
          Warranty period 2 years
          Industrial Gigabit High Power Injector, 2x10/1000 RJ-45 PoE + 2x10/1000 RJ-45 (ORing INJ-102GT)
          for special orders only
          Net Price: 104.00 USD
          product card»
          #08447

          Industrial Gigabit High Power Injector, 2x10/1000 RJ-45 PoE + 2x10/1000 RJ-45 (ORing INJ-102GT-24V)

          The INJ-102GT PoE Injector is an advanced IEEE802.3at compliant device with Intelligent Detection, that provided 2-ports 10/100/1000Base-T(X) PoE outputs. The device does not turn on power until it detects a valid PoE signature from the PoE devices attached downstream on the Ethernet cable. This protection against damage to non-PoE compliant equipment which may be connected to the Ethernet cable. Because of this intelligent detection, only an IEEE 802.3at/802.3af compliant device can be powered with the INJ-102GT PoE Injector. Typically in gigabit networks the maximum allowable CAT5 cable length is about 100 meters, due to the limitation of the Ethernet standards. Because of its 50~57V insertion, the installer doesn’t need to worry about voltage drops caused by cable length. The INJ-102GT PoE Injector can function with any PoE P.D. equipment which is fully compliant with the IEEE 802.3at/802.3af PoE standards.
          Physical Ports
          10/100/1000Base-T(X) in RJ-45 Ethernet Port Input 2
          10/100/1000Base-T(X) in RJ-45 Ethernet Port with P.S.E. Output 2
          Operating Voltage
          Input Voltage 24 ~ 57 VDC / 4-pin terminal block
          Output Power 50V / 600mA,
          30 Watts max. Per port
          LED Indicators
          Power indicator PWR / Ready 1 x LED,
          Green On - Power is on and functioning Normally
          PoE Indicators 2 x LED,
          Blue On - PoE Device Link,
          Blue Blinking - Detecting PoE Device,
          Blue Off - None PoE Device Detected
          Protection
          Short Circuit Protection present
          Over Load Protection present
          High Voltage Protection present
          Physical Characteristic
          Enclosure IP-30
          Dimension (W x D x H) 41mm x 70mm x 95mm
          Weight 370g
          Environmental
          Storage Temperature -40÷80°C(-40÷176°F)
          Operating Temperature -20÷70°C (-4÷158°F)
          Operating Humidity 5%÷90% Non-condensing
          Regulatory approvals
          EMI FCC Part 15,
          CISPR (EN55022) class A
          EMS EN61000-4-2 (ESD),
          EN61000-4-3 (RS),
          EN61000-4-4 (EFT),
          EN61000-4-5 (Surge),
          EN61000-4-6 (CS),
          EN61000-4-8,
          EN61000-4-11
          Shock IEC60068-2-27
          Free Fall IEC60068-2-32
          Vibration IEC60068-2-6
          Safety EN60950-1
          Warranty
          Warranty period 2 years
          Industrial Gigabit High Power Injector, 2x10/1000 RJ-45 PoE + 2x10/1000 RJ-45 (ORing INJ-102GT-24V)
          for special orders only
          Net Price: 191.00 USD
          product card»


top

Page 19 of 20
$ €
