Oring Networking - Industrial IoT


Industrial IOT

ORing IIoT Overview

The Industrial Internet of Things (IIoT) is the key object in the past two years. What is IIoT ? What are the differences between IoT and IIoT ? At first, we should specify the IoT before making a statement about the IoT. The IoT is composed by a network of intelligent computers, devices, and huge amounts of collecting data. The collected data is sent to the cloud central service where can be amounted to other data and then provided to end users with an optimizing solution. The IoT will connect each autonomous device in homes, schools, stores and industries.

The application of the IoT to the field of manufacturing industry is called IIoT. The IIoT will be the revolution in the manufacturing industry. It can greatly improve connectivity, efficiency, scalability, time and cost saving for the industrial organizations. The most important thing, IIoT networks of intelligent devices provides industrial organizations to break open data silos and connect all of their data and processes from factory to offices. Trough IIoT data analyzing also helps business development to clarify how their enterprise is doing, which makes them to do the better decisions.

The IIoT is considered to be an up-going trend in the future. ORing Industrial Networking Corp. is based on our strong experience of developing wireless communication technology. We incorporated our technological strength with our products – gateways, I/O modules, smart antennas, cloud service platform and APP to provide a total IIoT solution. Potential environmental IIoT applications are growing such as Wi-Fi hotspots, PM2.5 air quality detection, urban marketing, and real-time surveillance systems. More business opportunities can be found in tremendous IIoT solutions and we are looking forward to inviting our ambitious customers to join us.

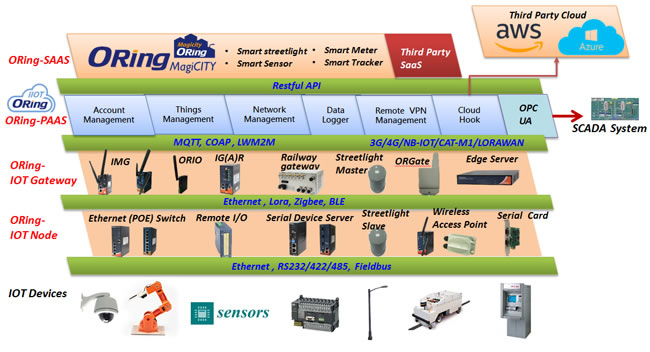

ORing IIoT System Architecture

ORing IIOT System Architecture

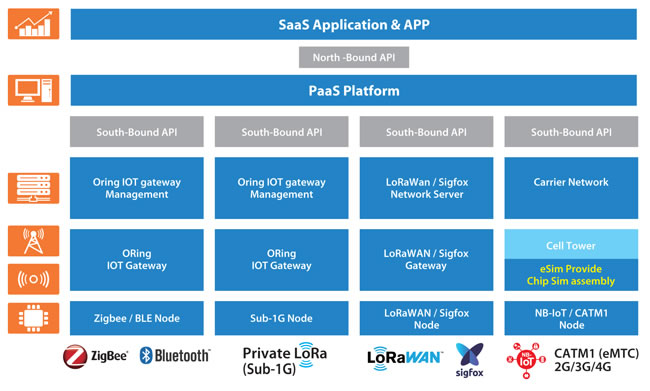

ORing IIoT Technologies

ORing IIoT Technologies

IIoT Products


Smart Lighting Controller Series

Smart Lighting Controller Smart Lighting Controller LoRa Slave Series
ORing Lighting Controller LoRa Slave, 920MHz, NEMA Receptacle, DALI, OLS-L01ND
LORA
Smart Lighting Controller ZigBee Slave Series
ORing Lighting Controller ZigBee Slave, 2.4GHz, NEMA Receptacle, DALI, OLS-Z01ND
ZigBee

IIOT Gateway

IIOT Gateway IMG-4312-MN
Industrial IEEE 802.11 b/g/n with 2x10/100Base-T(X) 1x RS-232/422/485 IoT LTE LPWAN Gateway

IMG-6322GT-MN
Industrial IEEE 802.11 a/b/g/n with 1 Port RS-422/485, 1 port RS-232/422/485 & 2x10/100/1000Base-T(X) IoT LPWAN Gateway


IIOT IO-Gateway

IIOT IO-Gateway

ORIO-G30218 Industrial Wireless IO Device
The ORIO-G30218 is an IO device with 4 DIs/4 DOs and wireless module. The serial port is up to 921.6K baudrate and supports Modbus protocol.
ORIO-G30218 has multi-common protocols that help user send data to cloud easily. There are many wireless types could be chosen. It could be a MQTT/Modbus gateway. User can setup the configuration by using USB virtual com port, and update firmware via USB.

PDF ORIO-G30218 Datasheet



IIOT Module

IIOT Module

ORFMMT7620
High Performance WiFi Module with board connection DIP type.
2T2R 2.4 GHz with 300 Mbps PHY data rate.
Chipset: MT7620

PDF ORFM-MT7620-02 Datasheet



ORMS76S
High Performance LoRa Module.
Board connection DIP type, 20pin.
Chipset: STM32L073xZ and SX1276

PDF ORMS76S-ID-02 Datasheet

LORA
OZM
High power Zigbee Module.
Output Power up to +21dBm. Board connection with DIP type, 20pin.
Chipset:.CC2630+CC2592
ZigBee

PDF Smart City Flyer
