NOYAFA Products |
Cable testers, network testers, wire trackers |
Display | 128x64mm backlit LCD |
---|---|
Tested cabling | RJ45 |
PoE voltage range | DC 5 - 60V |
Recognized standards |
802.3af, 802.3at, nonstandard |
Current measurement | 0 - 3A |
Power measurement | 0 - 18W |
Detected failures |
incorrect connections, short circuits and interruptions in the wiring |
Battery type | 3x1.5V AAA |
Packaging |
cardboard, case |
Tested cabling |
RJ45, RJ 11 |
---|---|
Detected failures |
incorrect connections, short circuits and interruptions in the wiring |
Scanning modes | normal and slow |
Power | 9V 6F22 battery |
Packaging | Blister |
Tested cables |
UTP, STP, USB, coaxial, phone cables |
---|---|
Detected failures |
incorrect connections, short circuits and interruptions in the wiring |
Additional functions | Automatically recognizing terminator's impedance for 10Base-2 and 10Base-5 standards |
Kit includes |
tester, case, adapter for BNC terminators |
Power | 9V 6F22 battery |
Manufacturer | NOYAFA |
Tested cabling |
RJ45, RJ11, fibre optic (2.5mm SC;ST;FC ferrule) |
---|---|
Functionality |
location of the damage site, cable length measurement, detection of short circuit; interruptions; reverse connections, measurement of the distance to damage, dynamic calibration of cable lenght measurement, temperature compensation, sound signaling |
Wiring tests |
cable lenght, connection map, digital pair finder with generator, light pen |
Fiber optic tests |
OPM -70..+10dBm 850/1300/1310/1490/1550/1625nm, VFL 10mW |
Cable length measurement | 10÷200m |
Measurement of the distance to damage | yes |
PoE tests |
Standard/Non standard, voltage measurement, automatic detection, 60V max |
Wire tracker |
digital, analogue 455kHz |
Ergonomics |
big and clear LCD display, automatic shutdown, long operating time, measuring data memory |
Power |
in-built 1500mAh battery, USB-C charging |
Dimensions |
148x70x32 mm (main), 198x50x28 mm (reciever) |
Warranty | 12 months |
Manufacturer | NOYAFA |

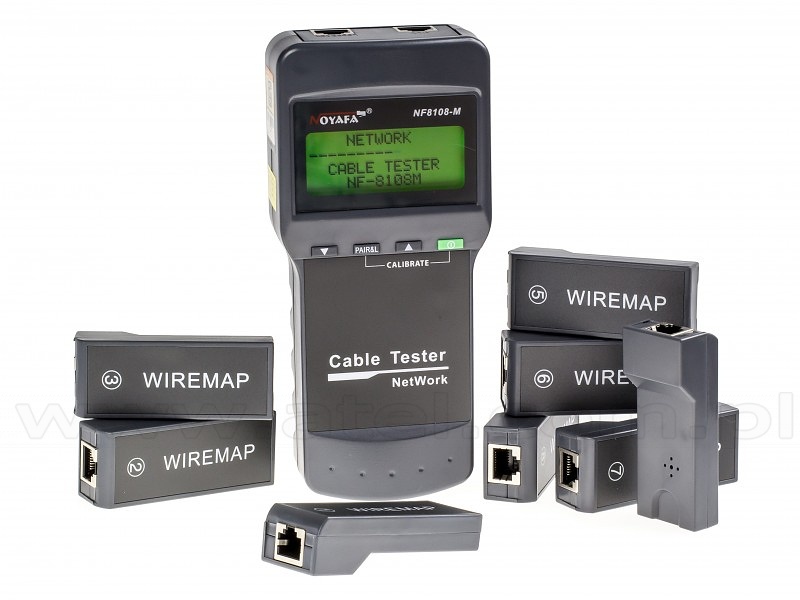

Display | LCD (53x25mm) |
---|---|
Frequency of the audible signal | 225Hz (after connecting the terminator) |
Max. length of the tested cabling | 300m |
Length measuring accuracy | 95% |
Max. current | <70mA |
Function selection |
three buttons, on / off button |
Power supply |
4x1.5V (about 50 hours of work), automatic shutdown |
Tester dimensions | 184x84x46mm |
Terminator dimensions | 78 x 33 x 22mm |
Packaging | cardboard box + soft case |
Warranty | 12 months |
Manufacturer | NOYAFA |
Tested cabling |
RJ45, RJ11, BNC |
---|---|
Functionality |
location of the damage site, cable length measurement, detection of short circuit; interruptions; reverse connections, measurement of the distance to damage, dynamic calibration of cable lenght measurement, temperature compensation, sound signaling, terminator identification |
Wiring tests |
cable lenght, connection map, digital pair finder with generator, |
LAN testing | ICMP ping |
Cable length measurement | 10÷1000m |
Setting the electric capacity of the tested cable | yes |
Measurement of the distance to damage | yes |
Ping test |
delay, lost packets |
Ergonomics |
big and clear LCD display (320x240 pixels), automatic shutdown, long operating time, export of measurement data to a micro SD card |
Power |
in-built battery, micro USB charging |
Dimensions | 173x92x34 mm (main),183x58x35 mm (reciever) |
Warranty | 12 months |
Manufacturer | NOYAFA |
Tested cabling |
RJ45, RJ11, BNC |
---|---|
Functionality |
location of the damage site, cable length measurement, detection of short circuit; interruptions; reverse connections, measurement of the distance to damage, dynamic calibration of cable lenght measurement, temperature compensation, sound signaling, |
Wiring tests |
cable lenght, connection map, digital pair finder with generator, |
LAN testing |
ICMP ping, flash port |
Cable length measurement | 10÷1500m |
Setting the electric capacity of the tested cable | yes |
Measurement of the distance to damage | yes |
Ping test |
delay, lost packets |
Ergonomics |
big and clear LCD display (320x240 pixels), automatic shutdown, long operating time, export of measurement data to a micro SD card |
Power |
in-built battery, micro USB charging |
Dimensions | 173x92x34 mm (main),183x58x35 mm (reciever) |
Warranty | 12 months |
Manufacturer | NOYAFA |
Tested cabling |
RJ45, RJ11, BNC, fibre optic (2.5mm SC;ST;FC ferrule) |
---|---|
Functionality |
location of the damage site, cable length measurement, detection of short circuit; interruptions; reverse connections, measurement of the distance to damage, dynamic calibration of cable lenght measurement, temperature compensation, sound signaling, terminator identification |
Wiring tests |
cable lenght, connection map, digital pair finder with generator, light pen |
Cable length measurement | 10÷2000m |
Setting the electric capacity of the tested cable | yes |
Measurement of the distance to damage | yes |
Ergonomics |
big and clear LCD display, automatic shutdown, long operating time, measuring data memory |
Power |
in-built 1000mAh battery, micro USB charging |
Dimensions | 135x78x35 mm (main),107x30x24 mm (reciever) |
Warranty | 12 months |
Manufacturer | NOYAFA |

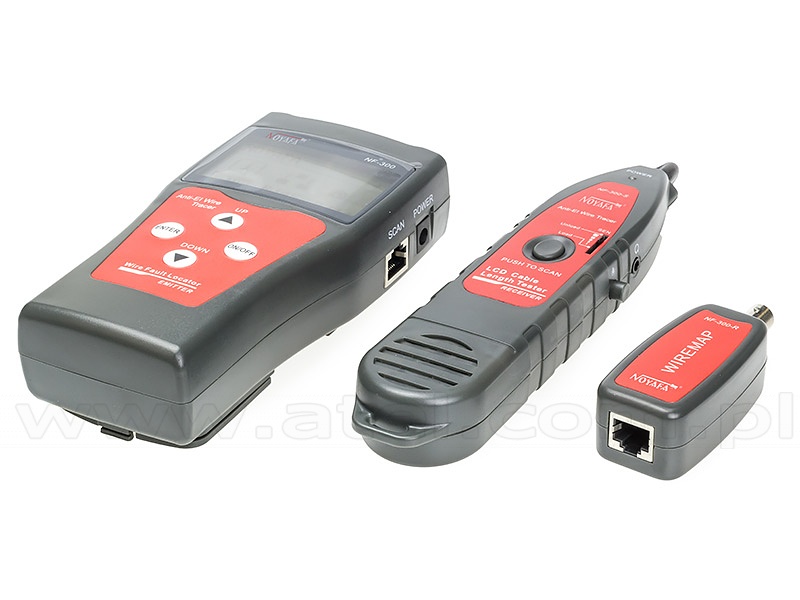

Display | LCD 128x64 dot-matrix with backlight |
---|---|
Frequency of generator | 130kHz |
Max. length of the tested cabling |
200m (length test), 600m (wiremap) |
Length measuring accuracy | 1.6m |
Max. current |
<130mA (emitter), <100mA (reciever) |
Function selection | graphical menu |
Power supply |
3x1.5V AAA (emitter), 9V (reciever) |
PoE test range | 5÷60V |
Packaging | cardboard box + soft case |
Warranty | 12 months |
Manufacturer | NOYAFA |
Display | LCD 128x64 dot-matrix with backlight |
---|---|
Frequency of analogue generator | 455kHz |
Max. length of the tested cabling |
200m (length test), 600m (wiremap) |
Length measuring accuracy | 1.6m |
Max. current |
<130mA (emitter), <100mA (reciever) |
Function selection | graphical menu |
Power supply | 3.7V 1400mAh polymer lithium battery (both transmitter and reciever) |
PoE test range | 5÷60V |
Packaging | cardboard box + soft case |
Warranty | 12 months |
Manufacturer | NOYAFA |
Tested cabling |
RJ45, RJ11, fibre optic (2.5mm SC;ST;FC ferrule) |
---|---|
Functionality |
location of the damage site, cable length measurement, detection of short circuit; interruptions; reverse connections, measurement of the distance to damage, dynamic calibration of cable lenght measurement, temperature compensation, sound signaling |
Wiring tests |
cable lenght, connection map, digital pair finder with generator, light pen |
Fiber optic tests |
OPM -70..+10dBm 850/1300/1310/1490/1550/1625nm, VFL 10mW |
Cable length measurement | 10÷200m |
Measurement of the distance to damage | yes |
PoE tests |
Standard/Non standard, voltage measurement, automatic detection, 60V max |
Wire tracker |
digital, analogue 455kHz |
Ergonomics |
big and clear LCD display, automatic shutdown, long operating time, measuring data memory |
Power |
in-built 1500mAh battery, USB-C charging |
Dimensions |
148x70x32 mm (main), 198x50x28 mm (reciever) |
Warranty | 12 months |
Manufacturer | NOYAFA |
Optical power meter | |
---|---|
Detector | InGaAs |
Wavelength | 850 ÷ 1700 nm |
Power range | +26 dBm ÷ -50 dBm |
Resolution | 0.01dBm |
Connector | universal 2.5mm |
Source of light | |
Wavelength | 1310 / 1550nm |
Modulation frequency |
270Hz, 1kHz, 2kHz |
Connector | universal 2.5mm |
VFL | |
Wavelength | 650nm |
Power | 20mW |
Connector | universal 2.5mm |
General parameters | |
Battery life | 240h |
Power supply | 3x AA battery |
Permissible operating temperature | -20 ° C ÷ 70 ° C |
Dimensions | 160 x 75 x 32 mm |
Weight | 205g |
Kit contents |
Meter, Cover, User manual |
Producer | Noyafa |
Optical power meter | |
---|---|
Detector | InGaAs |
Wavelength | 850 ÷ 1700 nm |
Power range | +26 dBm ÷ -50 dBm |
Resolution | 0.01dBm |
Connector | universal 2.5mm |
Source of light | |
Wavelength | 1310 / 1550nm |
Modulation frequency |
270Hz, 1kHz, 2kHz |
Connector | universal 2.5mm |
VFL | |
Wavelength | 650nm |
Power | 20mW |
Connector | universal 2.5mm |
General parameters | |
Battery life | 240h |
Power supply | 3x AA battery |
Permissible operating temperature | -20 ° C ÷ 70 ° C |
Dimensions | 160 x 75 x 32 mm |
Weight | 205g |
Kit contents |
Meter, Cover, User manual |
Producer | Noyafa |
AC voltage | 50 - 1000V |
---|---|
Insulation class |
600V CAT IV, 1000V CAT III |
Sound alarm | yes |
Diode alarm | yes |
Flashlight | yes |
Adjustable sensitivity | yes |
Power | 2x 1,5V AAA battery (not included) |
Tested cabling |
RJ-45, RJ-11 |
---|---|
Additional functions | flashlight |
Dimensions |
Transmitter - 125x45x35 mm, Receiver - 185x35x23 mm |
Weight | 113g (without batteries) |
Power supply |
Transmitter - 9V 6F22, Receiver - 9V 6F22 |
Maximum detection depth | |
---|---|
Magnetic metal | 12cm |
Non-magnetic metal | 10cm |
Wood | 3.8cm |
Live wire | 5cm |
Transmitter | |
---|---|
Power | 1x6F22 9V |
Maximum range | 1000m |
Dimmensions | 49x135x33 mm |
Voltage protection | 60V AC / 42V DC |
Reciever | |
Power | 1 x 9V battery |
Torch function | yes |
Ear jack | 3.5mm |
Maximum measuring depth | 0.8m |
Dimmensions | 43x168x27 mm |
Measurement method | laser |
---|---|
Resolution | 0.001m |
Measurement range | 0.05 ÷ 50m ± 0.0015m |
Measurement unit | meters or feet |
Auto power off | yes |
Power | 3*1,5V AAA battery |
Dimensions | 119x50x26 mm |
Weight | 100g |
Manufacturer | Noyafa |
Measurement method | laser |
---|---|
Resolution | 0.001m |
Measurement range | 0.05 ÷ 70m ± 0.0015m |
Measurement unit | meters or feet |
Auto power off | yes |
Power | 3*1,5V AAA battery |
Dimensions | 119x50x26 mm |
Weight | 100g |
Manufacturer | Noyafa |
Measurement method | laser |
---|---|
Resolution | 0.001m |
Measurement range | 0.05 ÷ 100m ± 0.0015m |
Measurement unit | meters or feet |
Auto power off | yes |
Power | 3.7V built-in battery |
Dimensions | 119x50x26 mm |
Weight | 100g |
Manufacturer | Noyafa |
