Fiber Optic Active and Passive Components:
|
New items
- Optical Fibre Subassemblies
-

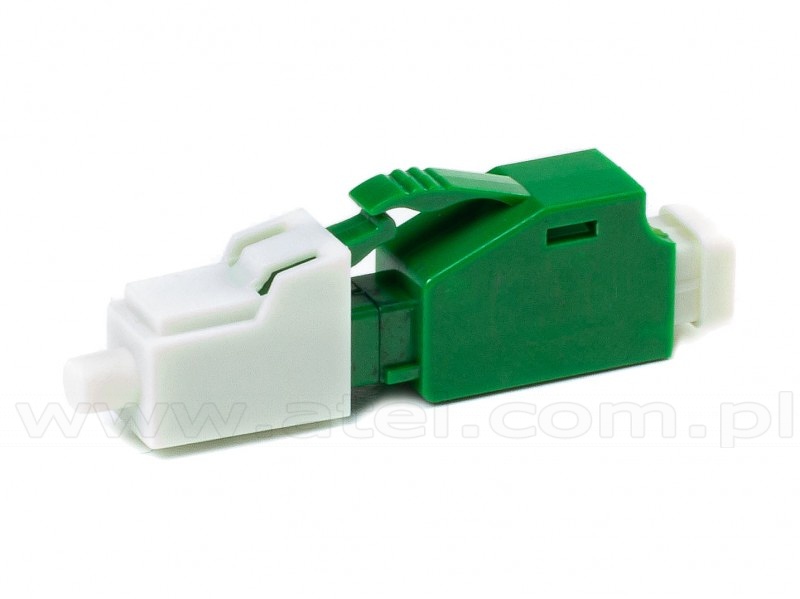

- » FIBEROPTIC ATTENUATORS APC#08817
Attenuator 5dB LC/APC(F) - LC/APC(M) singlemode
Operating Wavelength 1200-1600nm or 1310nm,
1550nmReturn Loss ≤55 dB (APC) Attenuation Accuracy +/-0.5 Polarization Dependent Loss ≤0.2dB Maximum Optical Input Power 200mW Operating Temperature -40 ÷ 80°C

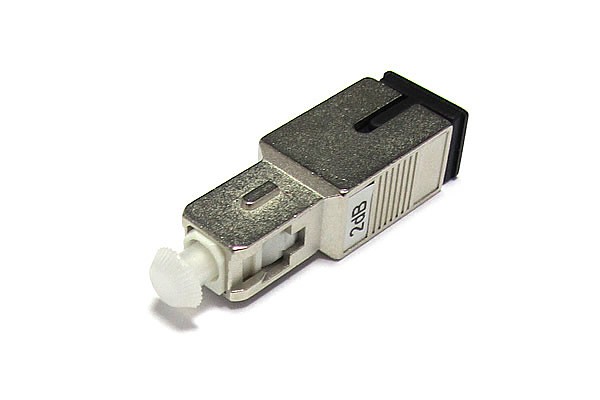

#08824Attenuator 5dB SC/APC(F) - SC/APC(M), singlemode
Operating Wavelength 1200-1600nm or 1310nm,
1550nmReturn Loss ≤55 dB (APC) Attenuation Accuracy +/-0.5 Polarization Dependent Loss ≤0.2dB Maximum Optical Input Power 200mW Operating Temperature -40 ÷ 80°C
#08818Attenuator 8dB LC/APC(F) - LC/APC(M) singlemode
Operating Wavelength 1200-1600nm or 1310nm,
1550nmReturn Loss ≤55 dB (APC) Attenuation Accuracy +/-0.5 Polarization Dependent Loss ≤0.2dB Maximum Optical Input Power 200mW Operating Temperature -40 ÷ 80°C
#08825Attenuator 8dB SC/APC(F) - SC/APC(M), singlemode
Operating Wavelength 1200-1600nm or 1310nm,
1550nmReturn Loss ≤55 dB (APC) Attenuation Accuracy +/-0.5 Polarization Dependent Loss ≤0.2dB Maximum Optical Input Power 200mW Operating Temperature -40 ÷ 80°C
#08826Attenuator 10dB SC/APC(F) - SC/APC(M), singlemode
Operating Wavelength 1200-1600nm or 1310nm,
1550nmReturn Loss ≤55 dB (APC) Attenuation Accuracy +/-0.5 Polarization Dependent Loss ≤0.2dB Maximum Optical Input Power 200mW Operating Temperature -40 ÷ 80°C
#08819Attenuator 10dB LC/APC(F) - LC/APC(M) singlemode
Operating Wavelength 1200-1600nm or 1310nm,
1550nmReturn Loss ≤55 dB (APC) Attenuation Accuracy +/-0.5 Polarization Dependent Loss ≤0.2dB Maximum Optical Input Power 200mW Operating Temperature -40 ÷ 80°C
#08820Attenuator 15dB LC/APC(F) - LC/APC(M) singlemode
Operating Wavelength 1200-1600nm or 1310nm,
1550nmReturn Loss ≤55 dB (APC) Attenuation Accuracy +/-0.5 Polarization Dependent Loss ≤0.2dB Maximum Optical Input Power 200mW Operating Temperature -40 ÷ 80°C
#08827Attenuator 15dB SC/APC(F) - SC/APC(M), singlemode
Operating Wavelength 1200-1600nm or 1310nm,
1550nmReturn Loss ≤55 dB (APC) Attenuation Accuracy +/-0.5 Polarization Dependent Loss ≤0.2dB Maximum Optical Input Power 200mW Operating Temperature -40 ÷ 80°C
-
- » SFP MULTIMODE & SINGLEMODE#06382
Module, SFP 1x 1000 Mbps LC MM, 550 m, TX: 850 nm (Wave Optics, WO-SML-1285-550M)
Insert type SFP (miniGBIC) designed for transmission of double (duplex) multimode fiber (MM) over a distance of 550m. TX wavelength 850nm.Port 1x 1000 Mbps LC MM TX wavelength 850 nm RX wavelength 850 nm Max. distance 550 m Cable type 50/125, 62.5/125, 100/140 µm Module type SFP Warranty period 1 year Manufacturer Wave Optics
#08226Module, SFP 1x 1000 Mbps LC MM, 550 m, TX: 850 nm w/DDMI (Wave Optics, WO-SML-1285-550M-D)
Insert type SFP (miniGBIC) designed for transmission of double (duplex) multimode fiber (MM) over a distance of 550m. TX wavelength 850nm.Port 1x 1000 Mbps LC MM TX wavelength 850 nm RX wavelength 850 nm Max. distance 550 m Cable type 50/125, 62.5/125, 100/140 µm Module type SFP DDMI yes Warranty period 1 year
-
