Fiber Optic Active and Passive Components:
|
New items
- Optical Fibre Subassemblies
-
- » IDENTIFIERS#03832
Wave Optics, WO-VFL-10-AL Visible light source with build-in power bank
The visible light source is very helpful in measurements and identification of fibers of every type. Its compact design and ease of use make it an ideal device for everyday use.Wavelength 640-665nm Output max. 10mW Adapter universal 2,5mm (SC,
ST,
FC)Working modes countinous or pulsating Power 2xAA Dimensions 170x13mm (length x diameter) Coating aluminium Manufacturer Wave Optics #04104 Adaptor for VFL
#04181Wave Optics, WO-VFL-20-AL Visible light source
The visible light source is very helpful in measurements and identification of fibers of every type. Its compact design and ease of use make it an ideal device for everyday use.Wavelength 640-665nm Output max. 20mW Adapter universal 2,5mm (SC,
ST,
FC)Working modes countinous or pulsation Power 2xAA Dimensions 170x13mm (length x diameter) Coating aluminium Manufacturer Wave Optics #04104 Adaptor for VFL
-
- » FIBEROPTIC SPLICE CLOSURE#07774
Splice closure, 2x24 splices
Fiber optic splice closure with 2 splice tray. Each splice tray core capacity is 24.Dimensions: 345x110mm (height x diameter)
#07410Splice closure, 2x24 splices
Fiber optic splice closure with 2 splice tray. Each splice tray core capacity is 24.
#07411Splice closure, 3x24 splices
Fiber optic splice closure with 3 splice tray. Each splice tray core capacity is 24.
#07412Splice closure, 4x24 splices
Fiber optic splice closure with 4 splice tray. Each splice tray core capacity is 24.
-

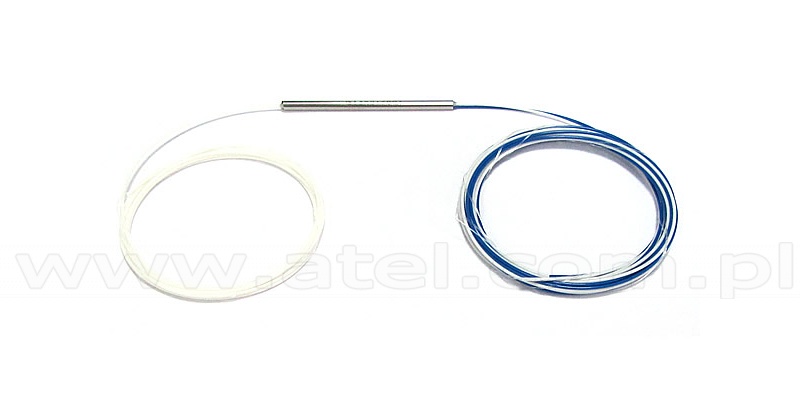

- » PLC SPLITTERS#08772

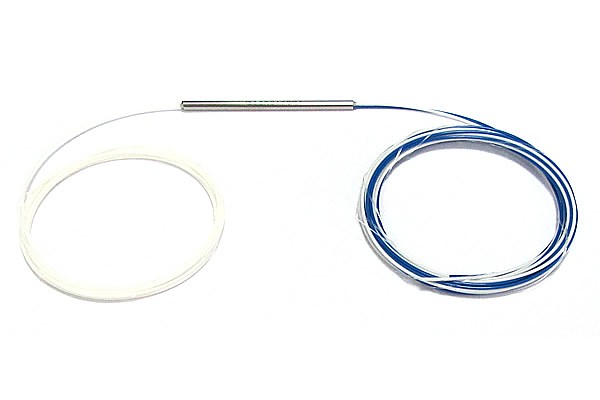

PLC splitter SM 1x2 0.9mm, G657A fiber
Channel Number 1×2 Operation Wavelength 1260 ~ 1650 nm Insertion Loss ≤4.0 dB Uniformity ≤0.4 dB PDL ≤0.2 dB Return Loss ≥50 dB Directivity ≥55 dB Fiber Type G657A Pigtail Type Input - tight tube,
Output - loose tubeInput Length ≥1.5 m Output Length ≥1.5 m Fiber Mark Input - white,
Output - blue/orangeOperation Temperature -40 ÷ 85 ℃ Storage Temperature -40 ÷ 85 ℃
#08773PLC splitter SM 1x4 0.9mm, G657A fiber
Channel Number 1×4 Operation Wavelength 1260 ~ 1650 nm Insertion Loss ≤7.4 dB Uniformity ≤0.6 dB PDL (1310/1550nm) ≤0.2 dB Return Loss (1310/1550nm) ≥50 dB Directivity ≥55 dB Fiber Type SMF-28e Pigtail Type Input - 0.9mm tight tube,
Output - 0.9mm loose tubeInput Length ≥1.5 m Output Length ≥1.5 m Fiber Mark Input - white,
Output - Grey,
White,
Red,
BlackOperation Temperature -40 ÷ 85 ℃ Storage Temperature -40 ÷ 85 ℃
#08774PLC splitter SM 1x8 0.9mm, G657A fiber
Channel Number 1×8 Operation Wavelength 1260 ~ 1650 nm Insertion Loss ≤10.7 dB Uniformity ≤0.8 dB PDL ≤0.3 dB Return Loss ≥50 dB Directivity ≥55 dB Fiber Type G657A Pigtail Type 2.0mm loose tube Length ≥1.5 m Fiber Mark Input - Yellow,
Output - YellowOperation Temperature -40 ÷ 85 ℃ Storage Temperature -40 ÷ 85 ℃
#08775PLC splitter SM 1x16 0.9mm, G657A fiber
Channel Number 1×16 Operation Wavelength 1260 ~ 1650 nm Insertion Loss ≤13.6 dB Uniformity ≤1.2 dB PDL ≤0.3 dB Return Loss ≥50 dB Directivity ≥55 dB Fiber Type G657A Pigtail Type 2.0mm loose tube Length ≥1.2 m Fiber Mark Input - Yellow,
Output - YellowOperation Temperature -40 ÷ 85 ℃ Storage Temperature -40 ÷ 85 ℃
-
