WAVE INDUSTRIAL
Industrial-grade SFP transceivers for most demanding applications. Machine-to-Machine (M2M) Communications devices. Atel Electronics is a exclusive distributor of Wave Industrial products |
- Communication for industry
-
- » SFP MULTIMODE MODULES#06732
Module, SFP 1x 1000 Mbps LC MM, 550 m, Tx:850 nm (WO-SML-1285-550M-I)
Port 1x 1000 Mbps LC MM TX wavelength 850 nm RX wavelength 850 nm Max. distance 550 m Cable type 50/125, 62.5/125, 100/140 µm Operating temperature -40°C ÷ 85°C Module type SFP
#06752Module, SFP 1x 1000 Mbps LC MM, 550 m, Tx:850 nm, w/DDMI diagnostics (WO-SML-1285-550M-DI)
Port 1x 1000 Mbps LC MM TX wavelength 850 nm RX wavelength 850 nm Max. distance 550 m Cable type 50/125, 62.5/125, 100/140 µm Operating temperature -40°C ÷ 85°C DDMI yes Module type SFP

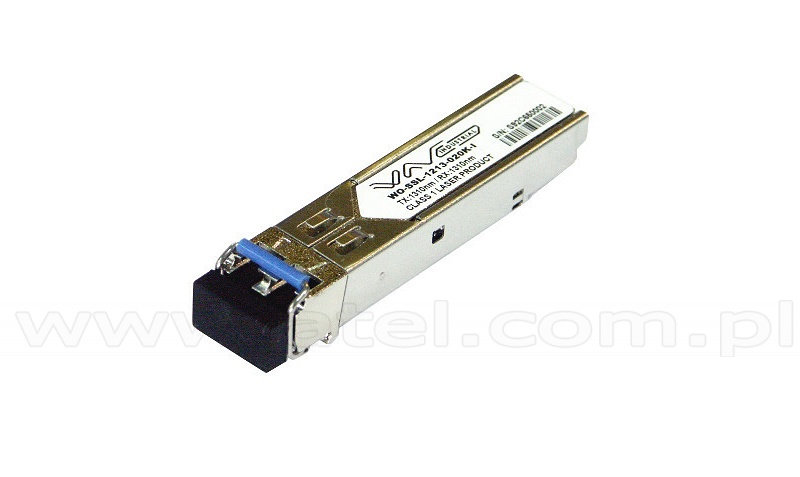

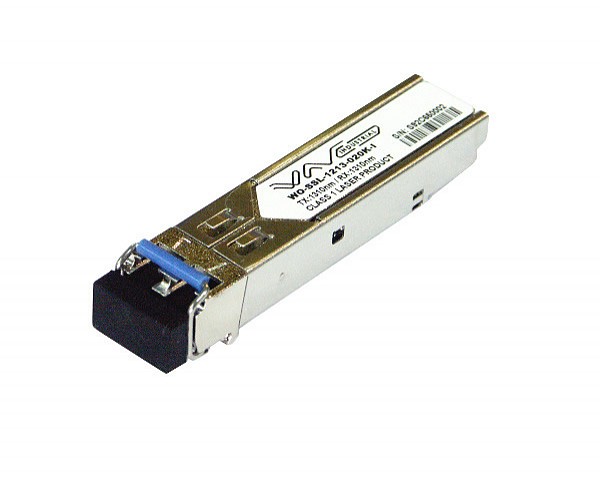

#05949Module, SFP 1x 100 Mbps LC MM, 2 km, TX: 1310 nm (WO-SML-0113-002K-I)
Port 1x 155 Mbps ATM LC MM TX wavelength 1310 nm RX wavelength 1310 nm Max. distance 2 km Cable type 50/125, 62.5/125, 100/140 µm Operating temaperature -40°C ÷ 85°C Module type SFP Warranty period 1 year Supports SDH/STM-1,
SONET/OC-3,
Fast Ethernet
- » SFP SINGLEMODE MODULES#06733
Module, SFP 1x 1000 Mbps LC SM, 20 km (WO-SSL-1213-020K-I)
Port 1x 1000 Mbps LC SM TX wavelength 1310 nm RX wavelength 1310 nm Max. distance 20 km Cable type 8.3/125, 8.7/125, 9/125, 10/125 µm Operating temperature -40°C ÷ 85°C Module type SFP

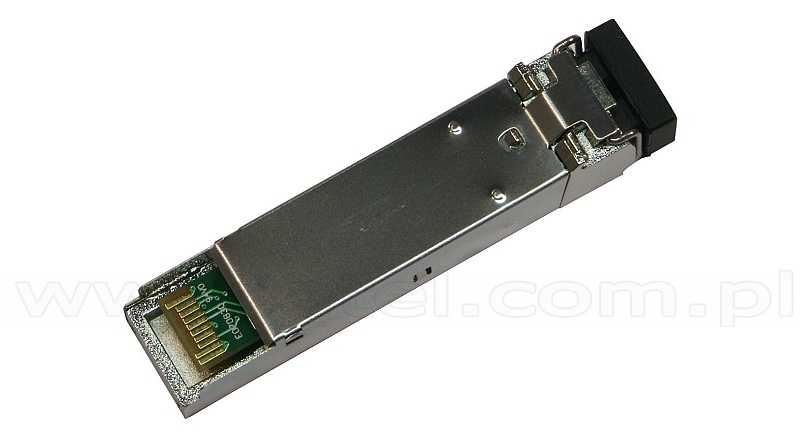

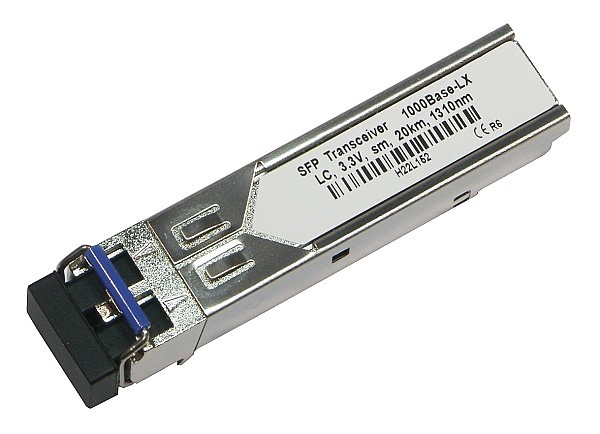

#06753Module, SFP 1x 1000 Mbps LC SM, 20 km, w/DDMI diagnostics (WO-SSL-1213-020K-DI)
Port 1x 1000 Mbps LC SM TX wavelength 1310 nm RX wavelength 1310 nm Max. distance 20 km Cable type 8.3/125, 8.7/125, 9/125, 10/125 µm Operating temperature -40°C ÷ 85°C DDMI yes Module type SFP

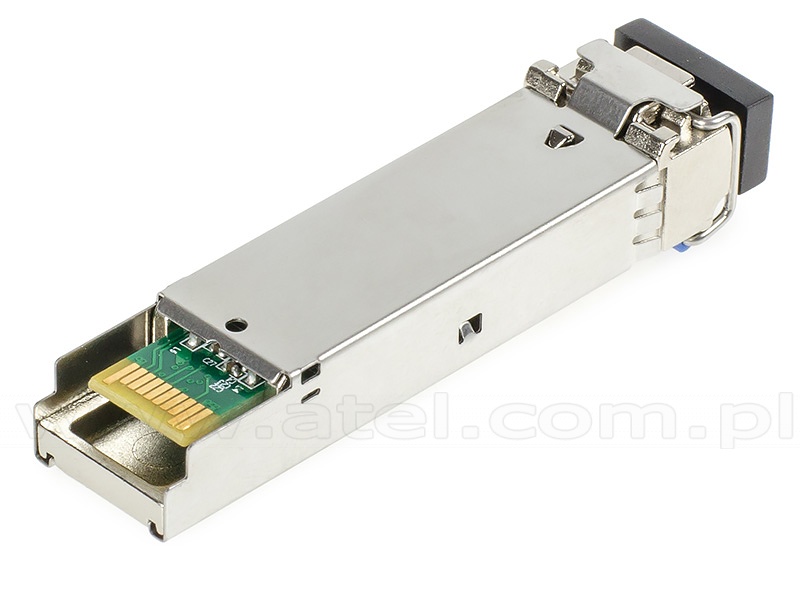

#08175Module, SFP 1x 100 Mbps LC SM, 40 km, Tx:1310 nm, w/DDMI diagnostics (WO-SSL-0113-040K-DI)
Port 1x 100 Mbps LC SM TX wavelength 1310 nm RX wavelength 1310 nm Max. distance 40 km Cable type 8.3/125, 8.7/125, 9/125, 10/125 µm Operating temperature -40°C ÷ 85°C DDMI yes Module type SFP Warranty period 1 year
#06754Module, SFP 1x 1000 Mbps LC SM, 40 km, w/DDMI diagnostics (WO-SSL-1213-040K-DI)
Port 1x 1000 Mbps LC SM TX wavelength 1310 nm RX wavelength 1310 nm Max. distance 40 km Cable type 50/125, 62.5/125, 100/140 µm Operating temperature -40°C ÷ 85°C DDMI yes Module type SFP Warranty period 1 year

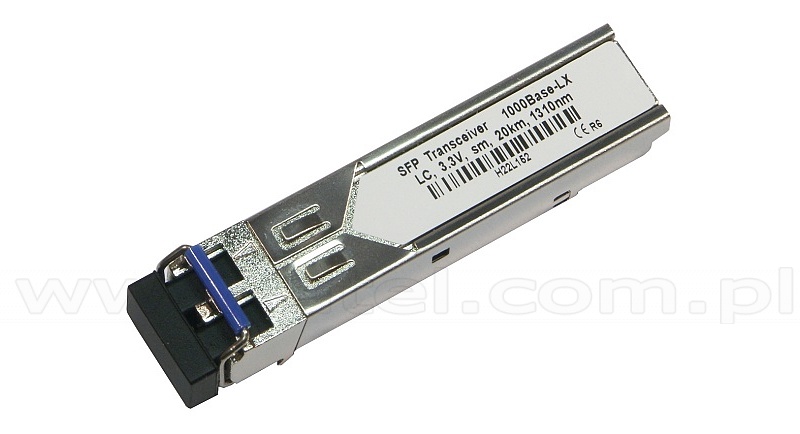

#06755Module, SFP 1x 1000 Mbps LC SM, 80 km, w/DDMI diagnostics (WO-SSL-1215-080K-DI)
Port 1x 1000 Mbps LC SM TX wavelength 1550 nm RX wavelength 1550 nm Max. distance 80 km Cable type 50/125, 62.5/125, 100/140 µm Operating temperature -40°C ÷ 85°C DDMI yes Module type SFP Warranty period 1 year
- » SFP WDM MODULES#06737

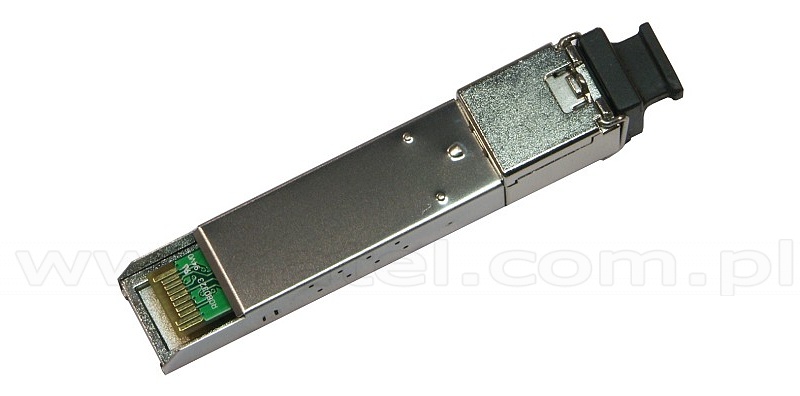

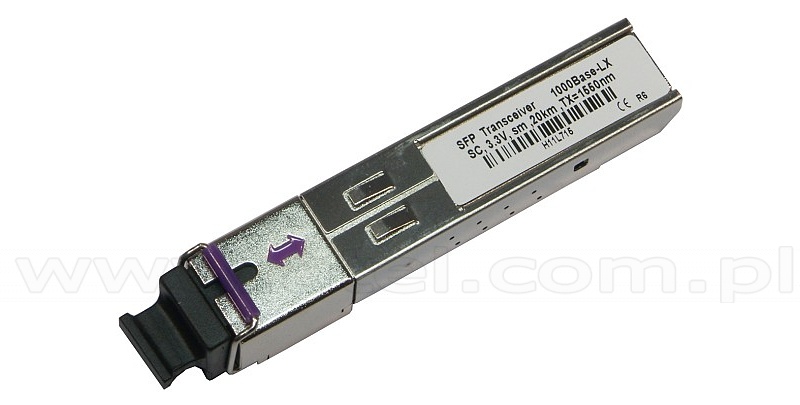

Module, SFP 1x 1000 Mbps SC LM, 20 km, WDM TX:1550 nm (WO-SWS-1215-020K-I)
Port 1x 1000 Mbps SC SM TX wavelength 1550 nm RX wavelength 1310 nm Max. distance 20 km Cable type 8.3/125, 8.7/125, 9/125, 10/125 µm Wave Division Multiplexing (WDM) yes Operating temperature -40°C ÷ 85°C Module type SFP Warranty period 1 year

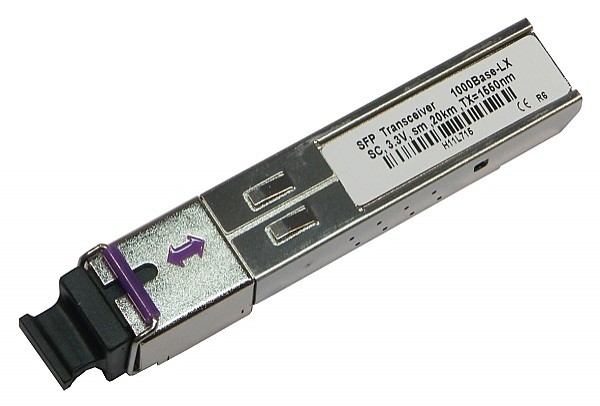

#06757Module, SFP 1x 1000 Mbps SC LM, 20 km, WDM TX:1550 nm, w/DDMI diagnostics (WO-SWS-1215-020K-DI)
Port 1x 1000 Mbps SC SM TX wavelength 1550 nm RX wavelength 1310 nm Max. distance 20 km Cable type 8.3/125, 8.7/125, 9/125, 10/125 µm Wave Division Multiplexing (WDM) yes Operating temperature -40°C ÷ 85°C DDMI yes Module type SFP Warranty period 1 year
#06756Module, SFP 1x 1000 Mbps SC SM, 20 km, WDM TX:1310 nm, w/DDMI diagnostics (WO-SWS-1213-020K-DI)
Port 1x 1000 Mbps SC SM TX wavelength 1310 nm RX wavelength 1550 nm Max. distance 20 km Cable type 8.3/125, 8.7/125, 9/125, 10/125 µm Wave Division Multiplexing (WDM) yes Operating temperature -40°C ÷ 85°C DDMI yes Module type SFP Warranty period 1 year
#06758Module, SFP 1x 1000 Mbps SC SM, 40 km, WDM TX:1310 nm, w/DDMI diagnostics (WO-SWS-1213-040K-DI)
Port 1x 1000 Mbps SC SM TX wavelength 1310 nm RX wavelength 1550 nm Max. distance 40 km Cable type 8.3/125, 8.7/125, 9/125, 10/125 µm Wave Division Multiplexing (WDM) yes Operating temperature -40°C ÷ 85°C DDMI yes Module type SFP Warranty period 1 year
#06759Module, SFP 1x 1000 Mbps SC SM, 40 km, WDM TX:1550 nm, w/DDMI diagnostics (WO-SWS-1215-040K-DI)
Port 1x 1000 Mbps SC SM TX wavelength 1550 nm RX wavelength 1310 nm Max. distance 40 km Cable type 8.3/125, 8.7/125, 9/125, 10/125 µm Wave Division Multiplexing (WDM) yes Operating temperature -40°C ÷ 85°C DDMI yes Module type SFP Warranty period 1 year
-
