#03068

ATC-02 - Thermal Imager

Thermal imaging cameras are used wherever temperature is important for the course of the assumed processes. Excessive heating of devices may indicate their malfunction. The implementation of preventive measures in the form of periodic inspections with the use of a thermal imaging camera enables the elimination of failures and downtime in production processes in many industrial plants. Thermal imaging cameras are used, among others, for inspections and tests of electricity distribution systems, electromechanical devices, buildings and roofs, tanks, pipes, valves and tanks.

The ATC-02 thermal imaging camera is ideal for controlling ventilation, air-conditioning and heating systems. It is also perfect for imaging the temperature of electrical switchboards, engine components, etc.

The infrared image is recorded by a matrix with a resolution of 60x60, the camera has a sensitivity of 0.15 C, thanks to which even the smallest temperature differences can be found in the thermal image. It also records the visible image, and thanks to the possibility of overlapping images recorded in the visible and infrared light bands, it makes it much easier to locate points of high or low temperature.

The temperature data is stored as a matrix of thousands of points. The obtained data can be analyzed both at the place of measurement and on a PC. The ATC-02 camera is equipped with a memory card reader that saves images in bmp format.
Field of view (FOV) 20 horizontal,
20 vertical
Min focus distance 0.5 m
Thermal sensitivity (NETD) 0.15C
Detector type 60x60
Temperature range -20C to 300C ± 2% or 2C (whichever is grater)
Emissivity regulated
Display 2.4 inch large color LCD,
IR-Fusion (infrared and classic picture at once)
Refresh rate 6Hz
Color palettes 3
Memory 4GB microSD memory card
File formats supported BMP
Power 4x 1.5V AA battery
Dimensions 230x80x52 mm
Weight 0,32 kg
Included accessories - 4GB microSD memory card, soft-sided carrying case, soft strap, user manual.
Thermal Imager - ATC-02
Net Price: 272.00 USD  Unit: pcs  VAT: 23%

#03067

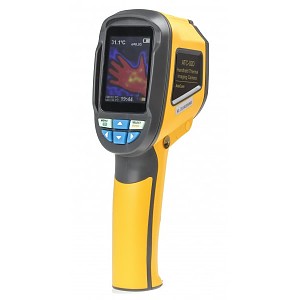

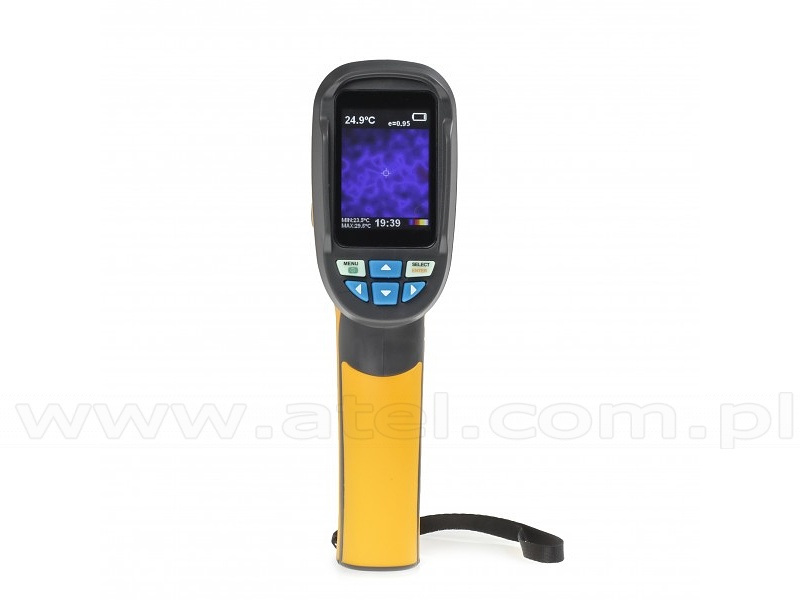

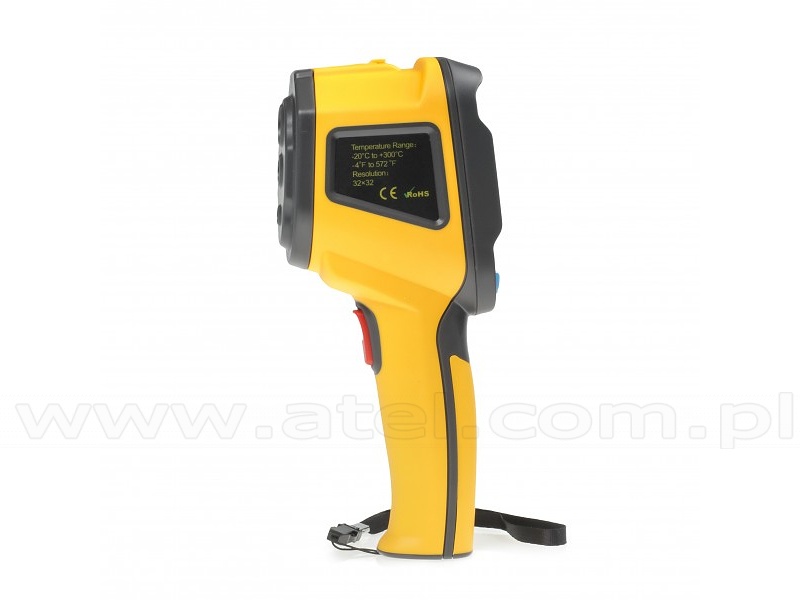

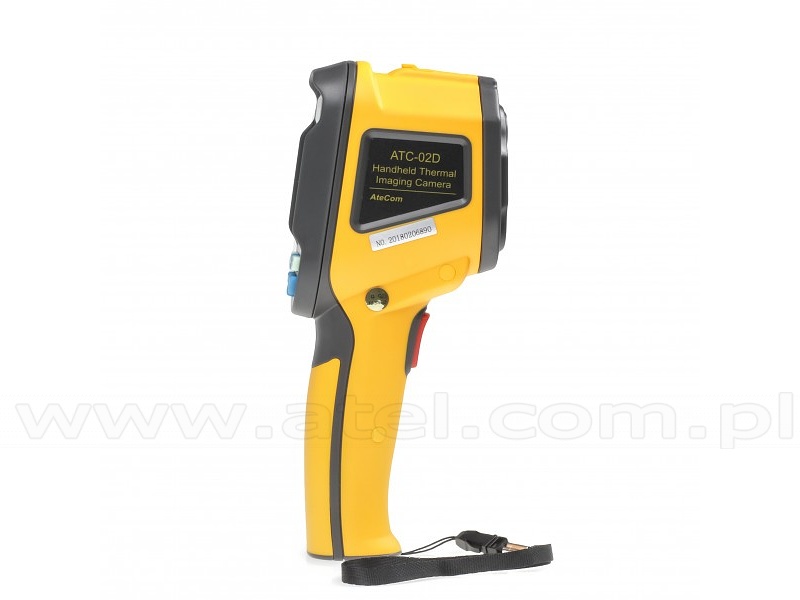

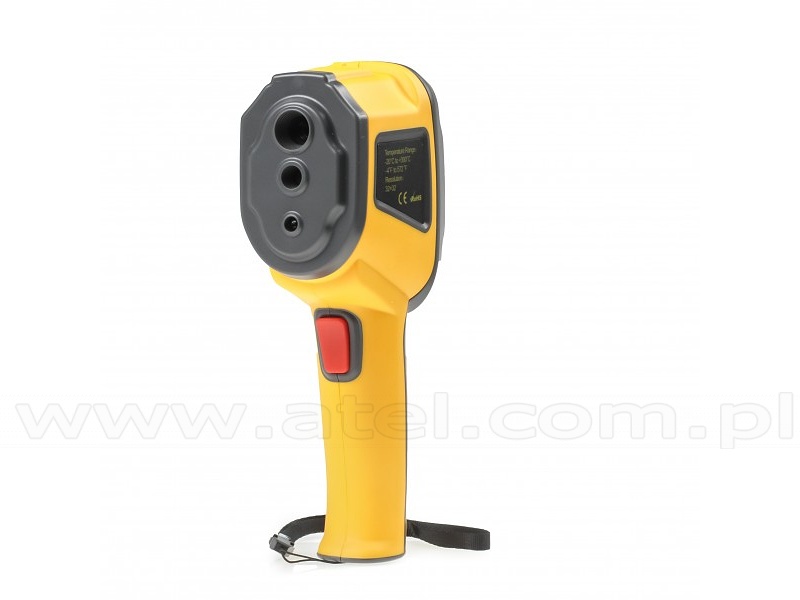

ATC-02D - Thermal Imager

Thermal imaging cameras are used wherever temperature is important for the course of the assumed processes. Excessive heating of devices may indicate their malfunction. The implementation of preventive measures in the form of periodic inspections with the use of a thermal imaging camera enables the elimination of failures and downtime in production processes in many industrial plants. Thermal imaging cameras are used, among others, for inspections and tests of electricity distribution systems, electromechanical devices, buildings and roofs, tanks, pipes, valves and tanks.

The ATC-02D thermal imaging camera is ideal for controlling ventilation, air-conditioning and heating systems. It is also perfect for imaging the temperature of electrical switchboards, engine components, etc.

The infrared image is recorded by a matrix with a resolution of 32x32, the camera has a sensitivity of 0.15 C, thanks to which even the smallest temperature differences can be found in the thermal image. It also records the visible image, and thanks to the possibility of overlapping images recorded in the visible and infrared light bands, it makes it much easier to locate points of high or low temperature.

The temperature data is stored as a matrix of thousands of points. The obtained data can be analyzed both at the place of measurement and on a PC. The ATC-02D camera is equipped with a memory card reader that saves images in bmp format.
Field of view (FOV) 33 horizontal,
33 vertical
Min focus distance 0.5 m
Thermal sensitivity (NETD) 0.15C
Detector type 32x32
Temperature range -20C to 300C ± 2% or 2C (whichever is grater)
Emissivity regulated
Display 2.4 inch large color LCD,
IR-Fusion (infrared and classic picture at once)
Refresh rate 6Hz
Color palettes 3
Memory 4GB microSD memory card
File formats supported BMP
Power 4x 1.5V AA battery
Dimensions 230x80x52 mm
Weight 0,32 kg

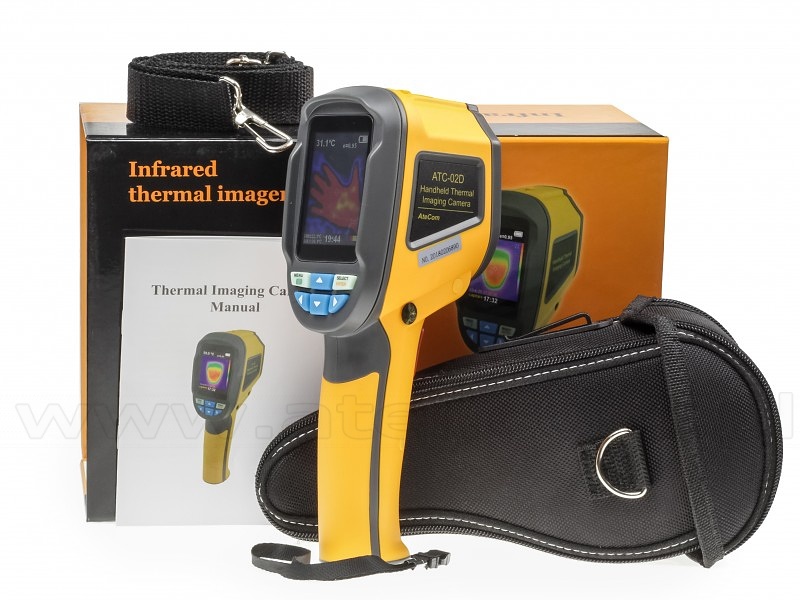

Included accessories - 4GB microSD memory card, soft-sided carrying case, soft strap, user manual.
ATC-02D - Thermal Imager
Net Price: 228.00 USD  Unit: pcs  VAT: 23%

#03069

ATC-03 - Thermal Imager

Thermal imaging cameras are used wherever temperature is important for the course of the assumed processes. Excessive heating of devices may indicate their malfunction. The implementation of preventive measures in the form of periodic inspections with the use of a thermal imaging camera enables the elimination of failures and downtime in production processes in many industrial plants. Thermal imaging cameras are used, among others, for inspections and tests of electricity distribution systems, electromechanical devices, buildings and roofs, tanks, pipes, valves and tanks.

The ATC-03 thermal imaging camera is ideal for controlling ventilation, air-conditioning and heating systems. It is also perfect for imaging the temperature of electrical switchboards, engine components, etc.

The infrared image is recorded by a matrix with a resolution of 80x60, the camera has a sensitivity of 0.15 C, thanks to which even the smallest temperature differences can be found in the thermal image. It also records the visible image, and thanks to the possibility of overlapping images recorded in the visible and infrared light bands, it makes it much easier to locate points of high or low temperature.

The temperature data is stored as a matrix of thousands of points. The obtained data can be analyzed both at the place of measurement and on a PC. The ATC-03 camera is equipped with a memory card reader that saves images in bmp format.
Field of view (FOV) 39 x 31
Min focus distance 0.5 m
Thermal sensitivity (NETD) 0,15C
Detector type 80x60
Temperature range -20C to 300C ± 2% or 2C (whichever is grater)
Emissivity regulated
Display 2.4 inch large color LCD,
infrared and classic picture at once
Refresh rate 6Hz
Color palettes 3
Memory 4GB microSD memory card
File formats supported BMP
Power 4x 1.5 AA battery
Dimensions 230x80x52 mm
Weight 0.41 kg
Included accessories - 4GB microSD memory card, soft-sided carrying case, soft strap, user manual.
ATC-03 - Thermal Imager
Net Price: 328.00 USD  Unit: pcs  VAT: 23%

#03084

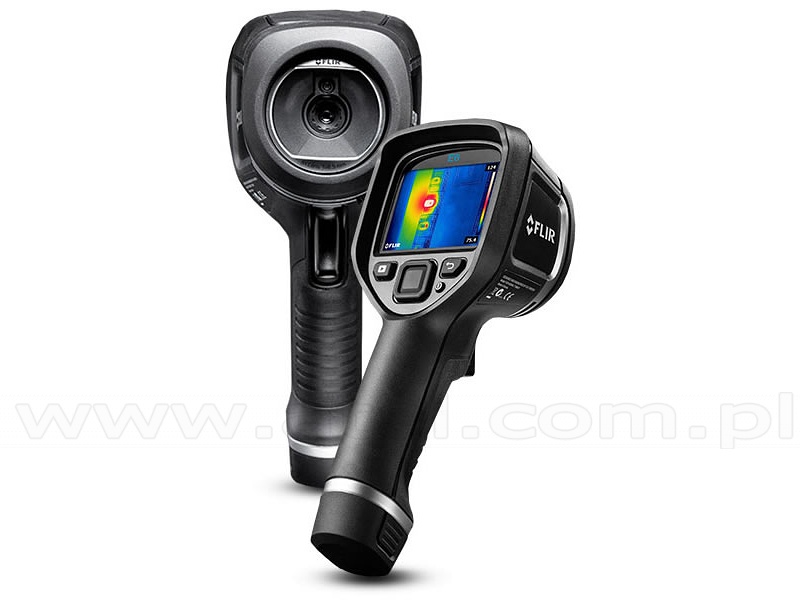

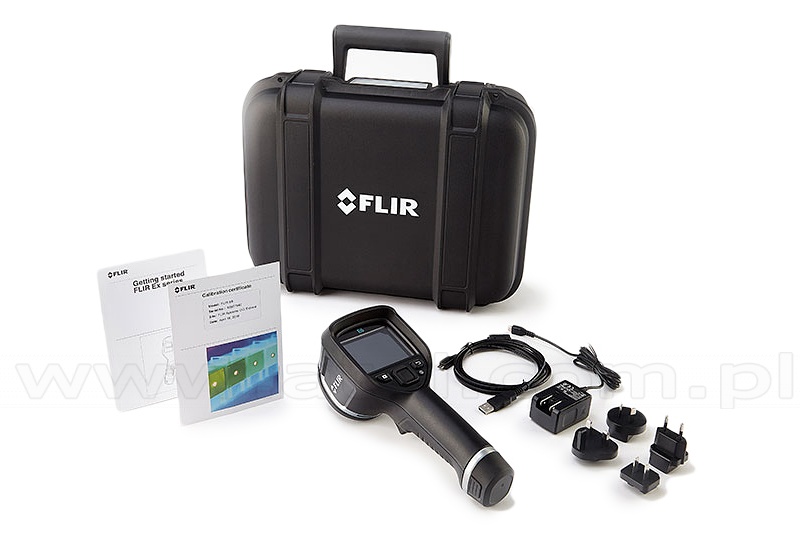

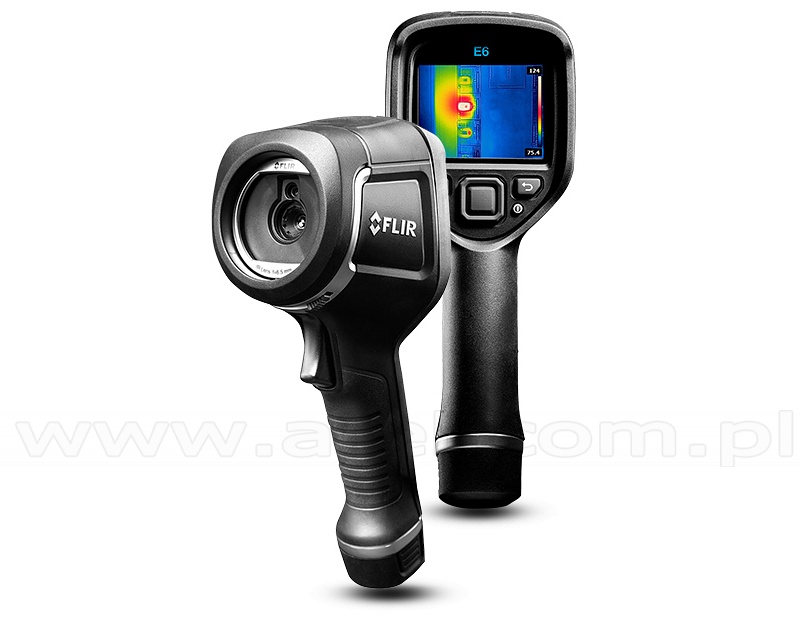

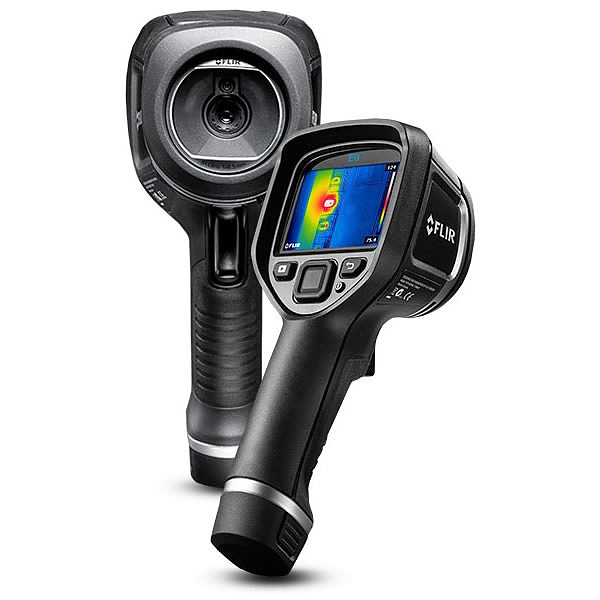

Flir E6 WiFi - Thermal Imager

Thermal imaging cameras are used wherever temperature is important for the course of the assumed processes. Excessive heating of devices may indicate their malfunction. The implementation of preventive measures in the form of periodic inspections with the use of a thermal imaging camera enables the elimination of failures and downtime in production processes in many industrial plants. Thermal imaging cameras are used, among others, for inspections and tests of electricity distribution systems, electromechanical devices, buildings and roofs, tanks, pipes, valves and tanks.

The Flir E6 WiFi Thermal Imager is ideal for searching and solving problems in buildings, electric installations and machines. Thanks to the detector resolution of 160x120 pixels, very good thermal sensitivity and a wide field of view, it will be perfect for detailed inspections, also from a considerable distance.

In addition, it allows communication with a smartphone via WiFi or with a computer via a micro USB port.
Field of view (FOV) 45 horizontal,
34 vertical
Min focus distance 0.5 m
Thermal sensitivity (NETD) 0,06C
Detector type 160x120
Temperature range -20C to 250C ± 2% or 2C (whichever is grater)
Emissivity regulated
Display 3.0 inch large color LCD
Refresh rate 9Hz
Color palettes 3
Memory microSD memory card
File formats supported JPEG with 14-bit measurement data
Power 3.6V lithium-ion battery
Additional WiFi connectivity with mobile devices,
micro USB
Weight 0,575 kg
Flir E6 WiFi - Thermal Imager
* For special orders only
Net Price: 2 290.00 USD  Unit: pcs  VAT: 23%

#03085

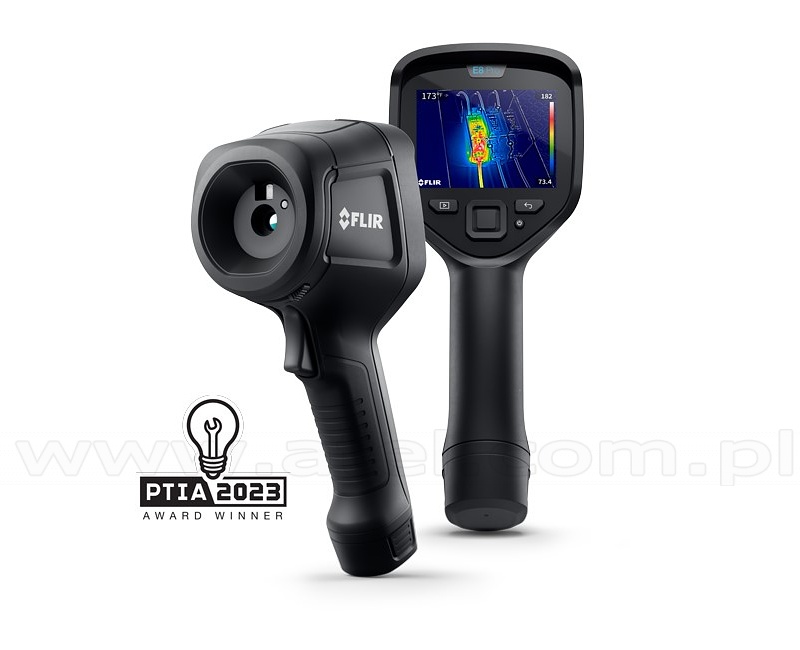

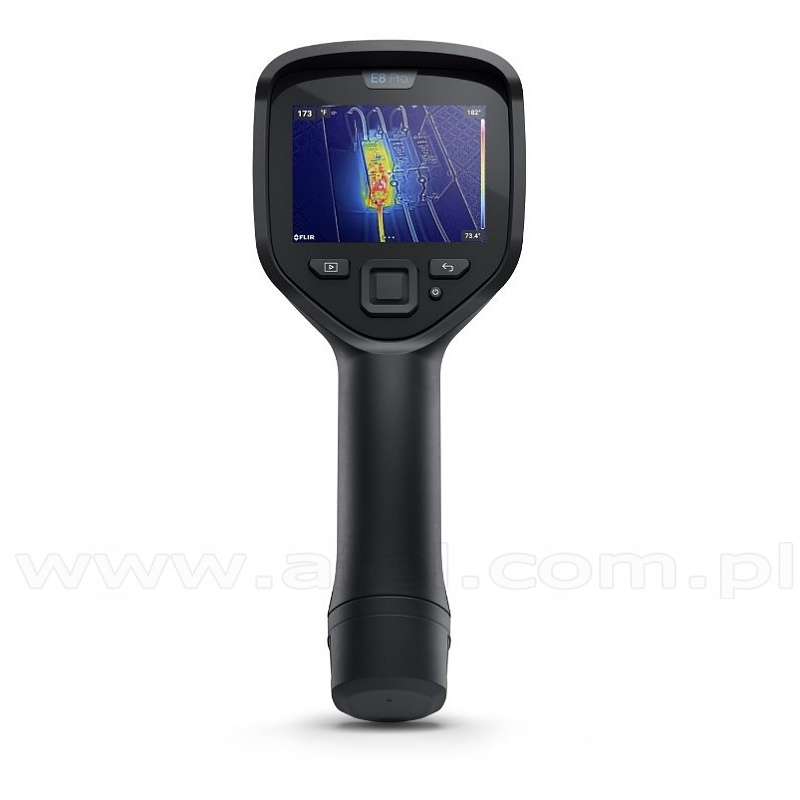

Flir E8 - Thermal Imager

Thermal imaging cameras are used wherever temperature is important for the course of the assumed processes. Excessive heating of devices may indicate their malfunction. The implementation of preventive measures in the form of periodic inspections with the use of a thermal imaging camera enables the elimination of failures and downtime in production processes in many industrial plants. Thermal imaging cameras are used, among others, for inspections and tests of electricity distribution systems, electromechanical devices, buildings and roofs, tanks, pipes, valves and tanks.

The Flir E6 WiFi Thermal Imager is ideal for searching and solving problems in buildings, electric installations and machines. Thanks to the detector resolution of 320x240 pixels, very good thermal sensitivity and a wide field of view, it will be perfect as a building camera.

In addition, it allows communication with a smartphone via WiFi or with a computer via a micro USB port.
Field of view (FOV) 45 horizontal,
34 vertical
Min focus distance 0.5 m
Thermal sensitivity (NETD) 0,06C
Detector type 320x240
Temperature range -20C to 250C ± 2% or 2C (whichever is grater)
Emissivity regulated
Display 3.0 inch large color LCD
Refresh rate 9Hz
Color palettes 3
Memory microSD memory card
File formats supported JPEG with 14-bit measurement data
Power 3.6V lithium-ion battery
Additional WiFi connectivity with mobile devices,
micro USB
Weight 0,575 kg
Flir E8 - Thermal Imager
* For special orders only
Net Price: 3 640.00 USD  Unit: pcs  VAT: 23%
