MENU#09703

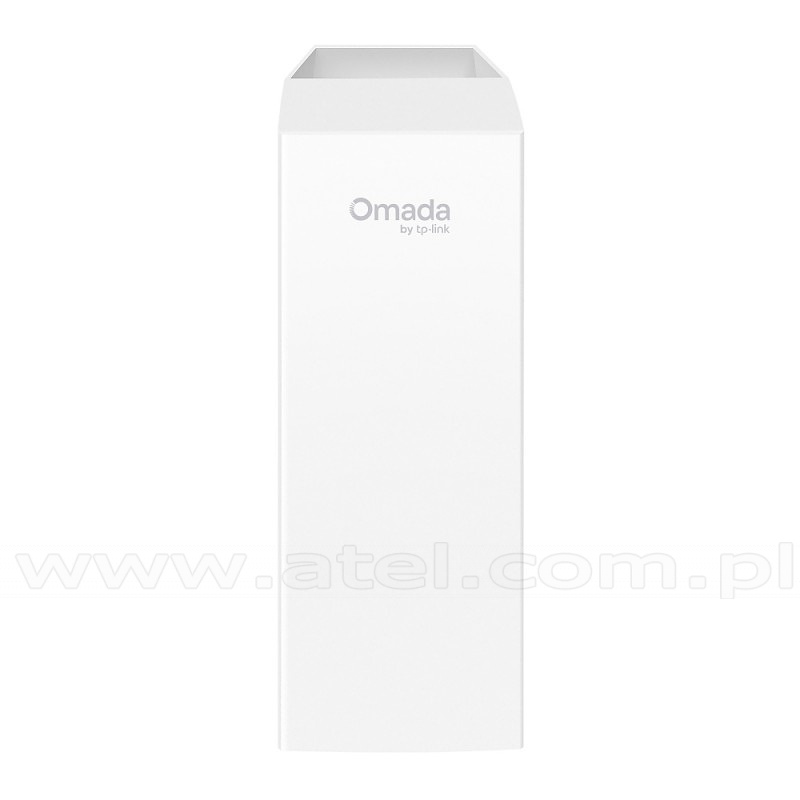

Outdoor Wireless Bridge (TP-Link EAP100-Bridge KIT)
- Up to 1640 ft (500 m)Wi-Fi transmission
- Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever.
- Plug-and-Play Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go. Ideal for quick deployments.
- App-Guided Alignment: Visualized App-Guided Alignment for long-distance setups and Instant Speed Testing for installation verification.
- Flexible Power Supply: 802.3af PoE, 24V /48V Passive PoE, and 12V DC (compatible with TP-Link solar power supply systems).

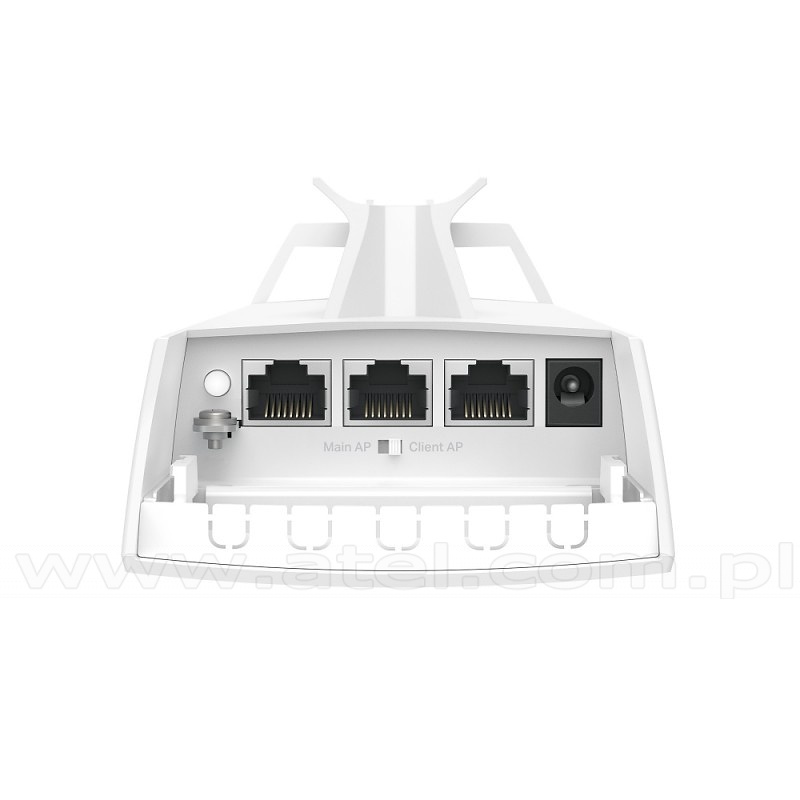

- 3× Fast Ethernet Ports: Connects more cameras and devices without an extra switch.
- Built for Tough Outdoor Conditions: Features an IP65 weatherproof enclosure and operating range of -40℉ to +158 ℉.
- Remote Monitoring & Management: Choose Standalone mode or Omada SDN mode for remote centralized management via Web UI or app.
| Standards | IEEE 802.11b/g/n |
|---|---|
| Ports | 3x 10/100 Mbps Ethernet Ports |
| Frequency range | 2.4 GHz |
| Signal Rate | 2.4GHz Up to 300Mbps |
| Wireless Functions | Mesh, MU-MIMO 5G 2x2 MU-MIMO DL, Load Balance, Beamforming, Seamless Roaming(802.11r), Airtime Fairness, Multiple SSIDs 8, Wireless Statistics, Wireless Schedule, Reboot Schedule, RADIUS Accounting, MAC Authentication, Static IP/Dynamic IP |
| Wireless Security | VLAN, Access Control, Rogue AP Detection, Captive Portal Authentication, Maximum number of MAC Filter 4,000, WPA-Personal/Enterprise, WPA2-Personal/Enterprise |
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller, Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller. |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| Weatherproof Enclosure | IP65 |
| Dimensions | 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm) |
| Power | 12V DC, 802.3af PoE, 24V Passive PoE / 48V Passive PoE (Passive PoE Adapter Included - For Dry Indoor Use Only) |
| Power Consumption | 4.8 W |
| Antenna Type | Internal 2×2 Dual-polarized directional MIMO antennas, 2.4 GHz 8.0 dBi, Horizontal 70°, Vertical 70° |

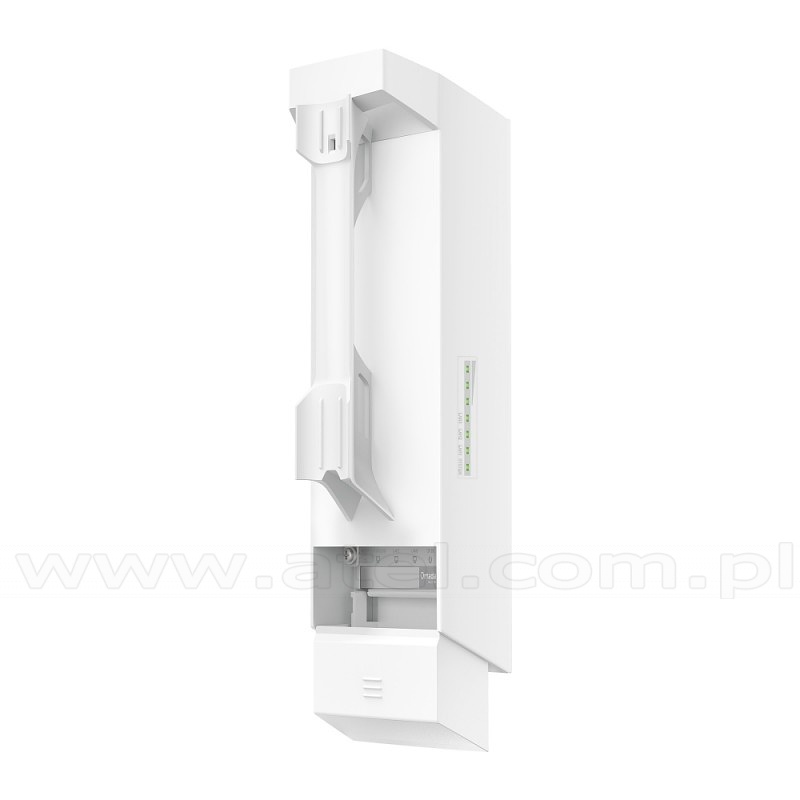

| Mounting | Pole mounting (Accessories included) |
| Operating Temperature | -40°C~40°C (-40℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Certificates | CE, FCC, RoHS |
| Warranty | 5 years |
