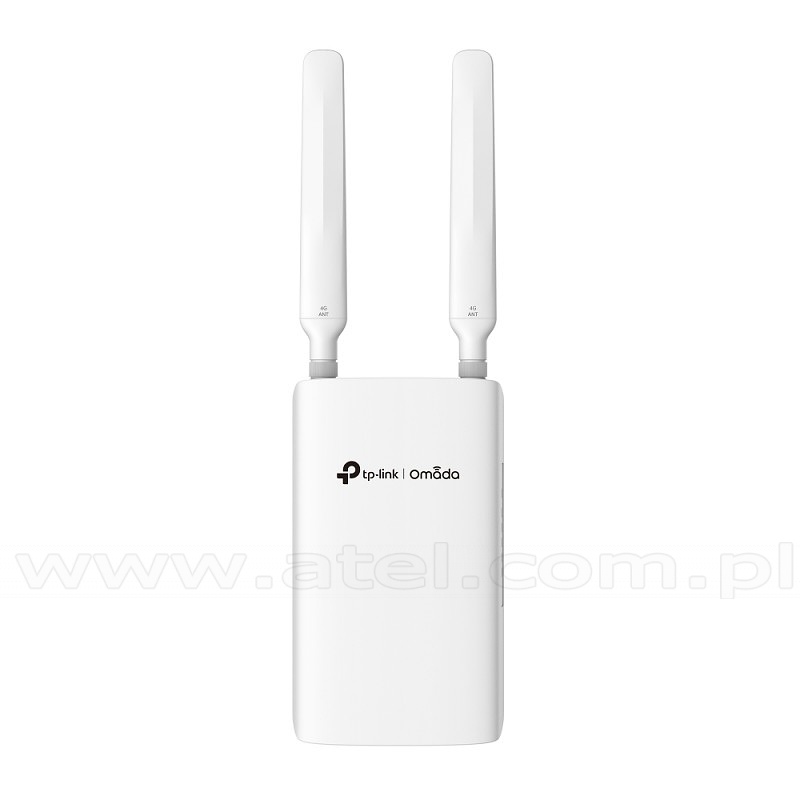

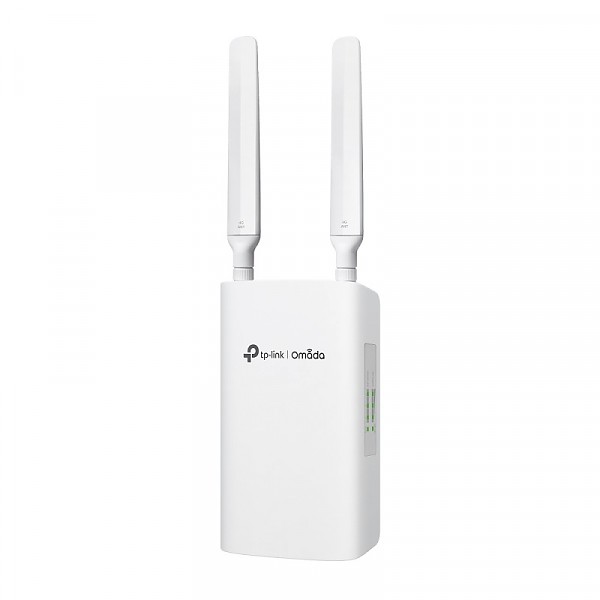

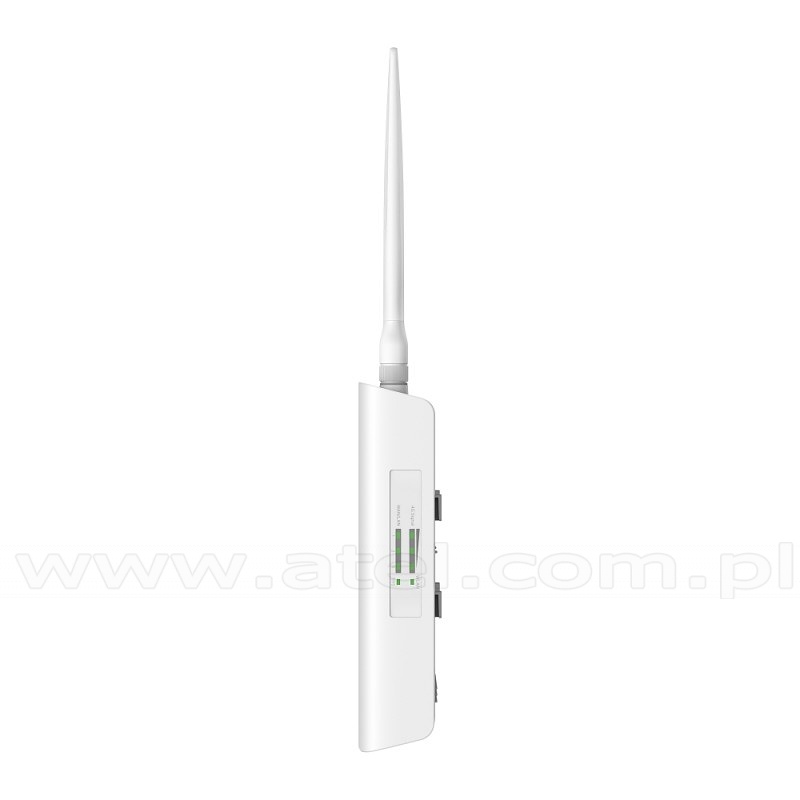

3000Mbps Wireless outdoor gigabit VPN Router Omada, PoE, 5x 10/100/1000 RJ-45, 1 SFP slots, (TP-Link ER703WP-4G-Outdoor)
- 4G+ Cat6 up to 300 Mbps
- AX3000 Wi-Fi 6 with 2402 Mbps on 5GHz and 574 Mbps on 2.4GHz
- 3 × Gigabit WAN/LAN Ports (2 × PoE Out, 1 × PoE In)
- 1 × Nano SIM Card Slot
- 802.3at/bt PoE or 12V/2A DC Power Supply
- 4G and Ethernet WAN Auto Backup with Load Balancing
- IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN§
- Centralized Management
- IP55 Weatherproofing
| Standards | IEEE 802.3u/ab/z/x/q |
|---|---|
| Copper ports | 1 Gigabit SFP WAN/LAN Port, 1 Gigabit WAN Port, 4 Gigabit LAN/WAN Ports |
| Flash | 256 MB NAND |
| DRAM | 512 MB DDR4 |
| Antenna | Wi-Fi Two 5GHz 4.0dBi & 2.4GHz 2.3 dBi dual-band build-in antennas, LTE Two 4.0dBi omnidirectional detachable antennas |
| Network Type | LTE Band of EU, 4G LTE-FDD B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz), 4G LTE-TDD B38/B40/B41 (2600/2300/2500 MHz), 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA B1/B3/B5/B8 (2100/1800/850/900 MHz), Carrier Aggregation of EU- B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41, B3+B3/B5/B7/B8/B20/B28/B38/B40/B41, B5+B5/B7/B38/B40/B41, B7+B7/B8/B20/B28/B32, B8+B32/B38/B40/B41, B20+B32/B38/B40, B28+B32/B38/B40/B41, B38+B38, B40+B40, B41+B41, LTE Band of US- 4G LTE-FDD B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71, (1950/2100/850/2600/750/750/750/1950/850/700/2350/2150/650 MHz), 4G LTE-TDD B41/B48 (2500/3600 MHz), Carrier Aggregation of US- B2+B2/B4/B5/B7/B12/B13/B14/B29/B30/B48/B66/B71, B4+B4/B5/B7/B12/B13/B29/B30/B71, B5+B5/B7/B25/B30/B41/B66, B7+B7/B12/B66, B12+B12/B25/B30/B66, B13+B66, B14+B30/B66, B25+B25/B26/B41, B26+B41, B29+B30/B66, B30+B66, B41+B41, B48+B48, B66+B66/B71 |
| SIM Type | 1× Nano SIM Card |
| Frequency | Downlink 300 Mbps; Uplink 50 Mbps |
| Performance | |
| GRE | Unencrypted 545.3Mbps, Encrypted 282.6Mbps |
| WireGuard VPN | 387,7Mb/s |
| Concurrent Session | 150,000 |
| New Sessions /Second | 5,100 |
| NAT (Static IP) | 947,1Mb/s / 940,1Mb/s |
| NAT(DHCP) | 949,2Mb/s / 941,1Mb/s |
| NAT(PPPoE) | 942,6Mb/s / 941,1Mb/s |
| NAT (L2TP) | 875,4Mb/s / 892,0Mb/s |
| NAT (PPTP) | 881,2Mb/s / 895,8Mb/s |
| IPsec VPN Throughput | ESP-SHA1-AES256 646,9 Mb/s, ESP-SHA256-AES256 642,8 Mb/s, ESP-SHA384-AES256 648,9 Mb/s, ESP-SHA512-AES256 658,4 Mb/s |
| OpenVPN | 85.1Mb/s |
| L2TP VPN Throughput | Unencrypted 990.0Mbps, Encrypted 475.0Mbps |
| PPTP VPN Throughput | Unencrypted 1177.9Mbps, Encrypted 177.4Mbps |
| SSL VPN Throughput | 122,5Mb/s |
| 66 Byte Packet forwarding rate | 1,453,489 p/s / 1,453,488 p/s |
| 1,518 Byte Packet forwarding rate | 81274 pps / 91275 pps |
| Basic functions | |
| WAN Connection Type | Static/Dynamic IP, PPPoE, PPTP, L2TP |
| MAC Clone | Modify WAN/LAN MAC Address |
| DHCP | DHCP Server, DHCP Address Reservation, Multi-IP Interfaces, Multi-Net DHCP |
| IPv6 | Developing |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| Advanced functions | |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | Static Routing, Policy Routing |
| Bandwidth Control | IP/Port-based Bandwidth Control, Guarantee & Limited Bandwidth |
| Load Balance | Intelligent Load Balance, Application Optimized Routing, Link Backup (Timing§, Failover), Online Detection |
| NAT | One-to-One NAT, Multi-Net NAT, Virtual Server, Port Triggering, NAT-DMZ, FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| Security | SPI Firewall, VPN Passthrough, FTP/H.323/PPTP/SIP/IPsec ALG, DoS Defence, Ping of Death, Local Management |
| Session Limit | IP-based Session Limit |
| VPN | |
| IPsec VPN | 100 IPSec VPN Tunnels, LAN-to-LAN, Client-to-LAN, Main, Aggressive Negotiation Mode, DES, 3DES, AES128, AES192, AES256 Encryption Algorithm, IKEv1/v2, MD5, SHA1 Authentication Algorithm, NAT Traversal (NAT-T), Dead Peer Detection (DPD), Perfect Forward Secrecy (PFS) |
| PPTP VPN | PPTP VPN Server, 10 PPTP VPN Clients, 50 Tunnels, PPTP with MPPE Encryption |
| L2TP VPN | L2TP VPN Server, 10 L2TP VPN Clients, 50 Tunnels, L2TP over IPSec |
| OpenVPN | OpenVPN Server, 10 OpenVPN Clients, 50 OpenVPN Tunnels |
| Web Authentication | No Authentication, Simple Password, Hotspot（Local User / Voucher* / SMS* / Radius*）, External Radius Sever, External Portal Sever, |
| Management | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance | Web Management Interface, Remote Management, Export & Import Configuration, SNMP v1/v2c/v3, Diagnostics (Ping & Traceroute), NTP Synchronize, Syslog Support |
| Management Features | Automatic Device Discovery, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration, ZTP (Zero-Touch Provisioning) |
| Dimensions | 6.9 × 4.0 × 1.5 in (174.8 × 100.4 × 38.7 mm) (Antenna dimensions are not included) |
| Mounting | Pole/Wall-Mounting |
| Operating temperature | -30°C ÷ 60°C |
| Operating humidity | 5% ÷ 95%, non-condensing |
| Power | 802.3at/bt PoE; 12VDC / 2A Power Adapter |
| Max Power Consumption | POE 62.9W max @ 220V/50Hz 25℃, DC 16.6W max @ 220V/50Hz 25℃ |
| Certificates | CE, FCC, RoHS |
| Manufacturer | TP-Link |
TAGS:
PoE
Net Price: 284.00 USD Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
