NEW ITEMS
- Computer Network Accessories
-
- 5MP Super-High Definition and IR Night Vision
- 360° Coverage without Blind Spots
- Supports Multiple Display Modes and ePTZ
- Supports Ceiling Mount / Wall Mount / Pendant Mount§
- Smart Detection
- Smart Video Enhancement Technology
- Built-In Microphone & Speaker
- IP67 Waterproof and IK10 Vandal-Proof
- H.265+ Compression Technology
- Suitable for Small Indoor Situations like Retail and Offices
#096385 Mpx Outdoor Fisheye Network Camera (TP-Link InSight S655I)
HARDWARE FEATURES: Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port (PoE) On-board Storage Built-in Memory Card Slot,
Support MicroSD Card,
Up to 512 GBPower Requirements 12V DC ± 5%,
Max. 11.76 W,
5.5 mm Coaxial Power Plug,
PoE 802.3af/at,
class 0,
Max. 12.14 WDimensions( H X W X D ) 5.2 × 5.2 × 2.2 in (132 × 132 × 56mm) General Features Two Streams,
Mirror,
Privacy Masks,
Password Reset via E-mail,
HTTP ListeningPan/Tilt Range Pan 0° to 360°,
Tilt 0° to 85°,
Rotate 0° to 360°NETWORK: Security Password Protection,
HTTPS Encryption,
IP Address Filter,
Digest AuthenticationProtocol TCP/IP,
UDP,
ICMP,
HTTP,
HTTPS,
DHCP,
DNS,
RTSP,
NTP,
UPnP UDP,
SSL/TLSAPI ONVIF CAMERA: Image Sensor 1/2.7" Progressive Scan CMOS Lens 1.44 mm Aperture F2.0 Lens Mount M12 Viewing Angle Horizontal FOV 180°,
Vertical FOV 180°,
Diagonal FOV 180°Day/Night Mechanism IR Cut Filter IR Working Distance 30m Minimum Illumination Color 0.1 Lux@F2.0, 0 Lux with IR Weatherproof Rating IP67 Vandal Resistant IK10 Digital Noise Reduction 3D DNR WDR DWDR VIDEO/IMAGE: Video Compression Main stream- H.265+/H.265/H.264+/H.264,
Sub-Stream- H.265/H.264Frame Rate & Resolutions Frame Rate- 1fps,
5fps,
10fps,
15fps,
20fps,
25fps,
30fps,
Resolution- 2560 × 1920, 2256 × 1696, 2048 × 1536, 1280 × 960Video Streaming Main Stream,
Sub-StreamImage Settings Mirror,
Brightness,
Contrast,
Saturation,
Sharpness,
Exposure,
WDR,
White Balance Adjustable by Client SoftwareImage Enhancement BLC/3D DNR/Prevent Overexposure to Infrared Light Video Bit Rate Main Stream 256 Kbps to 6 Mbps SMART FEATURE-SET: Smart Event Human & Vehicle Classification,
Intrusion Detection,
Line-Crossing Detection,
Human Detection,
Vehicle Detection,
Region Entering Detection,
Region Exiting Detection,
Object Abandoned Detection,
Object Removal DetectionBasic Event Motion Detection,
Camera Tampering Detection,
Exception (Illegal Login)Linkage Method Trigger Notification ONVIF,
HTTPSRegion of Interest 1 Region OTHERS: Certification CE/BSMI/VCCI/ONVIF Package Contents Network Camera,
Quick Start Guide,
Mounting AccessoriesEnvironment Operating Temperature -30°~60°
-
- » SHELVES#04473

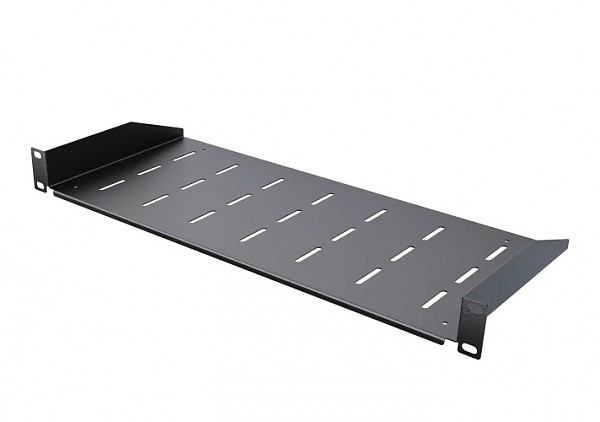

Punched shelf, 19", 200 mm, 1U, black
Purpose 19" cabinets Height 1U Depth 200mm Colour RAL 9005 (black)
#04478Shelf, 19", 450-610 mm, adjustable, 1U, black
A shelf attachable to the front and rear bars, for telecommunication cabinets with 19" rack bars spacing. Adjustable depth - 450-610mmPurpose 19" cabinets Height 1U Depth 380-560mm,
adjustableColour RAL 9005 (black)
#04358Sliding shelf, 19", 2U, 350mm, black
Reinforced, attached to the front and rear bars shelf meant for telecommunication cabinets with 19" rack bars spacing and 600mm depth. Allows for placing rather heavy equipment without mounting brackets in the cabinet.Purpose 19" cabinets with 350mm depth Height 2U Usable depth 350mm Colour RAL 9005 (black)
#04472Shelf, 19", 450-610 mm, adjustable, 1U. black
A shelf attachable to the front and rear bars, for telecommunication cabinets with 19" rack bars spacing. Adjustable depth - 750-910mmPurpose 19" cabinets Height 1U Depth 750-910mm,
adjustableColour RAL 9005 (black)
- » OTHER ACCESSORIES#04357
Blind cover with brush, 1U, black
The brush panel allows to insert wiring into the cabinet in front of the rack bars, while protecting the interior from dust.Purpose 19" cabinets Dimensions 1U Colour black Mounting rack bars with:
#02584 Bolt + nut for 19" cabinet, 4pcs
-
- » UTP PATCH CABLES CAT6A BENDABLE#03566
Patch cable UTP cat. 6a, 0.25 m, black, LSOH, ultra-flex
Patch cable, cat.6a, unshielded, black, 0.25mCable Shielding type / cat UTP cat 6a,
unshieldedCable construction 4x2 (1P*7/0.15CCA)*4 + LS0H Core diameter / AWG 32 Outer diameter 3.0mm,
LS0HConnector RJ45 plug / molded 8p8c unshielded,
gold plated pins,
flex bootImpedance 100 Mhz 100 +/-5 Ohm Frequency 100 MHz Working temperature 0°C - 60°C RoHS 2011/65/EU EN IEC 63000 Standards EN 50173-1,
ISO/IEC 11801,
IEC60332-1,
IEC-60603-7-5,
TIA/EIA 568B
#03565Patch cable UTP cat. 6a, 0.25 m, blue, LSOH, ultra-flex
Patch cable, cat.6a, unshielded, blue, 0.25mCable Shielding type / cat UTP cat 6a,
unshieldedCable construction 4x2 (1P*7/0.15CCA)*4 + LS0H Core diameter / AWG 32 Outer diameter 3.0mm,
LS0HConnector RJ45 plug / molded 8p8c unshielded,
gold plated pins,
flex bootImpedance 100 Mhz 100 +/-5 Ohm Frequency 100 MHz Working temperature 0°C - 60°C RoHS 2011/65/EU EN IEC 63000 Standards EN 50173-1,
ISO/IEC 11801,
IEC60332-1,
IEC-60603-7-5,
TIA/EIA 568B
#03564Patch cable UTP cat. 6a, 0.25 m, yellow, LSOH, ultra-flex
Patch cable, cat.6a, unshielded, yellow, 0.25mCable Shielding type / cat UTP cat 6a,
unshieldedCable construction 4x2 (1P*7/0.15CCA)*4 + LS0H Core diameter / AWG 32 Outer diameter 3.0mm,
LS0HConnector RJ45 plug / molded 8p8c unshielded,
gold plated pins,
flex bootImpedance 100 Mhz 100 +/-5 Ohm Frequency 100 MHz Working temperature 0°C - 60°C RoHS 2011/65/EU EN IEC 63000 Standards EN 50173-1,
ISO/IEC 11801,
IEC60332-1,
IEC-60603-7-5,
TIA/EIA 568B
#03548Patch cable UTP cat. 6a, 0.5 m, blue, LSOH, ultra-flex
Patch cable, cat.6a, unshielded, blue, 0.5mCable Shielding type / cat UTP cat 6a,
unshieldedCable construction 4x2 (1P*7/0.15CCA)*4 + LS0H Core diameter / AWG 32 Outer diameter 3.0mm,
LS0HConnector RJ45 plug / molded 8p8c unshielded,
gold plated pins,
flex bootImpedance 100 Mhz 100 +/-5 Ohm Frequency 100 MHz Working temperature 0°C - 60°C RoHS 2011/65/EU EN IEC 63000 Standards EN 50173-1,
ISO/IEC 11801,
IEC60332-1,
IEC-60603-7-5,
TIA/EIA 568B
-
